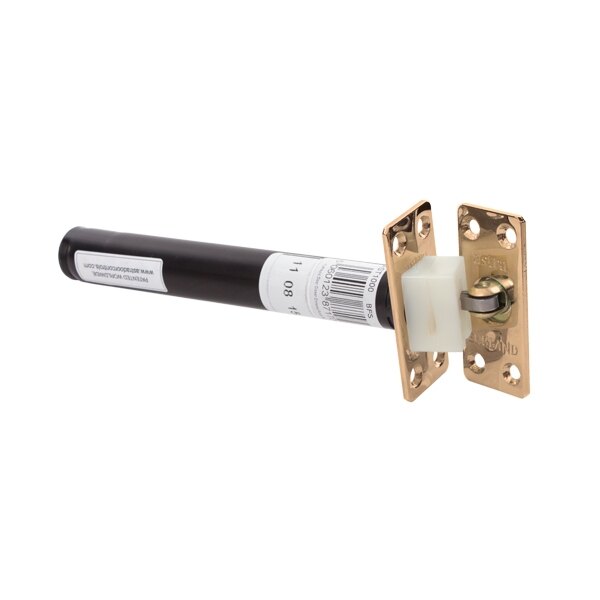

Astra 1000 Series Concealed Door Closers

Discontinued Product

This product has been discontinued and is no longer available to buy.

View Alternative Product
Product Overview

Designed for domestic use rather than on fire doors. The Astra 1000 series of concealed door closers are ideal for doors where an overhead closer would appear obtrusive or may be prone to vandalism. Fitted into the leaf of the door and the door frame, the Astra 1000 concealed door closers are discreet and low-key, have an adjustable latching action. Available with either a rectangular or rounded plate and in a range of finishes.

  • Tested in accordance with BS EN1634-1:2000 and BS EN163-1:1999
  • Suitable for internal doors of domestic applications (unsuitable for most fire doors due to low closing power)
  • Performance tested to 500,000 cycles
  • Power Size EN 2 - designed for doors weighing up to 40kg and measuring up to 850mm wide
  • Please note: fire doors require a door closer with a minimum power size of EN 3
  • Fixed closing speed
  • Latching action can be adjusted according to the resistance met from the latch: allows the door to fully close
  • Door closers allow 105° opening
  • Available in a range of high quality finishes - brass, polished chrome and satin chrome
  • Rectangular or rounded face plates available

Please note: The Astra concealed door closer is unsuitable for doors fitted with projecting or rising butt hinges fitted. A fitting jig and auger bit, available to purchase separately, are required for installation. These are not included.

Technical Data
Product Code
Satin Chrome, Rounded Plate FCAST2SR
Polished Chrome, Rounded Plate FCAST2CR
Brass, Rounded Plate FCAST2BR
Satin Chrome, Rectangular Plate FCAST2SS
Polished Chrome, Rectangular Plate FCAST2CS
Brass, Rectangular Plate FCAST2BS
Brand Astra
Adjustable Closing Speed

No

Adjustable Latching Action

Yes

Closing Force

Power Size EN 2 (4° to 0°): 935Nm

Dimensions (HxWxD)

Rounded Face Plate: 76x32x182mm (Incl. snap action adjuster)

Rectangular Face Plate: 74x32x182mm (Incl. snap action adjuster)

Opening Force

Power Size EN 2 (0° to 4°): 10.45Nm

Suitability

Internal domestic doors (no smoke seals)

Weight 0.50kg
Product Datasheets

Customer Reviews

1 customer has given this product an overall rating of 3 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 3 / 5 Stars

Reviewed by: D E

OK but not as good as I expected I expect the closure to be near to silent but there is a rasping sound as the door closes. Not what I would have expected at the price. Also does not completely close the door

Published on: 27th June 2017
