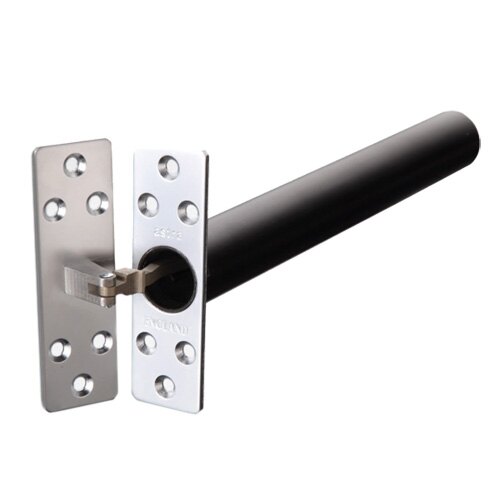

Astra 3003 Series Concealed Fire Door Closers

4.7 out of 5 stars
Choose a product To see stock availability
From: £150.23 inc VAT
£125.19 ex VAT
Product Overview

Manufactured in the UK, the Astra 3003 concealed door closer is suitable for door leafs up to 950mm wide. The closer is tested and certified to BS EN 1634-1 for use in 30 and 60 minute fire rated doors. Concealed into the door leaf and frame, the Astra 3003 reduces the risk of vandalism and creates an unobtrusive solution, ideal for doors to student accommodation or office spaces.

  • Suitable for:
    • Internal single action doors
    • Doors weighing up to 60kg and measuring up to 950mm wide - EN size 3
    • Latched and unlatched doorsets
    • Left and right hand opening doors
  • CE and UKCA marked
  • Certified to BS EN 1634-1: 2000 and BS EN 1363-1: 1999
  • Complies to EN 1154: 1997 + A1: 2002
  • Suitable for 30 and 60 minute fire rated doors
  • Conforms to DDA standards BS 8300
  • Concealed closer with adjustable features to suit your doors
  • Allows the door to open up to 105°
  • Endurance tested to 500,000 closing cycles
  • Available with a rectangular or rounded plate in a choice of finishes
  • Closer should be fitted by a competent joiner / craftsman

Please note: The Astra concealed door closers is unsuitable for doors fitted with projecting or rising butt hinges fitted. An installation kit, comprising of a fitting jig and auger bit is required for installation, and are available to purchase separately. These are not included.

Technical Data
Product Code

Rectangular Plate, Brass:  FCAST3BS

Rectangular Plate, Polished Chrome:  FCAST3CS

Rectangular Plate, Satin Chrome:  FCAST3SS

Rounded Plate, Brass:  FCAST3BR

Rounded Plate, Polished Chrome:  FCAST3CR

Rounded Plate, Satin Chrome:  FCAST3SR

Brand Astra
Adjustable Closing Speed

Yes

Adjustable Latching Action

Yes

Dimensions

Rectangular Plate Height: 106mm

Rounded Plate Height: 110mm

Rectangular / Rounded Plate Width: 32mm

Rectangular / Rounded Plate Depth: 3.5mm

Closer Body Diameter: 30mm

SA Adjuster to First Fixing Plate Length: 273mm (-5mm / +15mm for Latching Action)

EN Size

Power Size 3

Weight 0.75kg
Product Datasheets

Pricing & Availability

Model Stock Price
Brass
Rectangular Plate
Product Code: FCAST3BS
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£150.23 inc VAT

£125.19 ex VAT

Brass
Rounded Plate
Product Code: FCAST3BR
Stock Level:
2 in stock Expected dispatch: Today
Price:

£170.27 inc VAT

£141.89 ex VAT

Satin Chrome
Rectangular Plate
Product Code: FCAST3SS
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£150.71 inc VAT

£125.59 ex VAT

Satin Chrome
Rounded Plate
Product Code: FCAST3SR
Stock Level:
Available for pre-order Expected dispatch: 11th Nov
Price:

£170.27 inc VAT

£141.89 ex VAT

Polished Chrome
Rectangular Plate
Product Code: FCAST3CS
Stock Level:
1 in stock Expected dispatch: Today
Price:

£151.67 inc VAT

£126.39 ex VAT

Polished Chrome
Rounded Plate
Product Code: FCAST3CR
Stock Level:
Available for pre-order Expected dispatch: 11th Nov
Price:

£171.47 inc VAT

£142.89 ex VAT

Delivery Options

The following delivery options are available on this product.

Standard Delivery

£3.19 inc VAT - Orders will be delivered in 2-3 working days with Evri

Next Working Day Delivery

£6.19 inc VAT - Orders will be delivered the next working day with Evri

For dispatch today order within

Customer Reviews

11 customers have given this product an overall rating of 4.7 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5 Stars

Reviewed by: J L

Solid material and well made Only problem unaware there was no template included to cut out the hole needed for the door to insert the piston. Should have mentioned this in the description when purchasing to buy one separately.

Published on: 17th April 2024

Rating: 5 / 5 Stars

Reviewed by: J H

Very sturdy product Excellent service

Published on: 16th October 2023

Rating: 5 / 5 Stars

Reviewed by: J K

Best door closer for entrance door.

Published on: 5th June 2023
