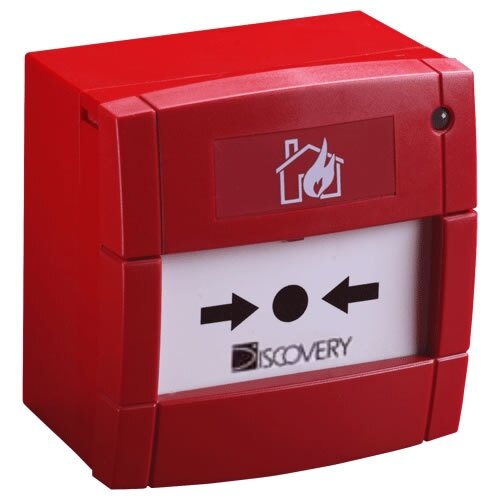

Apollo Discovery Manual Call Point with Isolator

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

The Apollo Discovery red manual call point features a built-in short circuit isolator and complies with EN54-11:2001. Providing a way to manually activate an addressable fire alarm system, the Apollo Discovery call point is supplied with a resettable element which negates the need to purchase replacement glass after each use. The manual call point has a bi-coloured LED indicator and is supplied with clip-on terminal blocks and a connector for ease of installation.

  • Complies to EN54-11:2001
  • Provides a means of manually activating an addressable fire alarm system
  • Suitable for use in conjunction with Morley DXc, Kentec Syncro AS and XFP alarm panels
  • Fitted with a built-in short circuit isolator
  • Supplied with a resettable element and backbox for surface mounting
  • Single bi-coloured LED:
    • Red lit LED - when the call point has been activated and sent into alarm
    • Amber/yellow lit LED - indicates a short-circuit of the loop wiring
  • Supplied with clip-on terminal blocks and a connector for ease of installation
Technical Data
Product Code FLAPDISMCPI
Brand
Current Consumption

When LED illuminated: 4mA

Quiescent: 100?A

Power-up surge: 1mA

Dimensions

Backbox: 87x87x32mm

Manual call point: 89x93x26.5mm

IP Rating

IP24D

Operating Temperature

-20 °C to +60 °C

Operating Voltage

17-28V DC

Relative Humidity

0% to 95%

Weight 0.16kg
Product Datasheets
