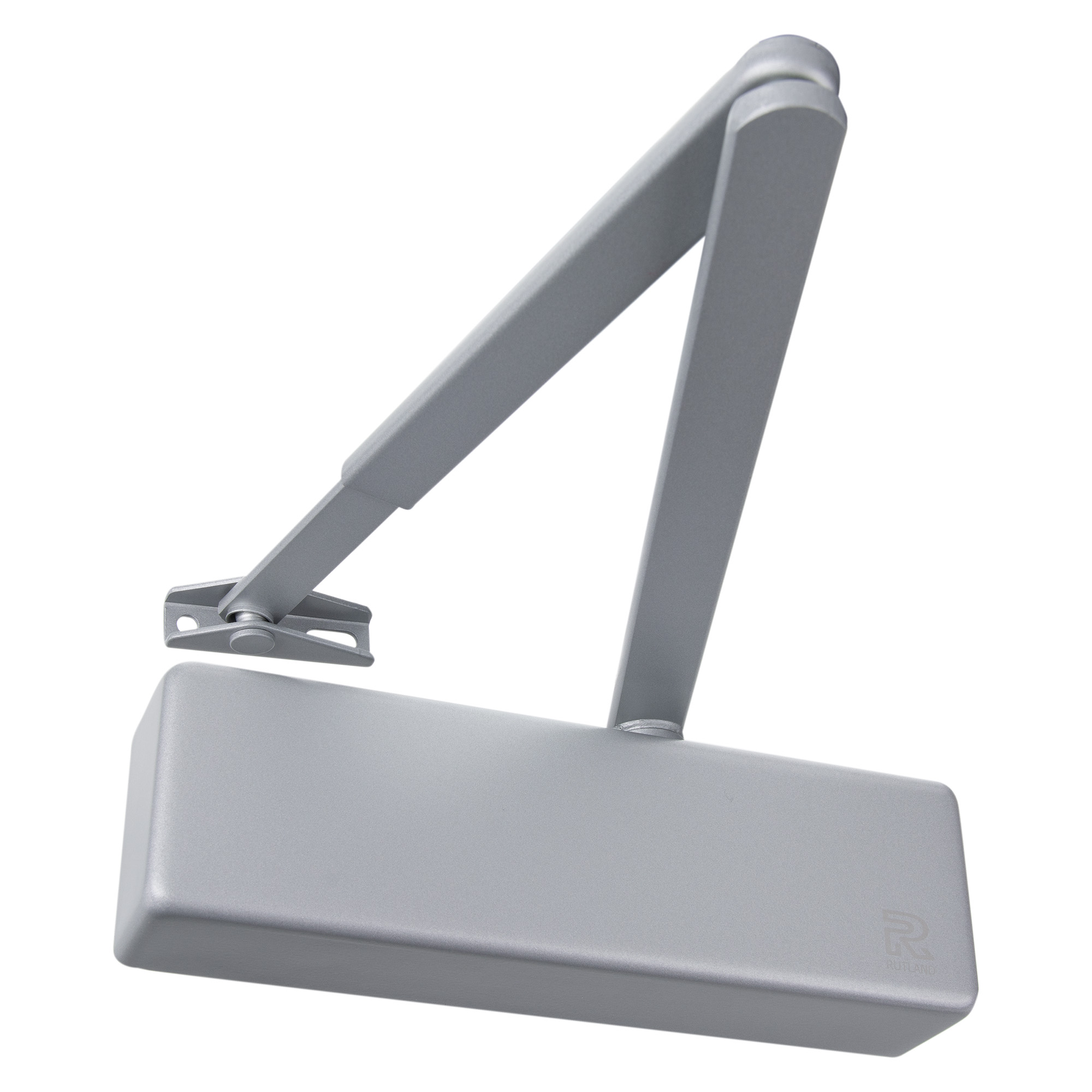

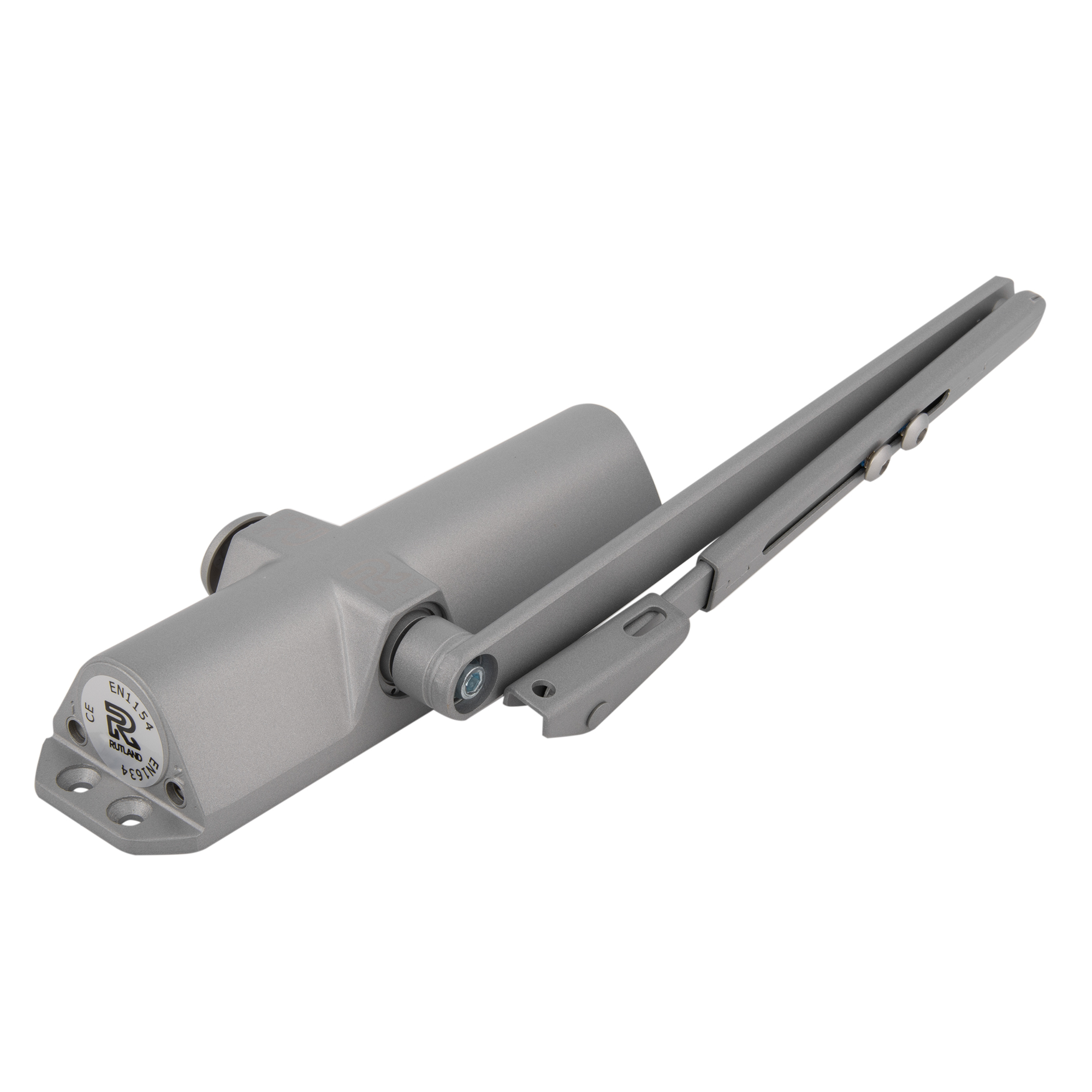

Rutland TS3204 Overhead Door Closer - EN 3-4

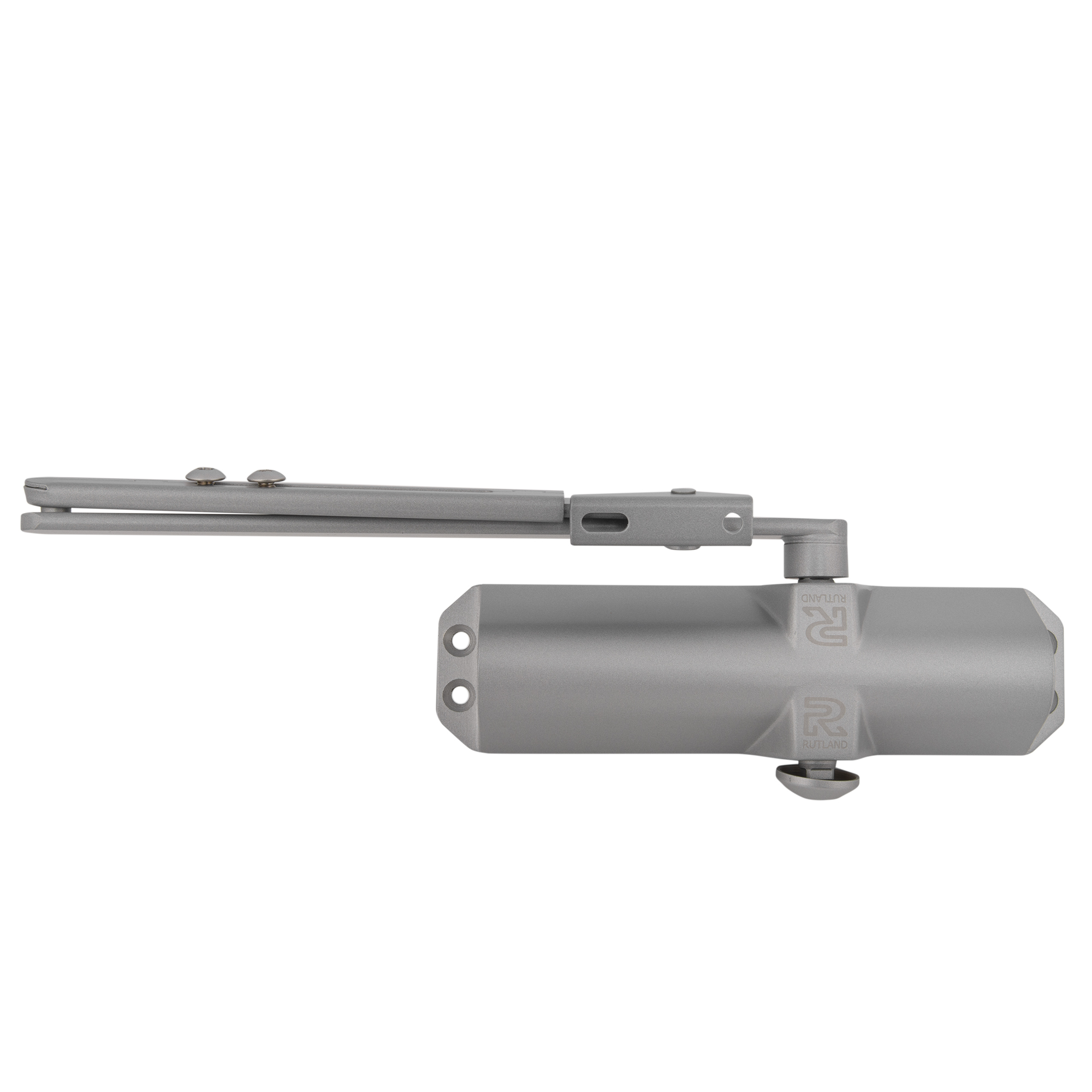

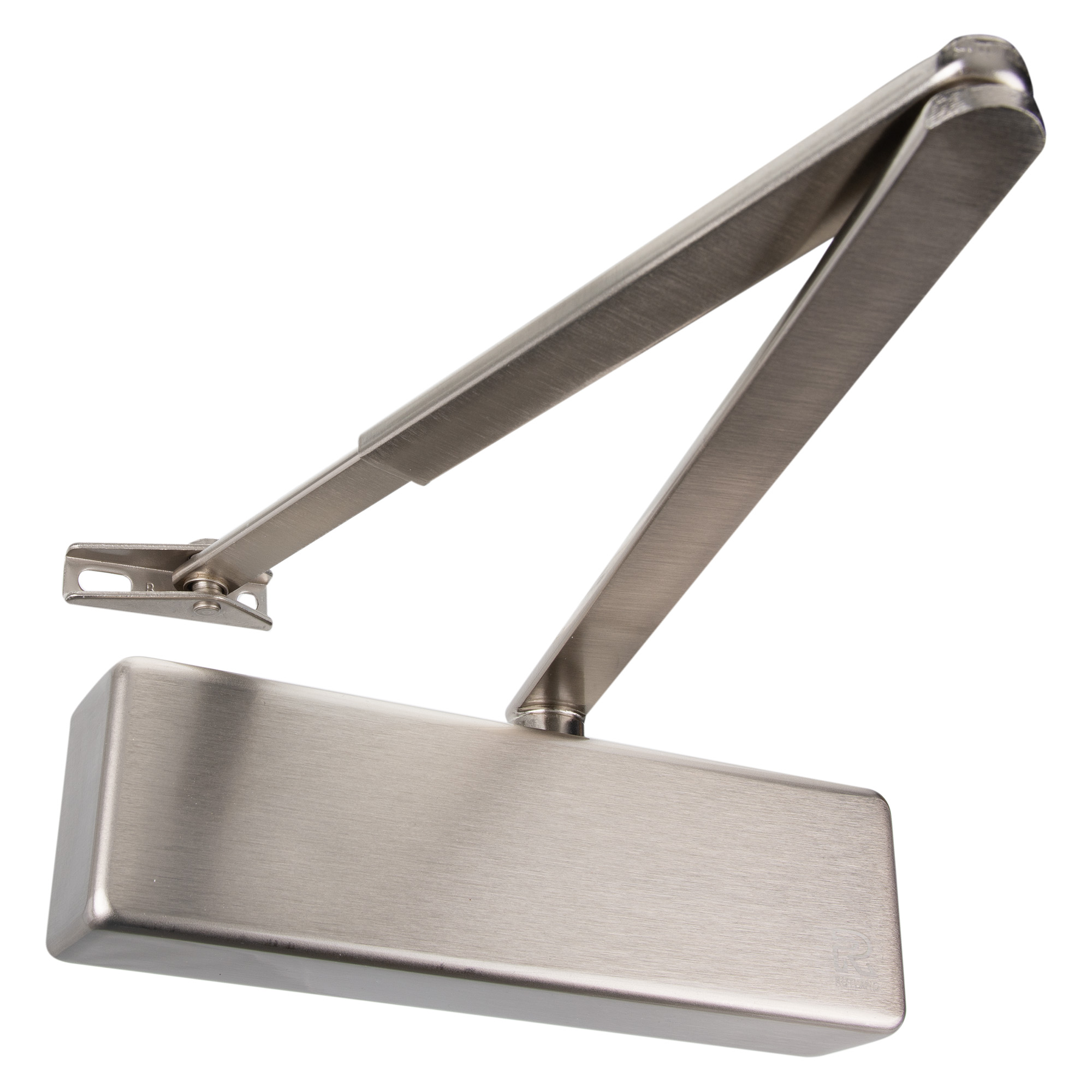

The Rutland TS3204 overhead door closer is designed for doors up to 1100mm wide and 80kg in weight. Offering EN power size 3–4 performance, it can be mounted in Fig 1 or Fig 66 configurations to suit a variety of installation requirements. Supplied with a fitting template, the closer ensures accurate installation aligned with the specified power size. Available in silver and satin nickel finishes.

• Suitable for:
  • Suitable for single action internal doors
  • For doors up to 1100mm wide / 80kg (EN power size 3–4)
  • Installation in Fig 1 and 66 configurations

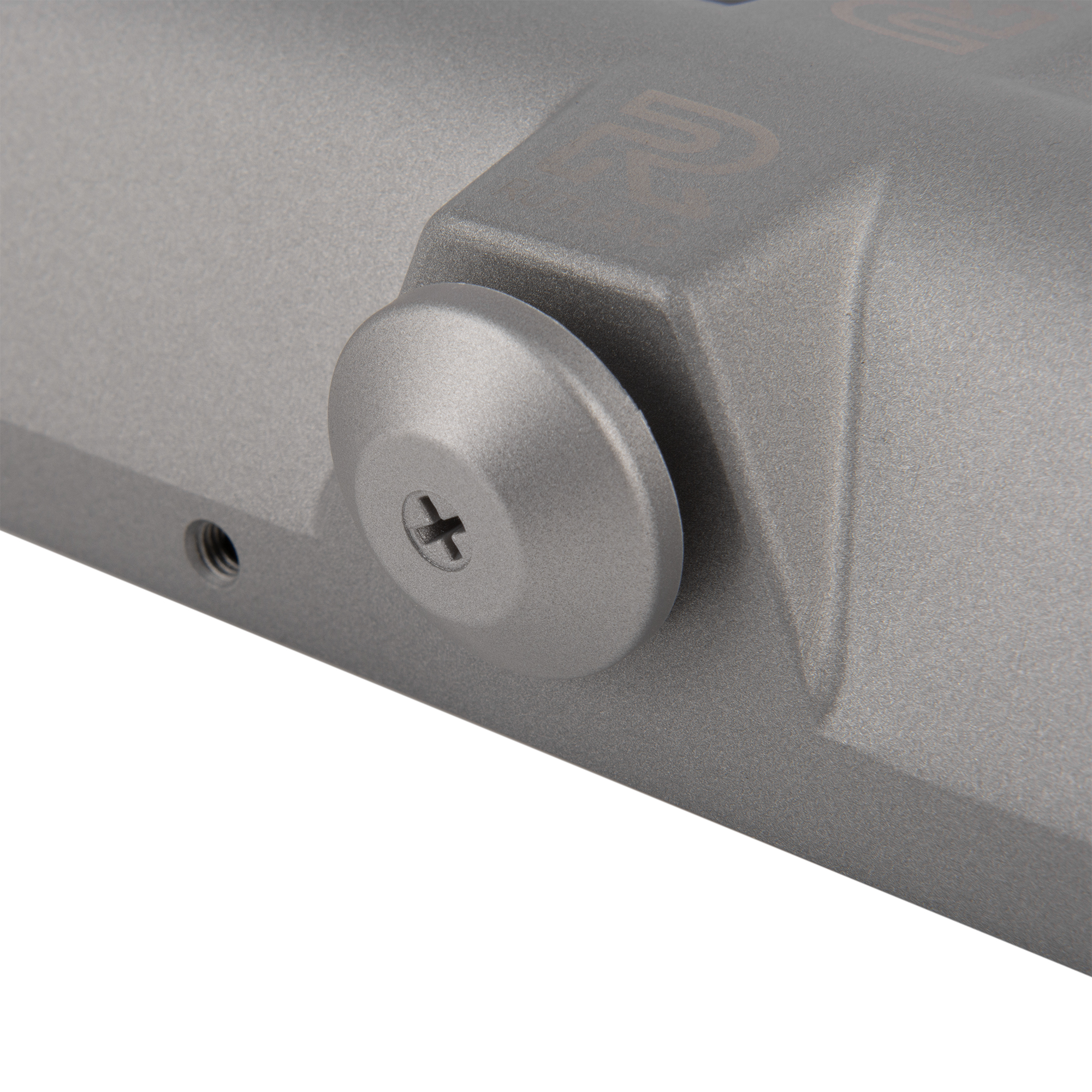

• Adjustable closing speed, controls how fast the door closes
• Latching action, allows you to change the speed the door closes during the last 15° of the closing cycle
• Certified approved for fire rated timber doors from 30 minutes up to 120 minutes - CF 6018

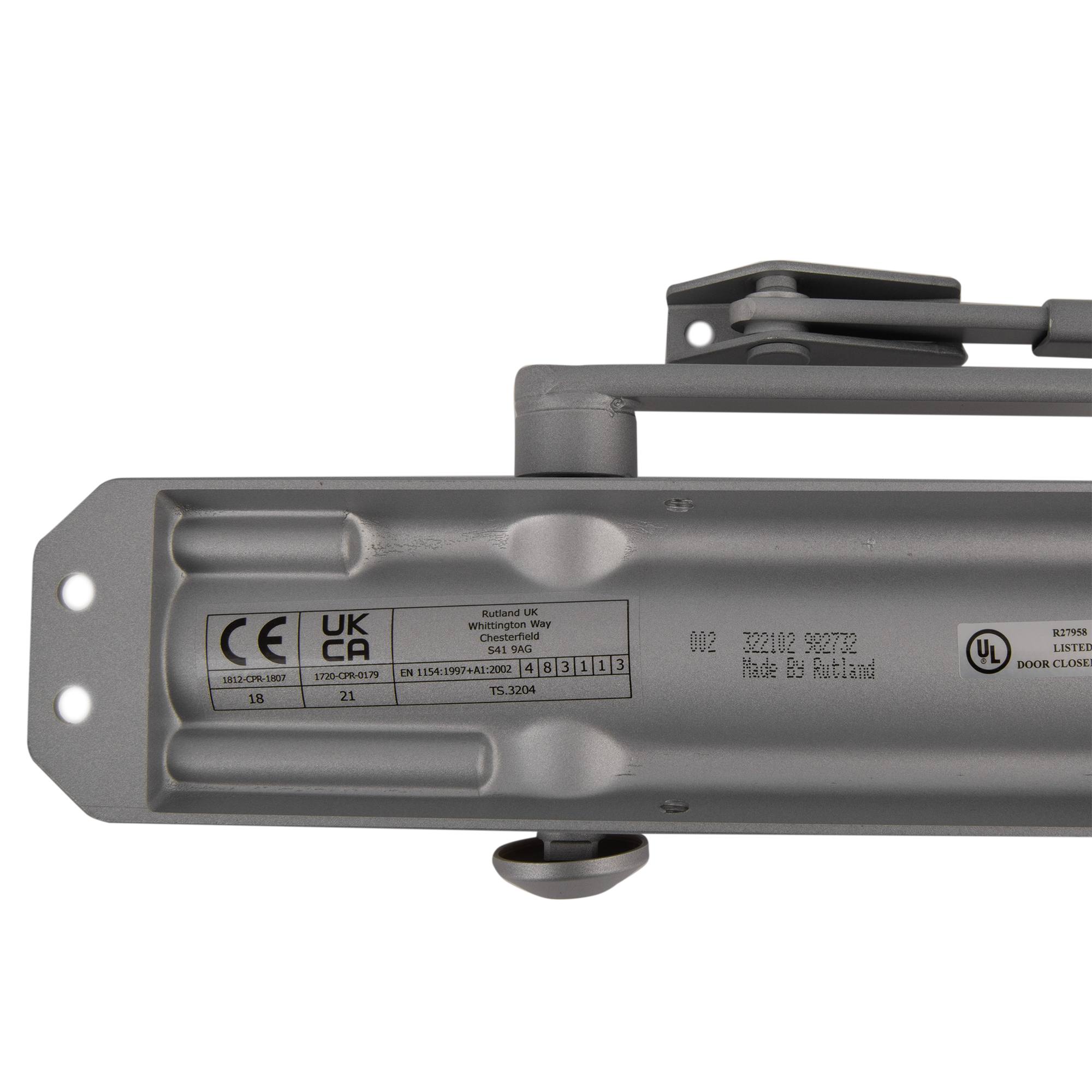

• CE and UKCA marked
• Quick and easy installation with handy template
• 25 Year Warranty
• Full classification
  • Fig 1 installation: 3 | 8 | 4 | 1 | 1 | 3
  • Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 3
