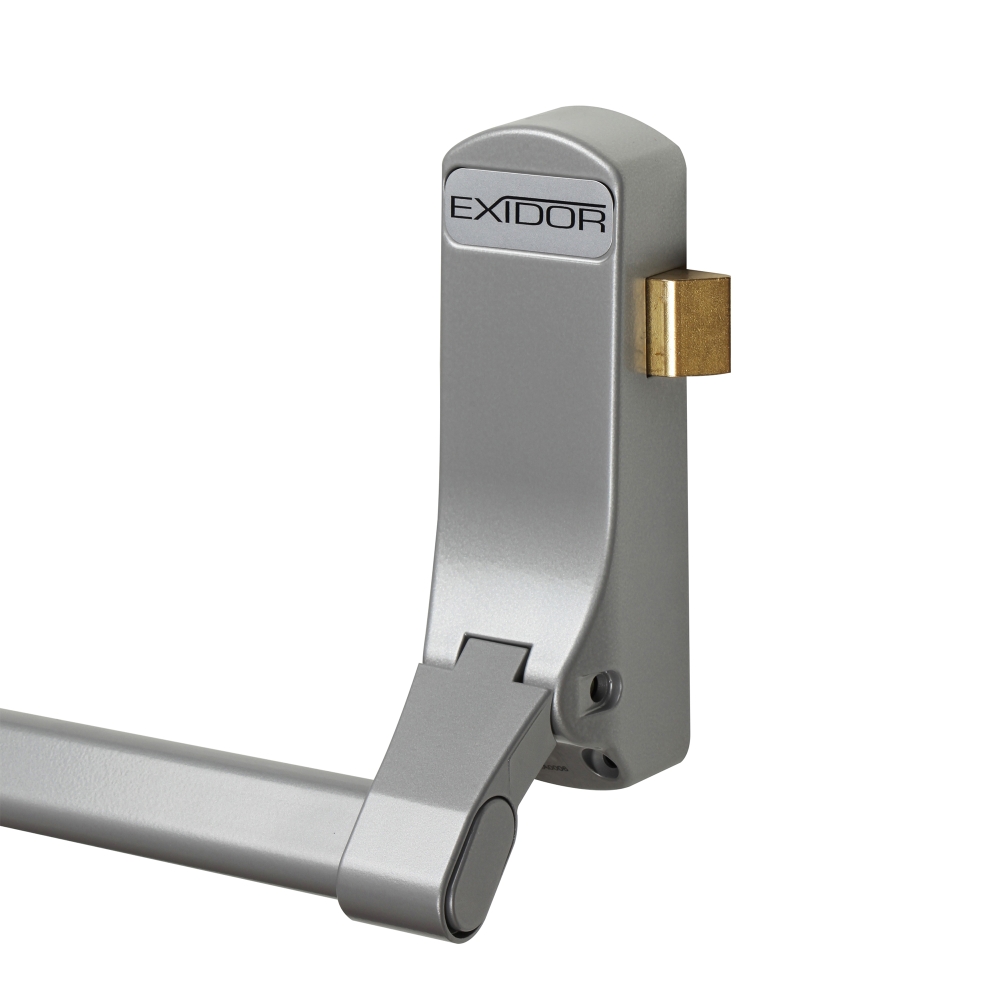

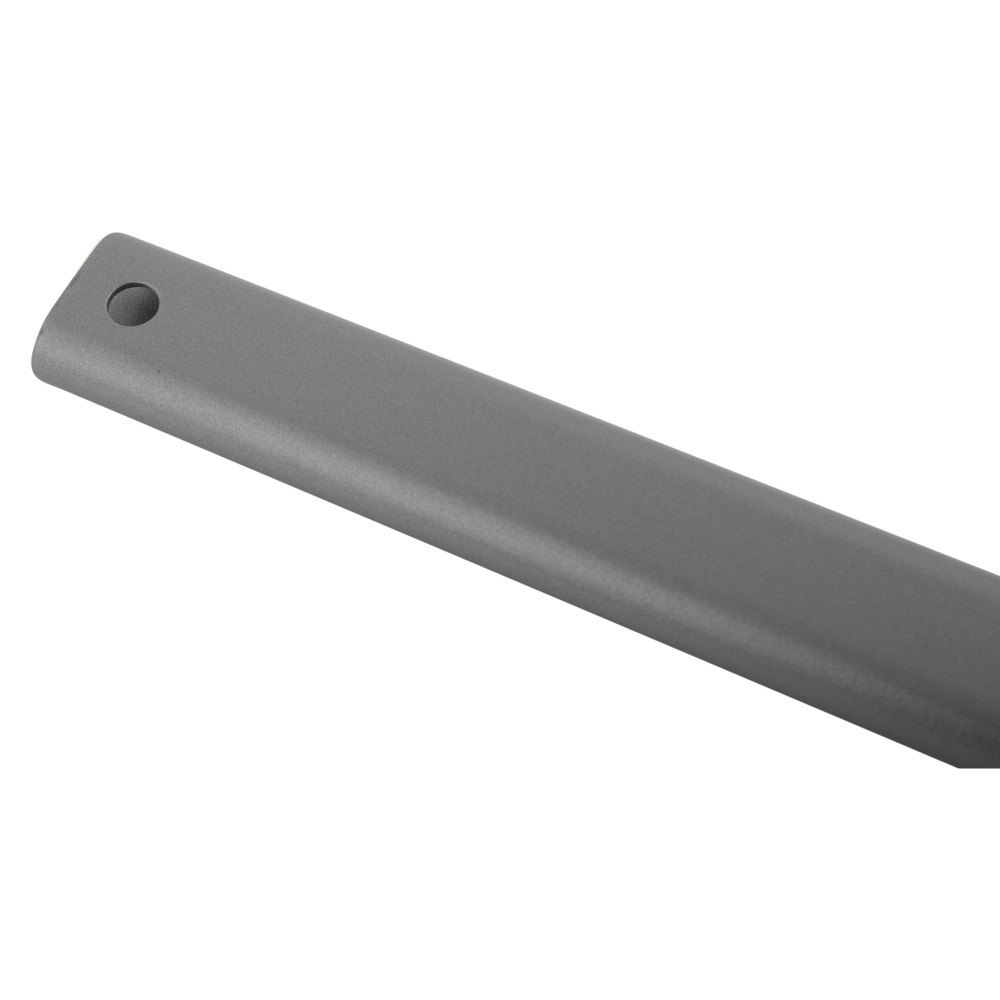

Exidor 296 Single Door Panic Bar with Latch
Panic bars are fitted to fire exit doors and fire doors on escape routes. They allow the rapid opening of doors without keys or handles in a panic situation. They are required in all buildings with public access or where staff might be unfamiliar with the escape route. Exidor panic bars are manufactured in the UK to the very highest standards. They can be used on both timber and steel doors, and are supplied non-handed as standard. Exidor panic bars are subject to rigorous third party testing before being released, and fully conform to and are CE marked as well as Certifire accredited. The manufacturer's confidence in the build quality of this product is underlined by their 10 year warranty period.

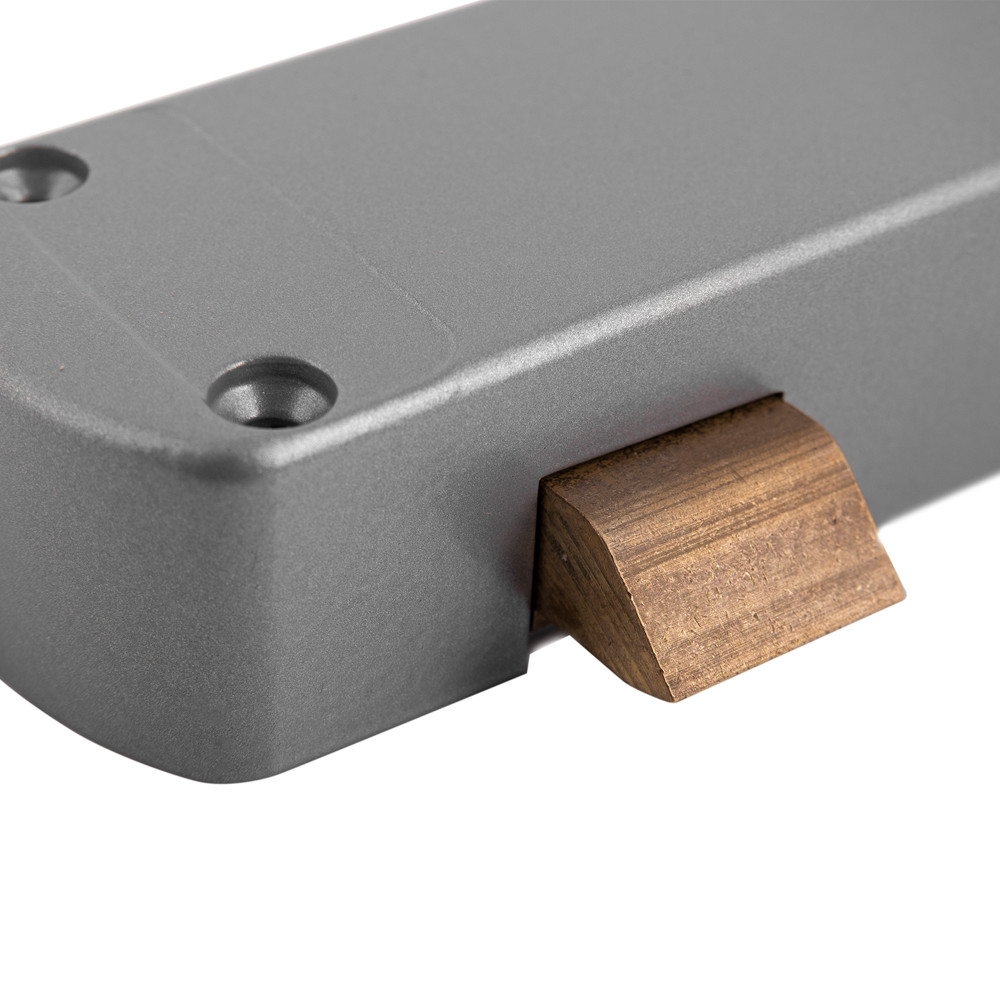

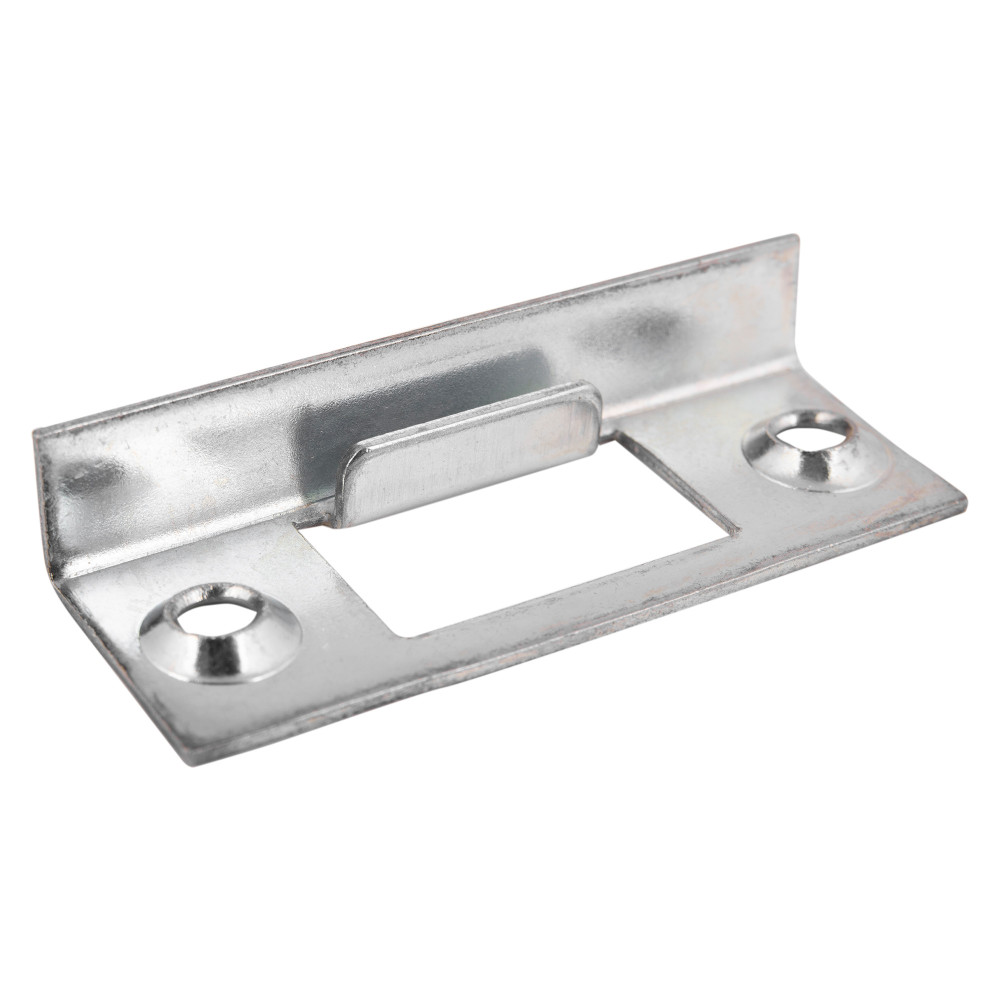

- Single door panic bar with latch
- Available with the following optional outside access device options:
- Exidor 302 Outside Access Device With Knob
- Exidor 322 Outside Access Device With Lever
- Exidor CL1 Mechanical Code Lock
- Entirely UK manufactured (Exidor CL1 option not included)
- Suitable for use in public or private buildings
- Non-handed - suitable for left & right-handed doors
- Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
- For use on outward opening final exit doors
- Suitable for use on fire and smoke door assemblies as tested in accordance with
- Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
- Designed for doors weighing no more than 200kg
- 10 year manufacturer's warranty
- Supplied with fixings for wooden doors as standard

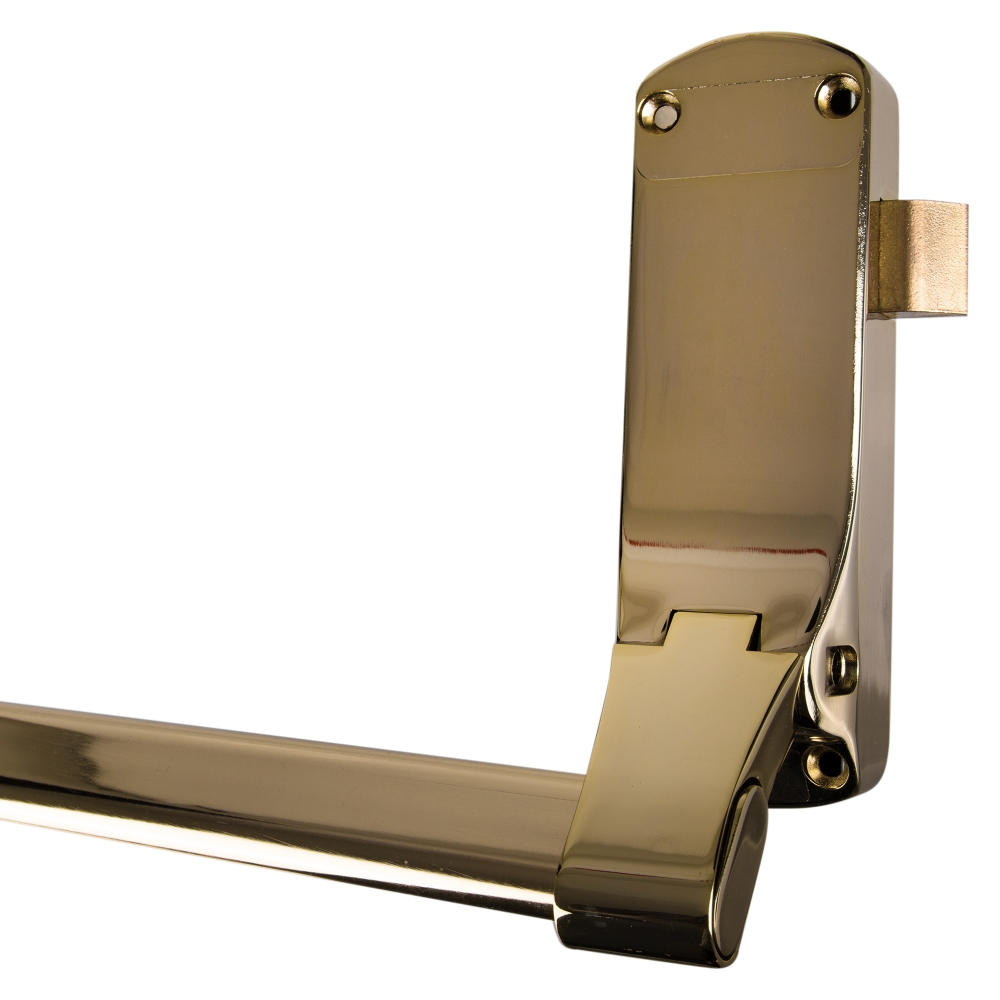

- Also available in a Polished Brass finish (Push Bar Only)
- CE marked and Certifire accredited
Customer Reviews (14)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
M S
Published on
1st October 2024
Reviewed by
H T
Published on
19th March 2024
Well made kit,easy to install.
Telephone support was very effective and cheerful.
Reviewed by
V W
Published on
13th August 2023
Top quality, easy to fit.
Will soon order one for other door.
Reviewed by
R A
Published on
25th July 2023
They work exactly and well every time
Reviewed by
K F
Published on
14th January 2023
Great service easy fit and well made products
Technical Data
| Product Code | EXD296 |
|---|---|
| Brand | Exidor |
| Category | Class 3 (High Frequency Of Use) |
| Colour | Silver |
| Compatible Products | Exidor 302 Outside Access Device With Knob |
| Exidor 322 Outside Access Device With Lever | |
| Exidor CL1 Mechanical Code Lock | |
| Approvals & Markings | CE Marked |
| Compliance | BS EN 1125: 2008 |
| BS EN 1634-1 | |
| BS EN 179 | |
| Certifire - CF389 | |
| Device Type | Push Bar |
| Door Type | Final Exit Doors |
| Single Door | |
| Outward Opening Single Doors | |
| Environmental Suitability | Offices |
| Public Buildings | |
| Public Settings | |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Handing | Non-Handed (Site Reversible) |
| Manufactured in the UK | Yes |
| Material | Metal |
| Maximum Door Weight | 200kg |
| Maximum Door Width | 1220mm |
| Suitability | Timber Doors |
| Steel Doors | |
| Indoor | |
| Warranty | 10 Years |
| Weight | 2.90kg |
| Datasheets |
Outside Access Devices
Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the five devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 294 single door panic bar (exc. Exidor CL1 which is only compatible with escape hardware with latches).

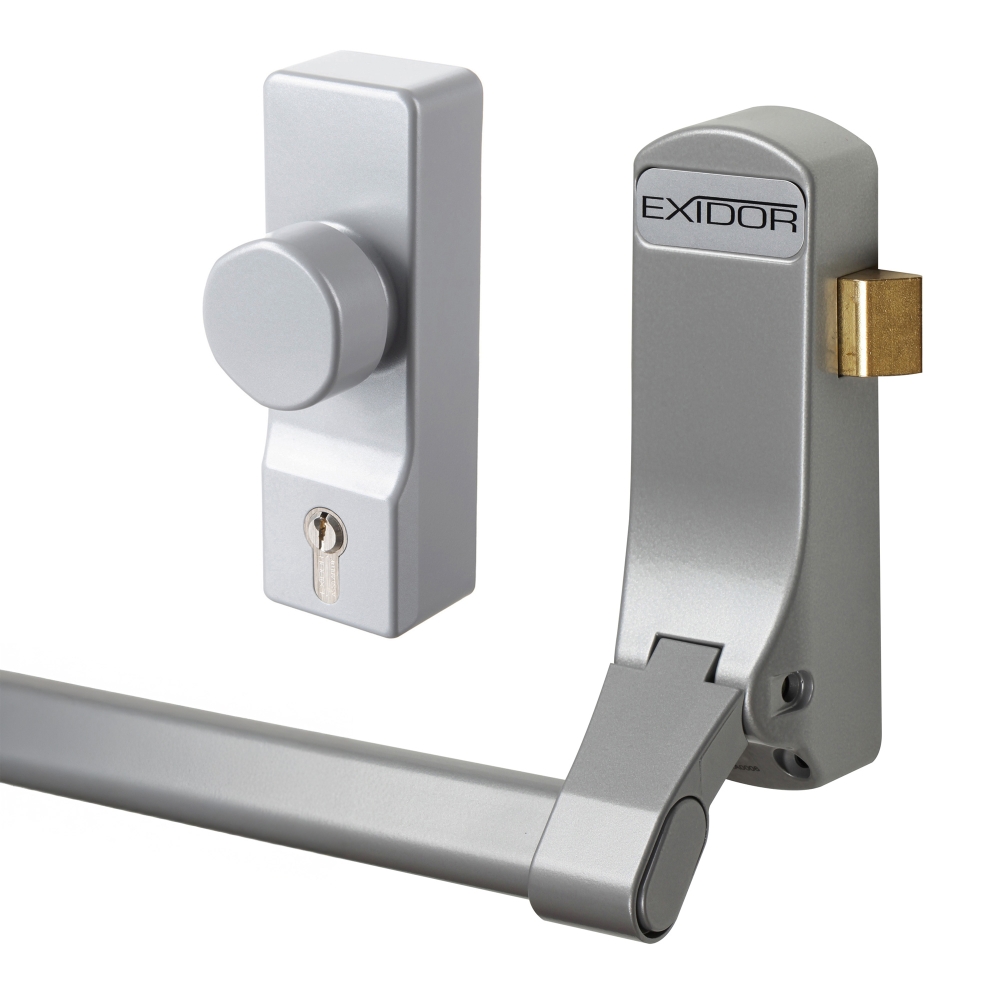

Exidor 302 Outside Access Device With Knob
This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.

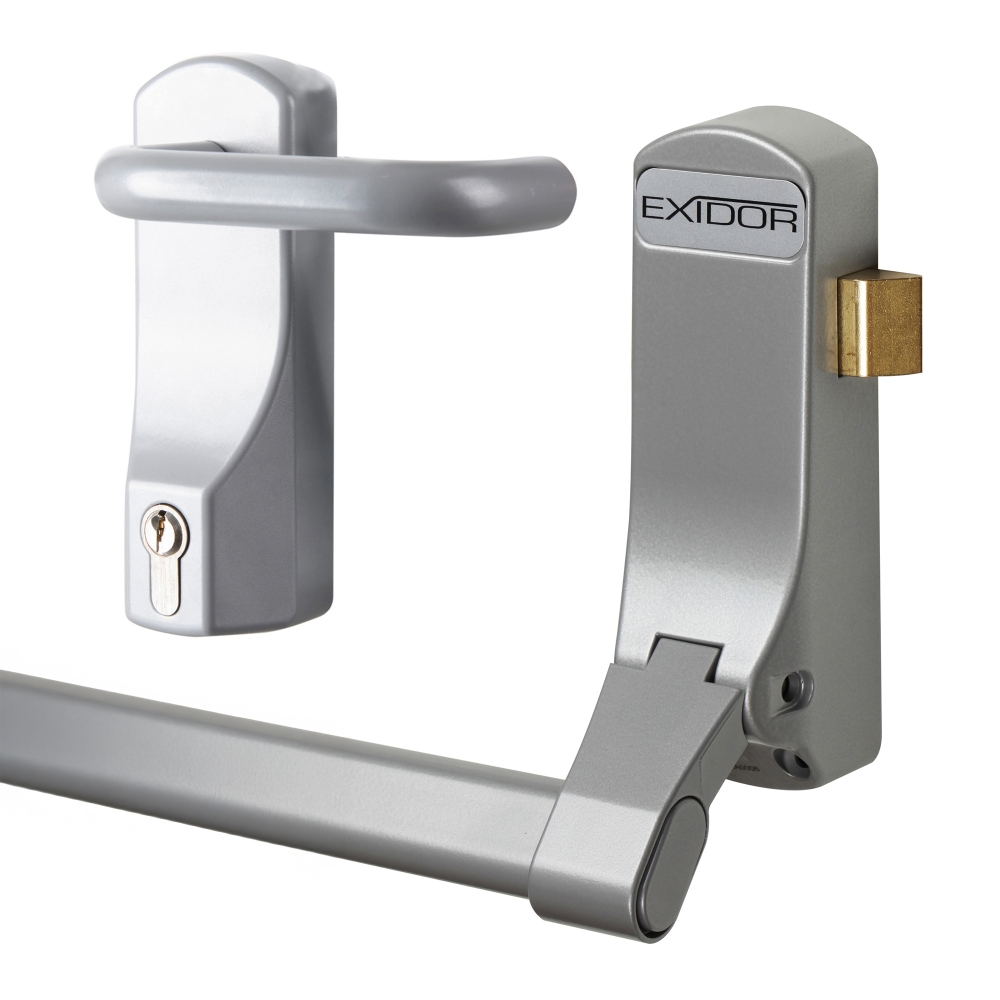

Exidor 322 Outside Access Device With Lever
This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.

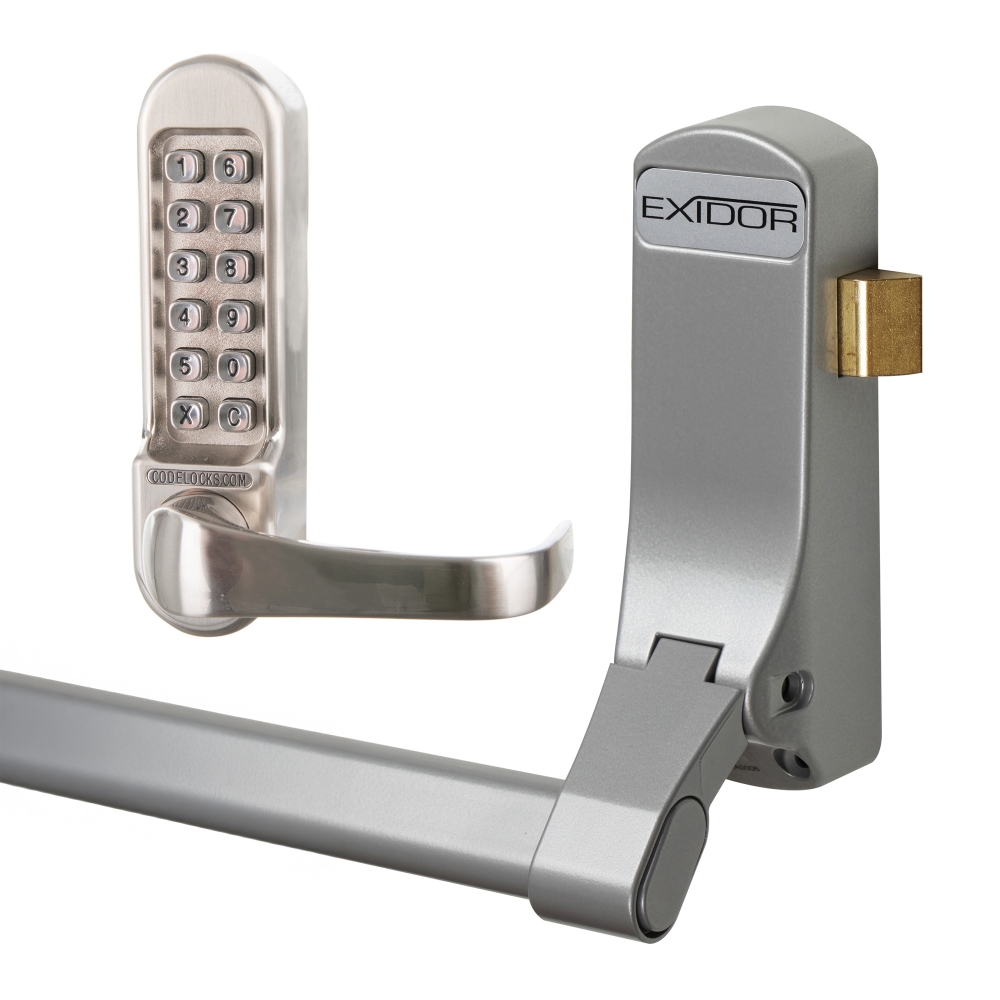

Exidor CL1 Mechanical Code Lock
This device features a lever style handle and 12 stainless steel mechanical buttons allowing 1,584 different lock combinations. This code lock is suitable for use on fire exit doors when used in conjunction with Exidor panic hardware.
Exidor 326 Slimline Outside Access Device With Knob
Similarly to the 302, this device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
Exidor 325 Slimline Outside Access Device With Lever
Similarly to the 322, this device features a lever style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
