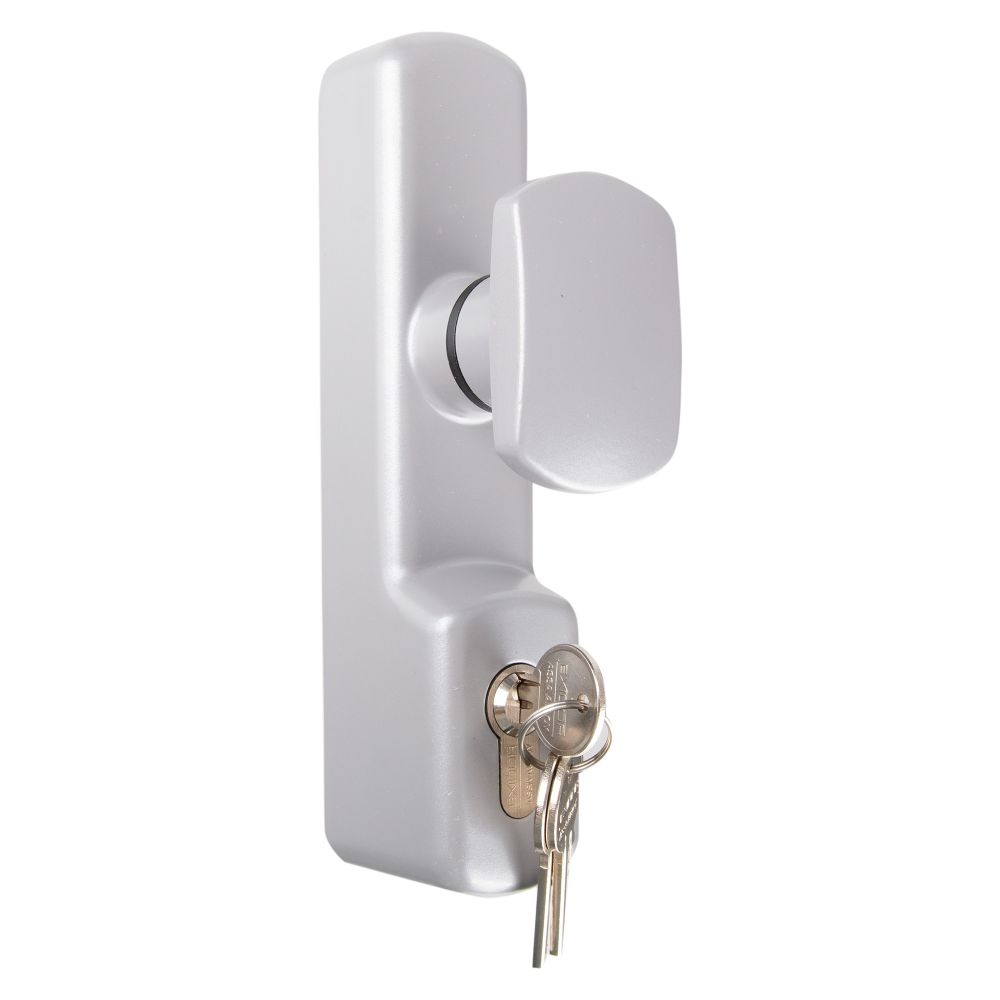

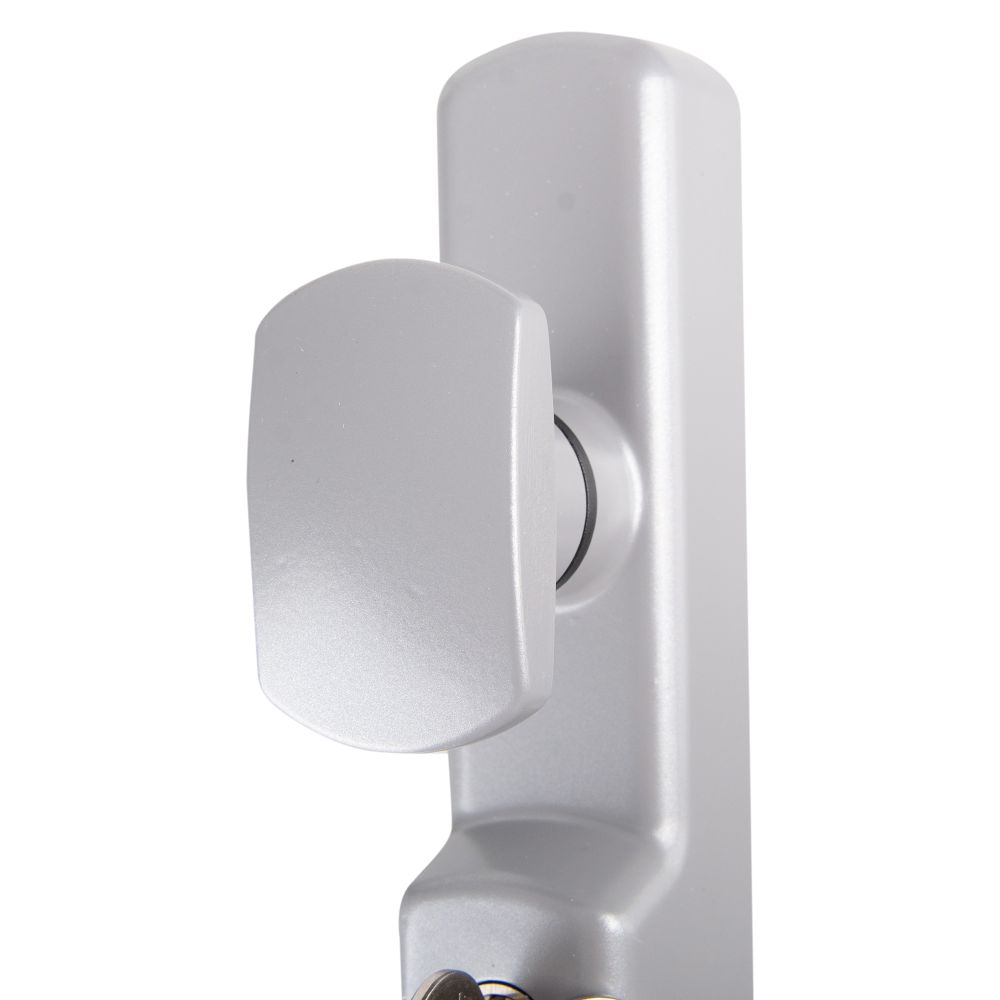

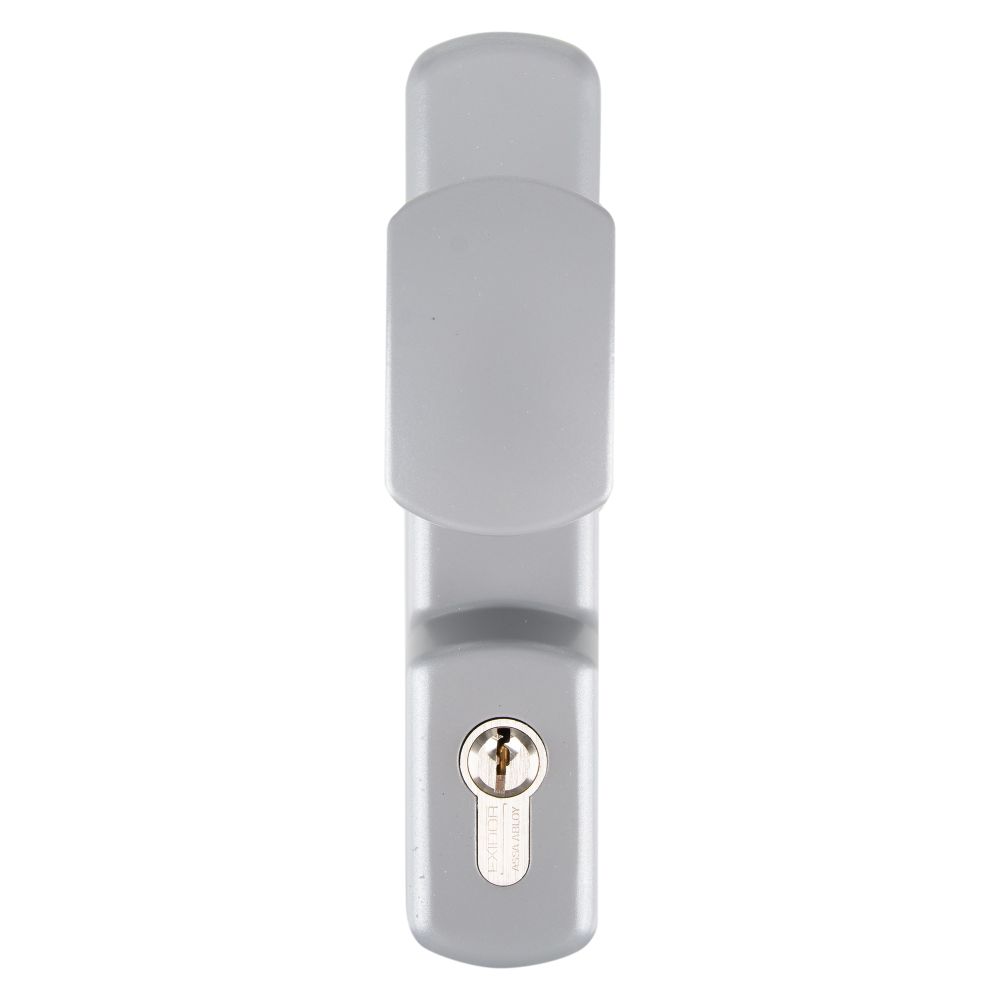

Exidor 326 Outside Access Device with Knob
The Exidor 326 is a robust knob operated outside access device designed to provide controlled entry through escape doors while maintaining safe and unobstructed emergency egress. Suitable for use with Exidor 200 and 300 series panic and emergency exit hardware, it allows authorised access from the outside without compromising compliance or security.
- Ideal for low traffic access points such as staff entries
- Knob operated outside access device for use on final exit doors
- Compatible with Exidor 200 and 300 series emergency exit hardware
- Rotating the knob retracts internal bolts or latches – when released returns to rest position automatically
- Locking the cylinder prevents external access but does not restrict emergency exit

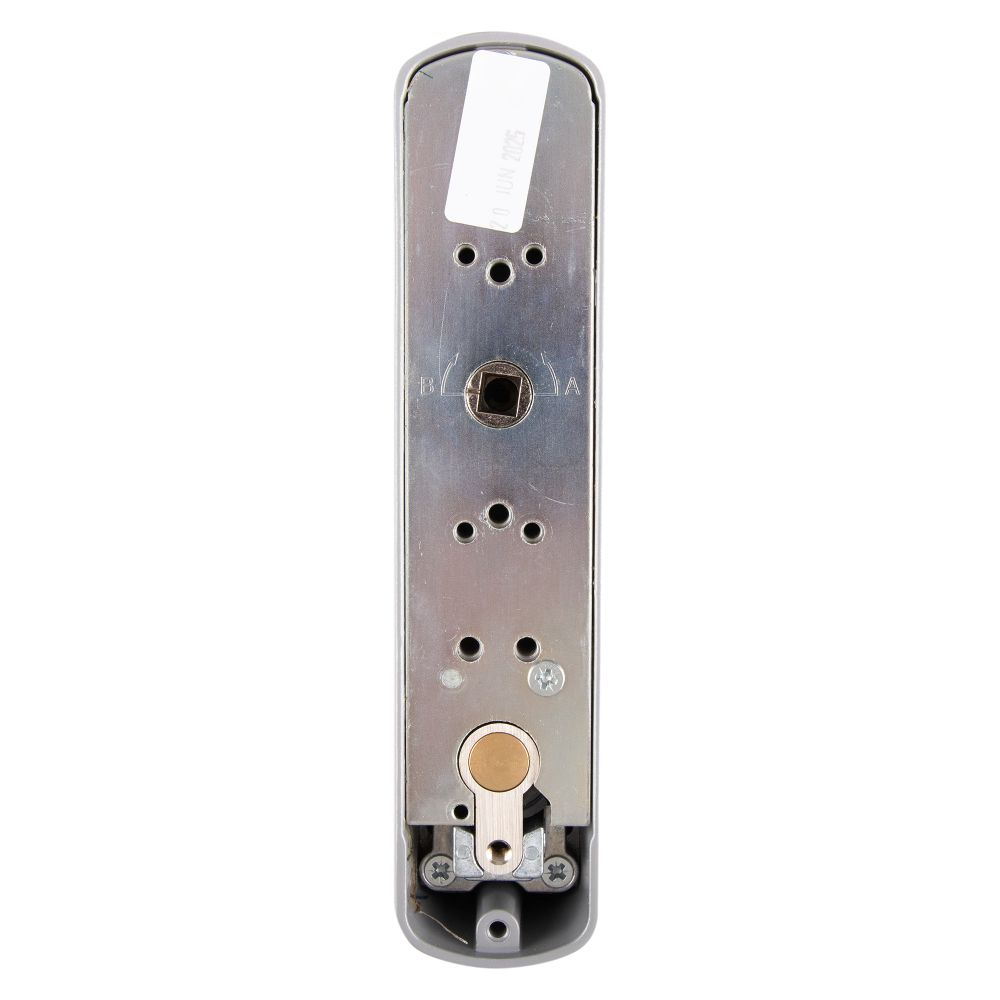

- Bolt through fixings suitable for steel or timber doors up to 65mm thick
- Designed for low traffic access points such as staff entrances

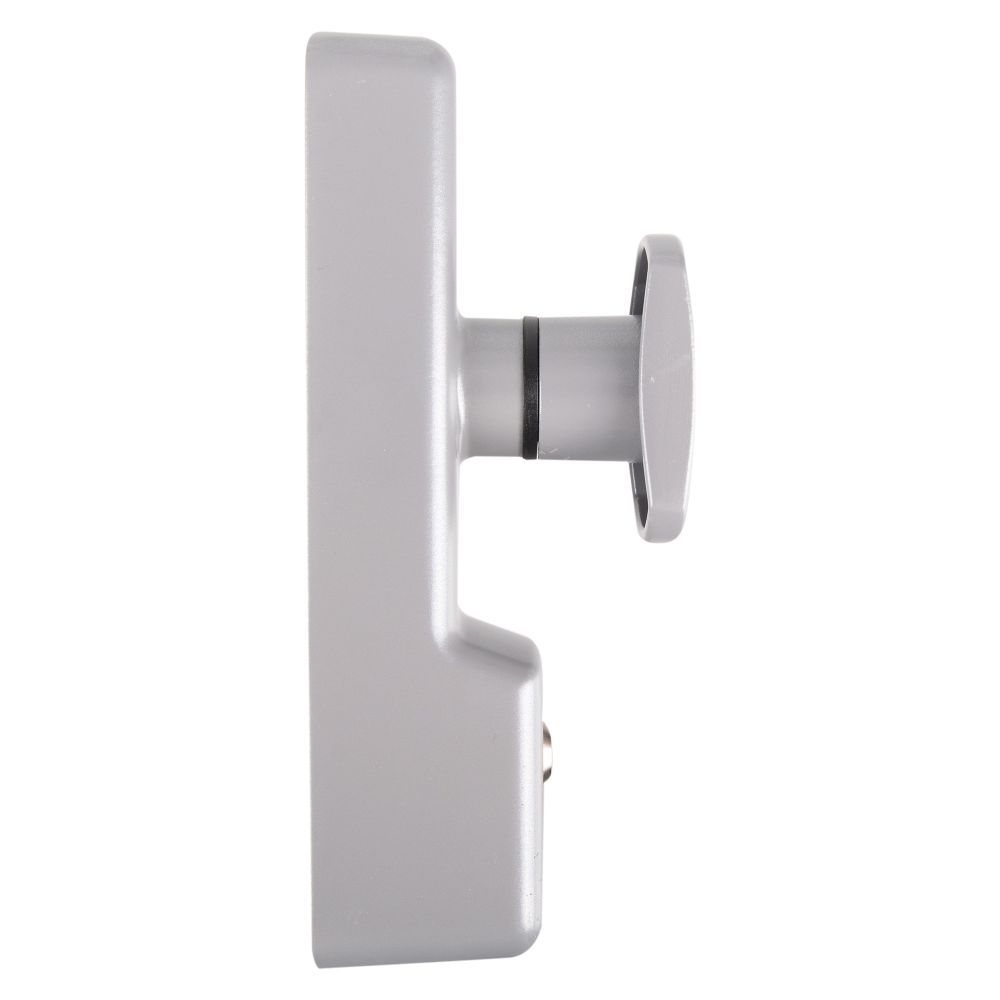

- Surface mounted unit with a 76 mm projection from the door face
- Manufactured in the UK

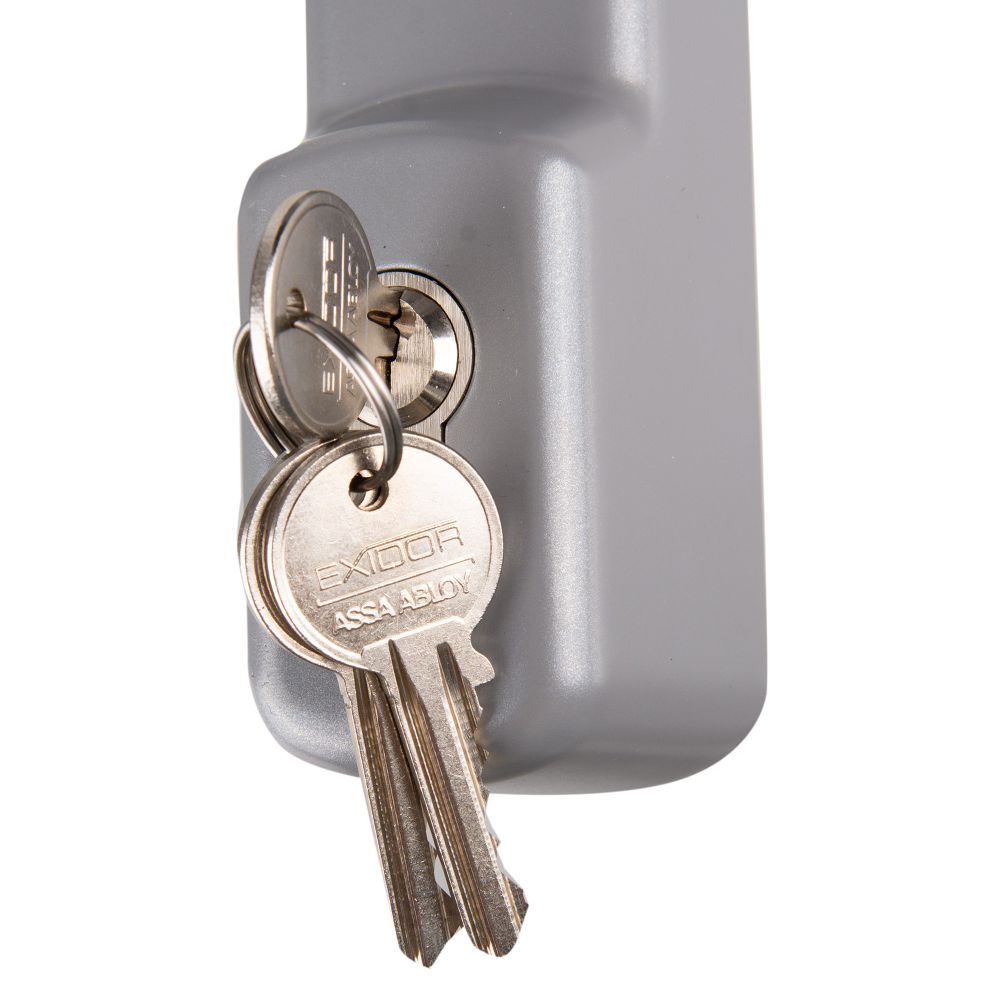

- Supplied with 3 keys as standard
- 10-year manufacturer’s warranty
- CE marked and UKCA marked
- Certifire accredited – certified as an approved accessory to EN 1125 and EN 179 standards
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | EXD326EC |
|---|---|
| Brand | Exidor |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Colour | Silver |
| Compatible Products | Exidor 200 & 300 Series |
| Compliance | BS EN 1634 |
| Device Type | Outside Access Device |
| Environmental Suitability | Workplace |
| Finish | Powder Coated |

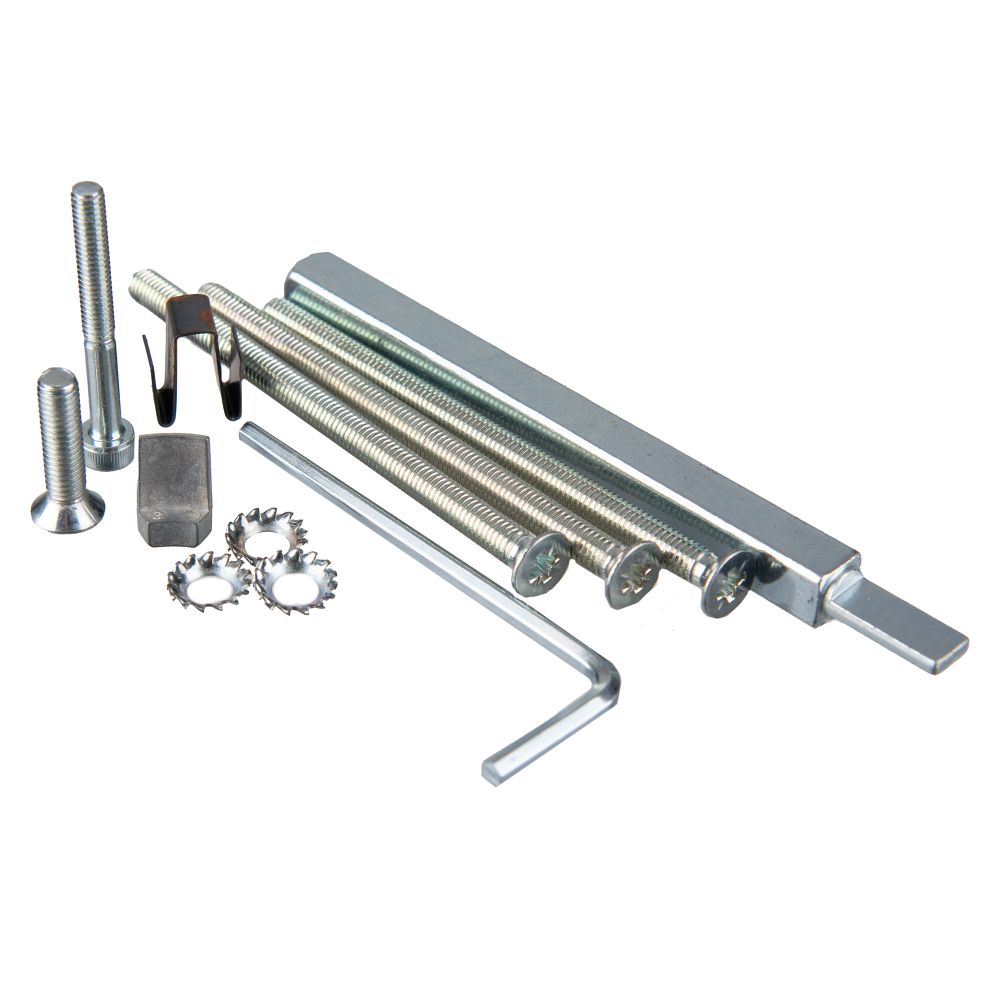

| Fixing Options | Wooden Door Fixings (Included) |
| Material | Metal |
| Release Type | Knob Operated |
| Security Features | Key Lock |
| Suitability | Doors Up To 65mm Thick |
| Steel Doors | |
| Timber Doors | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 1.10kg |
How it Works
It is crucial that outside access devices do not compromise the performance of escape hardware when fitted. All Exidor external access devices are carefully designed to ensure that the door functions as an entrance when needed, but as an emergency exit at all times.
Device Locked:
When the door is locked, the opening mechanism is disengaged allowing the knob to rotate freely on the outside of the door. This helps to secure the device against tampering or any attempts to access the building via force. Locking the door from the outside does not affect the performance of the escape hardware inside the building, meaning the escape route remains viable at all times.
Device Unlocked:
When the device is left unlocked, the spindle and mechanism engage with the device on the inside of the door. This allows the knob to be used like a standard door handle to gain access to the building. The knob activates that panic hardware to withdraw the shoots or latch which hold the door closed.
Please note: The knob remains engaged/active until the door is re-locked.
