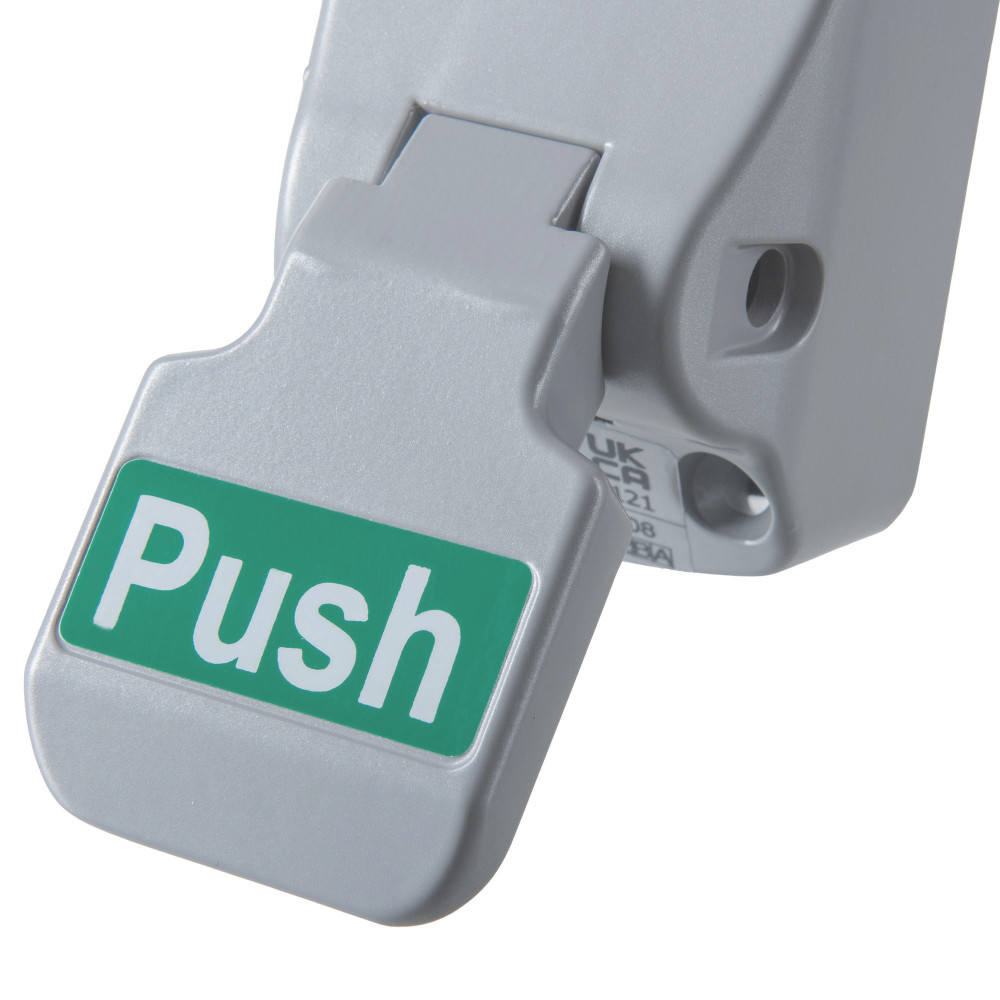

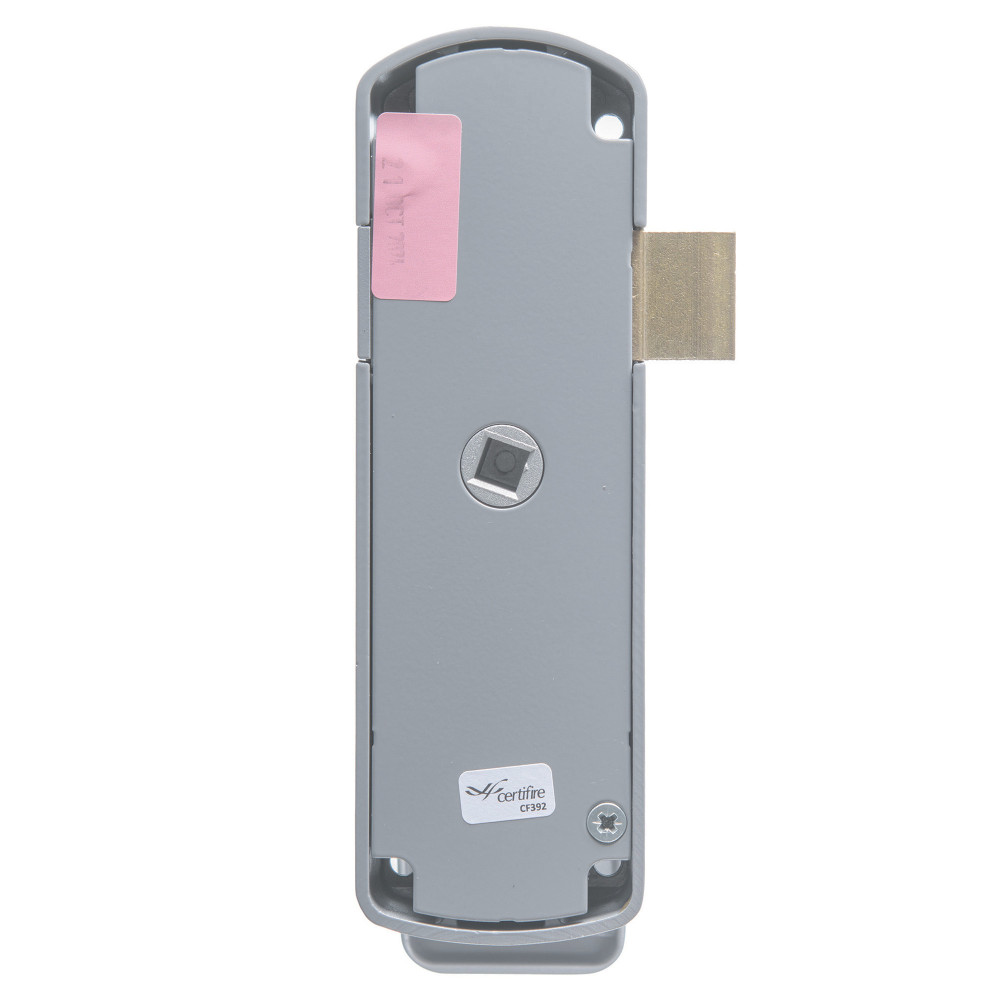

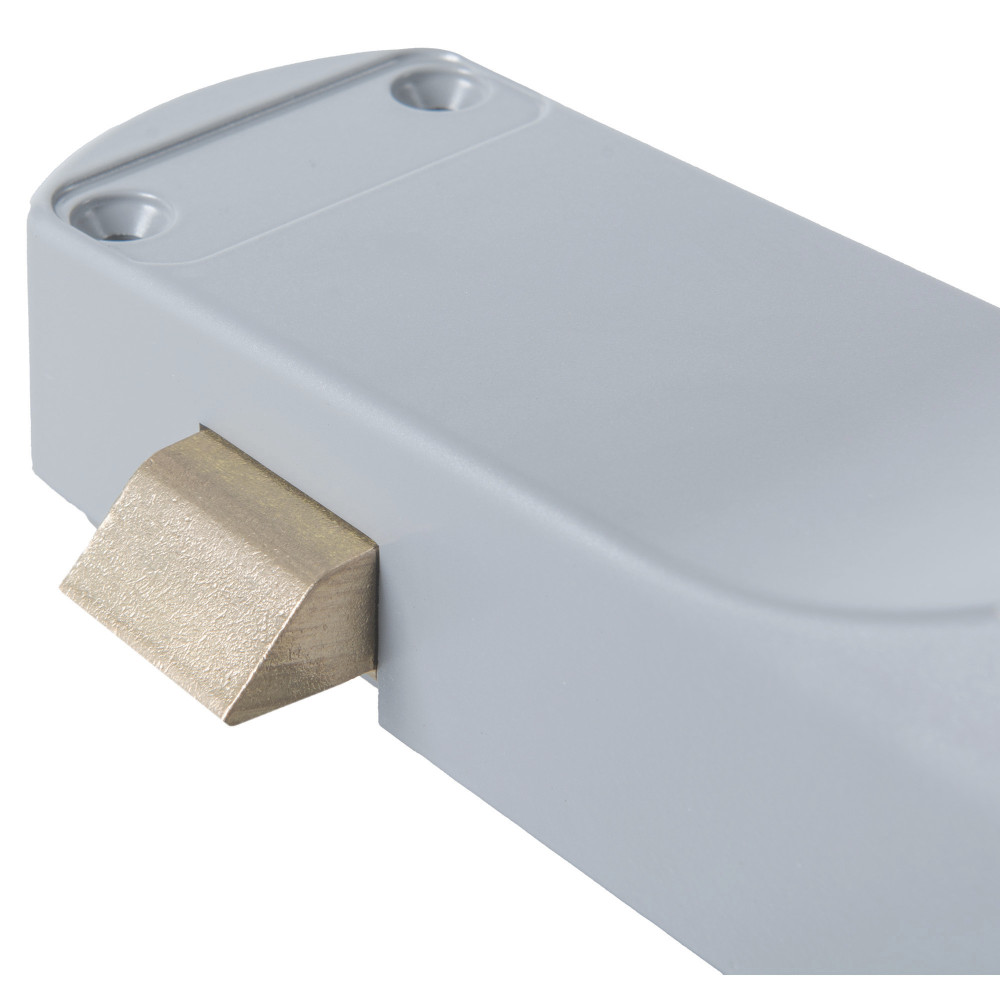

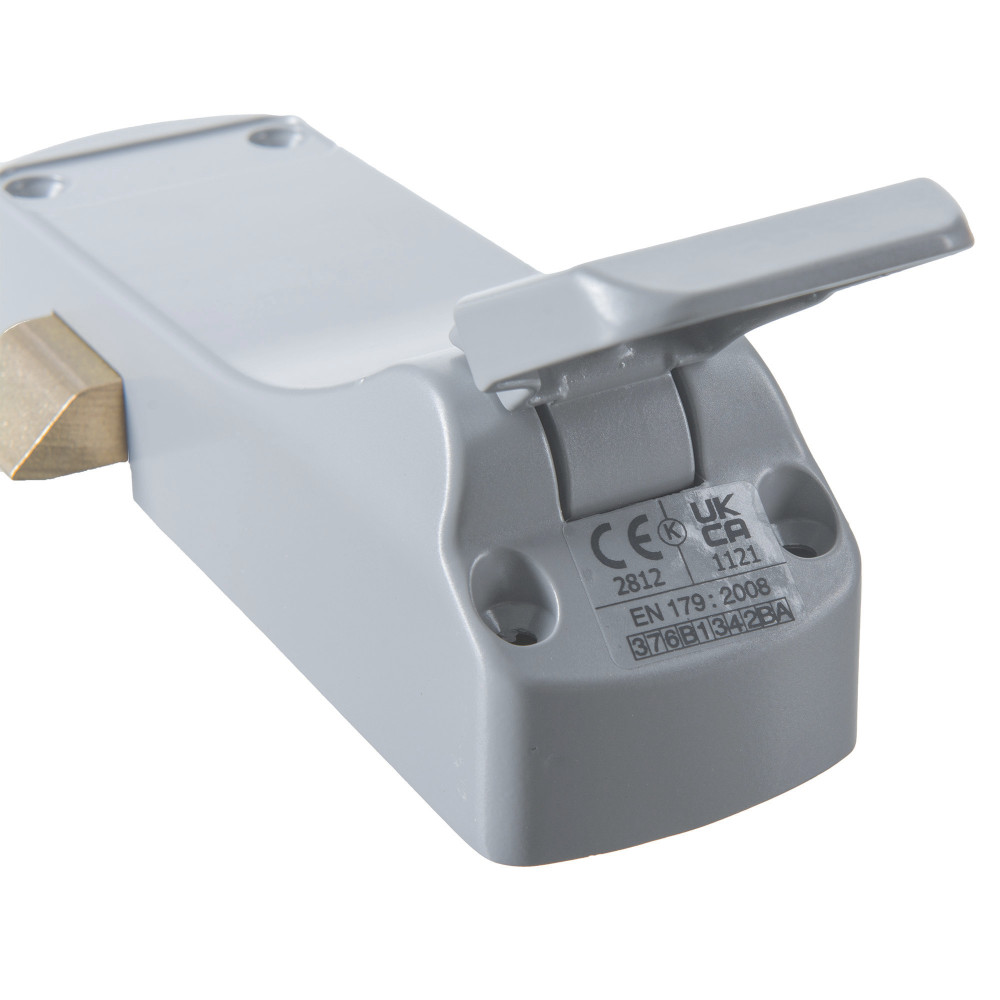

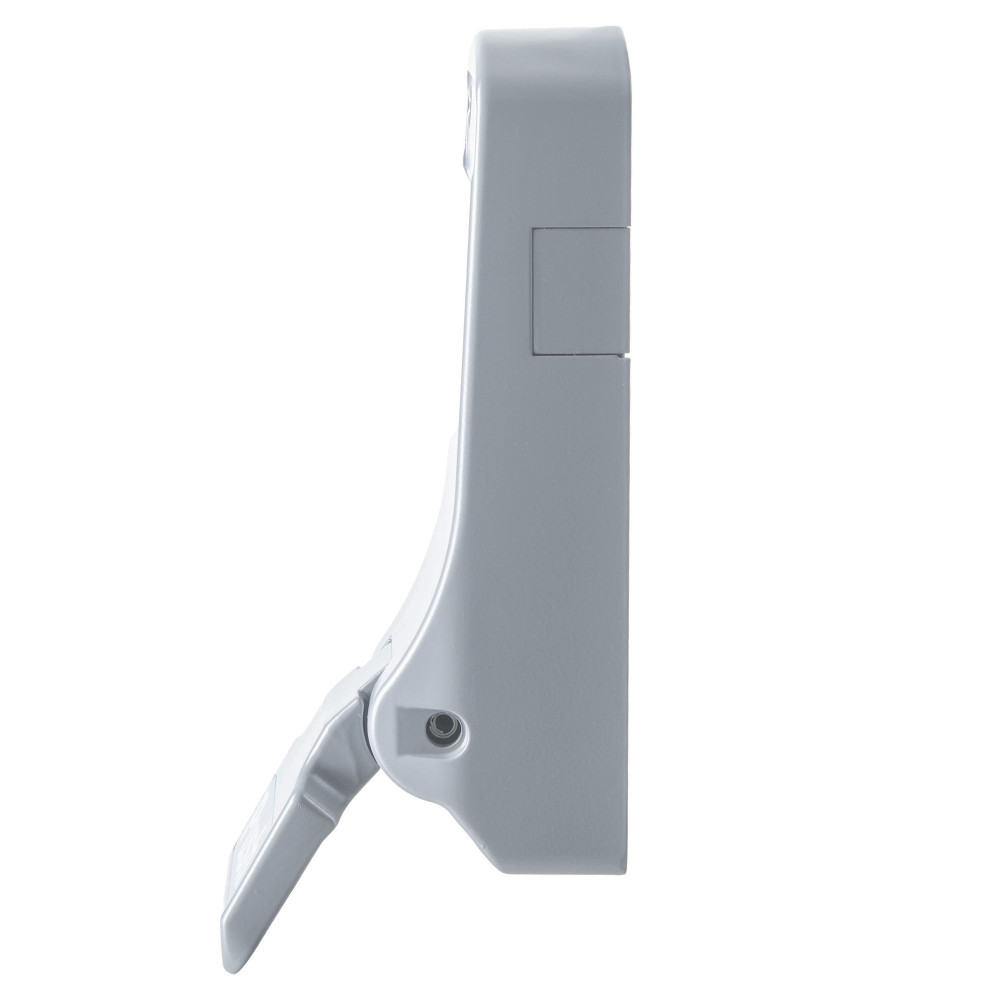

Exidor 297 Single Door Push Pad With Latch
When it comes to exit hardware, quality counts. Exidor equipment is manufactured in the UK to the very highest standards. The Exidor 297 push pad with latch is a fail-safe, great value system for single exit doors. This product is suitable for use in areas where the occupants of the building are familiar with their surroundings, i.e. places of work. The Exidor 297 push pad and latch are fire rated for use on both timber and steel doors. Exidor equipment can also boast that all components are manufactured from start to finish within the UK, all to the very highest quality. As standard, Exidor products are subject to rigorous third party testing before being released, and as such fully conform to and are CE marked as well as Certifire accredited. The manufacturer's confidence in the build quality of this product is underlined by their 10 year warranty period.
- Single door push pad with latch
- Manufactured in the UK
- Available with the following optional outside access device options:
- Exidor 302 Outside Access Device With Knob
- Exidor 322 Outside Access Device With Lever
- Exidor CL1 Mechanical Code Lock
- Suitable for use within places of work
- Non-handed - suitable for use on left & right-handed doors
- Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
- Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
- For use on outward opening final exit doors
- Suitable for use on fire and smoke door assemblies as tested in accordance with
- Designed for doors weighing no more than 200kg
- 10 year manufacturer's warranty
- Supplied with fixings for wooden doors as standard
- CE marked and Certifire accredited
Customer Reviews (7)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
G A
Published on
7th April 2026
Reviewed by
E H
Published on
9th October 2024
Does what it says on the tin. ideal thank you.
Reviewed by
A W
Published on
21st August 2020
poor instructions
please read your instructions you need to get wright took me a long time to work it out .
Reviewed by
G W
Published on
28th July 2020
Good product
Some parts were missing but were sent out later when requested.
Reviewed by
Anonymous
Published on
25th March 2018
exactly what was needed
some instructions on how to change the latch from right to left would be helpful
Technical Data
| Product Code | EXD297 |
|---|---|
| Brand | Exidor |
| Category | Class 3 (High Frequency Of Use) |
| Colour | Silver |
| Compatible Products | Exidor 302 Outside Access Device With Knob |
| Exidor 322 Outside Access Device With Lever | |
| Exidor CL1 Mechanical Code Lock | |
| Compliance | BS EN 1125: 2008 |
| BS EN 1634-1 | |
| BS EN 179 | |
| Certifire - CF392 | |
| Approvals & Markings | CE Marked |
| Device Type | Push Pad |
| Door Type | Final Exit Doors |
| Single Door | |
| Active Leaf Of Rebated Double Doors | |
| Environmental Suitability | Offices |
| Workplace | |
| Equipment Type | Emergency Escape Hardware |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Handing | Non-Handed (Site Reversible) |
| Locking Points | 1 |
| Material | Metal |
| Maximum Door Height | 2440mm |
| Maximum Door Width | 1220mm |
| Manufactured in the UK | Yes |
| Maximum Load | 200kg |
| Suitability | Staff Only Areas |
| Non-Public | |
| Indoor | |
| Steel Doors | |
| Timber Doors | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 870g |
| Datasheets |
Outside Access Devices
Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the five devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 294 single door panic bar (exc. Exidor CL1 which is only compatible with escape hardware with latches).

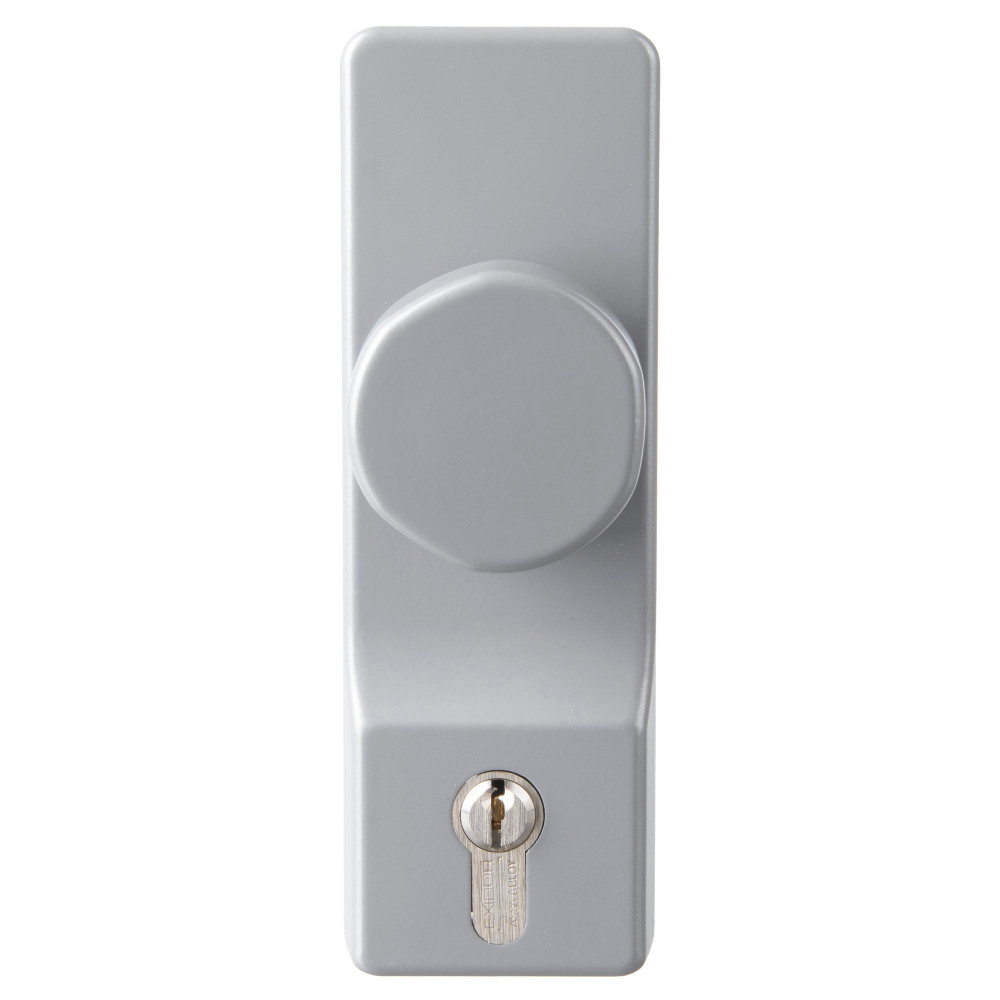

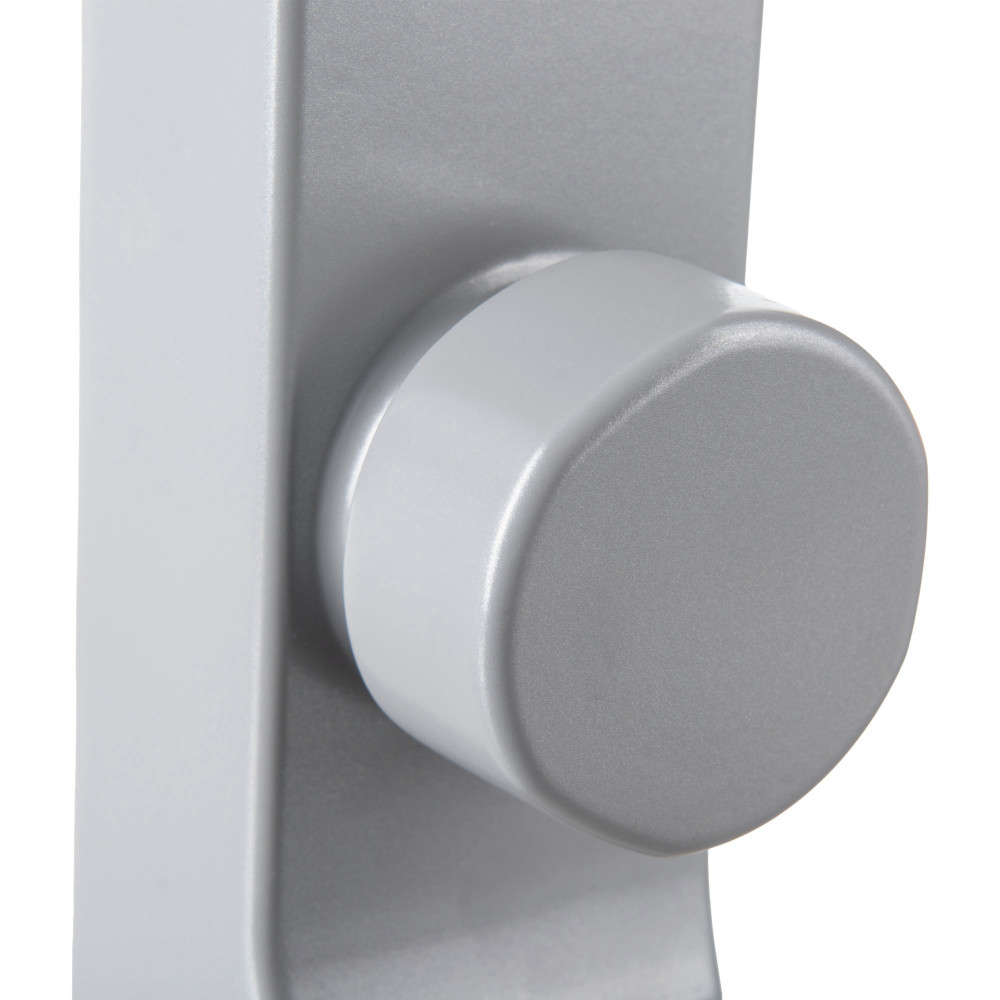

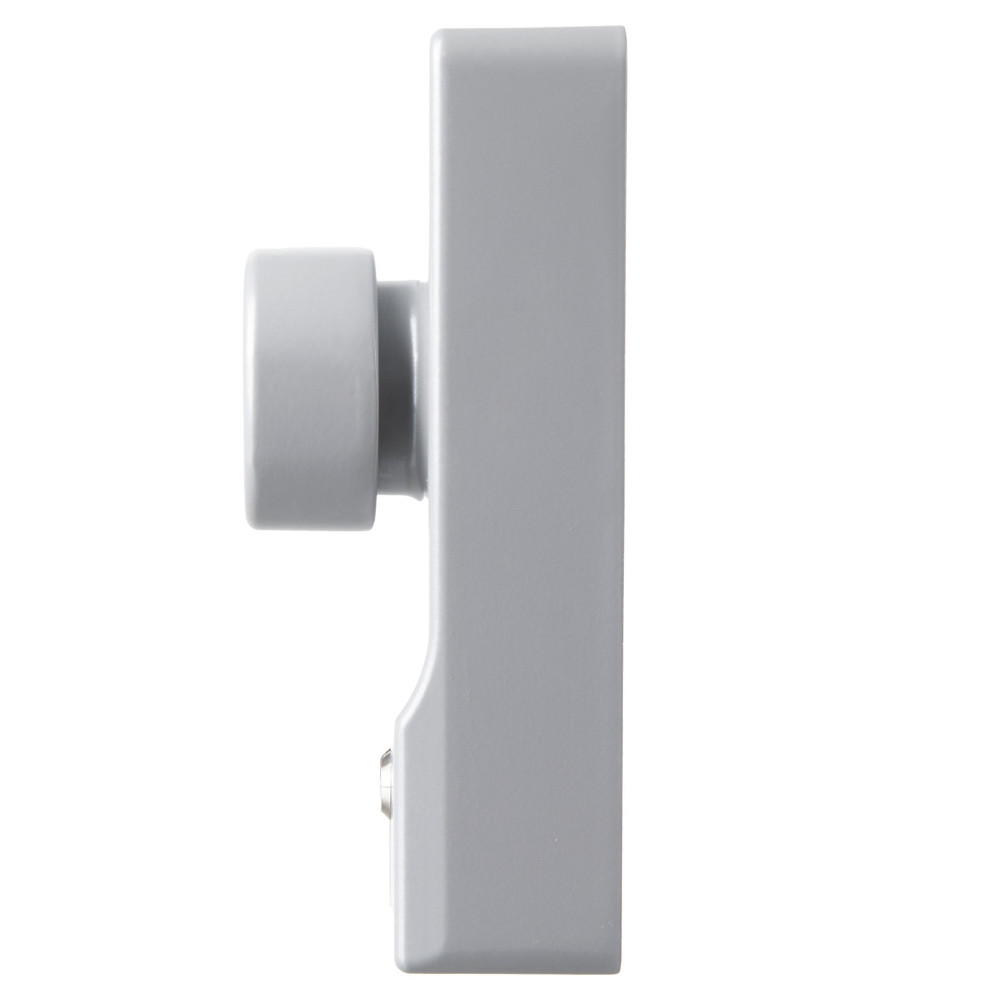

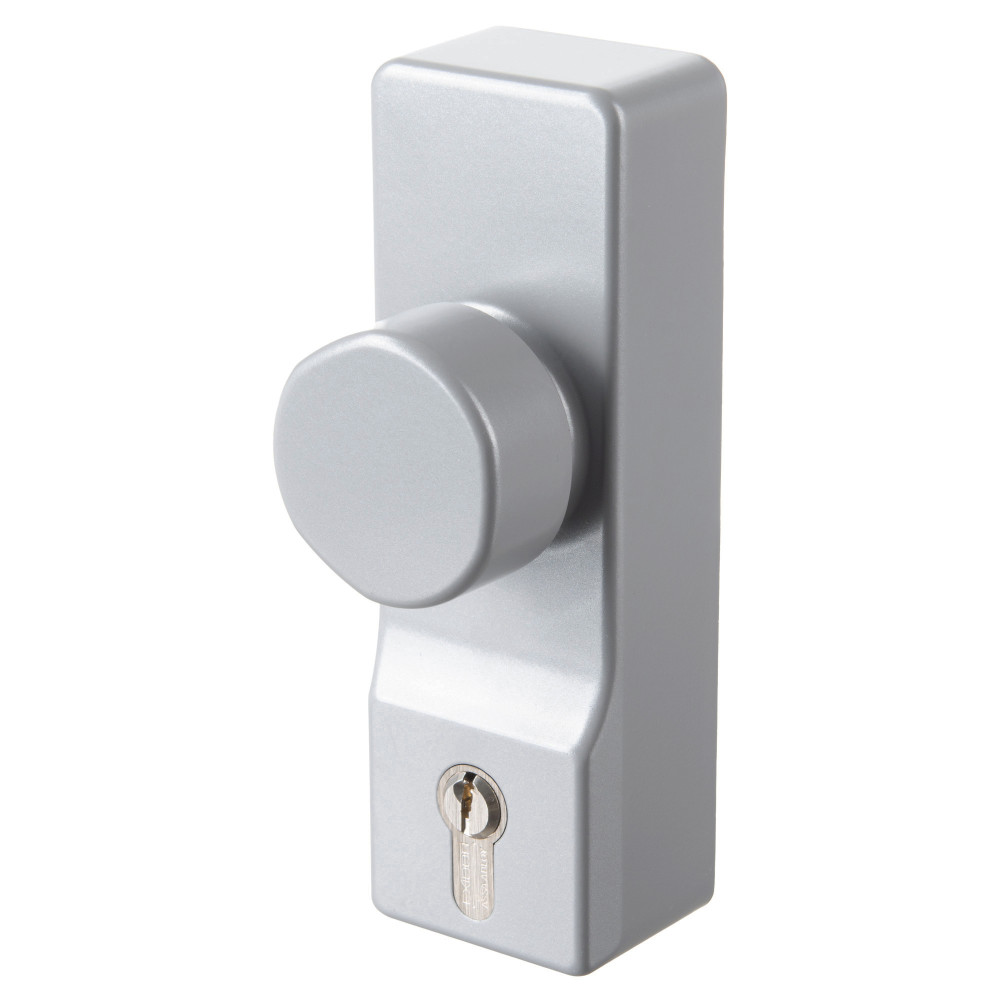

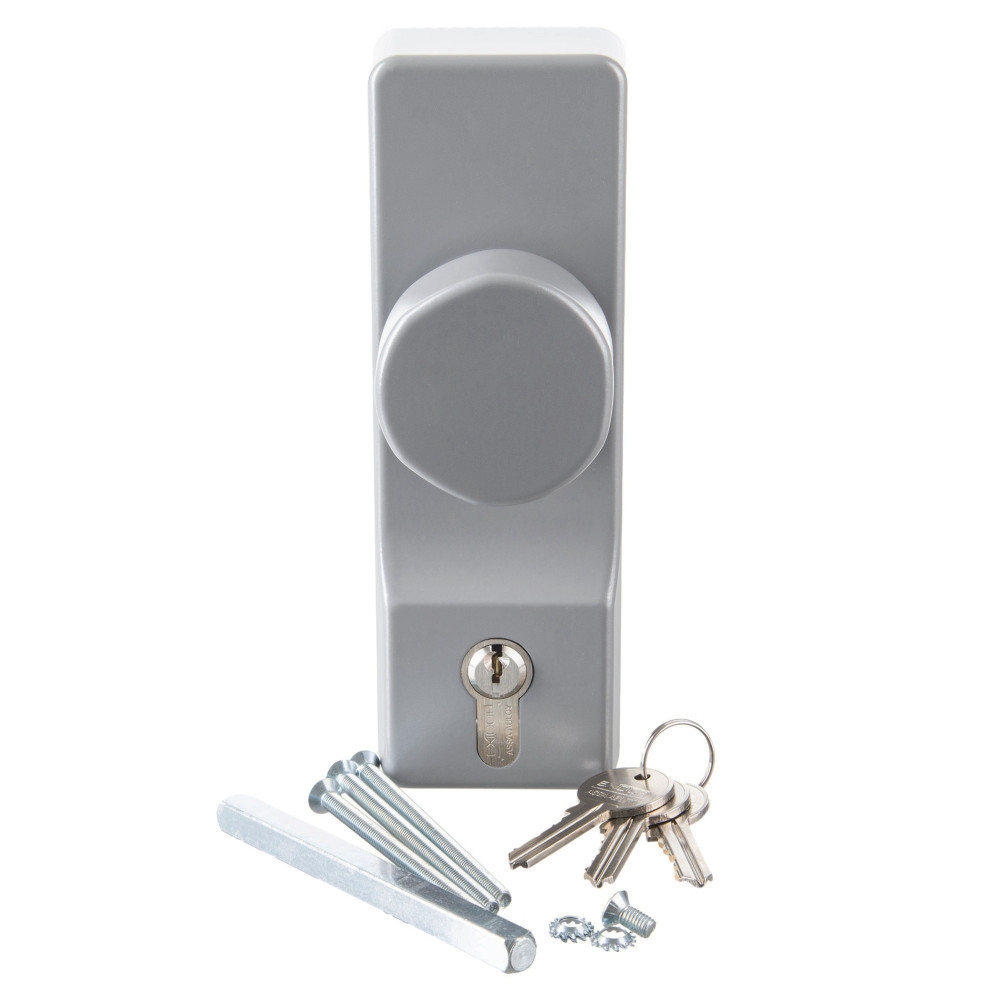

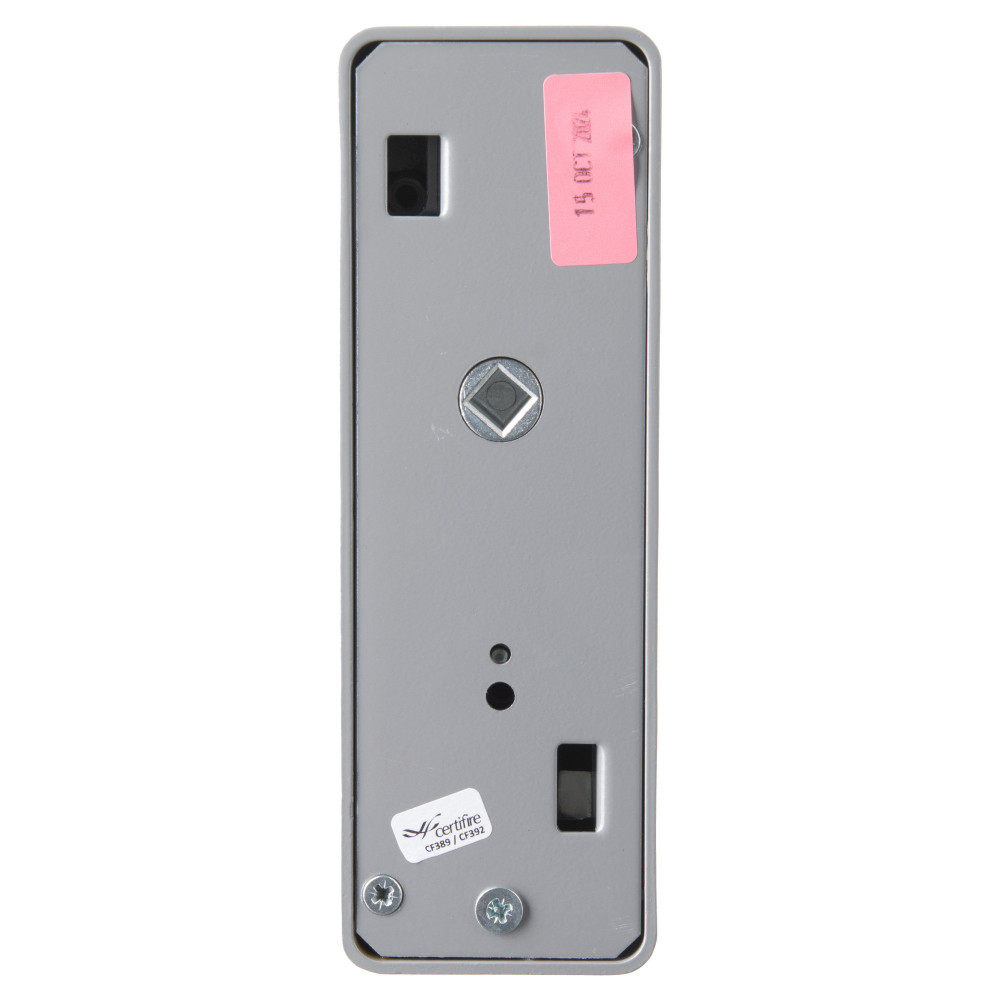

Exidor 302 Outside Access Device With Knob

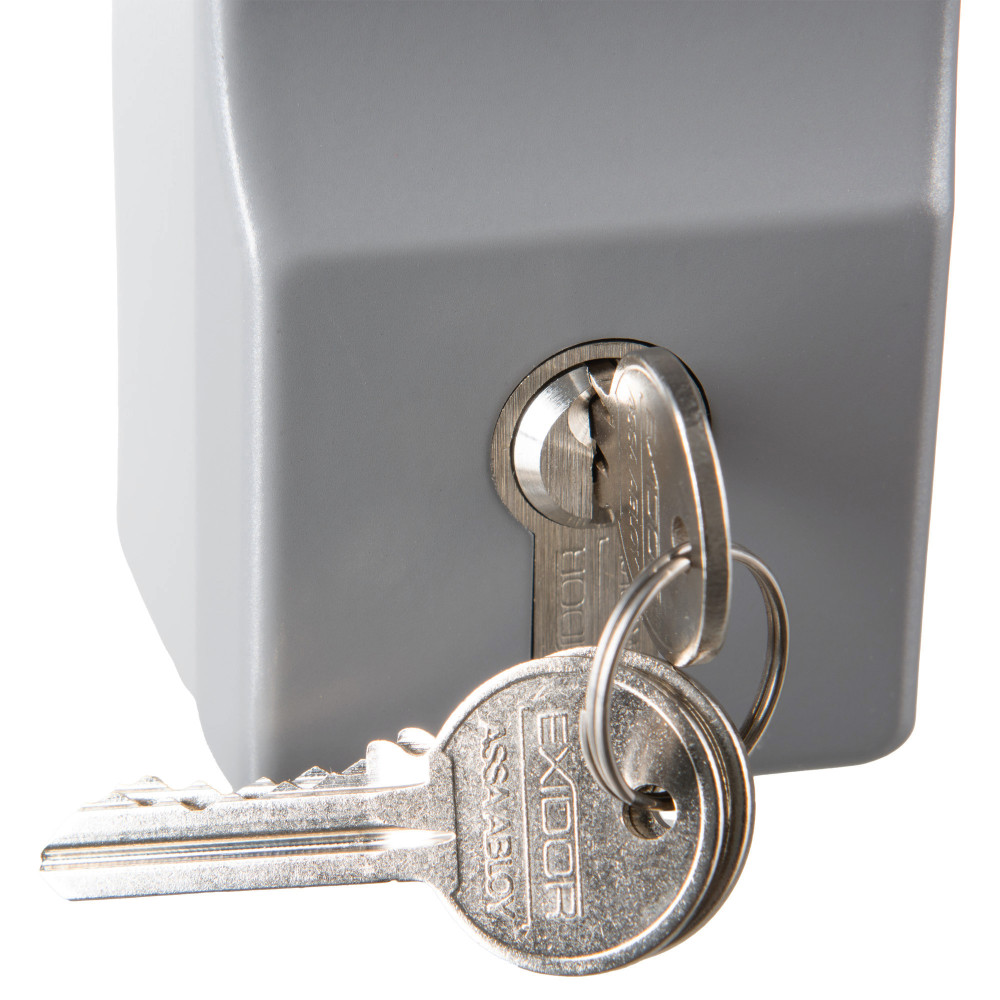

This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 322 Outside Access Device With Lever
This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.

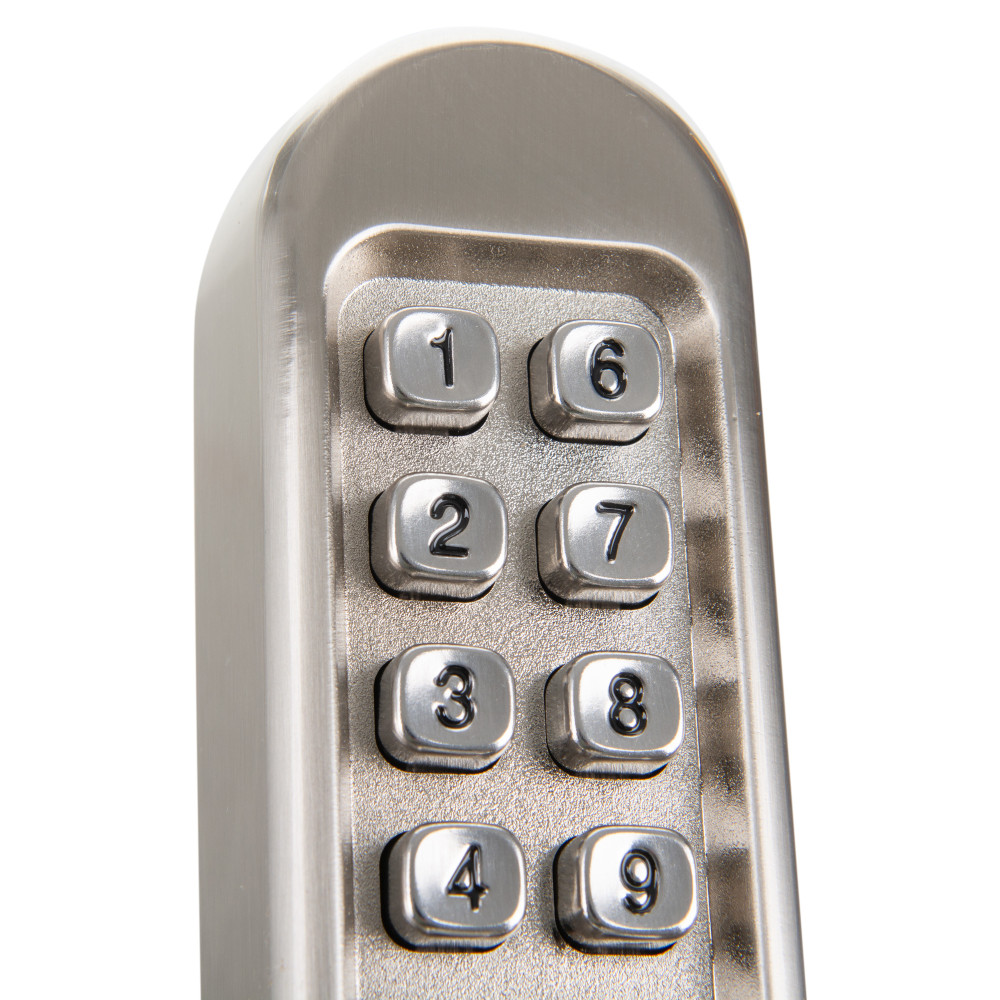

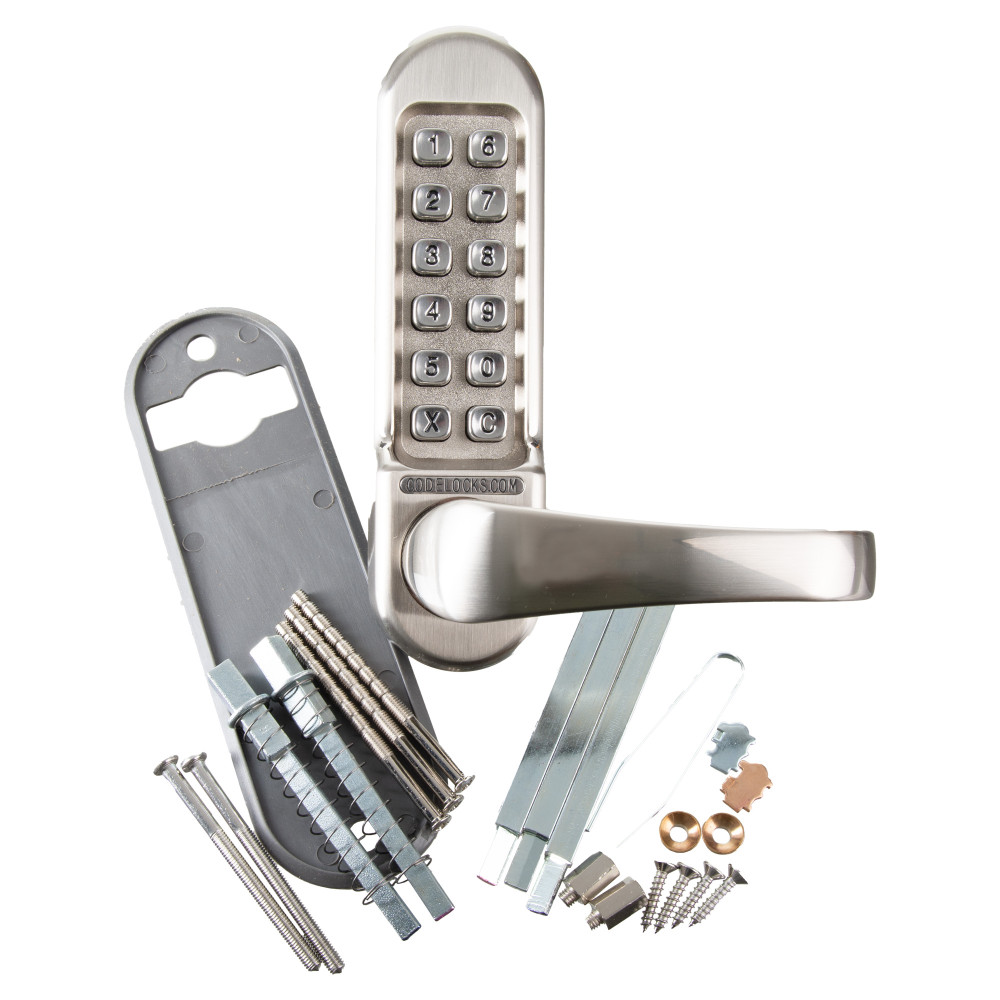

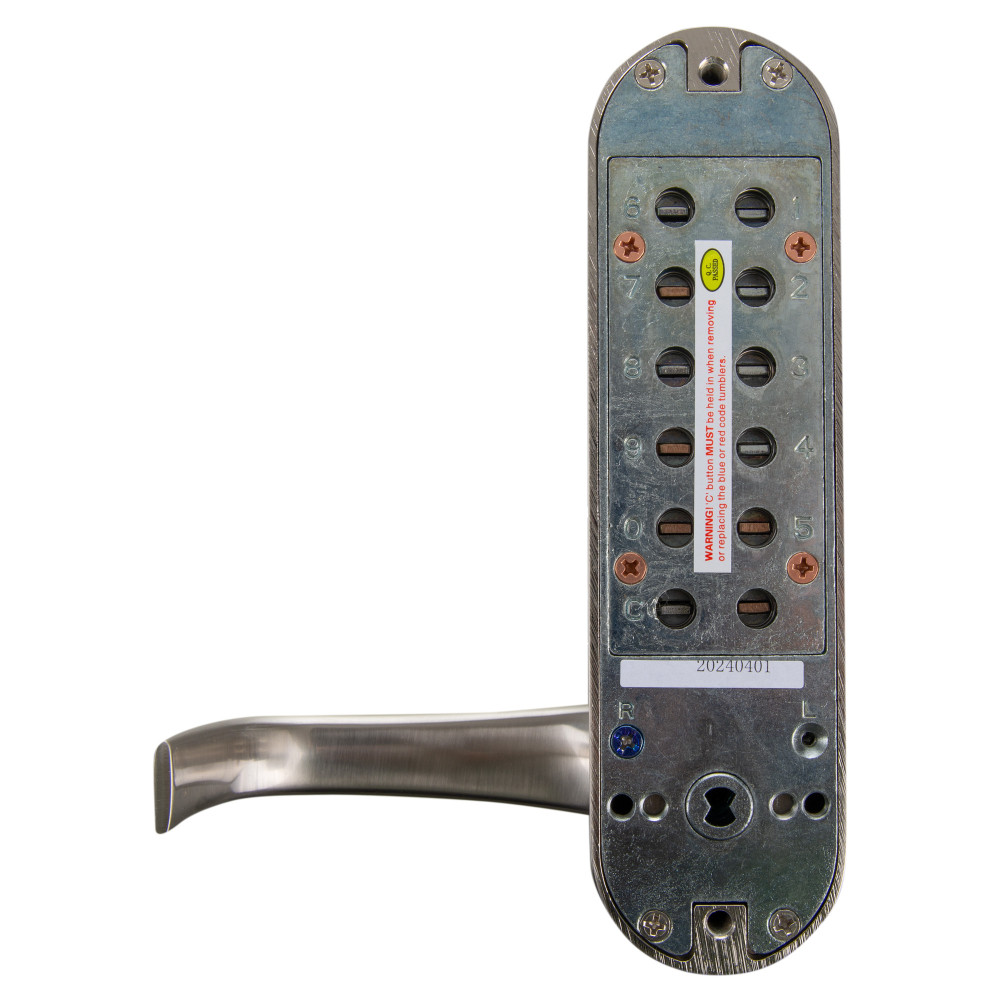

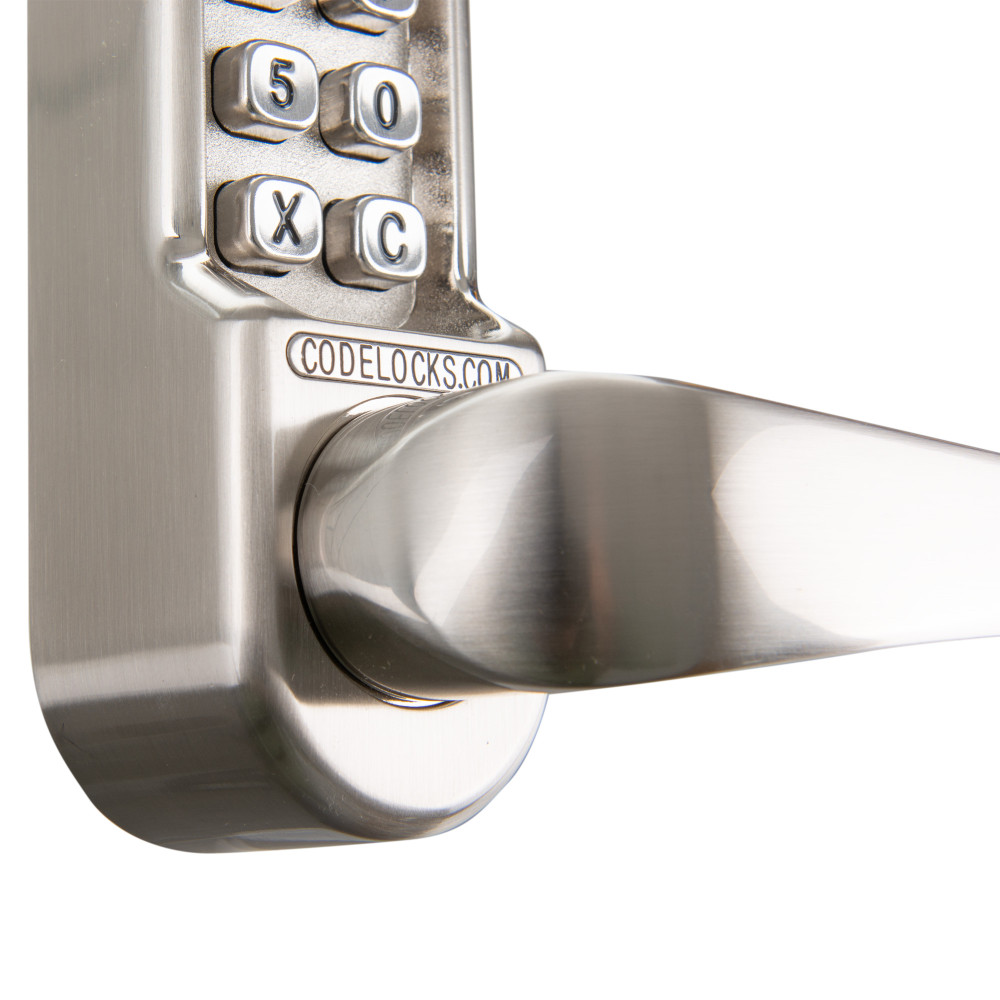

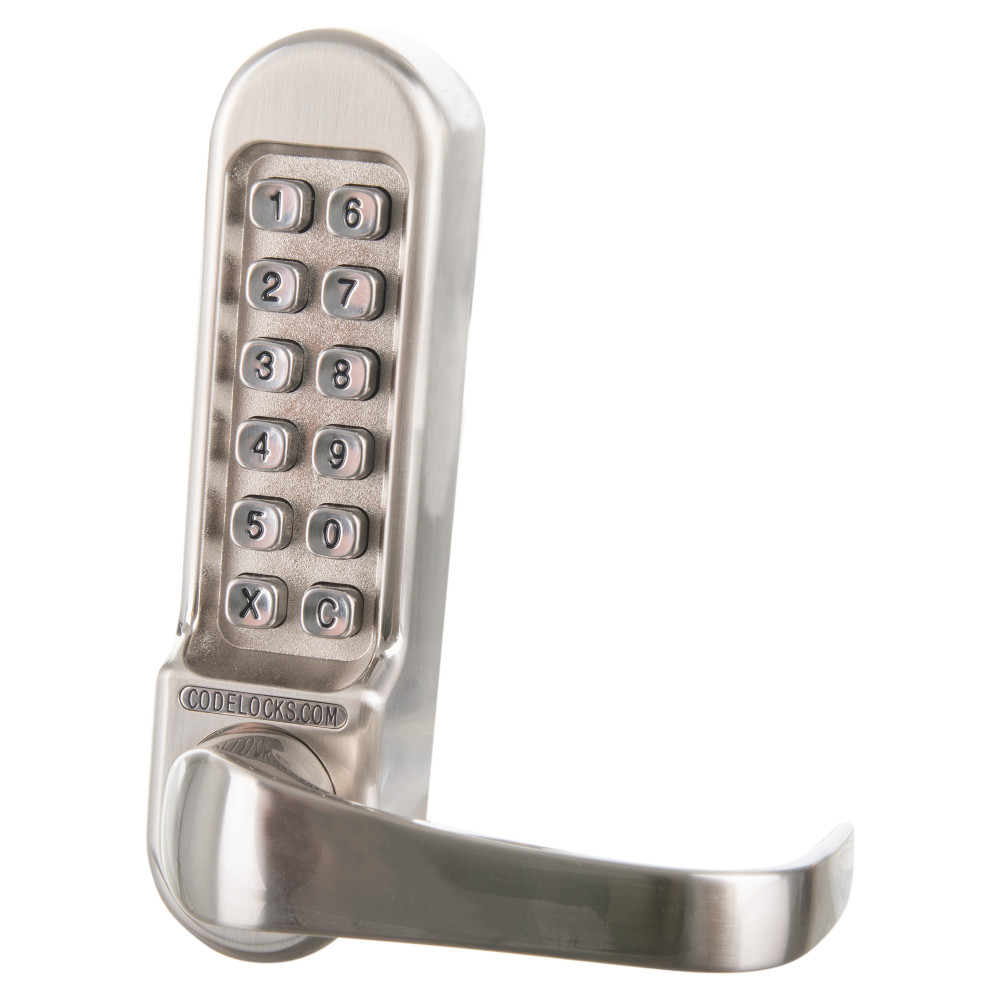

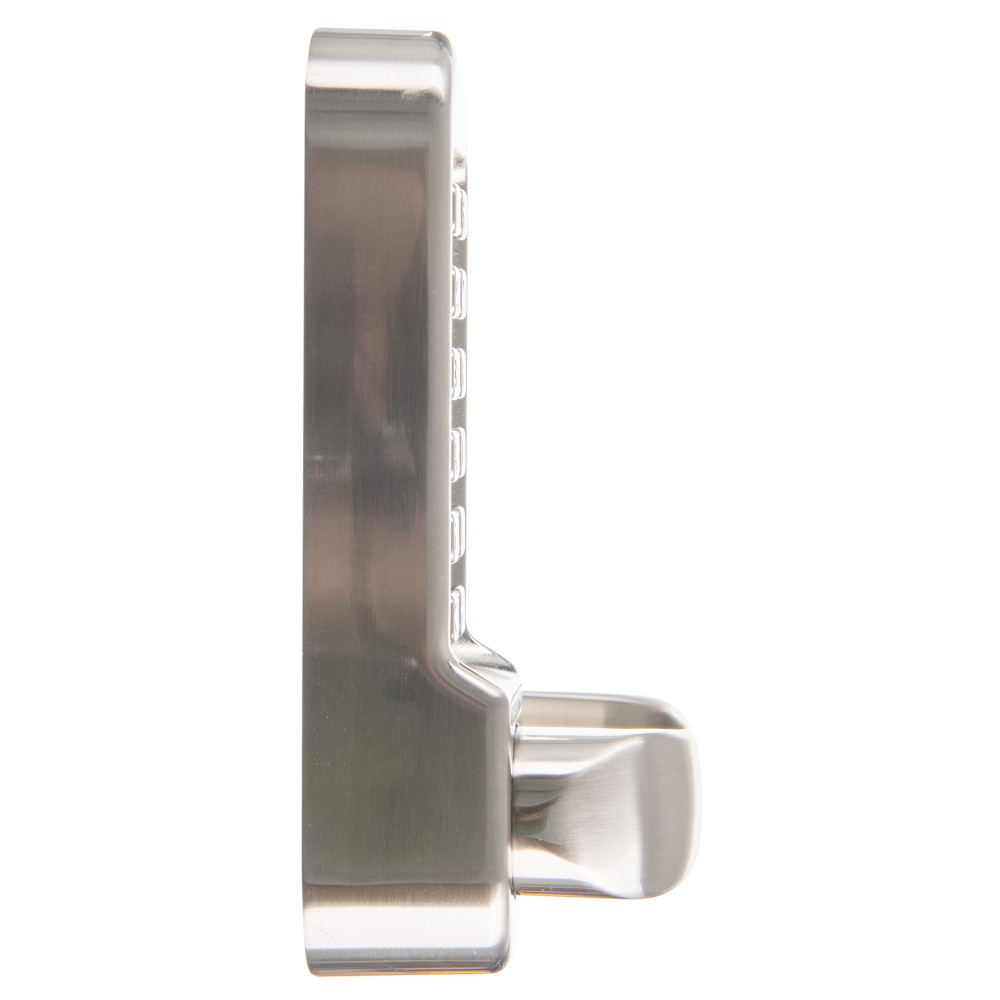

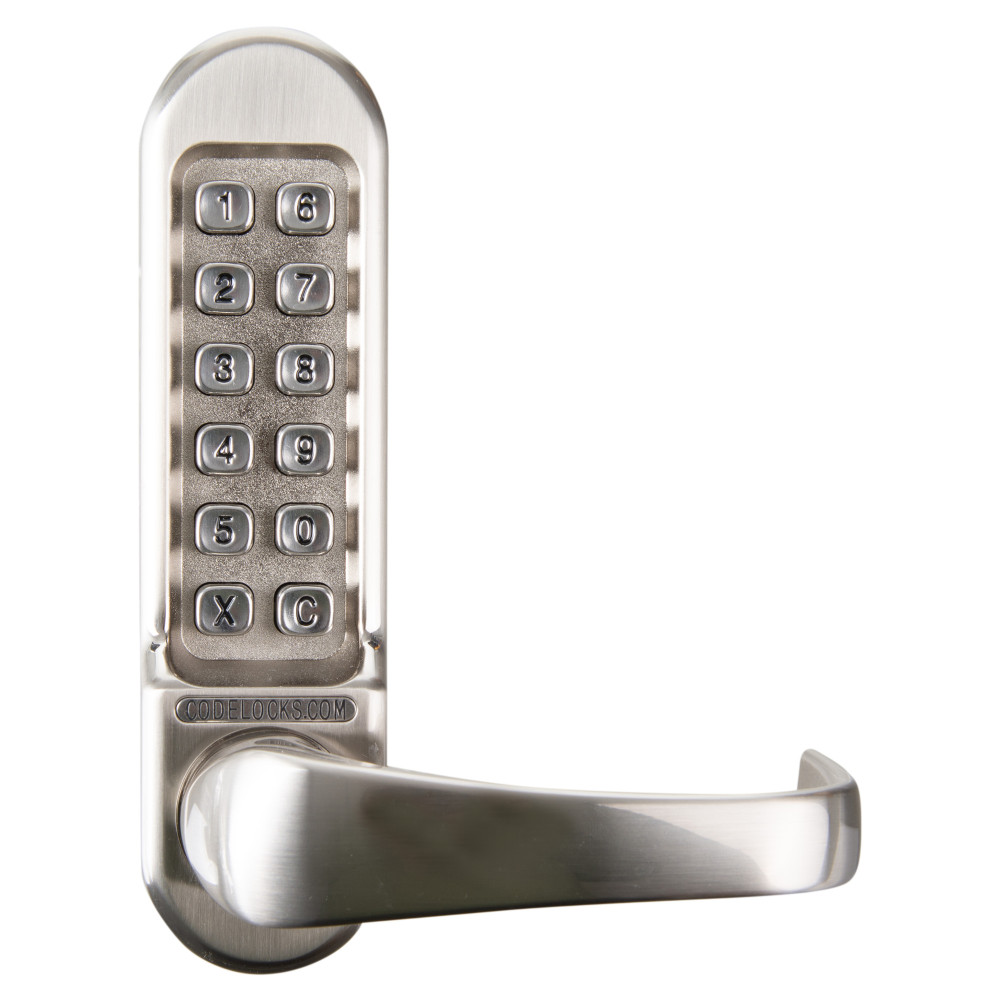

Exidor CL1 Mechanical Code Lock
This device features a lever style handle and 12 stainless steel mechanical buttons allowing 1,584 different lock combinations. This code lock is suitable for use on fire exit doors when used in conjunction with Exidor panic hardware.
Exidor 326 Slimline Outside Access Device With Knob
Similarly to the 302, this device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
Exidor 325 Slimline Outside Access Device With Lever
Similarly to the 322, this device features a lever style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
