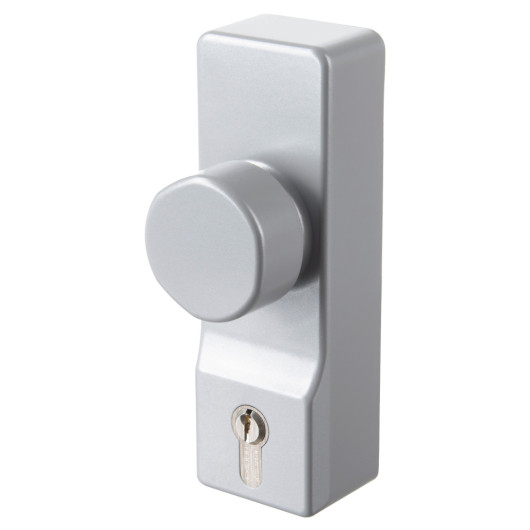

Exidor 302 Outside Access Device With Knob
The Exidor 302EC outside access device with knob enables secure access into a building from the outside through final exit doors where needed. This product is compatible with all 200 and 300 series Exidor emergency escape products, including the full range of Exidor push pads and panic bars. This particular device is suitable for installation on doors up to 45mm thick, and is supplied complete with the necessary screws and spindle. It is also supplied with a euro cylinder lock and three keys as standard. On top of these features, the product is also Certifire approved for use on timber and steel doors.
- Knob operated outside access device with lock
- Euro profile cylinder supplied with 3 keys as standard
- For use with Exidor 200 / 300 series escape hardware
- Allows for controlled access through escape doors
- Manufactured in the UK
- 10 year manufacturer's warranty
- Supplied non-handed for ease of installation
- Supplied with fixings for wooden doors as standard
- CE marked and Certifire accredited
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
4th July 2018
Technical Data
| Product Code | EXD302EC |
|---|---|
| Brand | Exidor |
| Colour | Silver |
| Compatible Products | Exidor 200 & 300 Series |
| Compliance | BS EN 1634-1 |
| Certifire - CF392 | |
| Approvals & Markings | CE Marked |
| Device Type | Outside Access Device |
| Environmental Suitability | Public Buildings |
| Workplace | |
| Finish | Powder Coated |
| Silver | |
| Fixing Options | Wooden Door Fixings (Included) |
| Handing | Non-Handed (Site Reversible) |
| Material | Metal |
| Release Type | Knob Operated |
| Security Features | Key Lock |
| Suitability | Steel Doors |
| Timber Doors | |
| Doors Up To 45mm Thick | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 1.10kg |
| Datasheets |
How it Works
It is crucial that outside access devices do not compromise the performance of escape hardware when fitted. All Exidor external access devices are carefully designed to ensure that the door functions as an entrance when needed, but as an emergency exit at all times.
Device Locked:
When the door is locked, the opening mechanism is disengaged allowing the knob to rotate freely on the outside of the door. This helps to secure the device against tampering or any attempts to access the building via force. Locking the door from the outside does not affect the performance of the escape hardware inside the building, meaning the escape route remains viable at all times.
Device Unlocked:
When the device is left unlocked, the spindle and mechanism engage with the device on the inside of the door. This allows the knob to be used like a standard door handle to gain access to the building. The knob activates that panic hardware to withdraw the shoots or latch which hold the door closed.
Please note: The knob remains engaged/active until the door is re-locked.
