Sigma Smart+Shield Emergency Exit Alarm
The Smart+Shield from Sigma Fire & Security is a cost-effective deterrent for the misuse of emergency exits, combining a universally recognised "stop sign" design with an alarm of up to 95dB. It is supplied in four separate kits to suit any installation, can be configured for either battery or mains power usage, and can be connected to remote systems such as your Fire Alarm System. The Smart+Shield can be installed as an immediate alarm, a delayed alarm to prevent people leaving emergency exits open, or with a temporary that does not require resetting if used on panic bars or touch bars.
- Four solutions to secure all types of emergency exit:
- ECSG960: all doors and windows
- ECSG961: doors with Vertical Panic Bolts
- ECSG950: doors with Panic Bars
- ECSG955: doors with Touch Bars
- Can be battery or mains powered
- 30 or 180 second automatic silence feature

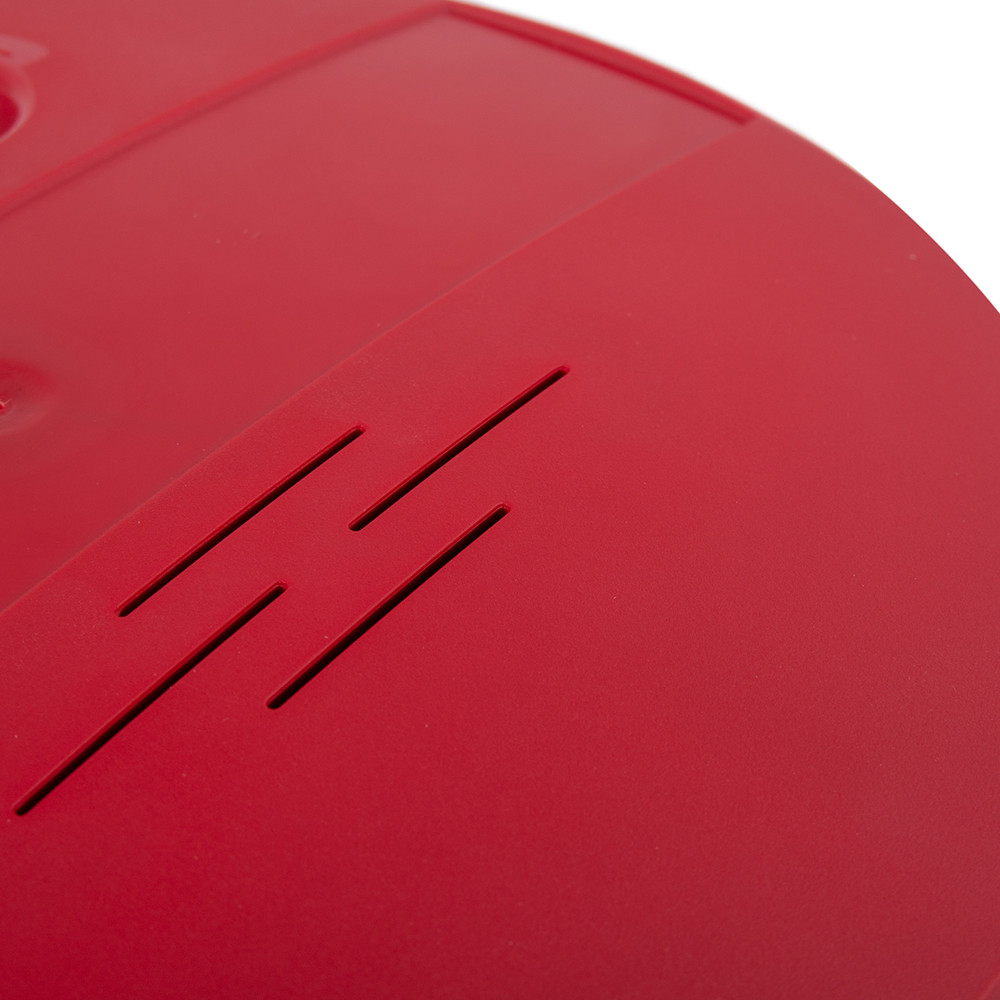

- Switchable between 75dB and 95dB

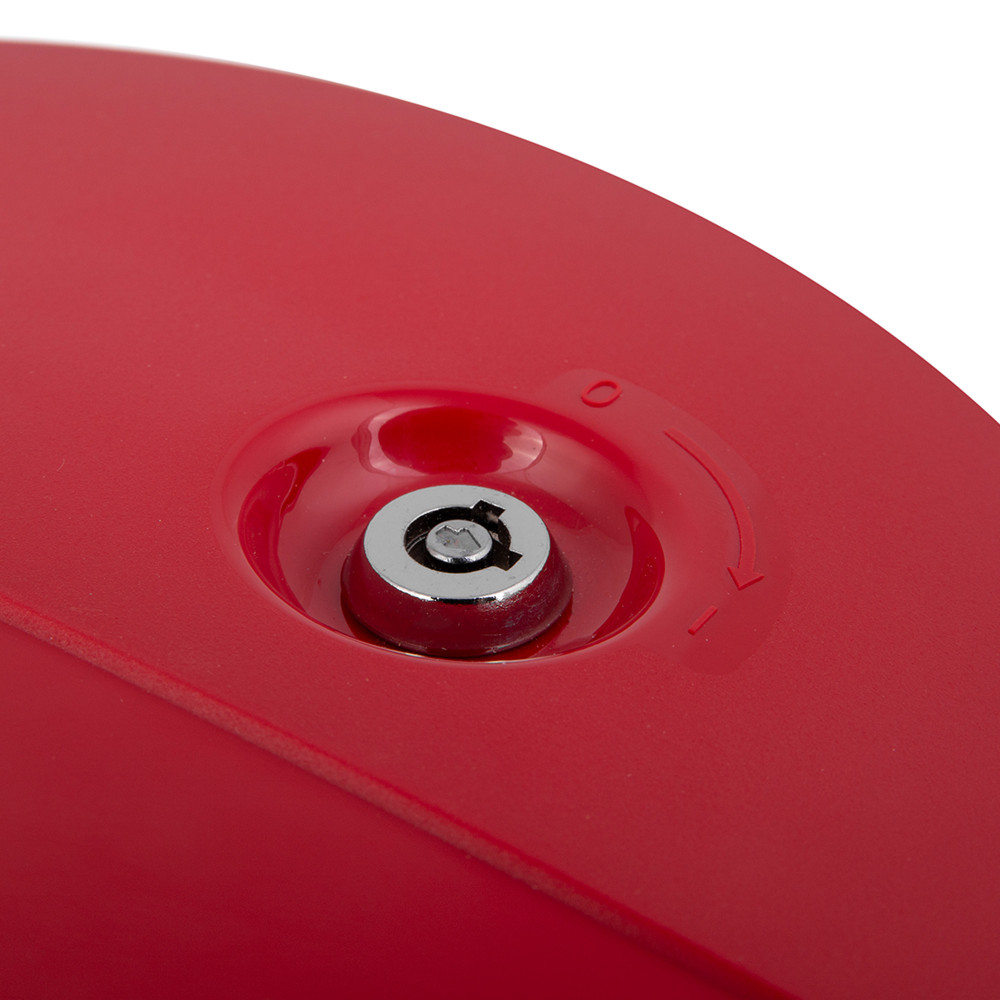

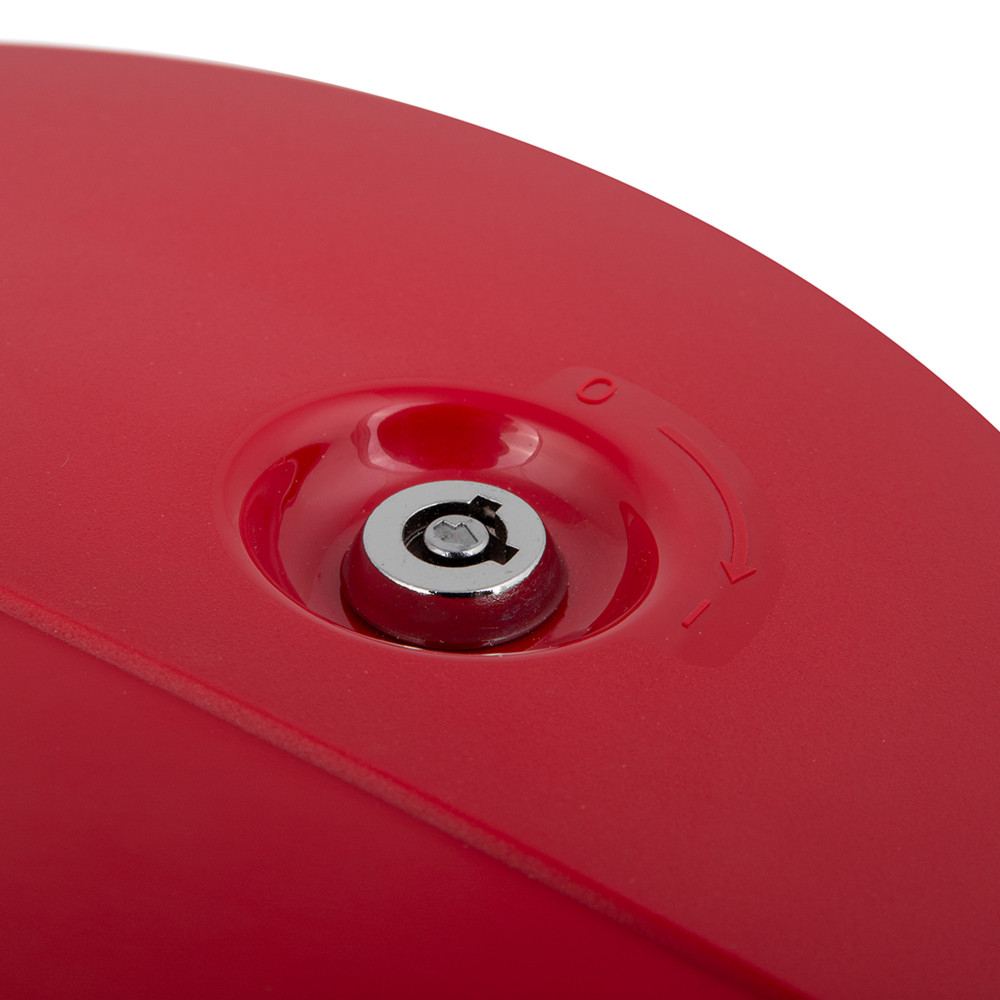

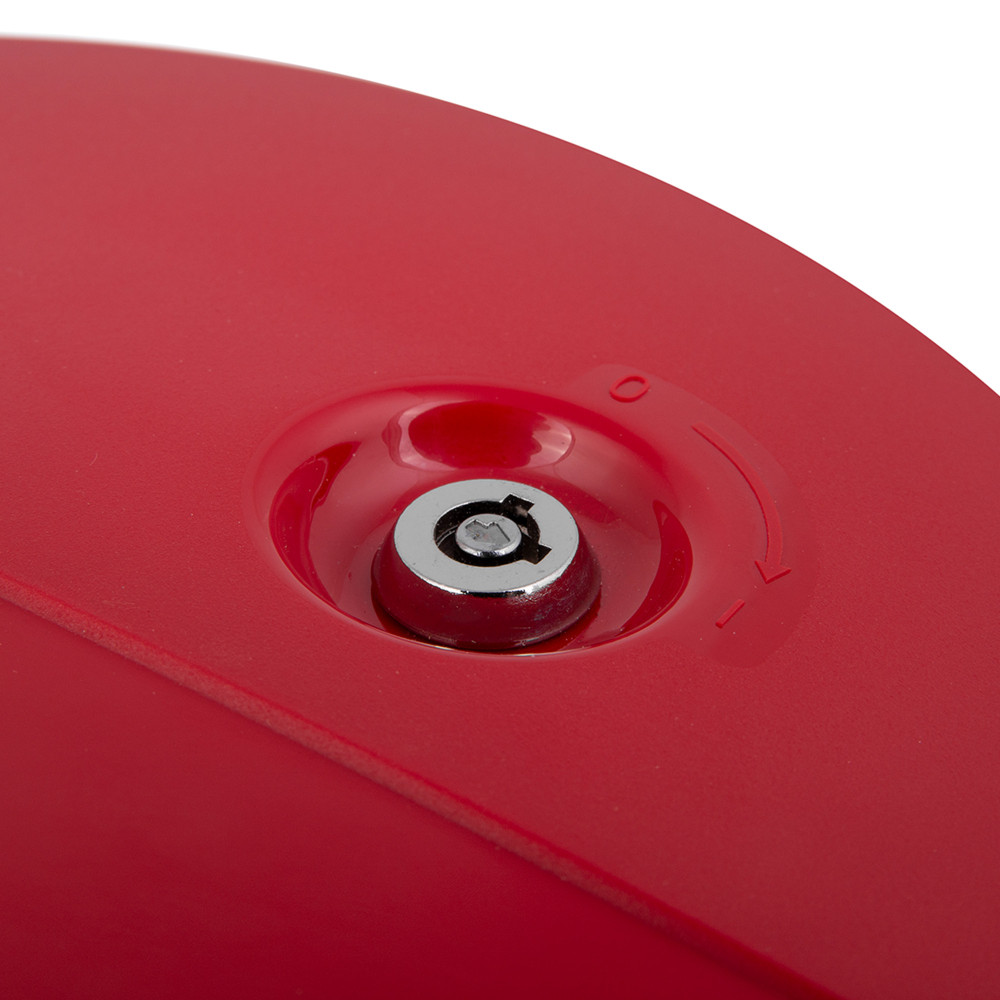

- Resettable via integrated key switch
- Visually effective deterrent
- Large fluorescent strip glows in the dark
- Suitable for use on all doors via leaf-mounting or external reed contacts
- Purpose-made kits for vertical panic bolts, touch bars, and panic bars
- Touch Bar and Panic Bar models include the component required for their pre-alarm feature
- feature on touch bar and panic bar models
- Does not prevent use of exits in an emergency
- CE Marked
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
J L
Published on
15th March 2022
Technical Data
| Product Code | ECSG960 |
|---|---|
| Brand | Vimpex |
| Battery Type | 9V Battery |
| Alkaline | |
| Colour | Red |
| Approvals & Markings | CE Marked |
| Compatibility | All Doors And Windows |
| Equipment Type | Door Alarm / Sounder |
| Material | Plastic |
| Power Type | 12V DC |
| Battery Powered | |
| Recyclable | Yes - Valpak's WEEE Distributor Take-back Scheme |
| Security Features | Alarm |
| Sound Level | 95dB |
| Dimensions (Unit) |
|
| Weight | 620g |
| Datasheets |
Versions Overview
Smart+Shield for All Doors - ECSG960

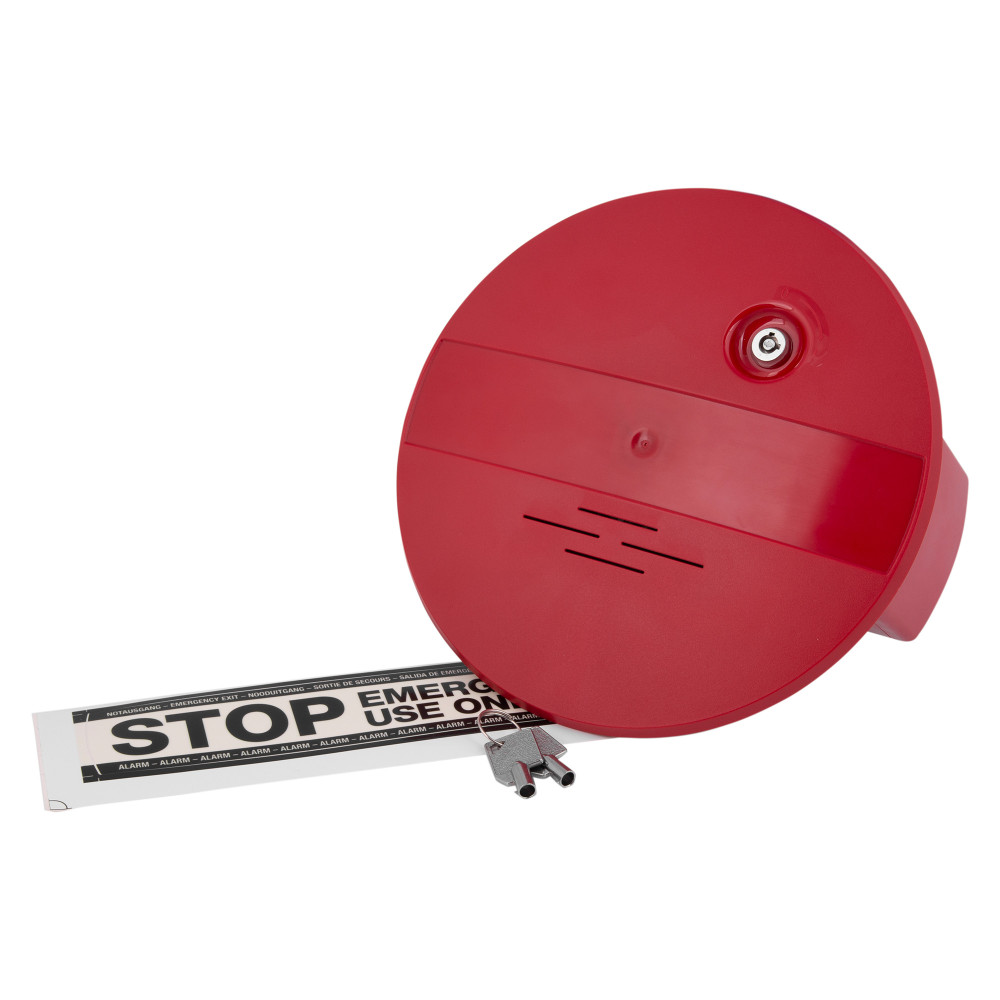

The base model of the Smart+Shield is designed to be usable on all doors. It can be installed in the door frame - flush with the door leaf - or on the door leaf itself, as well as externally from the door via optional Cable Reed Contacts. When the monitored door is opened the alarm will sound, until it is reset either by the integrated key switch or by the configured auto-silence timer.

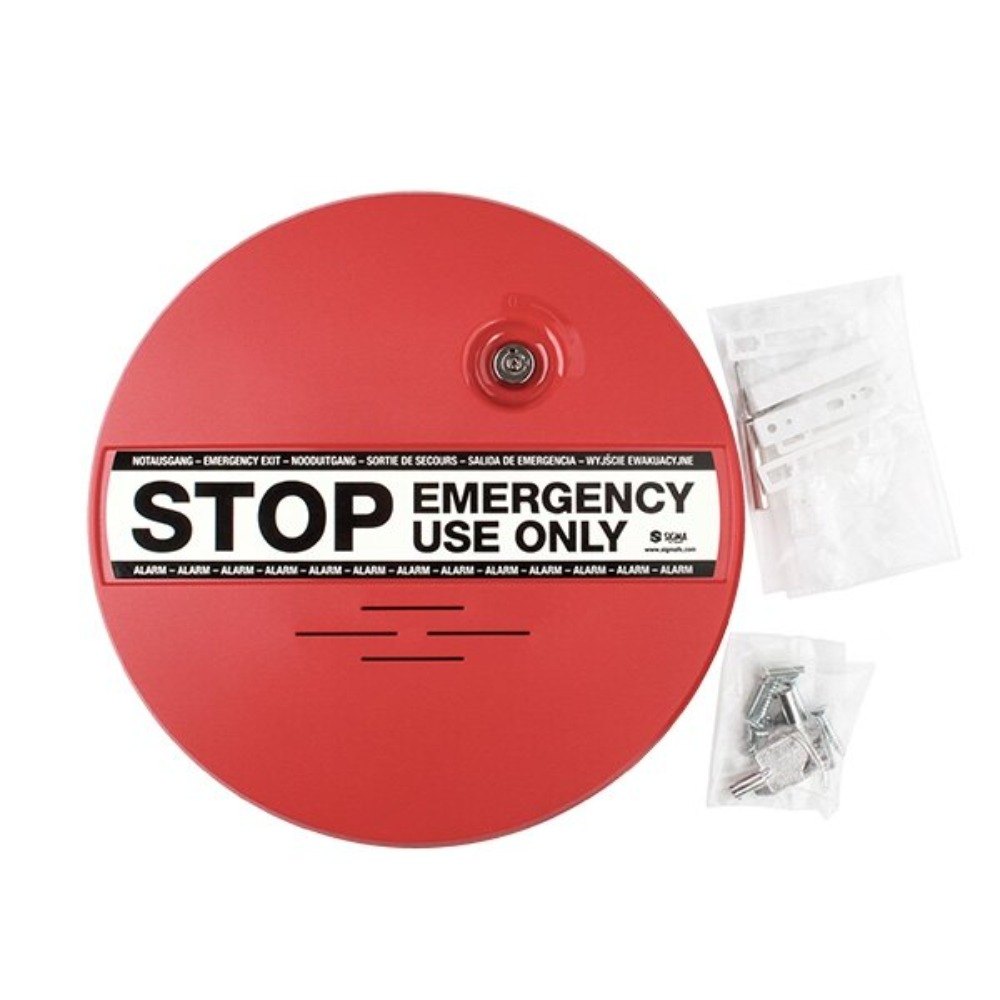

Kit Contents:
- Smart+Shield alarm with battery
- 7x wall screws, 2x case screws
- 2x Reset Key
- Fluorescent STOP Sticker
- Installation Guide
- Reed Housing
- Extra screws
- Magnetic bar

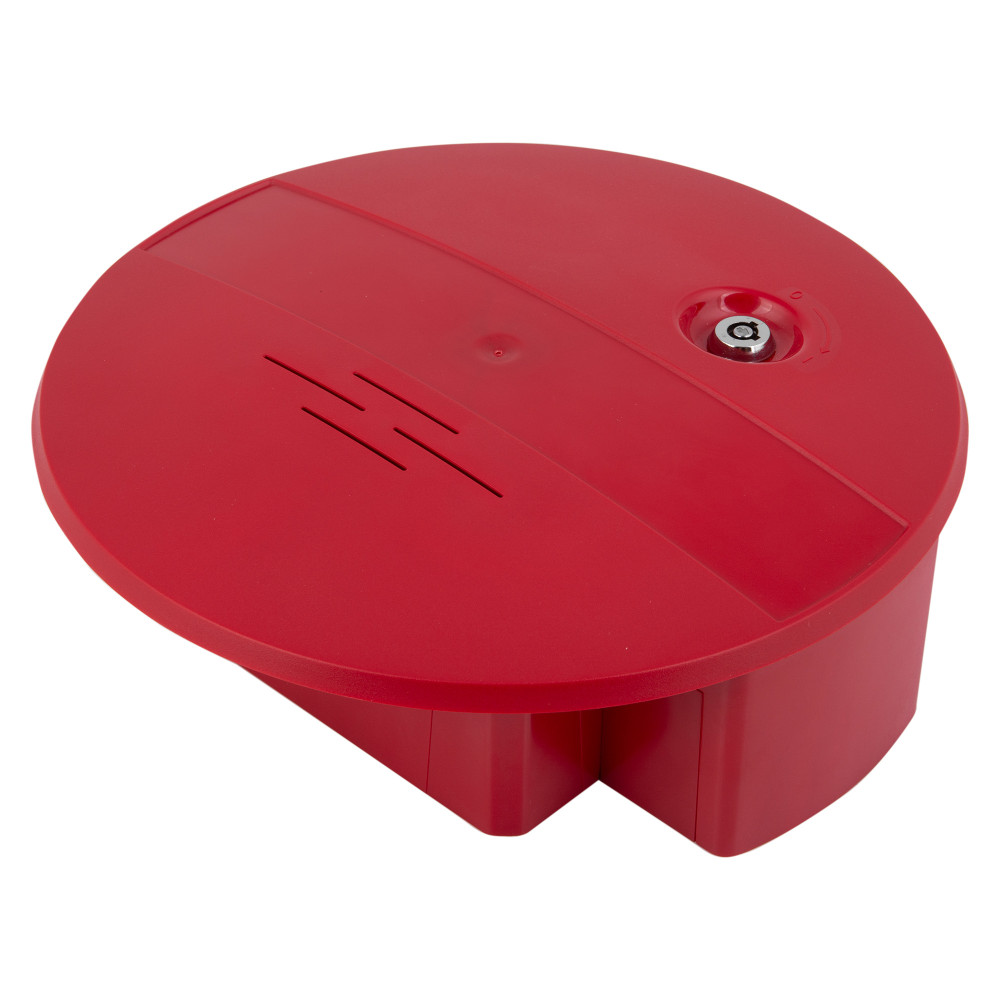

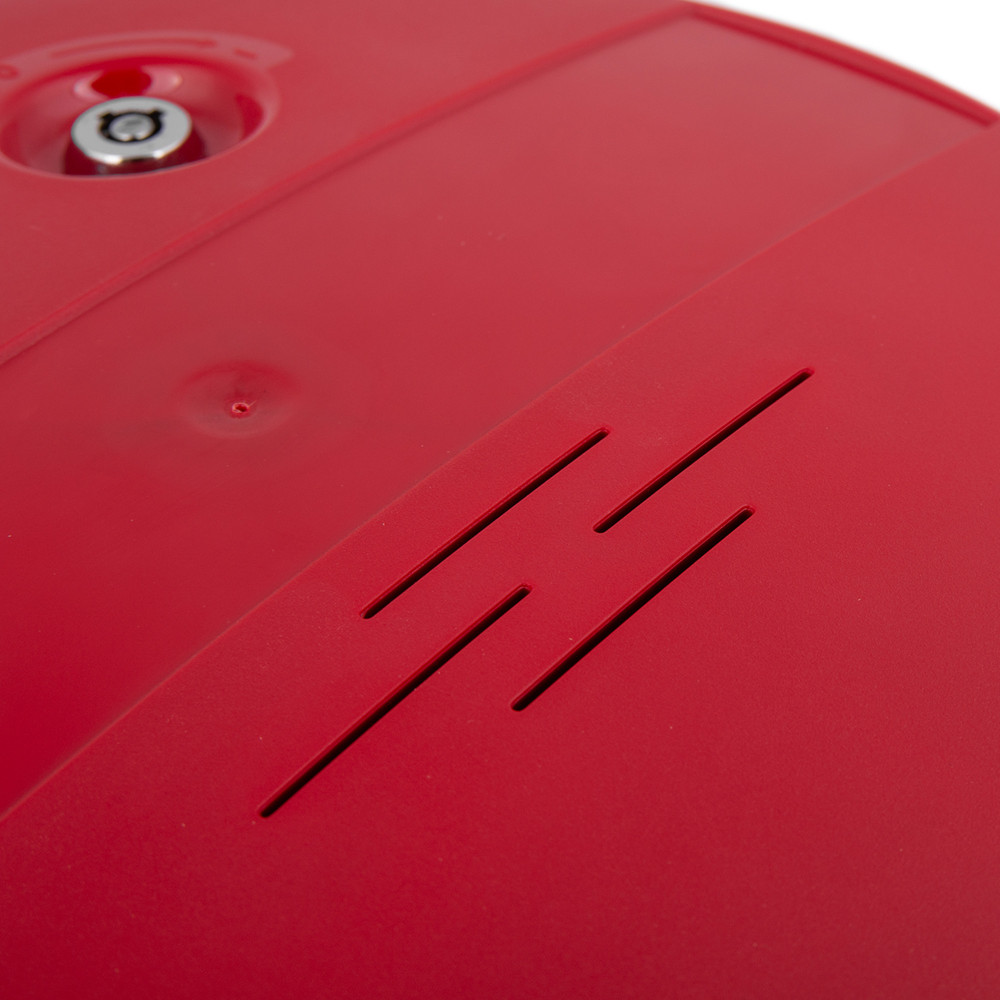

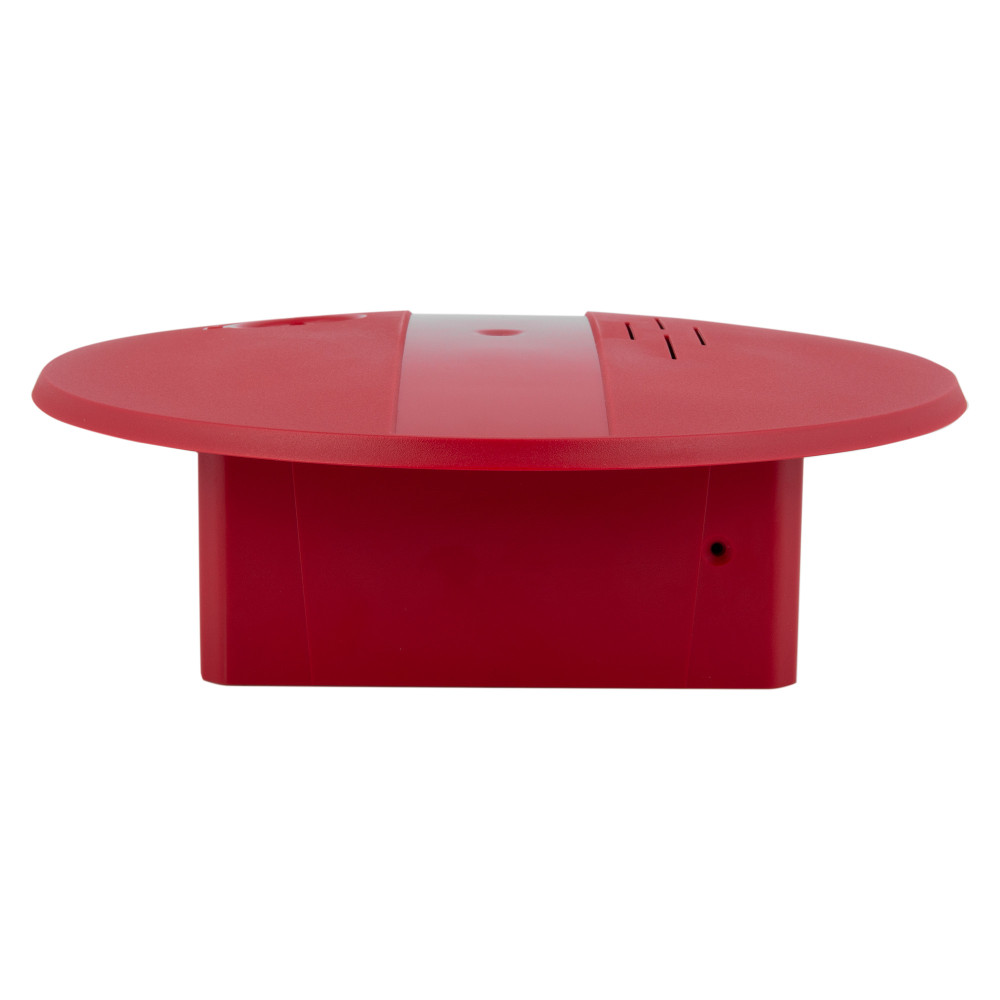

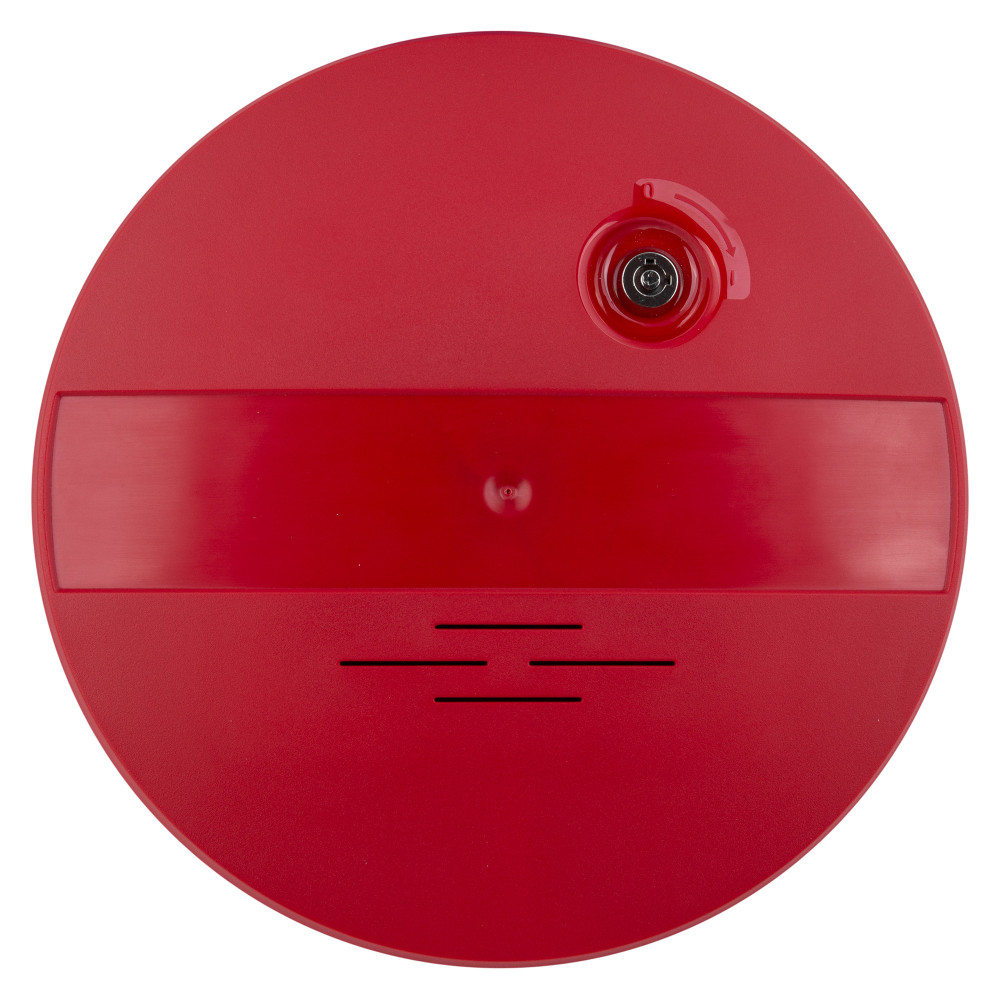

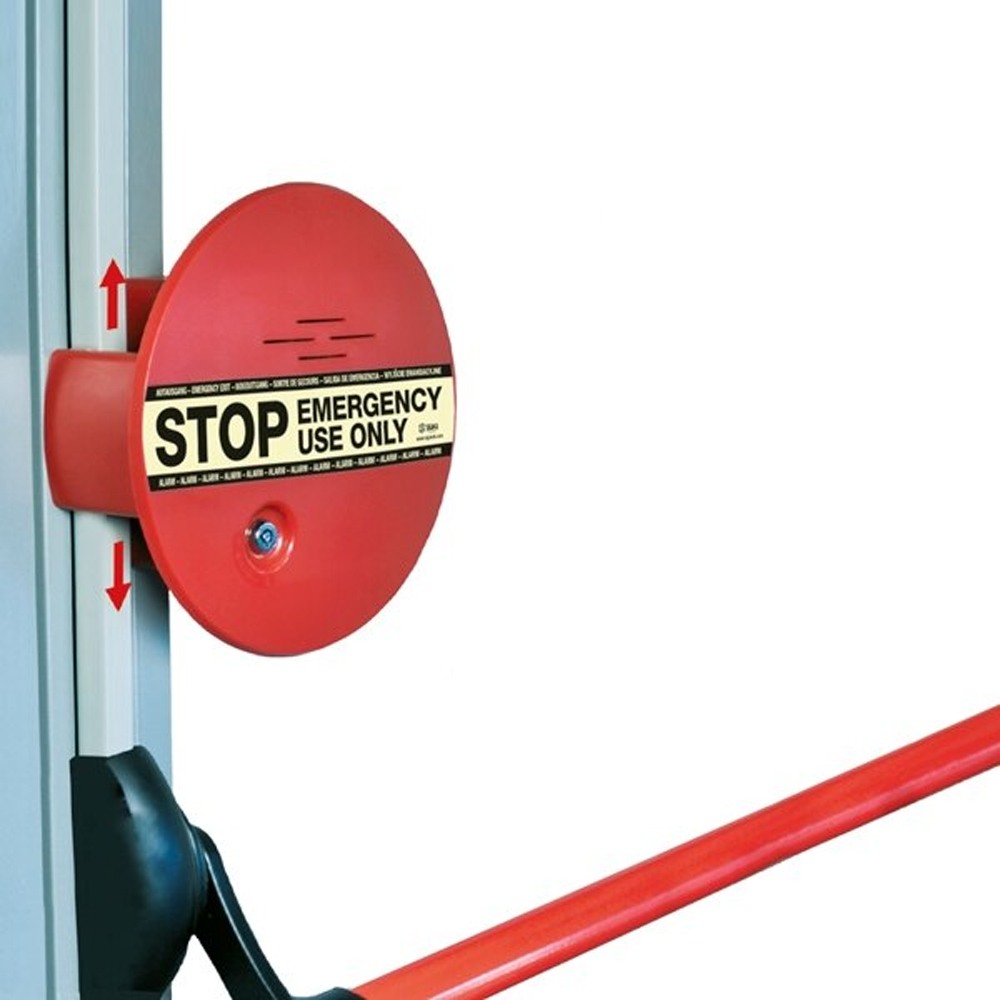

Smart+Shield for Vertical Panic Bolts - ECSG961
Designed for installation on a vertical panic bolt, such as the Exidor 294 or Briton 372, this model is connected directly to the door's locking mechanism and as such will be an extremely effective visual deterrent. The Smart+Shield for Vertical Panic Bolts will alarm when the locking mechanism is disengaged, rather than when the door is actually opened, until reset.

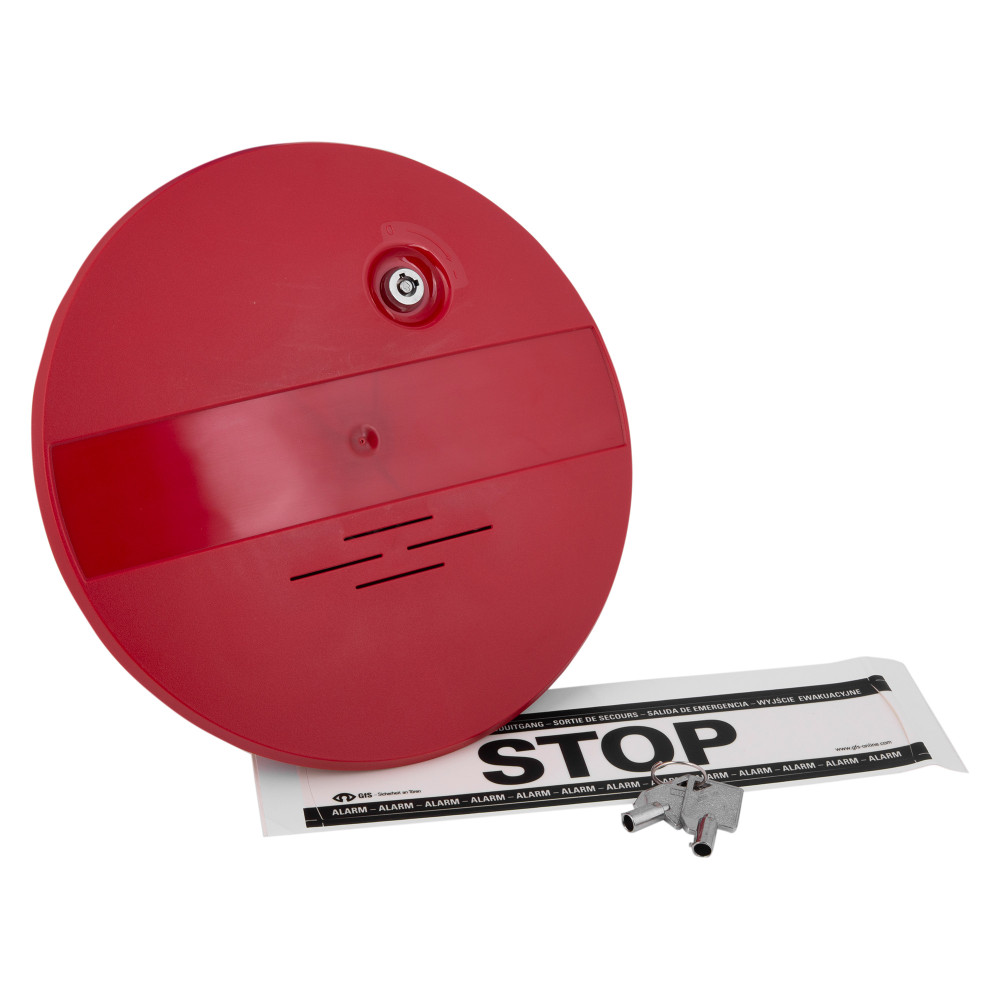

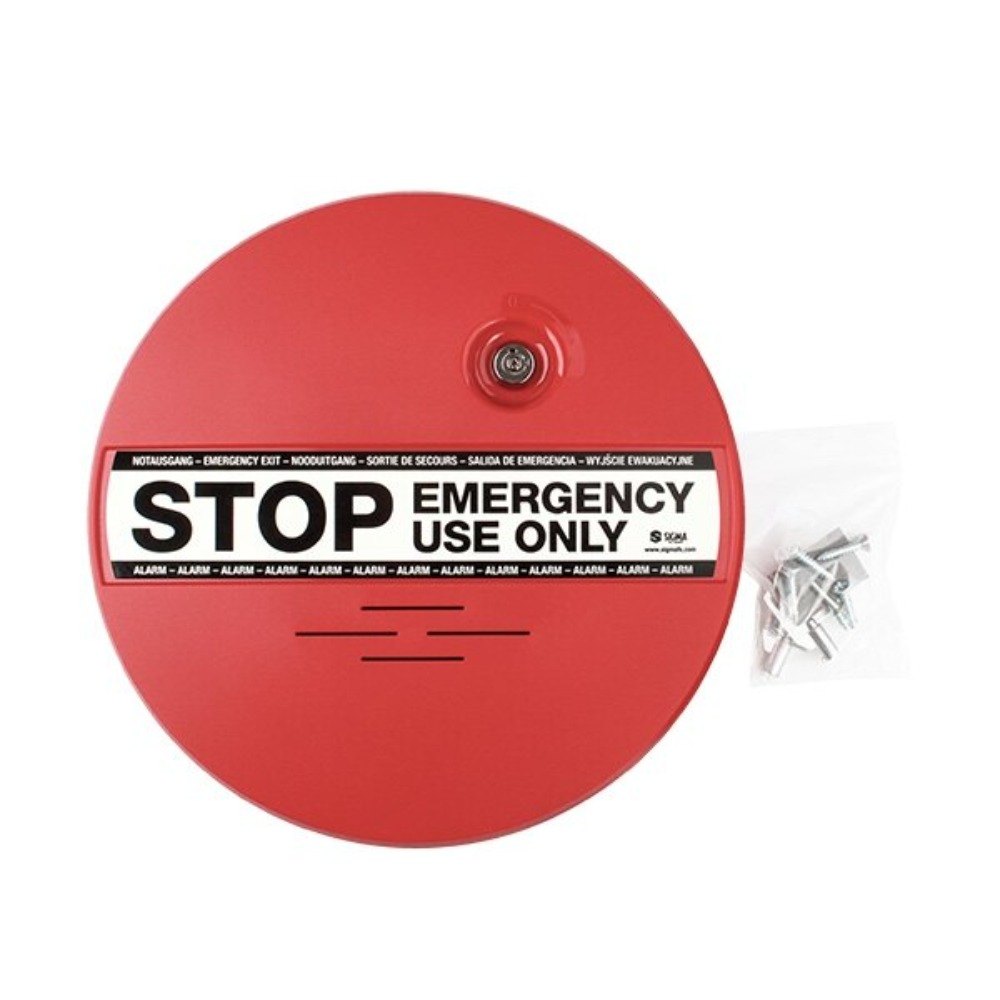

Kit Contents:
- Smart+Shield alarm with battery
- 7x wall screws, 2x case screws
- 2x Reset Key
- Fluorescent STOP Sticker
- Installation Guide
- Magnetic Plate with adhesive pad

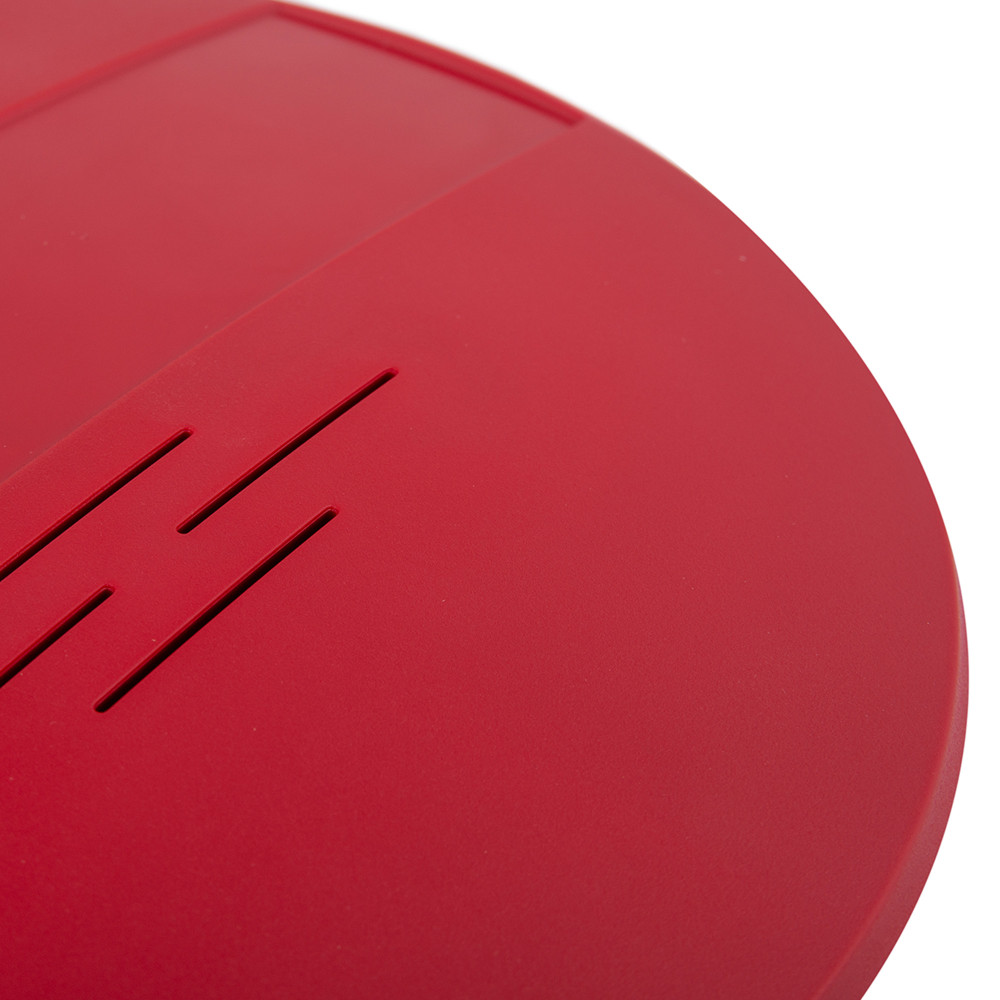

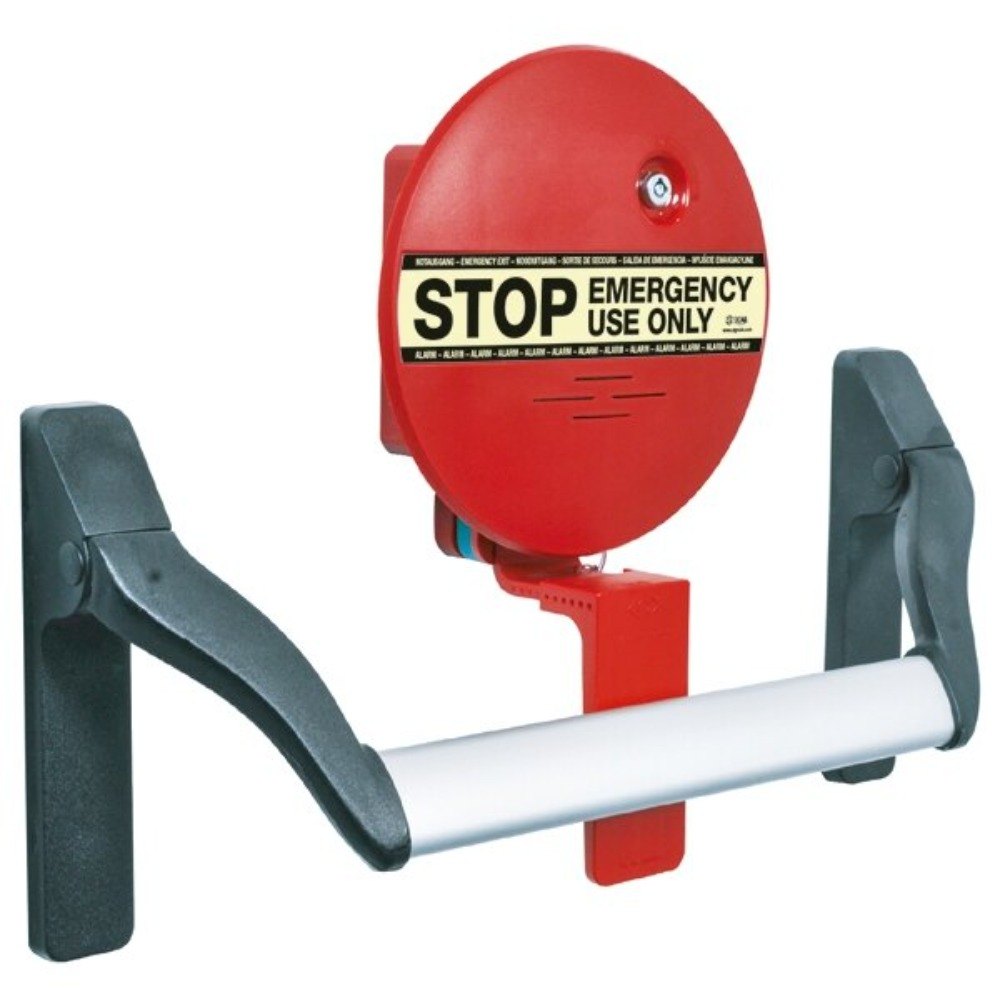

Smart+Shield for Panic Bars - ECSG950
With the included Trigger Angle designed for Panic Bars, such as the Exidor 296 or Briton 378, not only will this model sound when the door's locking mechanism is disengaged, it also features a pre-alarm unlike the previous two models. When correctly installed, the Trigger Angle will detect slight movement in the Panic Bar and sound a temporary alarm which automatically resets when the Panic Bar is released without opening the door. If the Panic Bar is fully depressed and the lock disengaged, the full alarm will sound until reset.

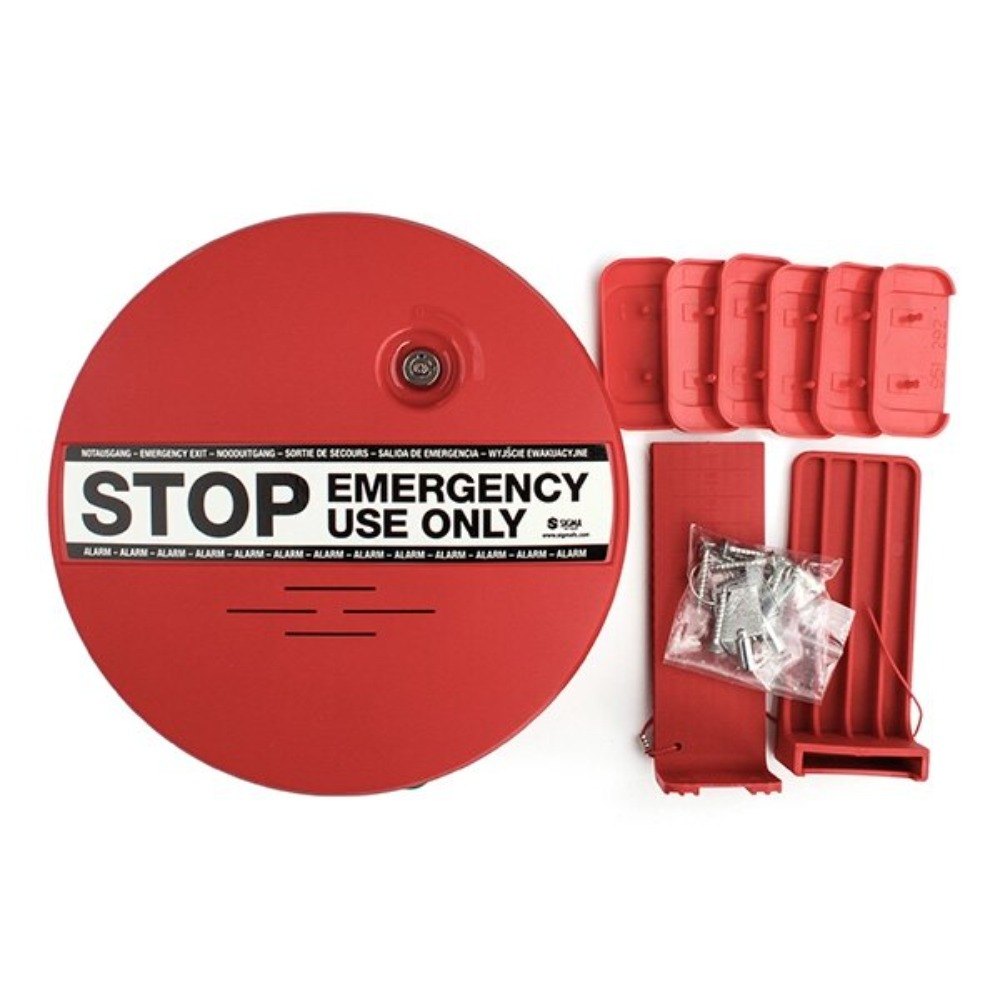

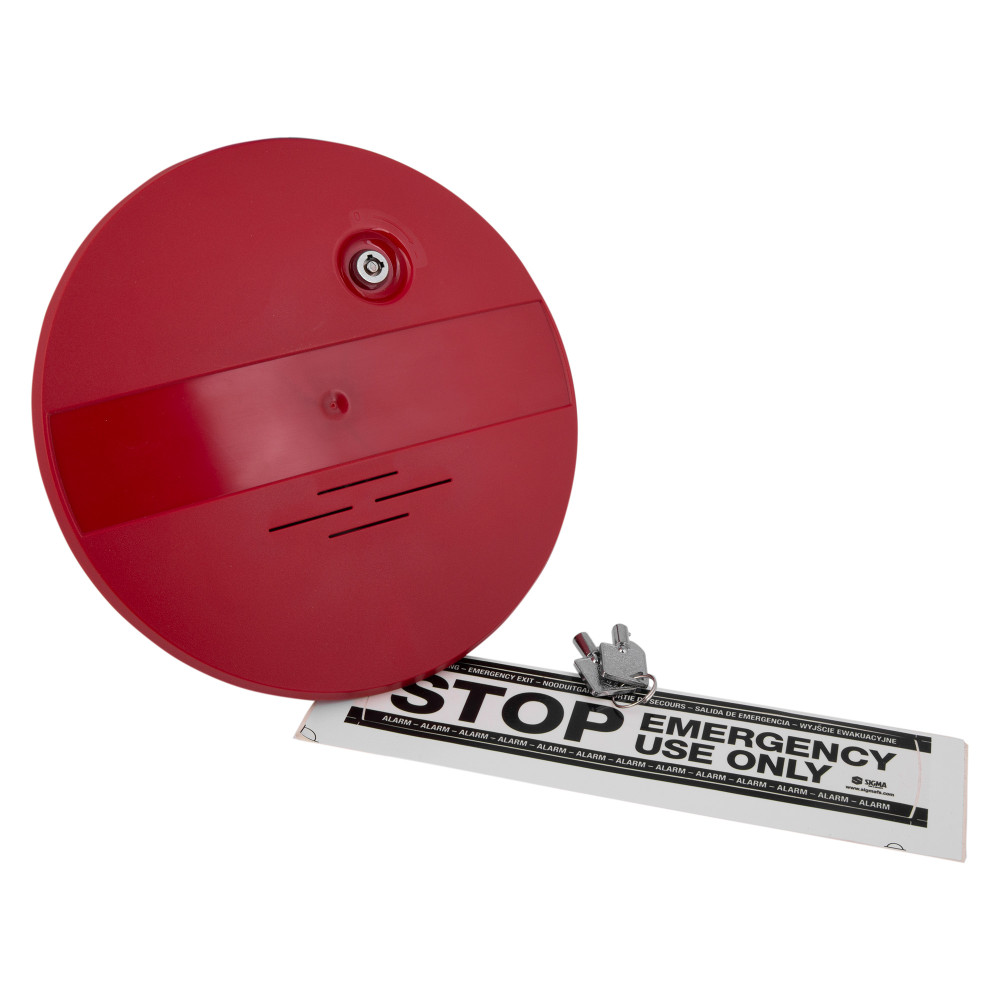

Kit Contents:
- Smart+Shield alarm with battery
- 7x wall screws, 2x case screws
- 2x Reset Key
- Fluorescent STOP Sticker
- Installation Guide
- 1x Trigger Angle for Panic Bars
- 2x Red plastic Spacer Plates

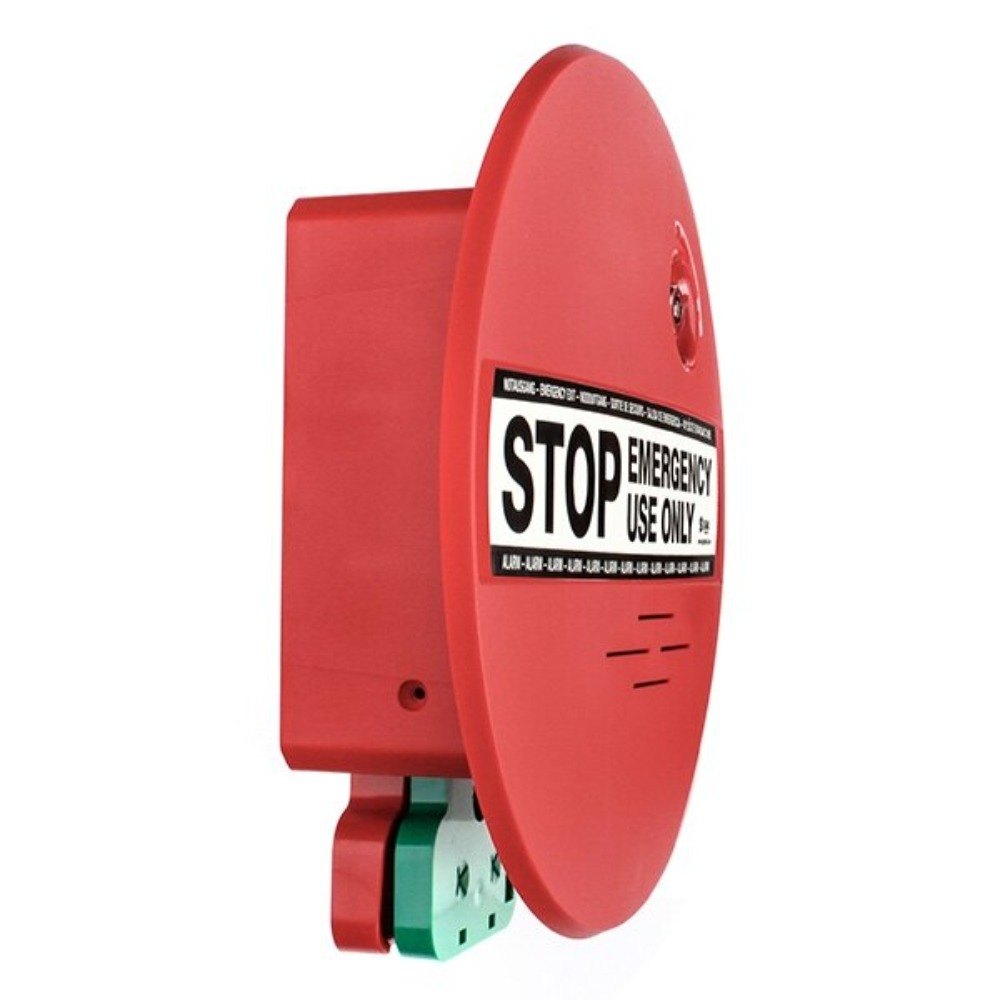

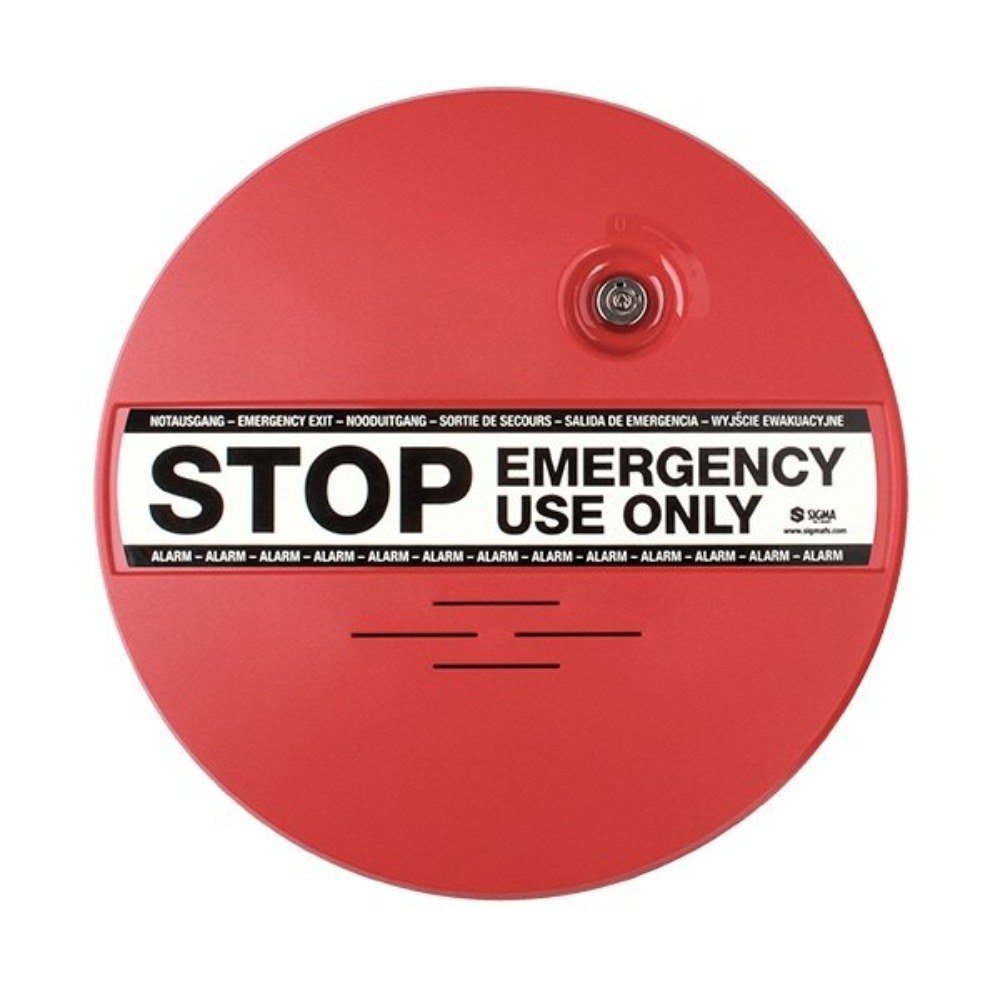

Smart+Shield for Touch Bars - ECSG955

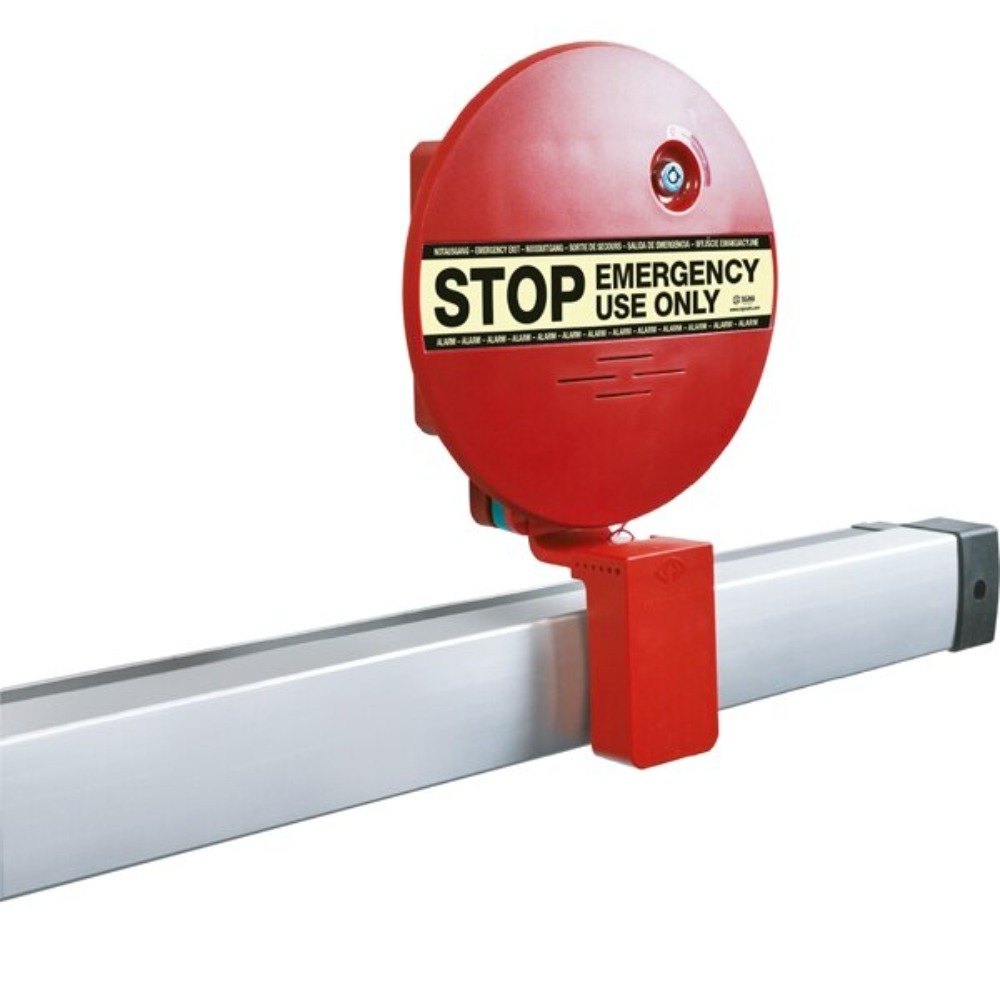

Similar to the Smart+Shield for Panic Bars, this model features a Trigger Angle specifically designed for use with Touch Bar locking mechanisms, such as the Exidor 400. When slight pressure is put on the Touch Bar, a self-resetting pre-alarm will sound to deter improper use of the emergency exit, which will change to a full alarm if the Touch Bar is fully depressed. As with all models, the full alarm can be reset via the integrated key switch or by a configurable 30 or 180 second auto-silence feature.

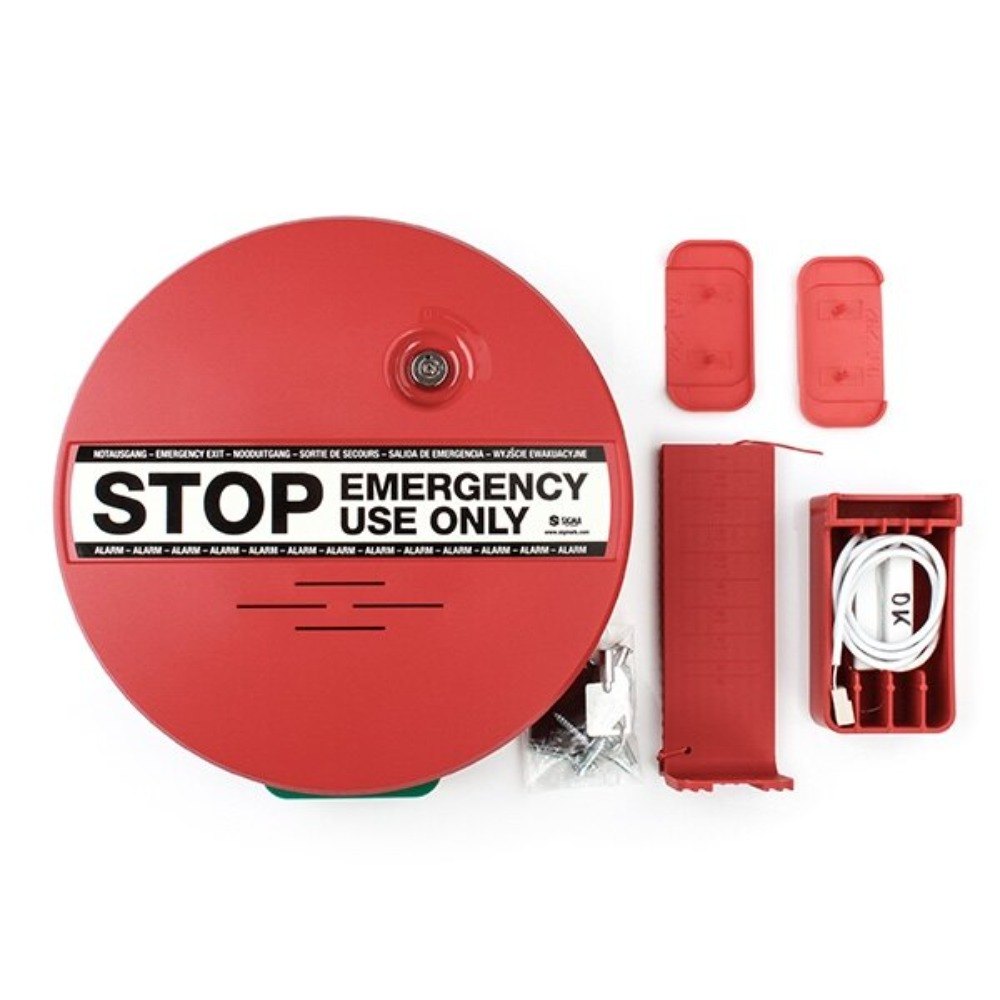

Kit Contents:
- Smart+Shield alarm with battery
- 7x wall screws, 2x case screws
- 2x Reset Key
- Fluorescent STOP Sticker
- Installation Guide
- 1x Trigger Angle for Touch Bars
- Magnetic Plate with adhesive pad
- 6x Red plastic Spacer Plates
