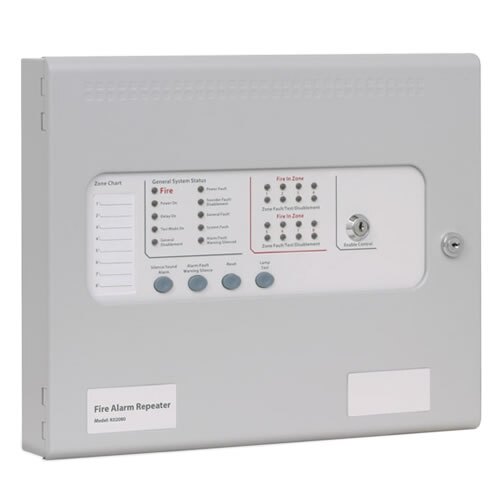

Kentec Sigma CP-R 8 Zone Repeater Panel
Product Overview
Technical Data
Available in mains powered (230V AC) and 24V DC versions, the Kentec Sigma CP-R 8 Zone repeater panel is ideal for applications where access to the master panels functions is required at different areas of the premises. Up to 7 repeater panels can be connected to one Sigma K11 or T11 conventional fire alarm panel, where a maximum cable length from the main panel to the last repeater is 1200 meters.
- Available in 230V AC or 24V DC versions
- Designed for use in conjunction with the following conventional fire alarm panels:
- Up to 7 repeater panels can be connected to one Sigma master panel
- Acts as an additional control panel for the fire alarm system
- Allows access to the master panels functions from different areas of a site
- Maximum length of data cable from the main panel to the last repeater panel: 1200 meters
- Mains powered (230V AC) panels are available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
Technical Data
This is the technical data for the Kentec Sigma CP-R 8 Zone Repeater Panel.
| Dimensions (HxWxD) | 310x385x90mm |
|---|---|
| Operating Temperature | -5 °C to +40 °C |
| Relative Humidity (non-condensing) | <95% |
| IP Rating | IP30 |
| Construction | 1.2mm mild sheet steel |
| Supply Voltage | 230V AC or 20-30V DC |
| Number of Zones | Eight |
Product Datasheets
The following datasheets are available for this product.
Pricing & Availablity
| Model | Stock | Price | Weight |
|---|---|---|---|
|
24V DC Product Code: FLSCPR8 |
Stock Level:
Lead time:
3–5 days
|
Price:
£199.99 ex VAT £239.99 inc VAT |
Weight:
6kg
|
|
230V AC Without Stand-by Batteries Product Code: FLSCPR8P |
Stock Level:
Lead time:
3–5 days
|
Price:
£275.99 ex VAT £331.19 inc VAT |
Weight:
6kg
|
|
230V AC With Stand-by Batteries Product Code: FLSCPR8PB |
Stock Level:
Lead time:
3–5 days
|
Price:
£298.99 ex VAT £358.79 inc VAT |
Weight:
11kg
|
