EVAC+CHAIR IBEX TranSeat 700H Evacuation Chair

5 out of 5 stars
£2,099.99 inc VAT
£1,749.99 ex VAT
Product Overview

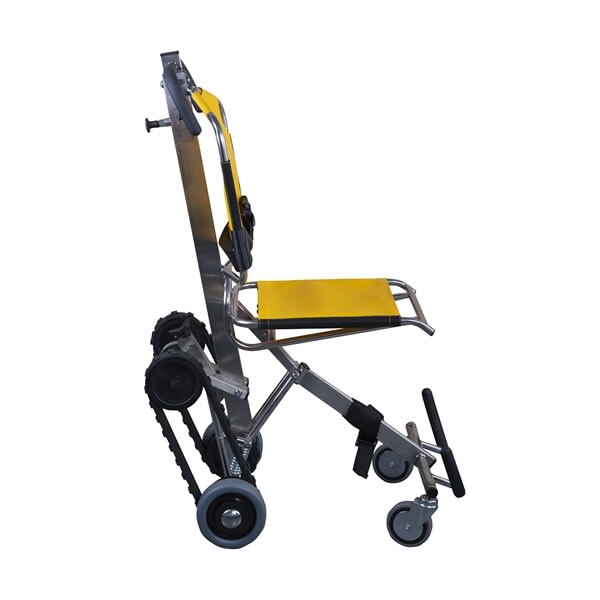

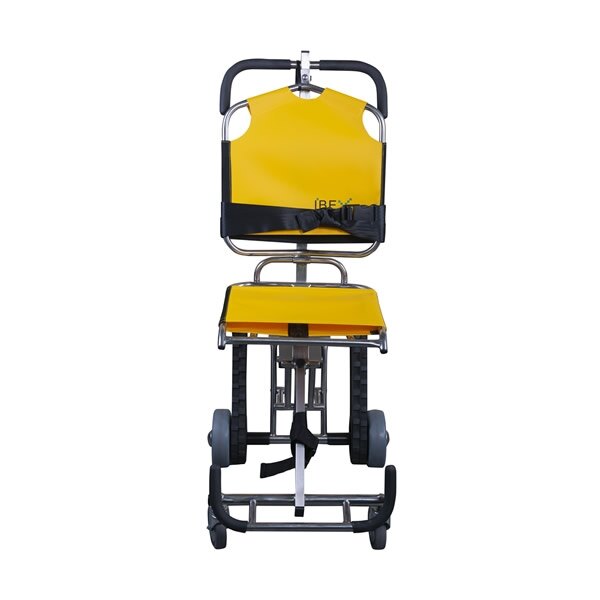

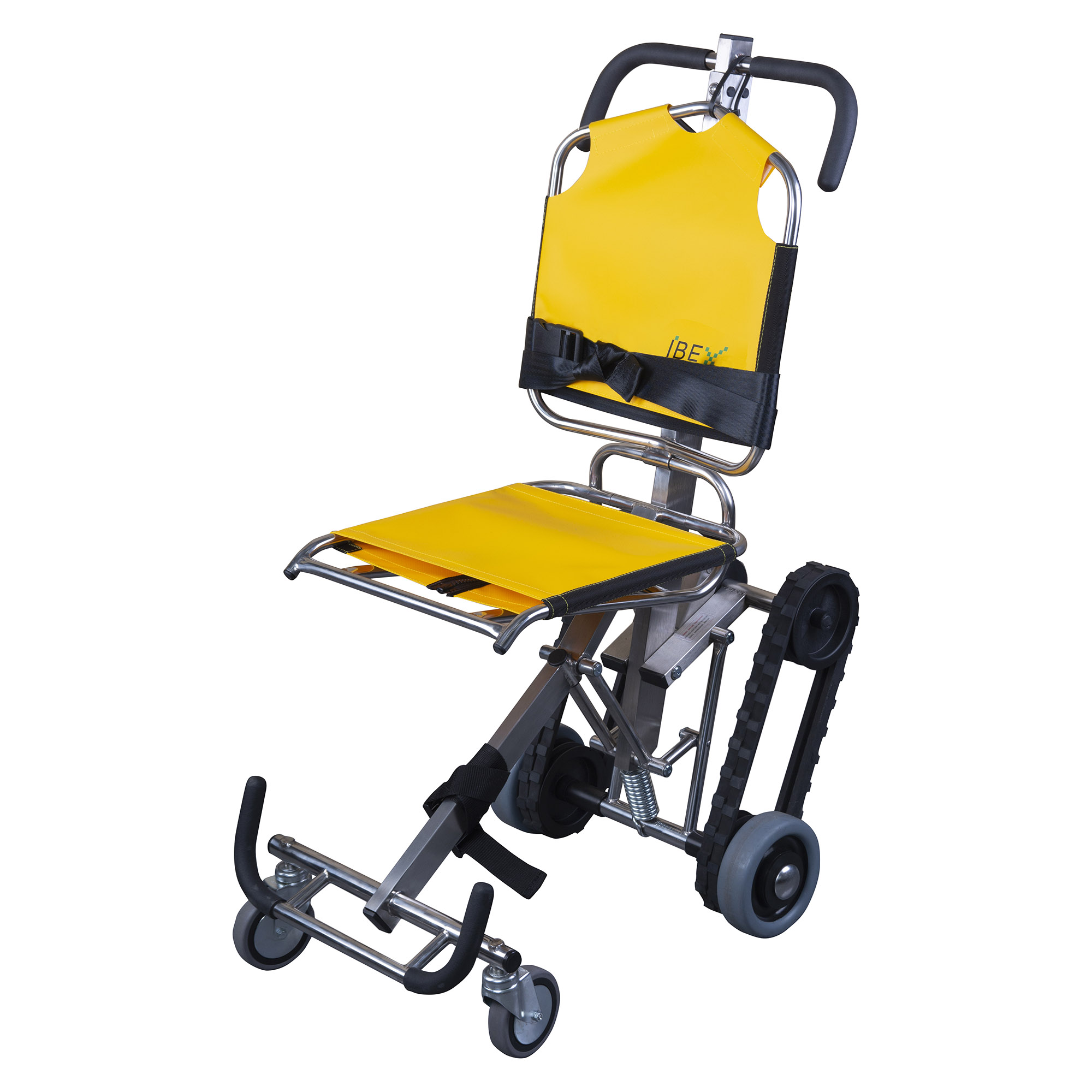

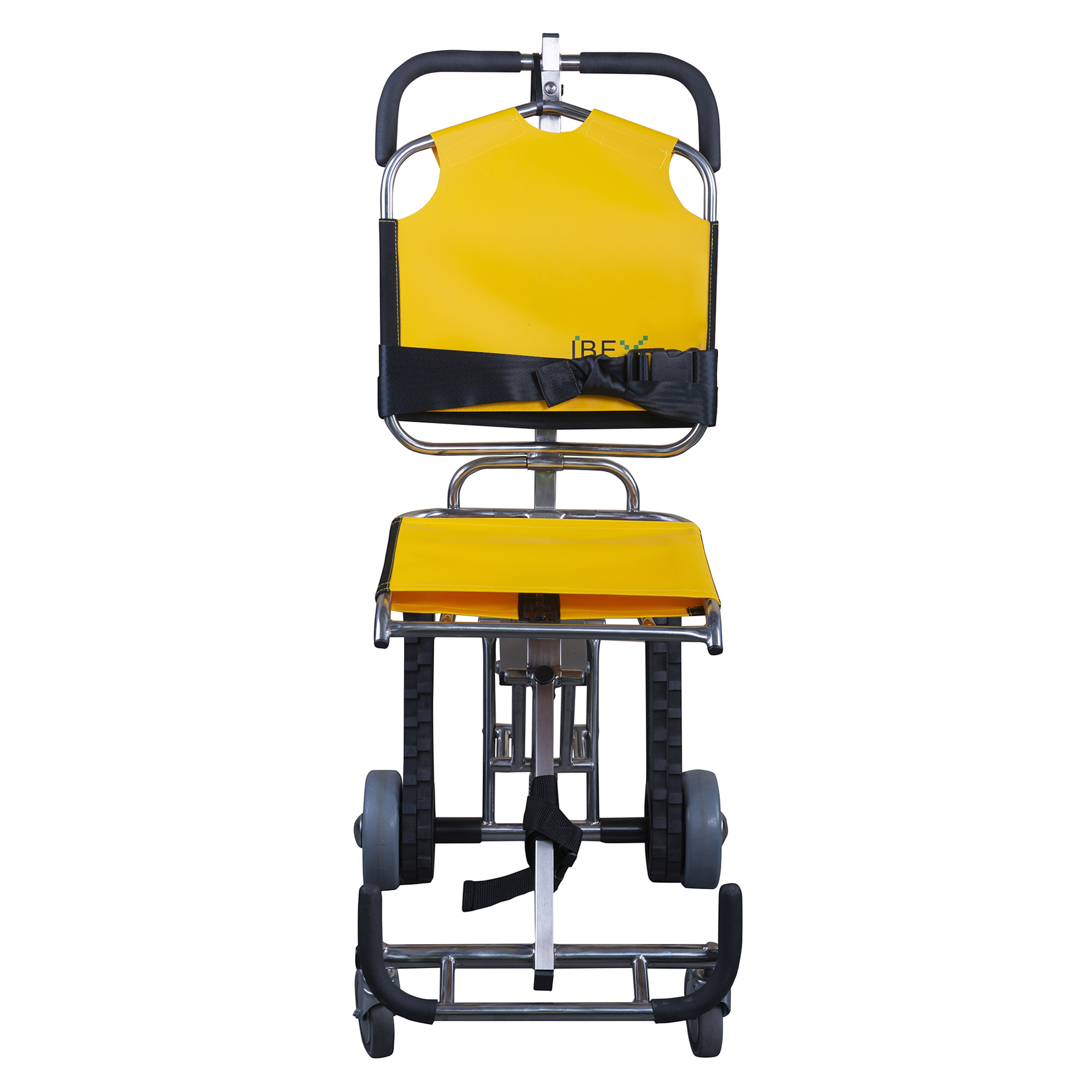

The IBEX Transeat has the ability to both descend and ascend stairways with ease during an emergency escape situation. Many commercial and residential applications have stairs which lead to the escape access of a building (i.e. from basement level). The IBEX Transeat is the perfect solution for the evacuation of mobility impaired persons. Specially designed "tracks" allow the chair to ascend stairs without the need for the operators to lift. By coordinating movements, operators guide the TranSeat over stair nosing.

  • Strong, durable stainless steel frame construction

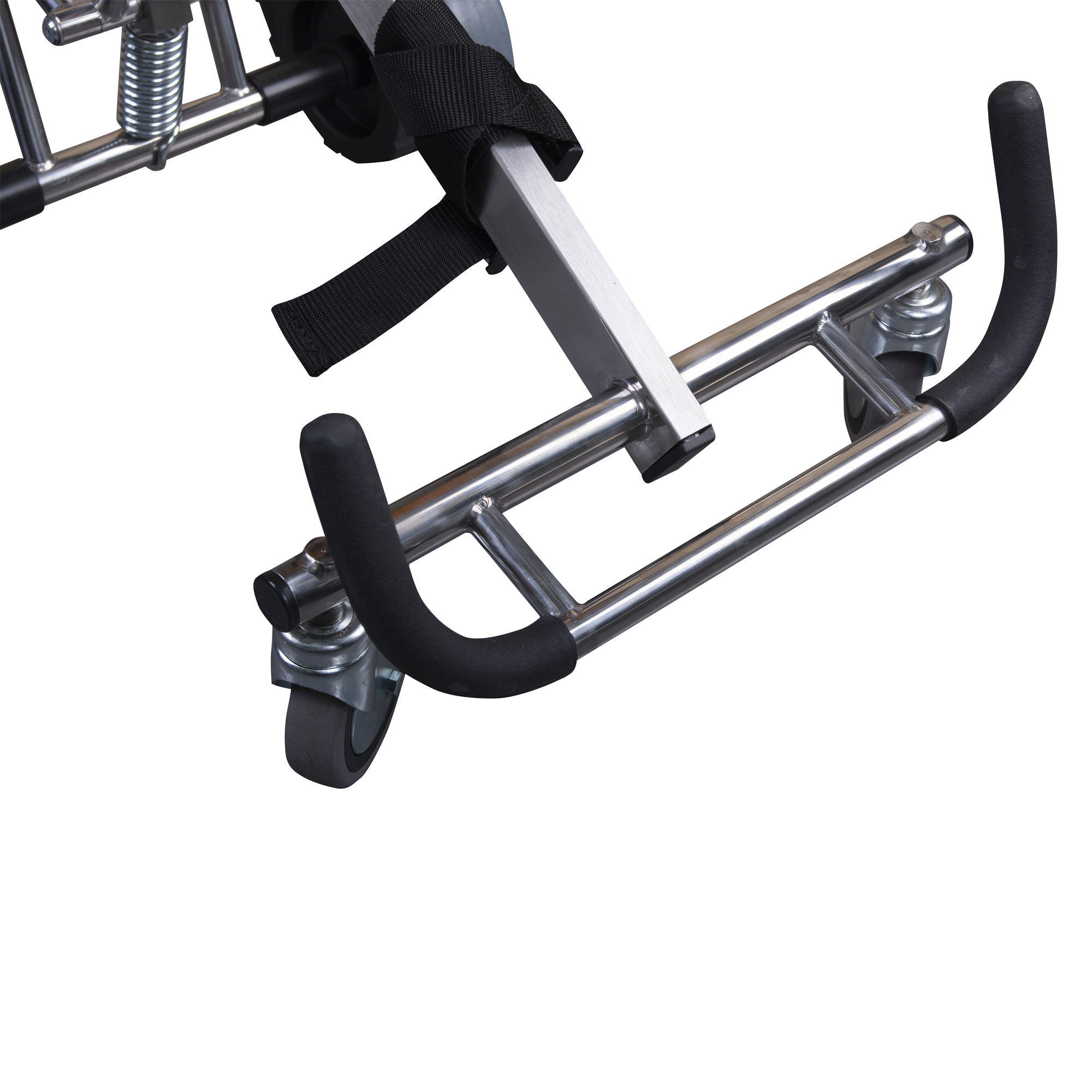

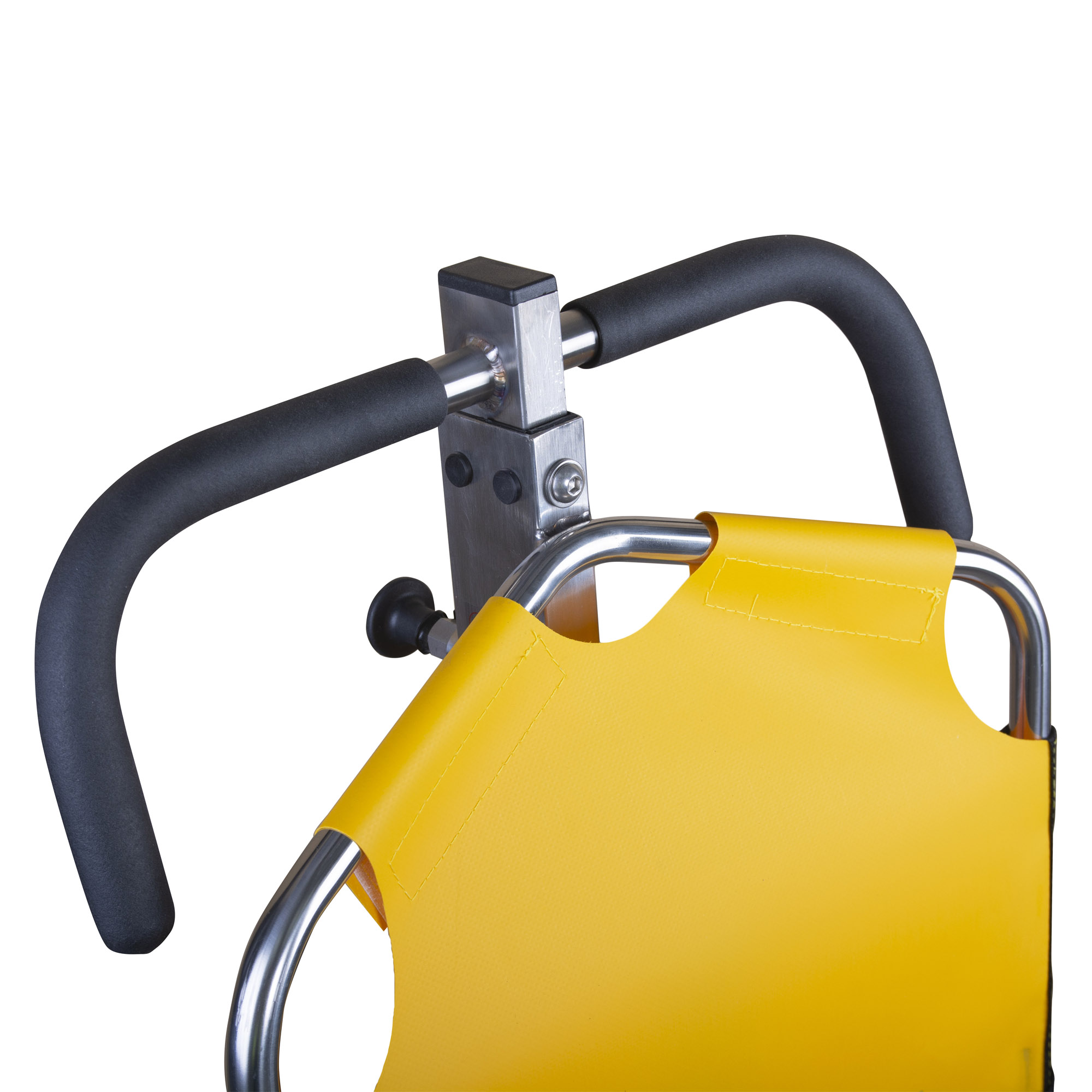

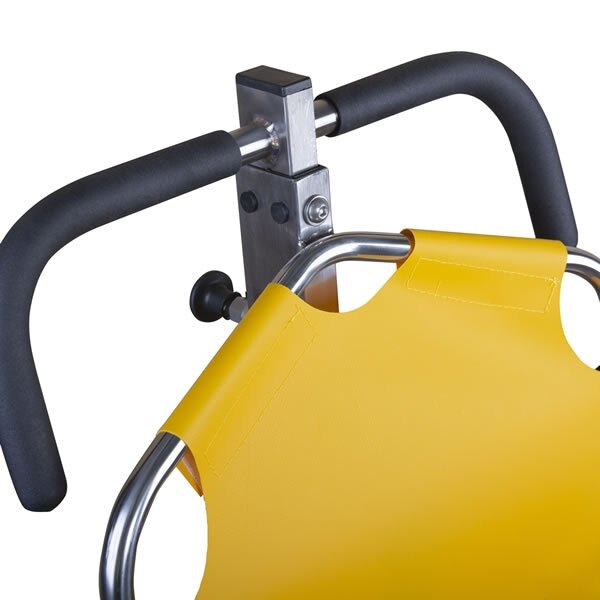

  • The top extendible handle can be adjusted to meet the operator's needs

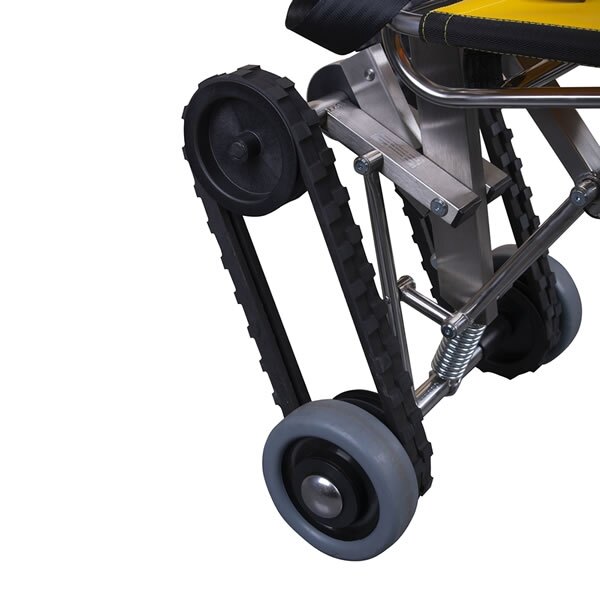

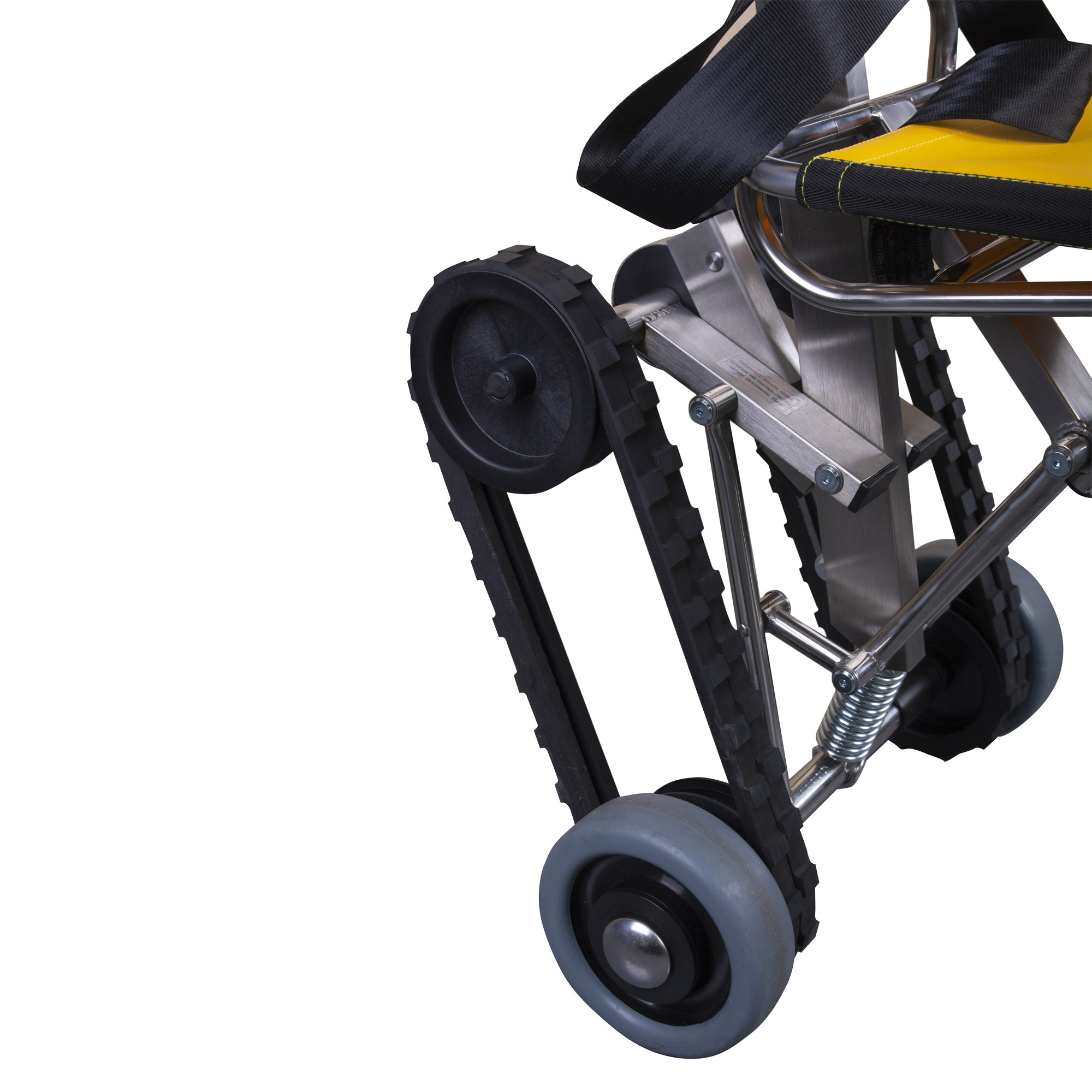

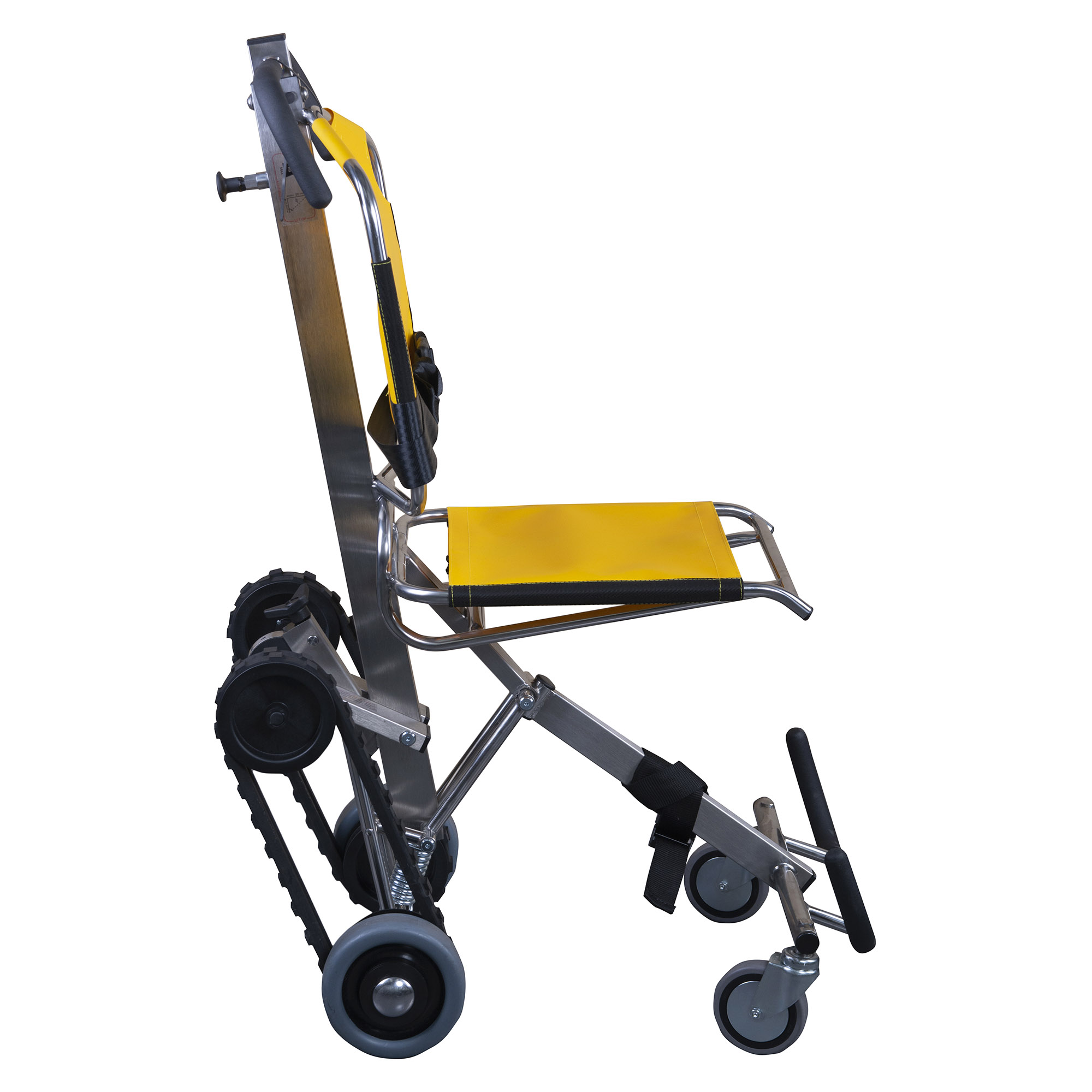

  • Pulley belts ("tracks") assist during stair evacuation

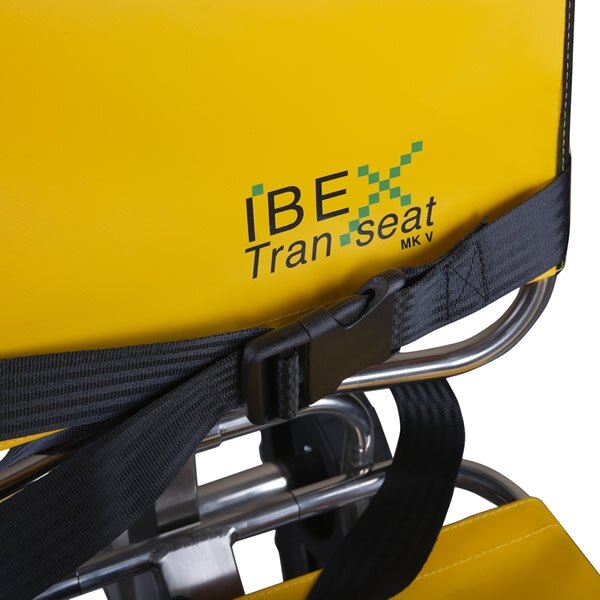

  • Safety belts help to secure the passenger in place
  • Can be used on level ground and on ascending and descending stairs
  • Also suitable for use on spiral staircases where space is restricted
  • The tracks can be brake controlled ready for ascent and descent. The brake is applied on descent to control chair movement and then released on ascent to minimise resistance
  • Two person operation to control chair movement
  • Easy to open for quick emergency access

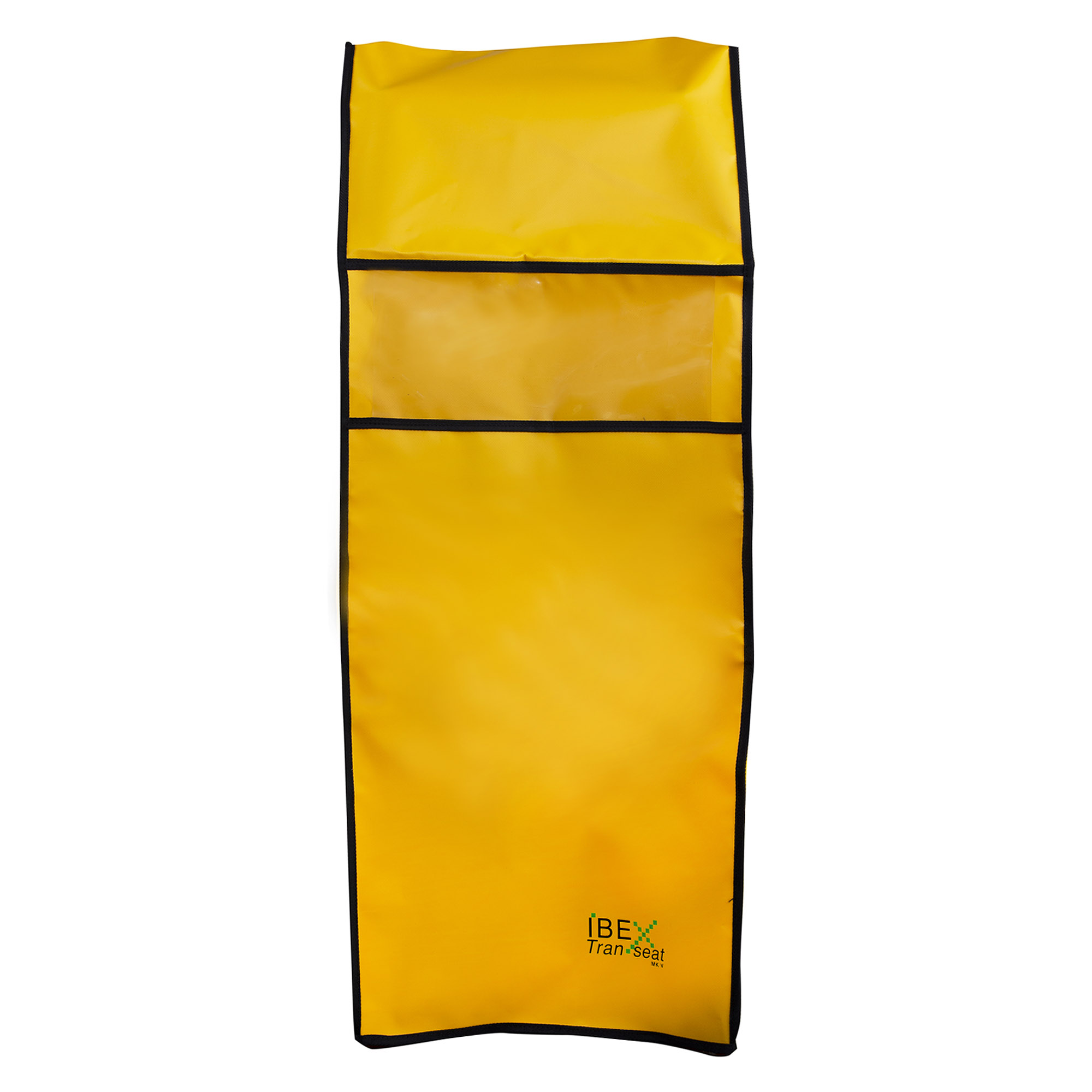

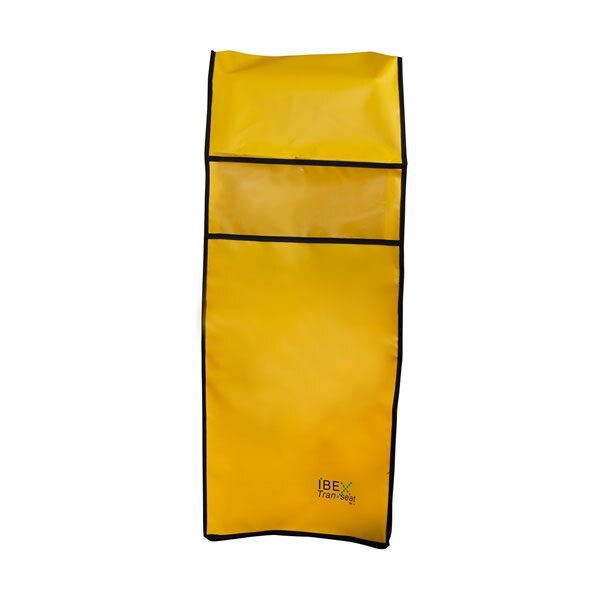

  • Wall securing brackets and dust cover supplied as standard
  • Maximum passenger load: 159kg
  • Manufactured in the UK
  • Compact storage to avoid obstruction
  • DDA compliant product
  • Class I Medical Device and regulated under PUWER
  • Annual EVAC+CHAIR servicing available
Legislation Requirements

The IBEX Transeat 700H helps businesses to comply with current health and safety legislation requirements. This includes:

  • Regulatory Reform (Fire Safety) Order 2005 - Means of escape
  • Building Regulations Parts B and M - Building use and access
  • BS5588-8:1999 - Providing disabled people with measures to be assisted in an emergency
  • Equality Act 2009 - Ensuring that disabled people are not at a disadvantage compared to those that are not disabled
  • DDA (Disability Discrimination Act) - Providing adequate access and facilities for any disabled person who may enter a building

Evac+Chairs are Class I Medical Devices with their installation and use regulated under the Provision and Use of Work Equipment Regulations 1998 (PUWER). Employers, self-employed people, and those employed to supervise or manage equipment are responsible for ensuring that a reasonable amount of staff are adequately trained to use Evac+Chairs safely, that the chairs are annually serviced by a qualified engineer, and that they are regularly inspected by a competent worker.

Technical Data
Product Code ECCHAIRIBEX
Brand Evac+Chair
Dimensions (HxWxD)

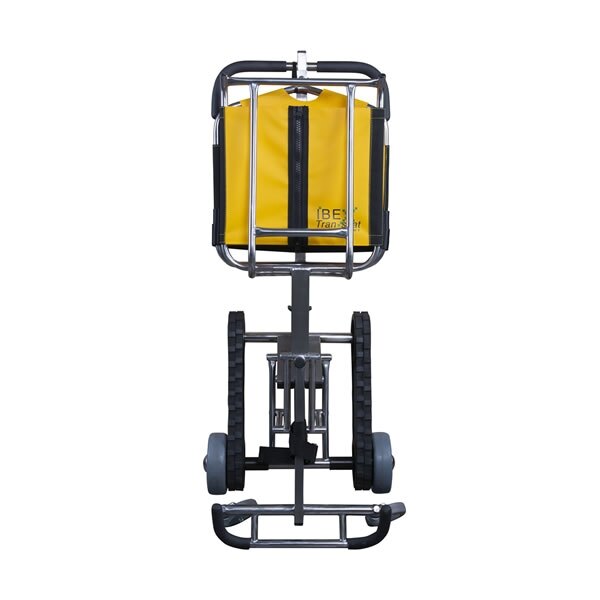

Folded Position: 1110x460x360mm

Deployed Position: 1460x460x710mm

Weight 14.50kg
Product Datasheets
FAQs (1)
Q. Is there a minimum age or weight for the Evac+Chairs?
A.

No, the Evac+Chairs are suitable for children (not babies or small toddlers that can be carried) as they come with patient restraints to keep the user secure in the chair while in motion, especially, when descending stairs. It is a recommendation from the manufacturer that when you purchase an Evac+Chair for a specific child user that adding a comfy Seat (ECCHAIRSEA) would be beneficial as the hammock style seat can be quite uncomfortable for younger users.

Pricing & Availability

Model Stock Price
Product Code: ECCHAIRIBEX Stock Level:
1 in stock Expected dispatch: 17th Dec
Price:

£2,099.99 inc VAT

£1,749.99 ex VAT

Delivery Options

The following delivery options are available on this product.

Next Working Day Delivery

£1.20 inc VAT - Orders will be delivered in 10-14 working days with DHL

Customer Reviews

1 customer has given this product an overall rating of 5 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by:

Amazing product. Takes all the hard work out of the evacuation and allows the evacuation to be carried out by employees that would normally be able to do it.

Published on: 11th August 2015
