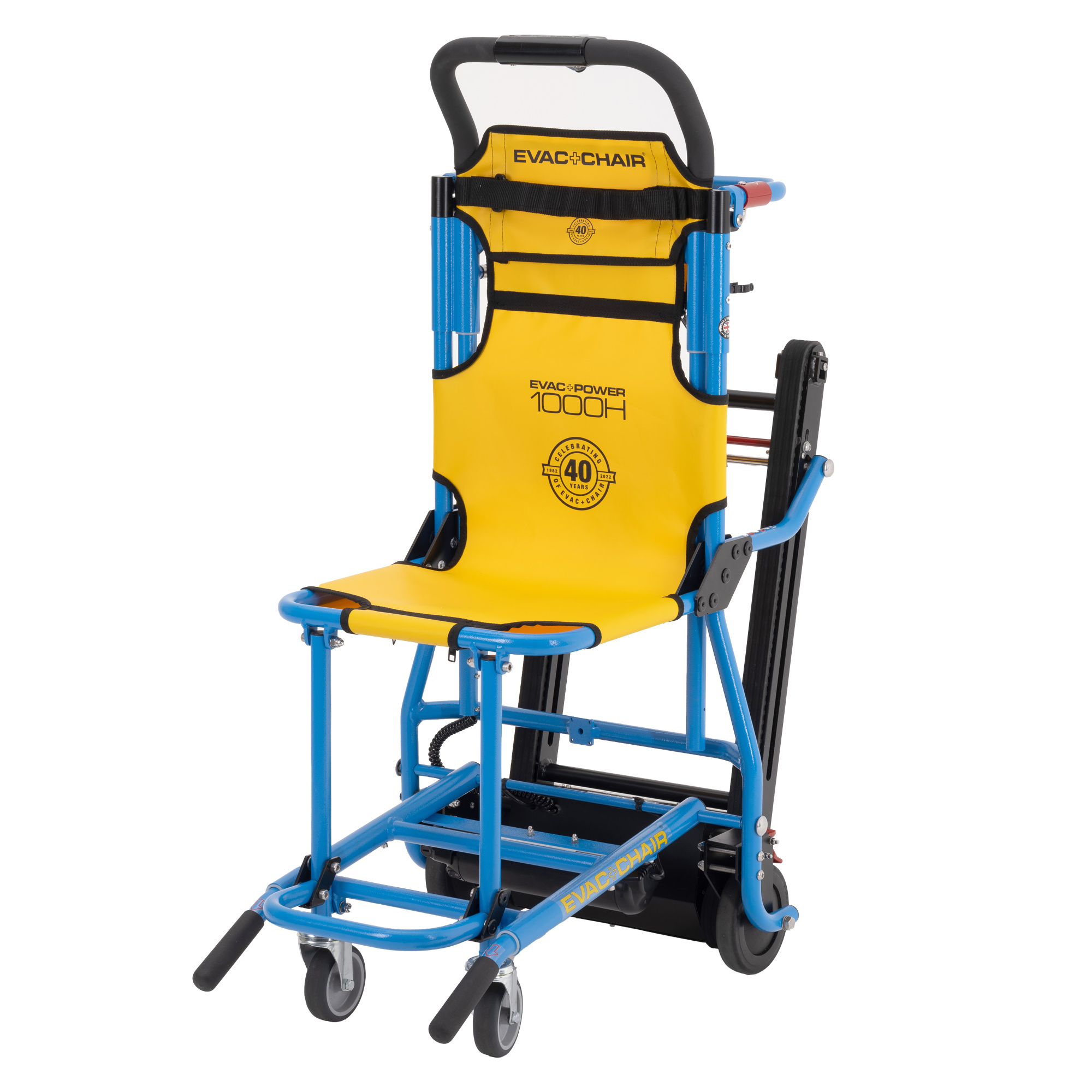

EVAC+CHAIR Power 1000H Motorised Evacuation Chair

Please Note: This Evac+Chair is not designed for domestic use and is not suitable for carpeted stairs as standard. Choosing the right evacuation chair for your premises depends on the style, angle, and dimensions of your staircase. To make sure yours is suitable or if there is any doubt, please call us today on 0800 612 4827 to arrange a FREE site survey.

£3,594.00 inc VAT

£2,995.00 ex VAT

Qty

Product Overview
Items Included
Technical Data

Product Overview

The Evac+Chair Power 1000H from market leaders in evacuation, Evac+Chair, allows for the operator to safely take an individually up and down stairs with no physical effort at all. Powered by a compact 36V lithium-ion battery and simple control panel, the chair effortlessly glides on stairs for a seamless evacuation by a single operator for individuals weighing up to 270kg. Supplied complete with everything for convenient storage and comfort for the passenger.

Ideal for evacuating heavier passengers
Capable of ascending and descending flights of stairs
One or two-person operation
Ultra powered belt track system accomodates individuals up to 270kg
Patient comfort and safety features include:
- Head restraint
- Arm rests
- Seat belt
- Foot rest
Powered by a 36V lithium-ion battery provides 9 hours of continuous operation on a single charge
Reduced burden on the operator as no heavy lifting is required
Increased control over evacuation with easy to use control panel
Water resistant control panel – IPX4
Ergonomic handle for easy manoeuvrability over flat terrain
Designed and manufacturered in the UK
1 year battery warranty
Supplied complete with battery, charger, safety harness & foot strap, dust cover, wall bracket & fitting instructions
Class I Medical Device and regulated under PUWER
Initial siting and installation available
Annual EVAC+CHAIR servicing available

Items Included

Your Evac+Chair Power 1000H comes supplied with a full suite of essential accessories.

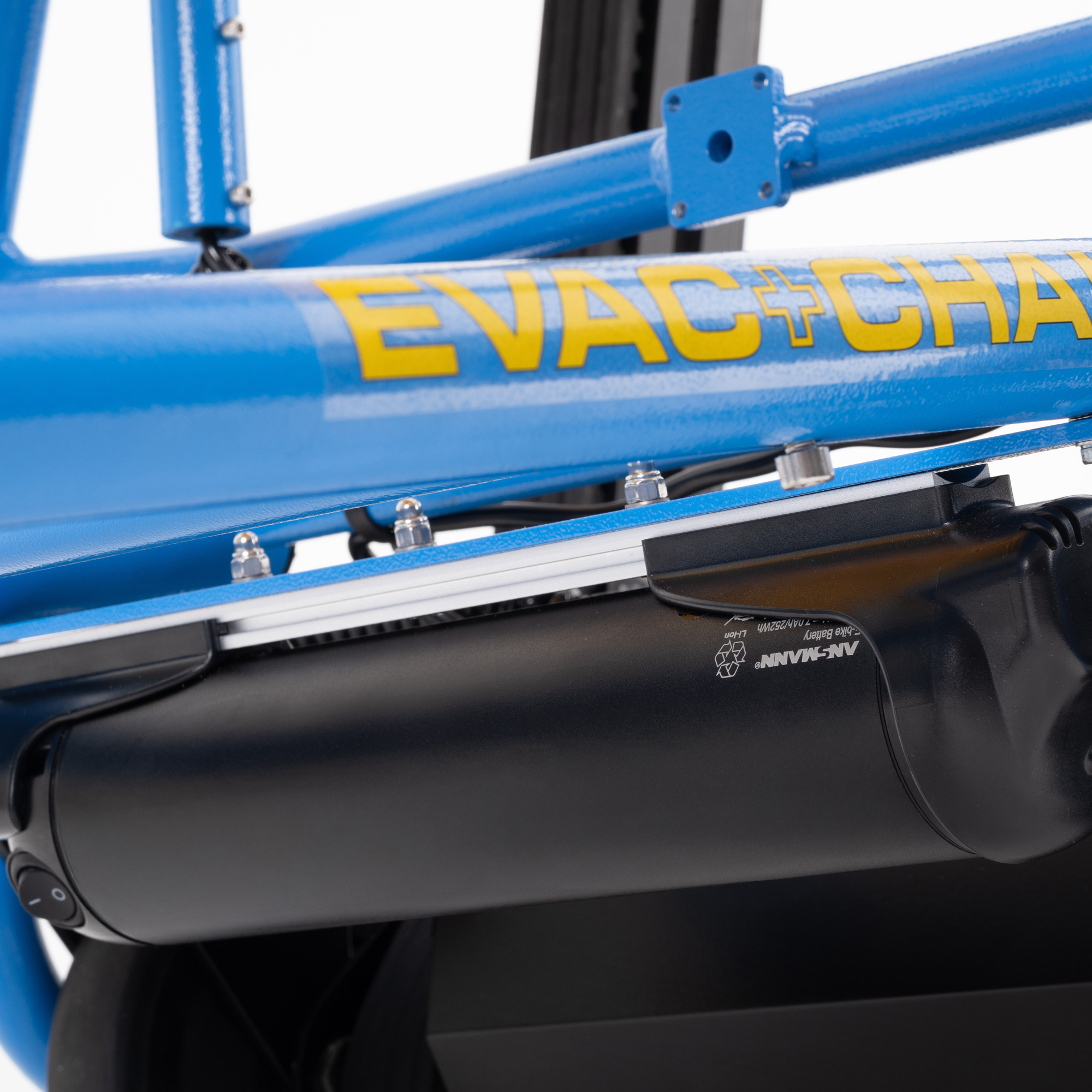

Rechargeable 36V lithium-ion battery – replaceable and lockable to prevent theft. Complete with 1 year warranty
Battery charger – charge in one go, removing the need to trickle charge
Dust cover – keep your evacuation equipment free from dust and debris
ID signage – comply with your requirement to clearly mark safety equipment
Safety harness & foot strap – additional safety measures for your passenger during an evacuation
Wall bracket – conveniently mount your 1000H for quick access
User guide – get to grips with your new evacuation chair

Technical Data

Product Code	ECCHAIR1000H
Brand	Evac+Chair
Average Speed	Ascending: 0.2 metres per second Descending: 0.3 metres per second
Battery Life	90 minutes (continued usage)
Charging Time	5 hours (0 - 100%)
Dimensions (HxWxD)	Folded: 1220 x 580 x 300mm Unfolded: 1670 x 580 x 1110mm
Maximum Load	270kg
Motor	Power: 300W Voltage: 36V
Stair Angle	28° - 40°
Warranty	1 year (battery)
Weight	With battery: 26kg Without battery: 24.5kg
Weight	26.00kg
Product Datasheets	1000H User Guide (DIGITAL) Evac-Chair Power 1000H Data Sheet (PRINT)
