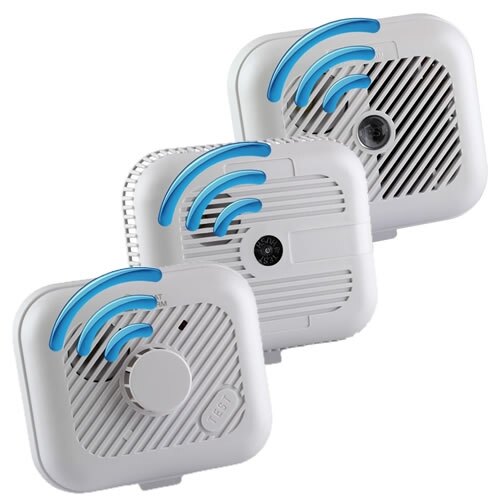

9V Radio-Interlinked Smoke and Heat Alarm Starter Kit (Contains 3 Alarms)

Discontinued Product

This product has been discontinued and is no longer available to buy.

View Alternative Products
Product Overview

This great value starter kit is comprised of; an Ei3100RF ionisation smoke alarm suitable for landings, an Ei3105RF optical smoke alarm suitable for hallways, living rooms and bedrooms, etc. and an Ei3103RF heat alarm suitable for kitchen or garage installation.

The Ei3100RF series battery powered smoke and heat alarms are each powered by a single 9V battery and feature radio-interlink functionality. Without the need for any wiring whatsoever, the Ei3100RF smoke and heat alarm kit can be quickly and easily installed in the home. The radio-interlink means that should one alarm sound, all alarms in the system will sound.

  • Kitemarked to BS EN 14604:2005
  • Suitable for installations complying to BS 5839-6: 2019 Grade F2
  • Built-in radio-interlink facility allows wireless interlink between multiple alarms
  • A maximum of 12 alarms can be interlinked
  • Kit comprises of:
    • 1 x EI3100RF: Ionisation: for landings
    • 1 x EI3105RF: Optical: for hallways, living rooms, bedrooms
    • 1 x EI3103RF: Heat detector: for kitchens and garages
  • Supplied with alkaline batteries as standard
  • RF range over 150 metres in free space and up to 30 metres in buildings
  • Digitally coded to avoid interference with neighbouring systems
  • Advanced suppression and calibration technology increases reliability
  • over 85db at 3m
  • Test and hush button (Ei3103RF heat alarm has test ONLY)
  • 5 year Warranty
  • Supplied with fixings for ceiling mounting

Please Note: These units use the radio-interlink frequency 868.499MHz. This bandwidth is restricted for safety products, therefore the chances of interference should be limited.

Interlink

The table below shows all the units that can interlink with the EI3100 Series.

Smoke and Heat Alarms

Model Number
Type of Unit
Type of Interlink
Ei3014RF Mains Powered Heat Alarm - Sealed Lithium Radio Interlink
Ei3016RF Mains Powered Optical Smoke Alarm - Sealed Lithium Radio Interlink
Ei3024RF Mains Powered Optical & Heat Alarm - Sealed Lithium Radio Interlink
Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Radio Interlink
Ei2110eRF Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium Radio Interlink
Ei161eRF Mains Powered Ionisation Smoke Alarm - Sealed Lithium Radio Interlink
Ei164eRF Mains Powered Heat Alarm - Sealed Lithium Radio Interlink
Ei166eRF Mains Powered Optical Smoke Alarm - Sealed Lithium Radio Interlink
Ei168RC/141RC Mains Powered Ionisation Alarm - 9V Alkaline Radio Interlink
Ei168RC/144RC Mains Powered Heat Alarm - 9V Alkaline Radio Interlink
Ei168RC/146RC Mains Powered Optical Smoke Alarm - 9V Alkaline Radio Interlink
Ei3100RF Battery Powered Ionisation Smoke Alarm - 9V Alkaline Radio Interlink
Ei3103RF Battery Powered Heat Alarm - 9V Alkaline Radio Interlink
Ei3105RF Battery Powered Optical Smoke Alarm - 9V Alkaline Radio Interlink
Ei603RF Battery Powered Heat Alarm - Sealed Lithium Radio Interlink
Ei650RF Battery Powered Optical Smoke Alarm - Sealed Lithium Radio Interlink

Carbon Monoxide Alarms

Model Number
Type of unit
Type of interlink
Ei3018RF Mains Powered Carbon Monoxide Alarm - Sealed Lithium Radio Interlink
Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Radio Interlink
Ei262 Mains Powered Carbon Monoxide Alarm - Sealed Lithium Radio Interlink
Ei208WRF Battery Powered Carbon Monoxide Detector - Sealed Lithium Radio Iinterlink

Ancillary Products

Model Number
Type of unit
Type of interlink
Ei170RF Mains Powered Strobe and Vibration Pad for the Hearing Impaired - Sealed Lithium Radio Interlink
Ei450 Battery Powered Fire and CO Alarm Controller - Sealed Lithium Radio Interlink
Ei411H Battery Powered Locate, Silence & Test Control Switch - Sealed Lithium Radio Interlink
Ei407 Battery Powered Manual Call Point - Sealed Lithium Radio Interlink
Ei410TRF Battery Powered Test Remote - Sealed Lithium Radio Interlink (Ei3100RF Series)
Ei428 Mains Powered 5A Relay Module Radio Interlink
Y03 Mains Powered Multi Frequency Sounder Hardwire Interlink (via relay)
SAB300C Mains Powered Flashing Xenon Strobe (Clear) Hardwire Interlink (via relay)
SAB300R Mains Powered Flashing Xenon Strobe (Red) Hardwire Interlink (via relay)

Wiring Explained

Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.

To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting alarms where applicable. However, if possible it is recommended that any alarms connected via interlink cable are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-

Wiring Mains Powered Alarms

Technical Data

Technical Data

This is the technical data for the 9V Radio-Interlinked Smoke and Heat Alarm Starter Kit (Contains 3 Alarms).

Product Code EI3100KIT
Alternative Product Codes Ei3100, Ei3105, Ei3103, Ei3100RF, Ei3105RF, Ei3103RF, ei3105f
Weight 0.60kg
Dimensions (HxWxD) Ei3100RF - Ionisation: 140x120x45mm
Ei3103RFU - Heat: 140x120x52
Ei3105RF - Optical: 140x120x45
Battery Type 9V Alkaline
Sound Output 85dB (minimum) at 3m
Temperature Range 0 to 40°C
Maximum Humidity 15% to 95% Relative Humidity

Product Datasheets

The following datasheets are available for this product.

Customer Reviews

70 customers have have given this product an overall rating of 4.6 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5 Stars

Reviewed by: R P

Excellent audible alarm. Flashing operating lights differ and perhaps should be set to same sequence. Cost of items should include lithium batteries to be credited with 5 stars.

Published on: 7th April 2019

Rating: 5 / 5 Stars

Reviewed by: K B

Easy to set up and provides added fire safety to domestic homes. This is an excellent product and far safer than stand alone smoke detectors. Should be fitted to every home.

Published on: 12th January 2019

Rating: 5 / 5 Stars

Reviewed by: C F

Very good products and easy to install and test

Published on: 3rd January 2019

Rating: 4 / 5 Stars

Reviewed by: N P

Great package - easy to install and just the job. Good customer support too when we had a small issue with the wireless interlink. They quickly advised and solved it.

Published on: 15th October 2018

Rating: 5 / 5 Stars

Reviewed by: S A

Good alarms and easy to fit. I was told by Safelincs that model Ei208WRF would not work with the 3 pack kit. Fortunately I checked with Ei Electronics who confirmed that it would and having purchased the extra unit I can confirm that it does indeed work. So full marks to Ei but zero to Safelincs who should more about the products they sell.

Published on: 27th May 2018

Rating: 5 / 5 Stars

Reviewed by: R B

Interlinked perfectly with my previously purchased smoke alarms.

Published on: 26th April 2018

Rating: 5 / 5 Stars

Reviewed by: C T

same comment as ionisation above these detectors are interlinked and work very well

Published on: 8th April 2018

Rating: 4 / 5 Stars

Reviewed by: D F

Value for money Reasonable price. easy to set up and add mpre units if required.

Published on: 2nd April 2018

Rating: 4 / 5 Stars

Reviewed by: D T

Arrived promptly in good condition. Working fine. Some confusion at first as not all the alarms linked until "reset" to same house mode completed. Expected to be able to use default setting.

Published on: 12th February 2018

Rating: 5 / 5 Stars

Reviewed by: K C

Simple to install, set up and test. Safelincs is a great place to buy from, you sorted out a delivery problem not of your making without any drama or difficulty for me, thanks.

Published on: 15th January 2018
