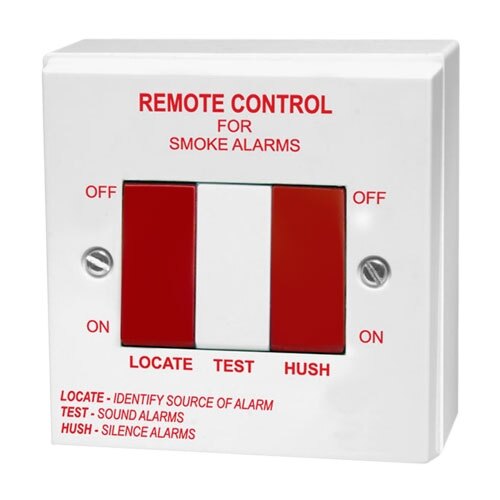

230V Remote Locate, Silence and Test Control Switch - Ei1529RC
Product Overview
Interlink
Technical Data
FAQs (3)
£45.59 inc VAT
£37.99 ex VAT
Mains Powered Carbon Monoxide Alarm with Back-up - EI3018
£55.19 inc VAT
£45.99 ex VAT
Mains Powered Multi-Sensor Alarm with Backup - Ei3028
£71.99 inc VAT
£59.99 ex VAT
Mains Powered Smoke Alarms with Lithium Back-up Battery Ei160e Series
£33.47 inc VAT
£27.89 ex VAT
Ei2110e - Multi-sensor Alarm with Lithium Backup Battery
£61.43 inc VAT
£51.19 ex VAT
Ei140 Series - Smoke & Heat Alarms with Interconnect
£22.79 inc VAT
£18.99 ex VAT
The wall mounted switch unit can locate the initial source of an alarm, silence any false alarms and test all the alarms in the system. The control unit is mains powered and interlinks via hardwire connection with the majority of Ei Electronics and Aico products, including carbon monoxide alarms. These switches are highly recommended for systems with a mixture of smoke, heat, and carbon monoxide alarms so that occupants can identify the source of the alarm and take the appropriate action depending on the type of emergency.
- 230V mains powered unit
- For use with the majority of Ei Electronics and Aico hardwire products
- Compatible with carbon monoxide alarms and mixed systems
- Easy installation with 3 core cable: live, neutral and interlink/control
- The locate option silences all the alarms except the initial activating alarm
- The test option will activate all the alarms
- The hush option will silence any false alarm
- Auto-reset within 10 minutes for locate and hush
- Also works with all of the new Ei3000 series of mains powered alarms
The table below shows all the units that can interlink with the EI1529RC.
Smoke and Heat Alarms
|
Model Number
|
Type of Unit
|
Type of Interlink
|
| Ei3014 / Ei3014RF | Mains Powered Heat Alarm - Sealed Lithium | Hardwire Interlink |
| Ei3016 / Ei3016RF | Mains Powered Optical Smoke Alarm - Sealed Lithium | Hardwire Interlink |
| Ei3024 / Ei3024RF | Mains Powered Optical & Heat Alarm - Sealed Lithium | Hardwire Interlink |
| Ei3028 / Ei3028RF | Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium | Hardwire Interlink |
| Ei2110e / Ei2110eRF | Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium | Hardwire Interlink |
| Ei161e / Ei161eRF | Mains Powered Ionisation Smoke Alarm - Sealed Lithium | Hardwire Interlink |
| Ei164e / Ei164eRF | Mains Powered Heat Alarm - Sealed Lithium | Hardwire Interlink |
| Ei166e / Ei166eRF | Mains Powered Optical Smoke Alarm - Sealed Lithium | Hardwire Interlink |
| Ei141 / Ei168RC141RC | Mains Powered Ionisation Alarm - 9V Alkaline | Hardwire Interlink |
| Ei144 / Ei168RC144RC | Mains Powered Heat Alarm - 9V Alkaline | Hardwire Interlink |
| Ei146 / Ei168RC146RC | Mains Powered Optical Smoke Alarm - 9V Alkaline | Hardwire Interlink |
Carbon Monoxide Alarms
|
Model Number
|
Type of unit
|
Type of interlink
|
| Ei3018 / Ei3018RF | Mains Powered Carbon Monoxide Alarm - Sealed Lithium | Hardwire Interlink |
| Ei3028 / Ei3028RF | Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium | Hardwire Interlink |
| Ei261 | Mains Powered Carbon Monoxide Alarm - Sealed Lithium | Hardwire Interlink |
Ancillary Products
|
Model Number
|
Type of unit
|
Type of interlink
|
| MCP401RC | Mains Powered Manual Call Point | Hardwire Interlink |
| Ei1529RC | Mains Powered Locate, Silence & Test Control Switch | Hardwire Interlink |
| Ei159 | Mains Powered Smoke Alarm Locator Switch | Hardware Interlink |
| Ei128R | Mains Powered 5A Relay Module | Hardwire Interlink |
| Ei128RBU | Mains Powered 5A Relay Module with Lithium Backup Battery | Hardwire Interlink |
| Y03 | Mains Powered Multi Frequency Sounder | Hardwire Interlink (via relay) |
| SAB300C | Mains Powered Flashing Xenon Strobe (Clear) | Hardwire Interlink (via relay) |
| SAB300R | Mains Powered Flashing Xenon Strobe (Red) | Hardwire Interlink (via relay) |
Wiring Explained
Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.
To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting all alarms. However, if possible it is recommended that the alarms are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-
Technical Data
This is the technical data for the 230V Remote Locate, Silence and Test Control Switch - Ei1529RC.
| Product Code | EI1529RC |
|---|---|
| Alternative Product Codes | Ei1529, Ei1529RC |
| Weight | 0.20kg |
| Dimensions (HxWxD) | 89x89x47mm |
| Temperature Range | 0° to 40°C |
| Humidity Range | 0% to 90% Relative Humidity |
Product Datasheets
The following datasheets are available for this product.
Q. I want to interlink 4 x Ei166 smoke alarms with the Ei1529RC. Do I need a spacial base (Ei128R) or is it possible to do this with the standard base the alarms come with? Also, what would we need to add the SAB300C beacon to the system?
A. The Ei160 series of detectors can hard wire interconnect with the Ei1529RC switch without the need for the Ei128R relay base. You would however require the Ei128R relay base to connect the detectors to the SAB300C beacon.
Q. What is the difference between the Ei411H and the Ei1529RC test, silence and location switches?
A. The Ei1529RC is mains powered and wired into a network of mains powered smoke alarms, whilst the Ei411H has a long life 10 year battery and no wires. It is radio-interlinked with other Rf smoke alarms of the Ei family.
Q. Can I add a CO detector to a smoke alarm system with Ei160 alarms
A. Yes, the Ei262 is compatible and we recommend that you install a Ei1529RC locator switch as well which will allow you to find out whether an alarm is caused by CO gas or a fire
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
| Product Code: EI1529RC |
Stock Level:
3 in stock Expected dispatch: 17th Dec
|
Price:
£35.03 inc VAT £29.19 ex VAT |
Customer Reviews
2 customers have have given this product an overall rating of 5 out of 5
Reviews by real customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.Rating: 5 / 5 Stars
Reviewed by: DK
All good
Published on: 15th January 2018
Rating: 5 / 5 Stars
Reviewed by: MK
Simple, cheap and effective
Published on: 21st August 2017
