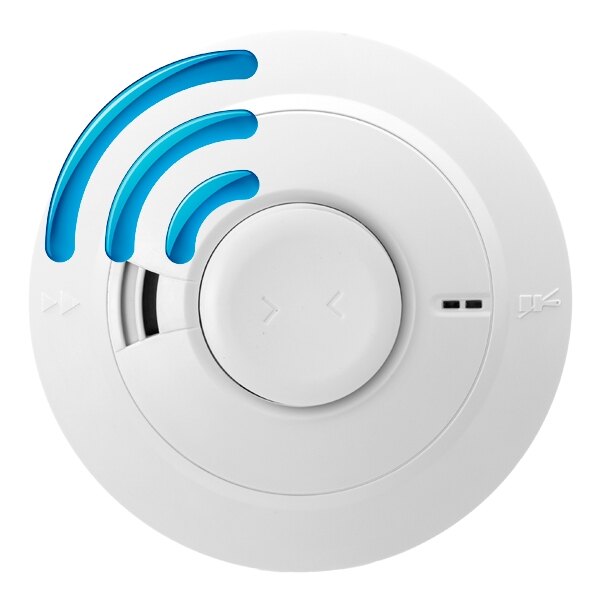

Mains Powered Radio-Interlinked Heat Alarm with Self-Charging 10 Year Back-up Battery - Aico Ei164eRF
Discontinued Product
This product has been discontinued.
alternative productMains Radio-Interlinked Heat Alarm with Back-up - Ei3014RF
- 230V mains powered heat alarm with rechargeable lithium backup battery
- Supplied with SmartLINK module for radio-interlinking with up to 12 devices
- CE and Kitemarked to BS 5446-2: 2003
- Suitable for BS 5839-6: 2019 Grade D1 installations
- Contains AudioLINK allowing users to extract real time data to their phone
- 5 year manufacturer's warranty
- Also suitable for the 2022 Scottish legislation
£99.47 inc VAT
£82.89 ex VAT
Product OverviewThe Ei164eRF mains powered heat alarm with self-charging lifetime back-up battery is supplied with a RadioLINK module to enable wireless interlinking with multiple alarms via radio-frequency. Up to 12 smoke and heat alarms from the Ei160e series can be interlinked without the need for cables between each unit. Specifically designed for use in kitchens and garages, the heat alarm activates when there is an increase in temperature, therefore avoiding false alarms from cooking fumes.
- Power: 230V mains powered with back-up battery
- Backup Battery: Self-charging battery
- Warranty: 5 year warranty
- CE marked and Kitemarked to BS 5446-2: 2003
- Suitable for installations complying to BS 5839-6: 2019 Grade D1
- Consists of a RadioLINK module and an Ei164e heat alarm
- Heat sensor - activates at 58 °C to avoid false alarms from cooking fumes
- Up to 12 smoke and heat alarms can be interlinked within the same system
- Requires no cables between each unit - wireless interlinking
- Radio-frequency range: 100m in free space, up to 30m in buildings
- Sealed back-up battery designed to last the life of the alarm (10 years)
- Ideal where annual battery replacement would be inconvenient
- RadioLINK module simply plugs into the back of the alarm
- Test and hush button facility
- Memory feature - easy to identify an alarm that has previously activated
- Suitable for kitchens and garages
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes
The table below shows all the units that can interlink with the EI166ERF.
Smoke and Heat Alarms - Radio
Model NumberType of UnitType of InterlinkEi3014 / Ei3014RF Mains Powered Heat Alarm - Sealed Lithium Hardwire or Radio Interlink Ei3016 / Ei3016RF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire or Radio Interlink Ei3024 / Ei3024RF Mains Powered Optical & Heat Alarm - Sealed Lithium Hardwire or Radio Interlink Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire or Radio Interlink Ei2110e / Ei2110eRF Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium Hardwire or Radio Interlink Ei161e / Ei161eRF Mains Powered Ionisation Smoke Alarm - Sealed Lithium Hardwire or Radio Interlink Ei164e / Ei164eRF Mains Powered Heat Alarm - Sealed Lithium Hardwire or Radio Interlink Ei166e / Ei166eRF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire or Radio Interlink Ei141 / Ei168RC141RC Mains Powered Ionisation Alarm - 9V Alkaline Hardwire or Radio Interlink Ei144 / Ei168RC144RC Mains Powered Heat Alarm - 9V Alkaline Hardwire or Radio Interlink Ei146 / Ei168RC146RC Mains Powered Optical Smoke Alarm - 9V Alkaline Hardwire or Radio Interlink Ei3100RF Battery Powered Ionisation Smoke Alarm - 9V Alkaline Radio Interlink Ei3103RF Battery Powered Heat Alarm - 9V Alkaline Radio Interlink Ei3105RF Battery Powered Optical Smoke Alarm - 9V Alkaline Radio Interlink Ei603RF Battery Powered Heat Alarm - Sealed Lithium Radio Interlink Ei650RF Battery Powered Optical Smoke Alarm - Sealed Lithium Radio Interlink Carbon Monoxide Alarms
Model NumberType of unitType of interlinkEi3018 / Ei3018RF Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire or Radio Interlink Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire or Radio Interlink Ei262 Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire or Radio Interlink Ei261 Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink Ei208WRF Battery Powered Carbon Monoxide Detector - Sealed Lithium Radio Iinterlink Ancillary Products
Model NumberType of unitType of interlinkEi170RF Mains Powered Strobe and Vibration Pad for the Hearing Impaired - Sealed Lithium Radio Interlink Ei407 Battery Powered Manual Call Point - Sealed Lithium Radio Interlink MCP401RC Mains Powered Manual Call Point Hardwire Interlink Ei450 Battery Powered Fire and CO Alarm Controller - Sealed Lithium Radio Interlink Ei411H Battery Powered Locate, Silence & Test Control Switch - Sealed Lithium Radio Interlink Ei410TRF Battery Powered Test Remote - Sealed Lithium Radio Interlink (Ei3100RF Series) Ei1529RC Mains Powered Locate, Silence & Test Control Switch Hardwire Interlink Ei159 Mains Powered Smoke Alarm Locator Switch Hardware Interlink Ei428 Mains Powered 5A Relay Module Radio Interlink Ei128R Mains Powered 5A Relay Module Hardwire Interlink Ei128RBU Mains Powered 5A Relay Module with Lithium Backup Battery Hardwire Interlink Y03 Mains Powered Multi Frequency Sounder Hardwire Interlink (via relay) SAB300C Mains Powered Flashing Xenon Strobe (Clear) Hardwire Interlink (via relay) SAB300R Mains Powered Flashing Xenon Strobe (Red) Hardwire Interlink (via relay) Wiring Explained
Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.
To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting alarms where applicable. However, if possible it is recommended that any alarms connected via interlink cable are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-
Product Code EI164ERF Alternative Product Codes Ei164, Ei164e, Ei164RF Brand EI Electronics Back-Up Battery Self-charging Lithium Battery
Dimensions (HxDia) 63x148mm
Operating Temperature 0°C to +40°C
Relative Humidity 15% to 95%
Sound Output 85dB
Warranty 5 Years
Weight 0.54kg Product Datasheets Approved Partner
