Access Control Maglock Proximity Kit

More on the way Expected dispatch: 23rd January
209.79 ex VAT
251.75 inc VAT
Product Overview

The proximity reader included in the Deedlock access control kit uses contactless technology, allowing occupants to gain entry into a building using fobs. The power supply unit has an integral controller where the memory can hold up to 999 proximity fobs for user entry. Suitable for single doors with an existing rim or mortice nightlatch, the Deedlock kit includes an electric release which secures the door against unauthorised access. Once an access fob is recognised by the proximity reader, the electric release opens the door for entry in to the building.

  • Provides a controlled and secure access solution

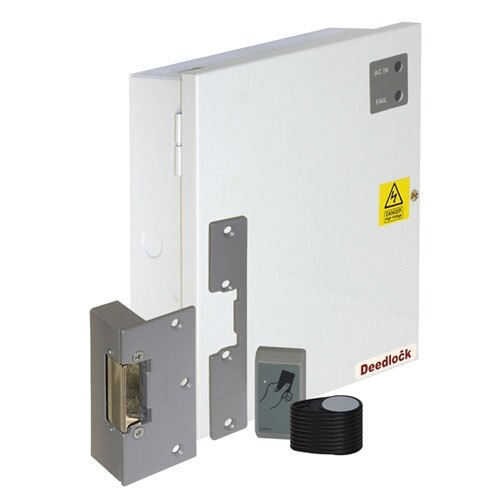

  • Kit consists of:
    • 1 x proximity reader
    • 1 x power supply unit
    • 1 x electric release strike
    • 10 x proximity fobs
  • 12V DC 1.0 amp power supply unit features an integral controller to operate the proximity reader
  • Controller memory can hold up to 999 proximity cards
  • Electric release opens the door when a programmed fob is recognised by the reader
  • Additional fobs are available and sold singularly
  • Two metre cable supplied with the proximity reader can be extended to 15 metres
  • Electric release strike is suitable for existing rim and mortice nightlatches (mortice faceplate included)
  • Designed for use on single doors
  • Proximity fobs can be programmed and deleted using the master fob
  • Read range of the proximity reader: 40mm
  • Kit requires eight core alarm and security cable (not included)
  • Optional power supply unit back-up battery (12V 7Ah) not included
Technical Data

Technical Data

This is the technical data for the Access Control Maglock Proximity Kit .

Product Code SUAKT4223
Weight 2.45kg
Range Up to 40mm read range
IP Rating Proximity Reader: IP45
Operating Temperature -10 C to +60 C
