Fire Evacuation Chute for Escape out of Windows and from Roofs - From £6999.00 ex VAT
Basket (0) Checkout
FREEPHONE 0800 612 6537 Now FREE from UK mobiles

Fire Evacuation Chute for Escape out of Windows and from Roofs

If you are interested in the Axel Thoms Escape Chute you can order a free site survey. This survey will help to identify the most suitable locations for your Axel Thoms Escape Chute installation and ensures the correct length and materials are chosen for your site.

Free Site Survey
Product Overview

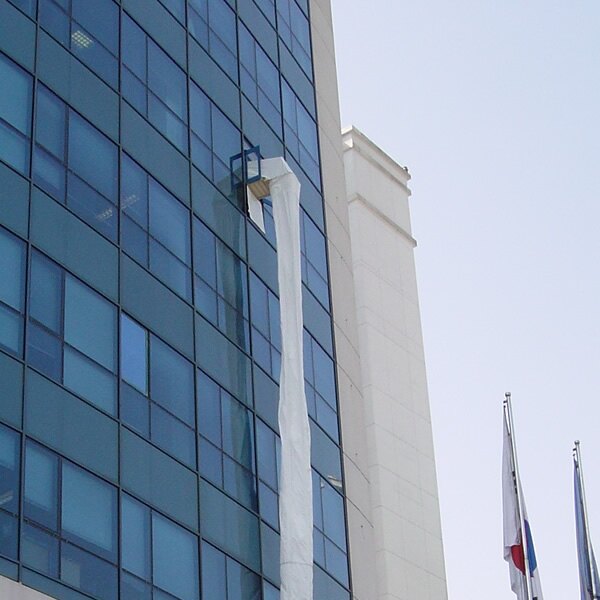

The Axel Thoms Escape Chute offers rapid fire evacuation from buildings when other escape routes are blocked. This escape chute consists of a frame fitted to the inside underneath the window and the chute, which contains an internal spiral, offering safe descent at a controlled speed. It is easily deployed in seconds. The Axel Thoms Escape Chute is available for windows from 4 to 120 metres height above ground. The chute can also be installed on roofs where it is covered by a weatherproof container. It is manufacturered in Germany with fire-retardant fabrics and high-strength, load-bearing belts to allow a minimum load of 14,500kg. The deployed chute offers the user a safe entry tunnel, which obscures the height of the chute and prevents users from panicking. The chute is TÜV Certified and guaranteed for 15 years when serviced annually by our specialist engineers.

Comprehensive package including FREE site survey, nationwide delivery, installation and testing of your EvacChute

  • Constructed from DIN 4102 class B1 flame-retardant fabric as standard
  • Capable of evacuating up to 15 persons per minute
  • 5 high-strength belts support a load of 14,500kg
  • Multiple people can use the Axel Thoms Escape Chute simultaneously
  • Suitable for children over 12kg (approx. 2 years old), disabled, pregnant and unconscious persons
  • In case of roof installations the chute is stored in a weatherproof metal storage box
  • 15-year manufacturer's guarantee (subject to annual maintenance by our specialist engineers)
  • TÜV tested and approved
Image Gallery Construction

Securely fitted base frame

The frame is specifically designed and manufactured for each installation, securely anchoring the Axel Thoms Escape Chute to the structure of your building.

Fully enclosed entrance

The combination of the enclosed entrance into the chute and the inner spiral design ensures that the user is not able to see the height they are evacuating from.

TÜV tested & approved

TÜV are an international testing facility specialising in certifications, qualifications, training and consultancy services. TÜV test products and services in relation to their compliance with regulations and help to standardise certification throughout the international community. These chutes have been tested and approved by TÜV.

Load-bearing belts

5 load-bearing belts provide the core strength of the EvacChute. Due to the design and construction of the EvacChute, loads of 14,500kg are supported, allowing a continuous flow of people to slide down the chute at the same time.

Protective outer layer

The protective outer layer of the Axel Thoms Escape Chute is constructed from DIN 4102 class B1 flame-retardant fabric as standard. This can be optionally upgraded to non-flammable DIN 4102 class A2 material for extra protection should you require this.

DIN 4102 combustibility classes

Closely related to BS 476, DIN 4102 is a German standard for the testing of passive fire protection systems, or their component materials, for the degree of flammability and combustibility. The results of testing that complies with DIN 4102 are split into 5 categories: B3 to B1 followed by A2 and A1, with B3 being the most flammable and A1 being the least. Axel Thoms Escape Chute has a B2 certification as standard.

Internal spiral

The inside of an Axel Thoms Escape Chute features a spiral slide that hugs to the side of a descending person reducing the descent speed to a safe 2m/s. Children, disabled persons, pregnant women, and even unconscious persons can use an Axel Thoms Escape Chute as neither technique nor weight of the user will have a significant impact on the speed of descent.

15 year guarantee

We offer a 15 year guarantee. Due to the life-saving nature of the Axel Thoms Escape Chute the chute requires annual service by our specialist engineers. The lifespan is, of course, longer than 15 years and chutes have been in use for over 30 years.

Exit capsule

At the bottom of the Axel Thoms Escape Chute is an exit capsule, designed to offer a safe and easy exit from the chute. It has a soft sitting area from which to exit at a comfortable height and holding handles give the user further stability.

Technical Data

Technical Data

This is the technical data for the Fire Evacuation Chute for Escape out of Windows and from Roofs.

Length 1m - 120m from ground level
Storage Box Material Wood (standard)
Weatherproof Metal (optional)
Construction Outer Layer:
Flame-Retardant (standard)
Non-flammable (optional)
Inner Layer:
5x load-bearing belts
smooth fabric spiral
Kit Contents Base frame with steps
Entrance frame with handholds
Storage box (various options)
Protective canvas for window ledges
2x operation instructions
1x testing log book
Stainless steel mounting fixtures
Lifespan 15 years (with annual maintenance)
Mounting Options Underneath window (inside)
On roof
Warranty 15 years (subject to annual maintenance)

Pricing & Availability

Length Standard Flame-Retardant DIN4102 A2 Non-Flammable
5 metres Standard Flame-Retardant

£6,999.00 ex VAT

£8,398.80 inc VAT

DIN4102 A2 Non-Flammable

£7,344.00 ex VAT

£8,812.80 inc VAT

10 metres Standard Flame-Retardant

£8,794.00 ex VAT

£10,552.80 inc VAT

DIN4102 A2 Non-Flammable

£9,484.00 ex VAT

£11,380.80 inc VAT

15 metres Standard Flame-Retardant

£10,589.00 ex VAT

£12,706.80 inc VAT

DIN4102 A2 Non-Flammable

£11,624.00 ex VAT

£13,948.80 inc VAT

20 metres Standard Flame-Retardant

£12,384.00 ex VAT

£14,860.80 inc VAT

DIN4102 A2 Non-Flammable

£13,764.00 ex VAT

£16,516.80 inc VAT

25 metres Standard Flame-Retardant

£14,179.00 ex VAT

£17,014.80 inc VAT

DIN4102 A2 Non-Flammable

£15,904.00 ex VAT

£19,084.80 inc VAT

30 metres Standard Flame-Retardant

£15,974.00 ex VAT

£19,168.80 inc VAT

DIN4102 A2 Non-Flammable

£18,044.00 ex VAT

£21,652.80 inc VAT

35 metres Standard Flame-Retardant

£17,769.00 ex VAT

£21,322.80 inc VAT

DIN4102 A2 Non-Flammable

£20,184.00 ex VAT

£24,220.80 inc VAT

40 metres Standard Flame-Retardant

£19,564.00 ex VAT

£23,476.80 inc VAT

DIN4102 A2 Non-Flammable

£22,324.00 ex VAT

£26,788.80 inc VAT

45 metres Standard Flame-Retardant

£21,359.00 ex VAT

£25,630.80 inc VAT

DIN4102 A2 Non-Flammable

£24,464.00 ex VAT

£29,356.80 inc VAT

50 metres Standard Flame-Retardant

£23,583.00 ex VAT

£28,299.60 inc VAT

DIN4102 A2 Non-Flammable

£27,033.00 ex VAT

£32,439.60 inc VAT

55 metres Standard Flame-Retardant

£25,378.00 ex VAT

£30,453.60 inc VAT

DIN4102 A2 Non-Flammable

£29,173.00 ex VAT

£35,007.60 inc VAT

60 metres Standard Flame-Retardant

£27,173.00 ex VAT

£32,607.60 inc VAT

DIN4102 A2 Non-Flammable

£31,313.00 ex VAT

£37,575.60 inc VAT

65 metres Standard Flame-Retardant

£28,968.00 ex VAT

£34,761.60 inc VAT

DIN4102 A2 Non-Flammable

£33,453.00 ex VAT

£40,143.60 inc VAT

70 metres Standard Flame-Retardant

£30,763.00 ex VAT

£36,915.60 inc VAT

DIN4102 A2 Non-Flammable

£35,593.00 ex VAT

£42,711.60 inc VAT

75 metres Standard Flame-Retardant

£32,558.00 ex VAT

£39,069.60 inc VAT

DIN4102 A2 Non-Flammable

£37,733.00 ex VAT

£45,279.60 inc VAT

80 metres Standard Flame-Retardant

£34,353.00 ex VAT

£41,223.60 inc VAT

DIN4102 A2 Non-Flammable

£39,873.00 ex VAT

£47,847.60 inc VAT

85 metres Standard Flame-Retardant

£36,148.00 ex VAT

£43,377.60 inc VAT

DIN4102 A2 Non-Flammable

£42,013.00 ex VAT

£50,415.60 inc VAT

90 metres Standard Flame-Retardant

£37,943.00 ex VAT

£45,531.60 inc VAT

DIN4102 A2 Non-Flammable

£44,153.00 ex VAT

£52,983.60 inc VAT

95 metres Standard Flame-Retardant

£39,738.00 ex VAT

£47,685.60 inc VAT

DIN4102 A2 Non-Flammable

£46,293.00 ex VAT

£55,551.60 inc VAT

100 metres Standard Flame-Retardant

£41,533.00 ex VAT

£49,839.60 inc VAT

DIN4102 A2 Non-Flammable

£48,433.00 ex VAT

£58,119.60 inc VAT

105 metres Standard Flame-Retardant

£43,328.00 ex VAT

£51,993.60 inc VAT

DIN4102 A2 Non-Flammable

£50,573.00 ex VAT

£60,687.60 inc VAT

110 metres Standard Flame-Retardant

£45,123.00 ex VAT

£54,147.60 inc VAT

DIN4102 A2 Non-Flammable

£52,713.00 ex VAT

£63,255.60 inc VAT

115 metres Standard Flame-Retardant

£46,918.00 ex VAT

£56,301.60 inc VAT

DIN4102 A2 Non-Flammable

£54,853.00 ex VAT

£65,823.60 inc VAT

120 metres Standard Flame-Retardant

£48,713.00 ex VAT

£58,455.60 inc VAT

DIN4102 A2 Non-Flammable

£56,993.00 ex VAT

£68,391.60 inc VAT

Extended Warranty

This product is supplied with a 15 year extended warranty - More info
