Amigo Fire Escape Ladder
Product Overview
Additional Information
Technical Data
Show All
- How to select the correct Amigo version for you
- Permanently fitted on the inside, underneath the window
- Available in a range of lengths:
- 5.5m (18ft) - suitable for two storey buildings
- 7.4m (24ft) - suitable for three storey buildings
- Ideal for flats, offices and other multi-storey applications
- Galvanised chain with a breaking strain in excess of 1000kg
- With stand-offs on every third step for safe foothold
- Handhold on top rung to aid exit through window opening. The handhold can be re-positioned.
- Rust and corrosion proof ladder design
- Powder coated steel storage box in white finish
- Simple and quick to deploy - step by step escape routine shown on box
- Rung width: 305mm (12 inches)
- The opened box serves as a step, making the exit easier
- Comes complete with fixings
How to use

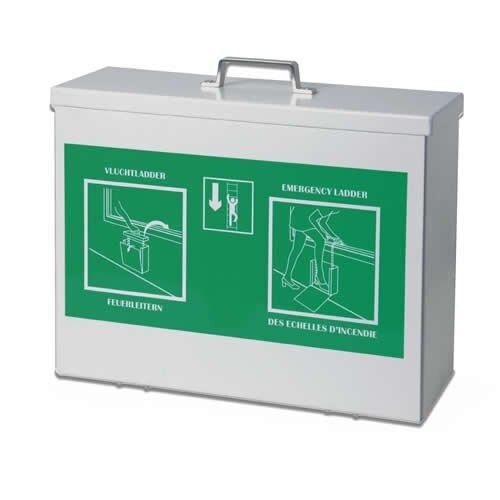

Step 1: The Amigo Fire Escape Ladder is installed on an internal wall below an opening window. Neat and compact when not in use, this essential escape box is available for deployment at any time.

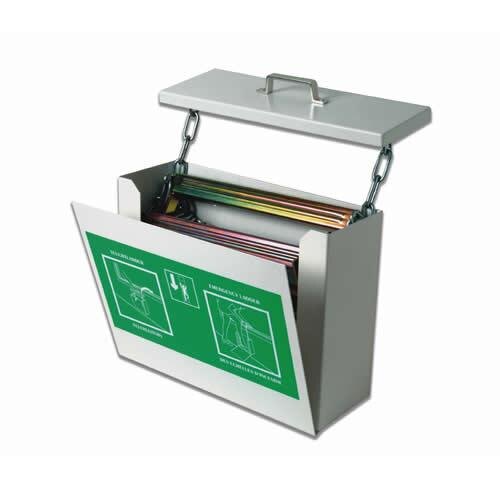

Step 2: In an emergency, the top cover of the storage box is lifted and thrown out of the window, carrying the ladder with it.

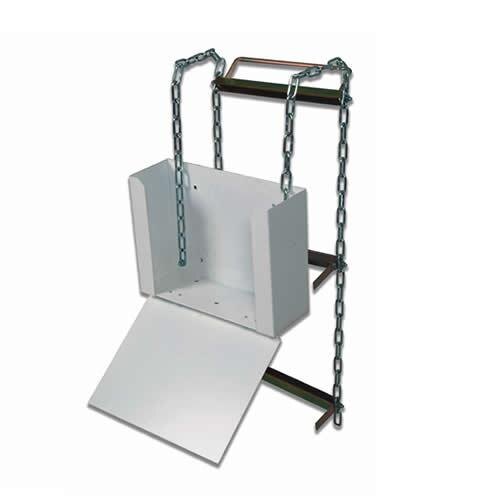

Step 3: When the ladder is fully extended, the standoffs make contact with the external wall and support and stabilise the ladder. By using the base of the storage box as a first step and the hand hold provided at the top of the ladder, exiting and descending in an emergency is simple, swift and safe.
Technical Data
This is the technical data for the Amigo Fire Escape Ladder.
| Box Dimensions (HxWxD) | 5.5m (18ft): 380x350x120mm 7.4m (24ft): 480x350x120mm |
|---|---|
| Drill size required for installation | 14mm |
Pricing & Availablity
| Model | Stock | Price | Weight |
|---|---|---|---|
|
5.5m (18ft) Product Code: AML055 |
Stock Level:
3 in stock
|
Price:
£238.19 ex VAT £285.83 inc VAT |
Weight:
17kg
|
|
7.4m (24ft) Product Code: AML074 |
Stock Level:
10 in stock
|
Price:
£254.09 ex VAT £304.91 inc VAT |
Weight:
22kg
|
