Slimline Emergency Fire Exit Sign (Fire Exit Blade) Slave Unit - ESD/SL

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

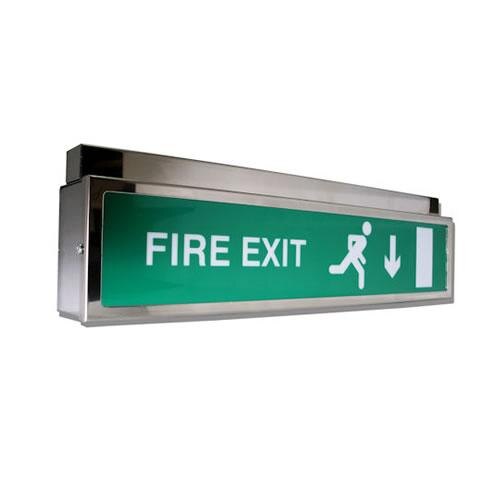

The ESD/SL slimline emergency fire exit sign is suitable for interior applications. The low profile allows installation in locations where there is limited headroom and provides an elegant solution to emergency lighting requirements, complying with BS5266-1:2005. A slave unit has no internal backup battery fitted, it is instead powered by a central bank of batteries in the event of a power failure. The advantage of this arrangement are that larger batteries are more cost efficient, have a longer lifetime and the central location makes maintenance and testing easier.
  • Slave unit
  • IP20 rating (Interior use)
  • Light output: 270 Lumens
  • Available in three versions:
    • 24V AC/DC
    • 50V AC/DC
    • 110V AC/DC
  • Hot-wire tested as defined by ICEL
  • Supplied complete with lamp
  • Fully complies to BS EN 60598-2-22
  • Stylish chrome finish
  • 3 Year Warranty

Please Note: Delivery on these units will be 1-5 working days from date of order

Typical Applications

Typical applications for the ESD/SL slimline emergency fire exit sign slave units include installations in corridors, shops, reception areas, final exits etc.
Technical Data
Product Code
Wall Mounted, Arrow Down, 24V AC/DC RL-ESD8/SL/24
Wall Mounted, Arrow Down, 50V AC/DC RL-ESD8/SL/50
Wall Mounted, Arrow Down, 110V AC/DC RL-ESD8/SL/110
Wall Mounted, Arrow Right, 24V AC/DC RL-ESD8/SL/24/R
Wall Mounted, Arrow Right, 50V AC/DC RL-ESD8/SL/50/R
Wall Mounted, Arrow Right, 110V AC/DC RL-ESD8/SL/110/R
Wall Mounted, Arrow Left, 24V AC/DC RL-ESD8/SL/24/L
Wall Mounted, Arrow Left, 50V AC/DC RL-ESD8/SL/50/L
Wall Mounted, Arrow Left, 110V AC/DC RL-ESD8/SL/110/L
Ceiling Mounted, Arrow Down, 24V AC/DC RL-ESD8/SL/24/DS
Ceiling Mounted, Arrow Down, 50V AC/DC RL-ESD8/SL/50/DS
Ceiling Mounted, Arrow Down, 110V AC/DC RL-ESD8/SL/110/DS
Ceiling Mounted, Arrow Left, 24V AC/DC RL-ESD8/SL/24/DS/LR
Ceiling Mounted, Arrow Right, 24V AC/DC RL-ESD8/SL/24/DS/LR
Ceiling Mounted, Arrow Left, 50V AC/DC RL-ESD8/SL/50/DS/LR
Ceiling Mounted, Arrow Right, 50V AC/DC RL-ESD8/SL/50/DS/LR
Ceiling Mounted, Arrow Right, 110V AC/DC RL-ESD8/SL/110/DS/LR
Ceiling Mounted, Arrow Left, 110V AC/DC RL-ESD8/SL/110/DS/LR
Brand Ringtail Lighting
Dimensions (HxWxD)

Ceiling Mounted: 124x435x55mm

Wall Mounted: 97x435x55mm

Lamp Type

8W T5

Light Output

270 Lumens

Power Consumption

7 - 20V

Weight 1.50kg
