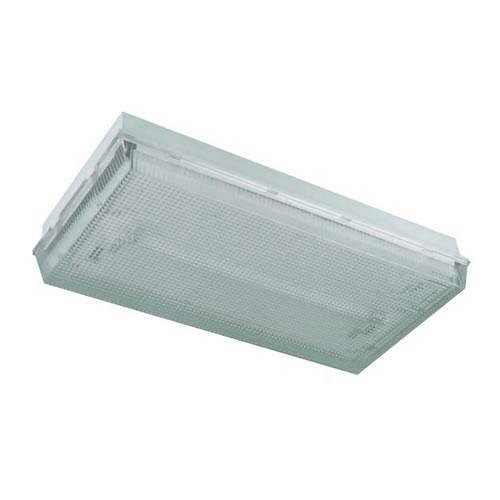

The TP/SL emergency luminaire slave unit is an attractive, low profile and versatile
emergency light suitable for internal environments. Slave units do not have
a backup battery fitted, they are powered by a central bank of batteries in
the event of a power failure. The advantages of this are that the cost of larger
batteries is lower, their lifetime is longer and they are more convenient for
maintenance and testing. The TP/SL slave units comply with the requirements
of EN650598-2-22 and are suitable for incorporation into an emergency lighting
system complying with BS5266-1:2005.
- Slave unit
- IP40 rating (Interior use)
- Light output: 270 Lumens
- Available in 3 voltages:
- 24V AC/DC
- 50V AC/DC
- 110V AC/DC
- Hot-wire tested as defined by ICEL
- Complete with lamp
- Complies with the requirements of EN60598-2-22
- Polycarbonate base
- Clear prismatic diffuser
- Suitable for wall or ceiling mounting
- 3 Year Warranty
Please note: Lighting products available on a lead time are made to order and
as such cannot be returned.
Typical Applications
Typical applications for the TP/SL emergency luminaire slave units include installations
in corridors, shops, reception areas, final exits etc.
Technical Data
This is the technical data for the Slimline Bulkhead Emergency Luminaire Slave Unit - TP/SL.
Lamp Type |
8W T5 |
Power Consumption |
7 - 20V |
Light Output |
270 Lumens |
Dimensions (HxWxD) |
390x185x70mm |
Product Datasheets
The following datasheets are available for this product.
