Slimline Bulkhead Emergency Light with Self-Test - TP8/ST

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

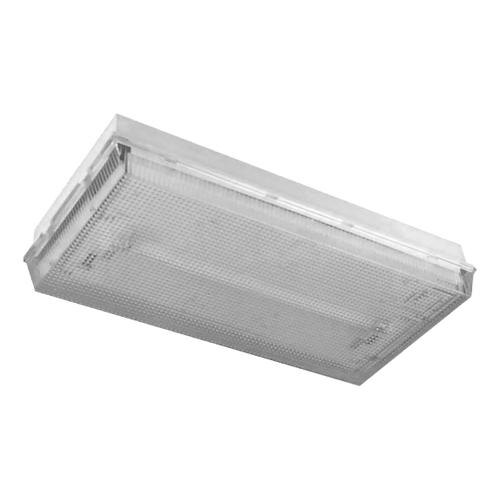

The TP8/ST low profile bulkhead emergency luminaire with built in self-test is suitable for internal applications and for incorporation into an emergency lighting system complying with BS 5266-1:2011. The self-test feature on TP8/ST units ensures that ensures that lights test the circuitry and functionality and warn users if the lighting unit is not working as it should, saving time and money.

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Applications

Typical applications for the TP8/ST slimline bulkhead emergency light with self-test include installations in corridors, shops, reception areas, final exits etc.

Technical Data

Technical Data

This is the technical data for the Slimline Bulkhead Emergency Light with Self-Test - TP8/ST.

Product Code
Non-Maintained RL-TP8NM/ST
Maintained RL-TP8M/ST
Weight 1.87kg
Lamp Type 8W T5
Power Consumption Maintained: 20W
Non-maintained: 8W
Battery Type 2.4V 4Ah
Backup Duration 3 Hours
Light Output 100 Lumens
Dimensions (HxWxD) 70x390x185mm

Product Datasheets

The following datasheets are available for this product.

FAQs (1)
Q. Can these units be fitted using surface mounted cabling / trunking?

Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.

Looking for more information?

If you have any questions or would like more information about this product you can ask one of our specialists.

Direct Telephone 01507 464187
