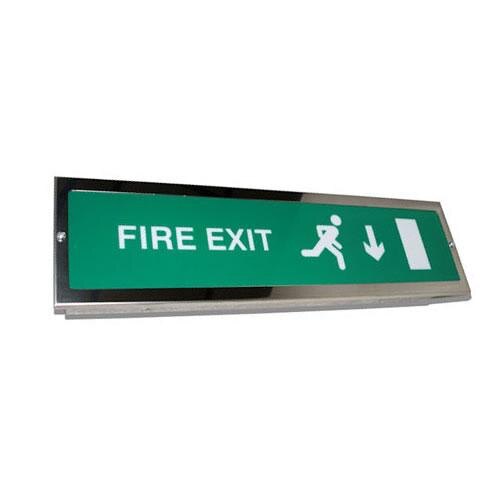

Recessed Slimline Emergency Fire Exit Sign Slave Unit - ESDR/SL

ESDR/SL - Recessed Slimline Emergency Fire Exit Sign Slave Unit

Discontinued Product

This product has been discontinued.

Product Overview
The ESDR/SL recessed slimline emergency fire exit sign slave units are modern, elegant emergency fire exit signs that are suitable for installation in prestigious buildings. The recessed units add style whilst being suitable for incorporation into emergency lighting systems complying with BS5266-1:2005. Slave units are different from maintained/non-maintained units in that they have no battery backup fitted. Instead they are powered from a bank of batteries centrally located within a building. The benefits of this type of arrangement are; larger batteries are cost efficient, have longer lifetimes and offer easier maintenance and testing from the central location.
  • Slave unit
  • IP20 rating (Interior use)
  • Light output: 270 Lumens
  • Available in three versions:
    • 24V AC/DC
    • 50V AC/DC
    • 110V AC/DC
  • Hot-wire tested as defined by ICEL
  • Complete with lamp
  • Complies with the requirements of EN60598-2-22
  • Suitable for recessed wall mounting
  • Chrome finish as standard
  • Choice of legend
  • 3 Year Warranty

Please note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Applications

Typical applications for the ESDR/SL recessed slimline emergency fire exit sign slave unit include office complexes, hotels, art galleries, corridors, show rooms etc.
Technical Data
Product Code

24V AC/DC, Arrow Down:  RL-ESDR8/SL/24

50V AC/DC, Arrow Down:  RL-ESDR8/SL/50

110V AC/DC, Arrow Down:  RL-ESDR8/SL/110

24V AC/DC, Arrow Right:  RL-ESDR8/SL/24/R

50V AC/DC, Arrow Right:  RL-ESDR8/SL/50/R

110V AC/DC, Arrow Right:  RL-ESDR8/SL/110/R

24V AC/DC, Arrow Left:  RL-ESDR8/SL/24/L

50V AC/DC, Arrow Left:  RL-ESDR8/SL/50/L

110V AC/DC, Arrow Left:  RL-ESDR8/SL/110/L

Brand Ringtail Lighting
Dimensions (HxWxD)

125x455x65mm

Lamp Type

8W T5

Light Output

270 Lumens

Power Consumption

7 - 20V

Weight 1.50kg
Product Datasheets
