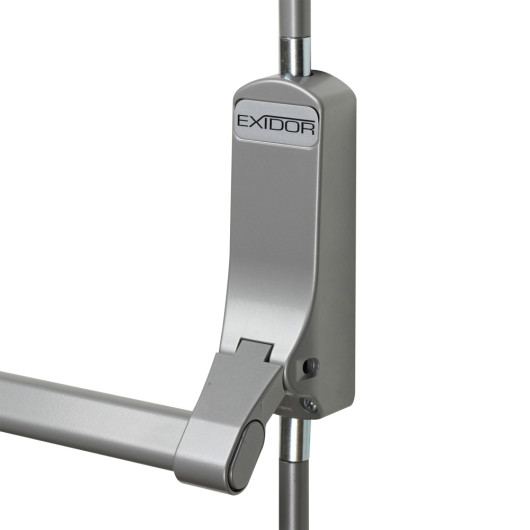

Exidor 294 Single Door Panic Bar with Bolt
Designed for use on final exit doors leading from public or private spaces, the Exidor 294 panic bar with vertical latch, is suitable for installation in areas including places of work, commercial premises and entertainment venues. Fire rated for use on timber or steel doors, the Exidor 294 is fitted with an anti-thrust mechanism to prevent leverage of the shoot bolts from their sockets. Exidor products undergo rigorous third party testing, fully conforming to and are CE marked and Certifire accredited.
- Suitable for:
- Outward opening final exit single doors
- Final exit doors accessible to the public or private use buildings
- Doors weighing no more than 200kg
- Left and right-handed doors
- Built in anti-thrust mechanism enhances security
- Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
- Also available with an optional
- Suitable for use on fire and smoke door assemblies as tested in accordance with
- Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
- Manufactured in UK with a 10 year manufacturer's warranty
- CE marked and Certifire accredited
- Supplied with fixings for wooden doors as standard
- Also available with steel door fixings
- Available with the following optional outside access device options:
- Exidor 302 Outside Access Device With Knob
- Exidor 322 Outside Access Device With Lever
Customer Reviews (5)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
A J
Published on
29th January 2025
Reviewed by
N S
Published on
6th September 2021
Excellent value for money
Reviewed by
C V
Published on
6th September 2021
Quality
Good quality, easy to fit and does what it says...plus safe clinics were great
Reviewed by
P F
Published on
30th April 2021
Does what it says. Clear installation instructions.
Reviewed by
Anonymous
Published on
22nd August 2018
Reasonable price , does what it should, instructions very good for anyone who has never fit one
Good delivery time .
Technical Data
| Product Code | EXD294 |
|---|---|
| Brand | Exidor |
| Category | Class 3 (High Frequency Of Use) |
| Colour | Silver |
| Compatible Products | Exidor 302 Outside Access Device With Knob |
| Exidor 322 Outside Access Device With Lever | |
| Approvals & Markings | CE Marked |
| Compliance | BS EN 1125: 2008 |
| BS EN 179 | |
| Certifire - CF389 | |
| Device Type | Push Bar |
| Door Type | Final Exit Doors |
| Single Door | |
| Outward Opening Single Doors | |
| Non-Rebated Double Doors | |
| Inactive Leaf Of Rebated Double Doors | |
| Environmental Suitability | Public Buildings |
| Public Settings | |
| Offices | |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Steel Door Fixings Available Separately | |
| Handing | Non-Handed (Site Reversible) |
| Manufactured in the UK | Yes |
| Material | Metal |
| Maximum Door Height | 2440mm |
| Maximum Door Weight | 200kg |
| Maximum Door Width | 1220mm |
| Suitability | Timber Doors |
| Steel Doors | |
| Indoor | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 43.50kg |
| Datasheets |
Outside Access Devices
Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the four devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 294 single door panic bar, as well as all other Exidor 200 series products.
Exidor 302 Outside Access Device With Knob
This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 322 Outside Access Device With Lever
This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 326 Slimline Outside Access Device With Knob
Similarly to the 302, this device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
Exidor 325 Slimline Outside Access Device With Lever
Similarly to the 322, this device features a lever style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
