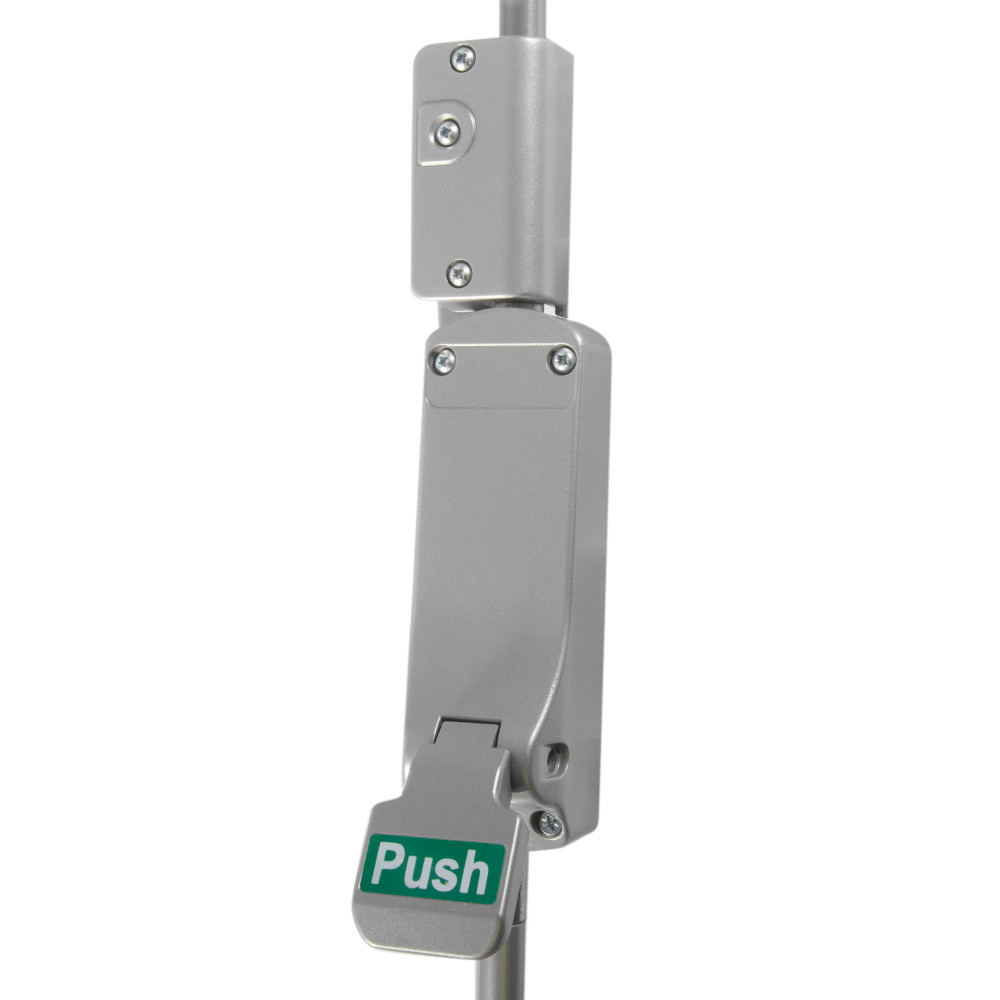

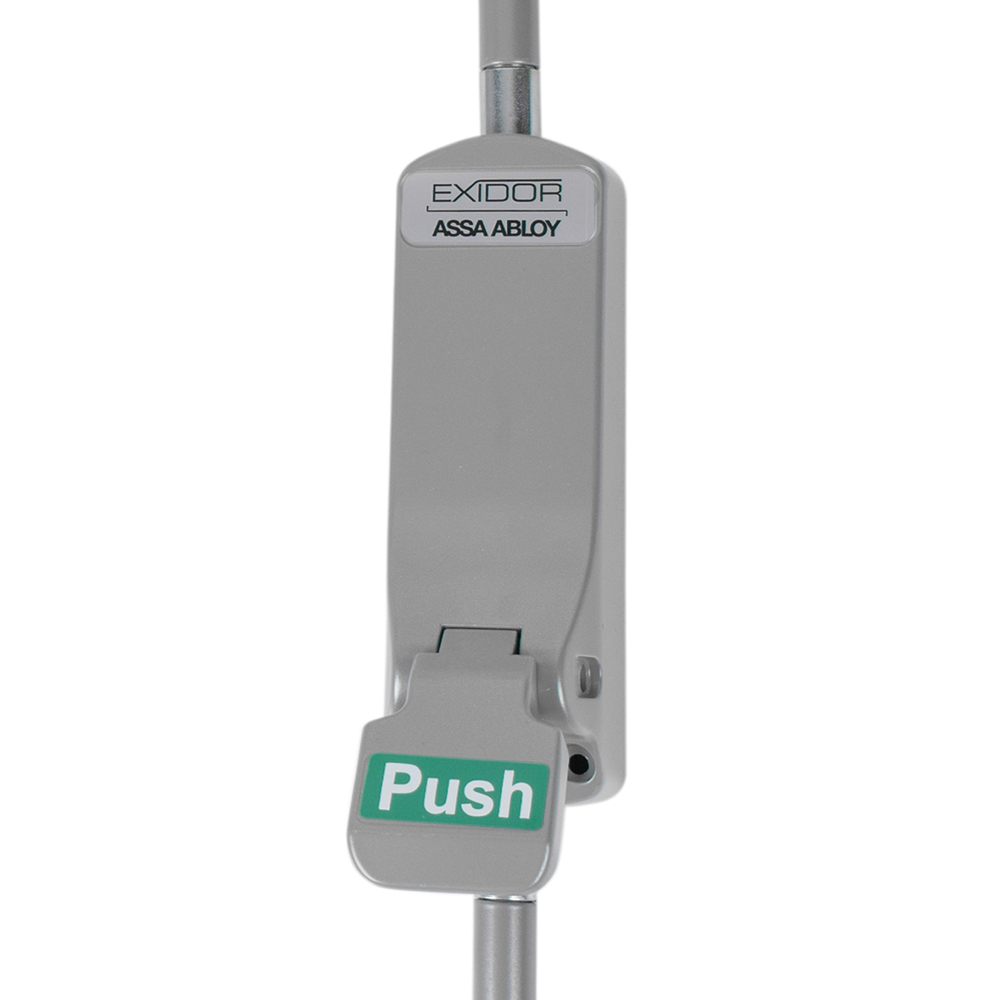

Exidor 293 Single Door Push Pad With Bolt
The Exidor 293 single door push pad system is UK manufactured to the highest quality. This product is designed for use on final exit doors leading outwards from commercial premises where the building's layout is known to the occupants. This makes the Exidor 293 system particularly suitable for installation in places of work. The 293 push pad with bolt is fire rated for use on timber or steel doors, and is fitted with an anti-thrust mechanism to prevent leverage of the shoot bolts from their sockets - greatly increasing the security of the system. Exidor products undergo rigorous third party testing, and as such fully conform to and are CE marked and Certifire accredited.
- Push pad with vertical bolt
- Manufactured in the UK
- Available with the following optional outside access device options:
- Exidor 302 Outside Access Device With Knob
- Exidor 322 Outside Access Device With Lever
- Also available with an optional
- Ideal for installation within the workplace
- Non-handed - suitable for left & right-handed doors
- 10 year manufacturer's warranty
- Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
- Built in anti-thrust mechanism enhances security
- For use on outward opening final exit doors
- Suitable for use on fire and smoke door assemblies as tested in accordance with
- Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
- Designed for doors weighing no more than 200kg
- Supplied with fixings for wooden doors as standard
- CE marked and Certifire accredited
Customer Reviews (2)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
I H
Published on
8th September 2023
Reviewed by
G W
Published on
28th July 2020
Good product
Technical Data
| Product Code | EXD293 |
|---|---|
| Brand | Exidor |
| Category | Class 3 (High Frequency Of Use) |
| Colour | Silver |
| Compatible Products | Exidor 302 Outside Access Device With Knob |
| Exidor 322 Outside Access Device With Lever | |
| Approvals & Markings | CE Marked |
| Compliance | BS EN 1125: 2008 |
| BS EN 179 | |
| Certifire - CF392 | |
| BS EN 1634-1 | |
| Device Type | Push Pad |
| Door Type | Final Exit Doors |
| Single Door | |
| Inactive Leaf Of Rebated Double Doors | |
| Non-Rebated Double Doors | |
| Environmental Suitability | Offices |
| Workplace | |
| Equipment Type | Emergency Escape Hardware |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Handing | Non-Handed (Site Reversible) |
| Locking Points | 2 |
| Material | Metal |
| Manufactured in the UK | Yes |
| Maximum Door Height | 2440mm |
| Maximum Door Width | 1220mm |
| Suitability | Non-Public |
| Staff Only Areas | |
| Indoor | |
| Steel Doors | |
| Timber Doors | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 3.05kg |
| Datasheets |
Outside Access Devices
Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the four devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 294 single door panic bar, as well as all other Exidor 200 series products.

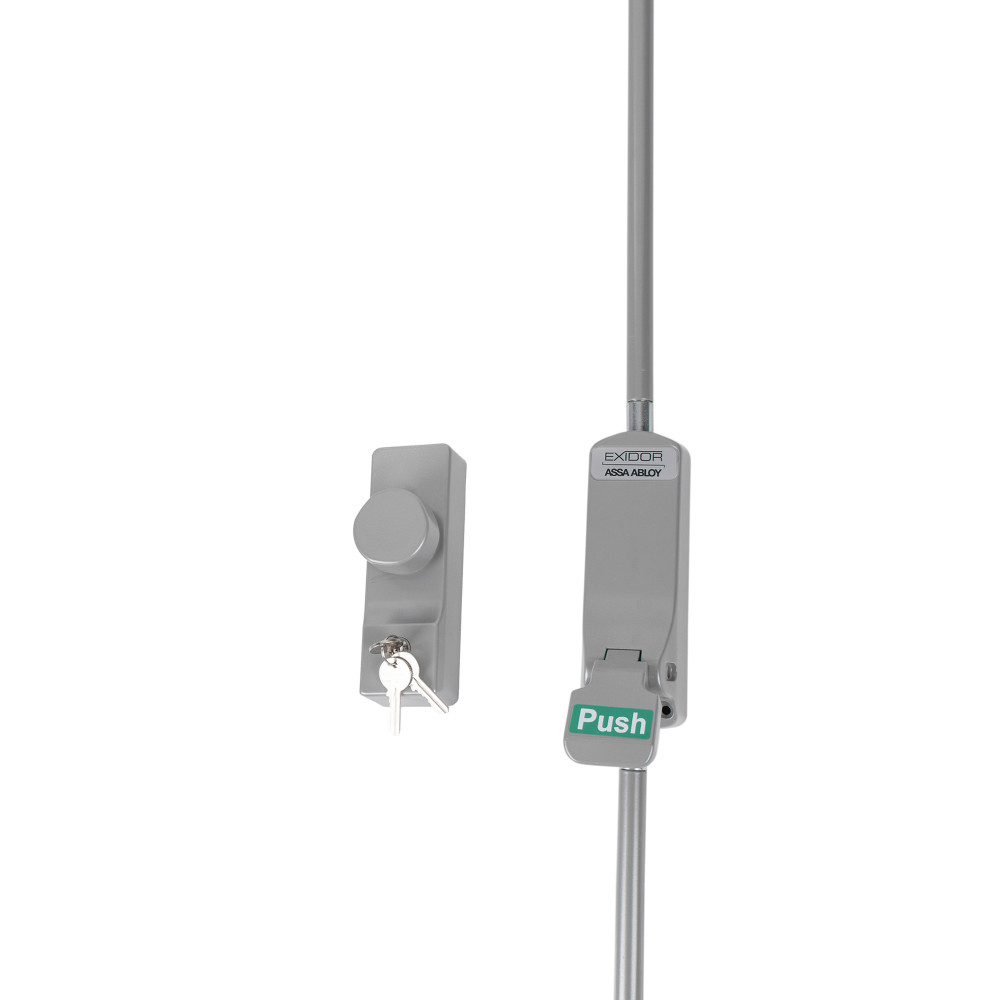

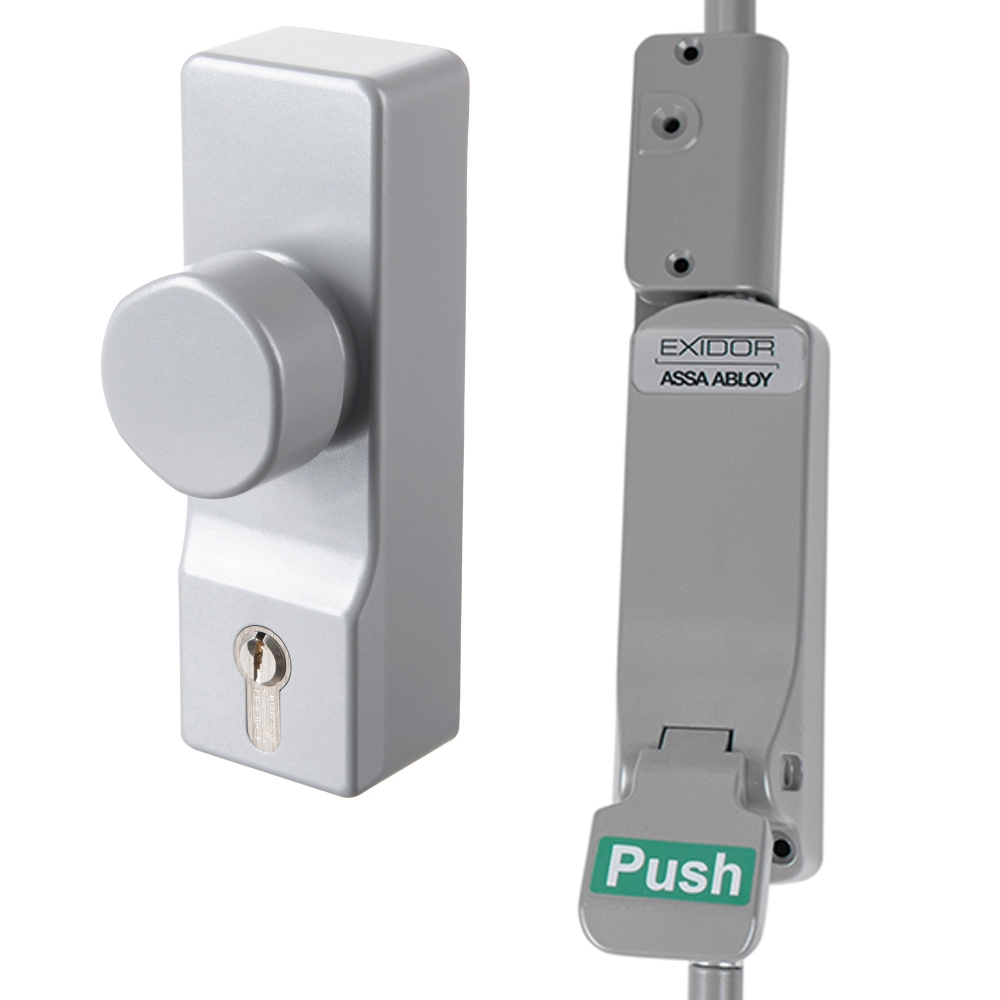

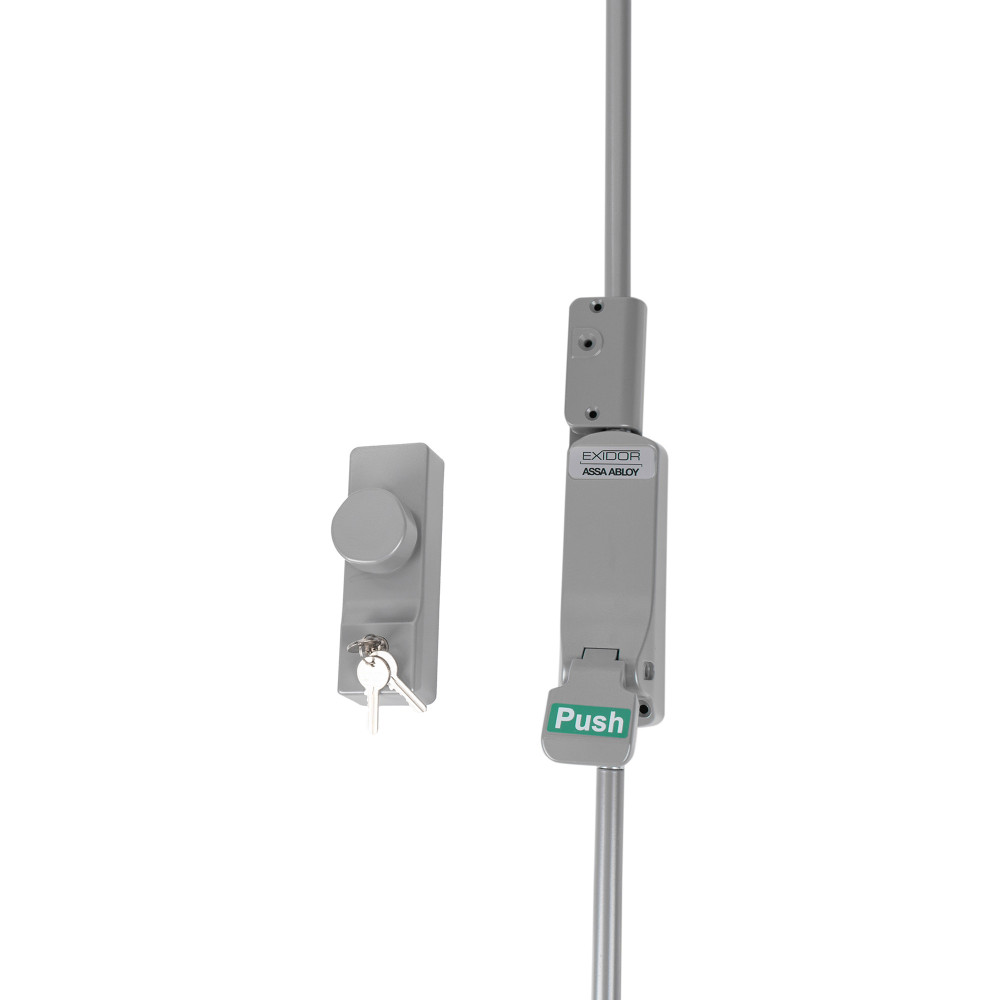

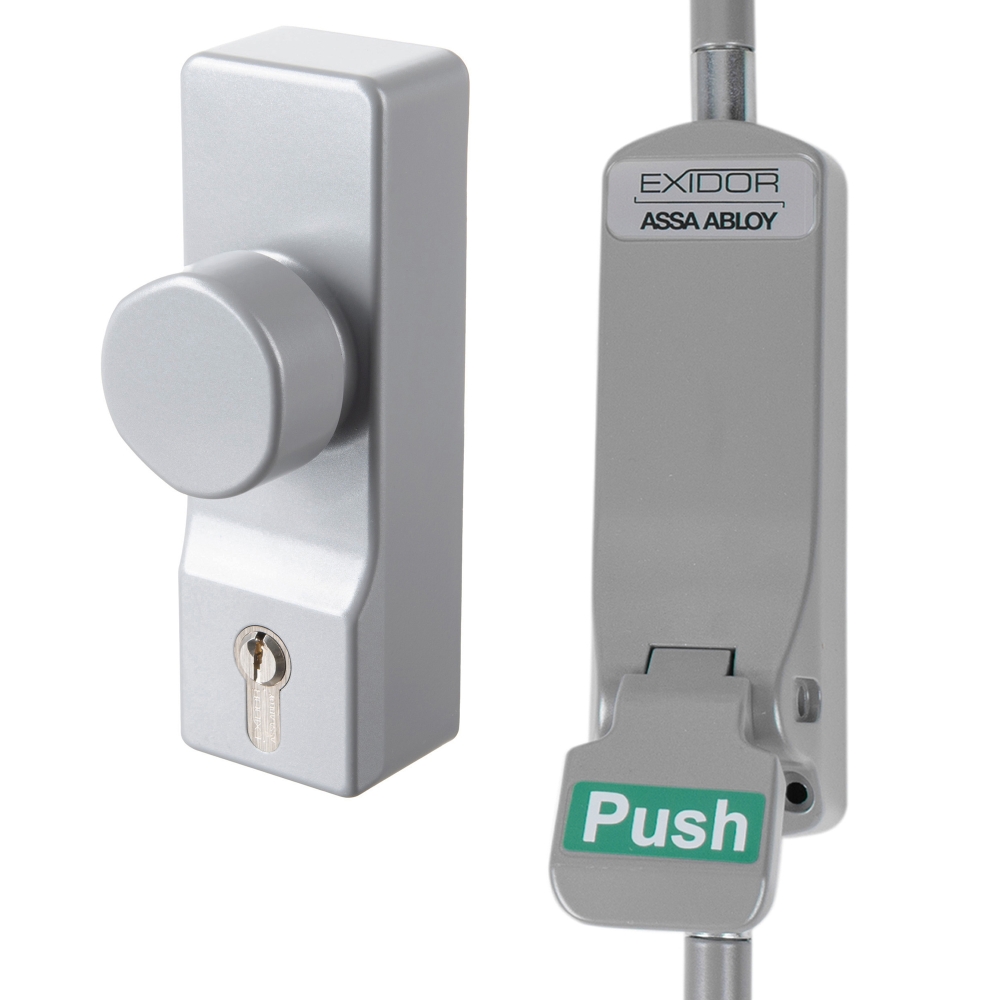

Exidor 302 Outside Access Device With Knob
This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.

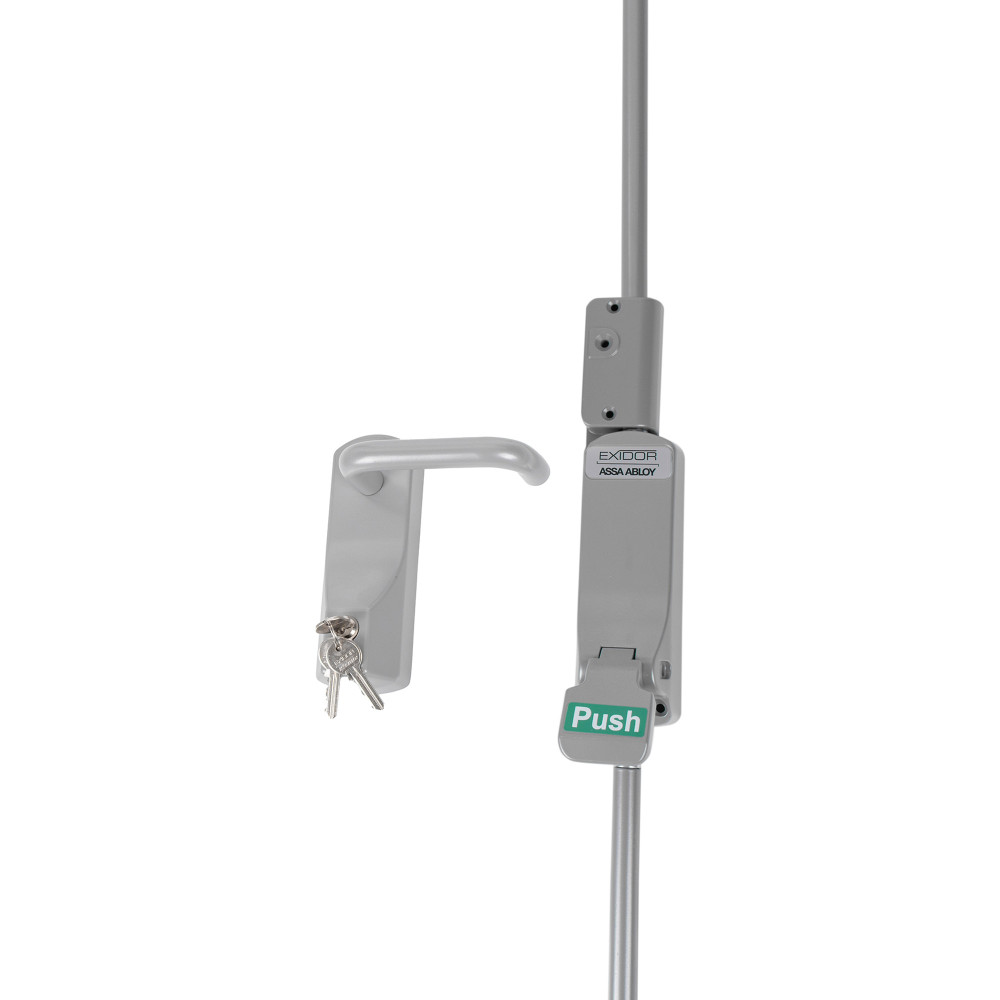

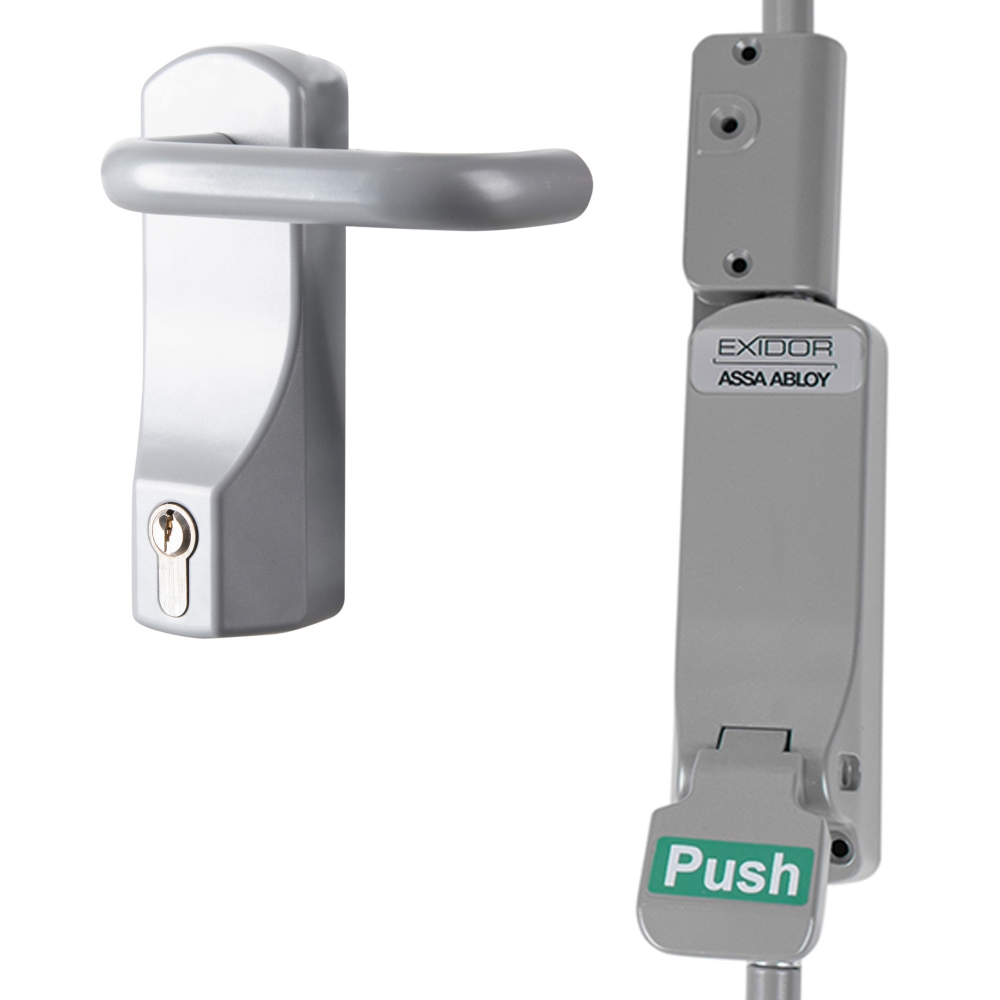

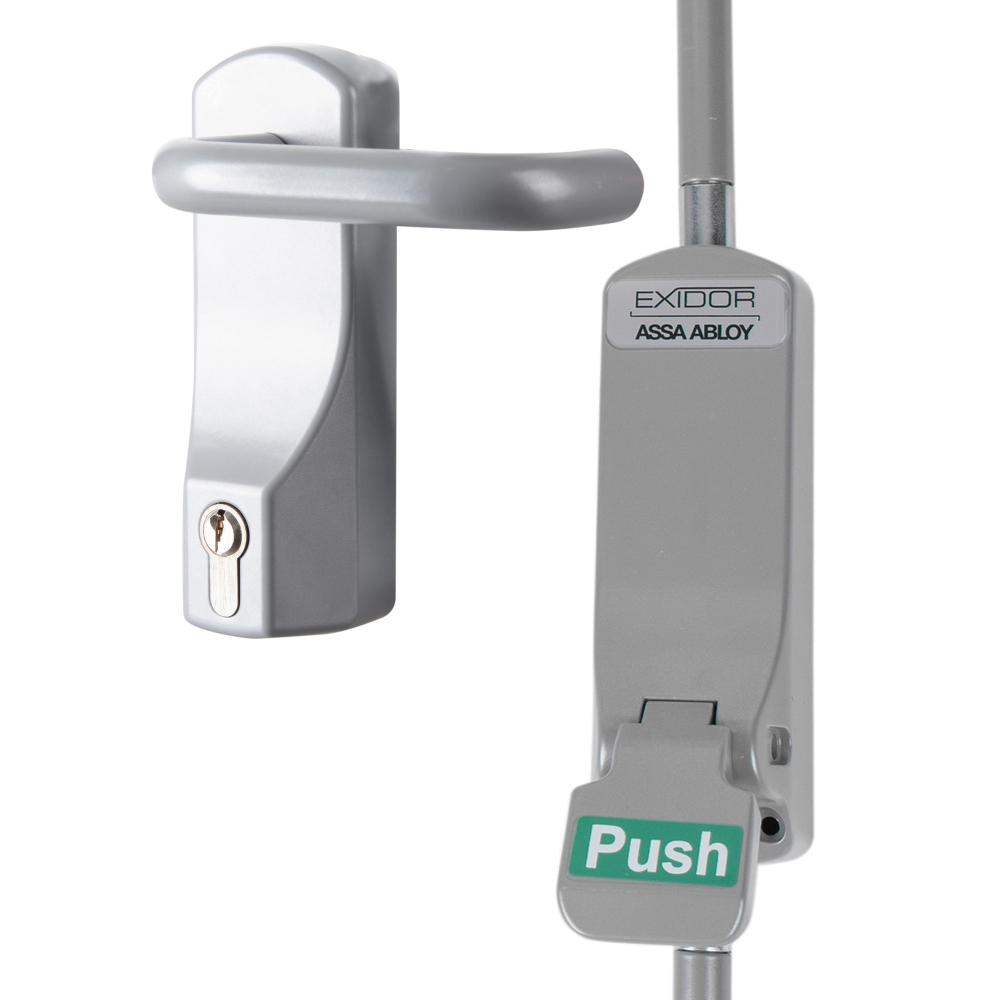

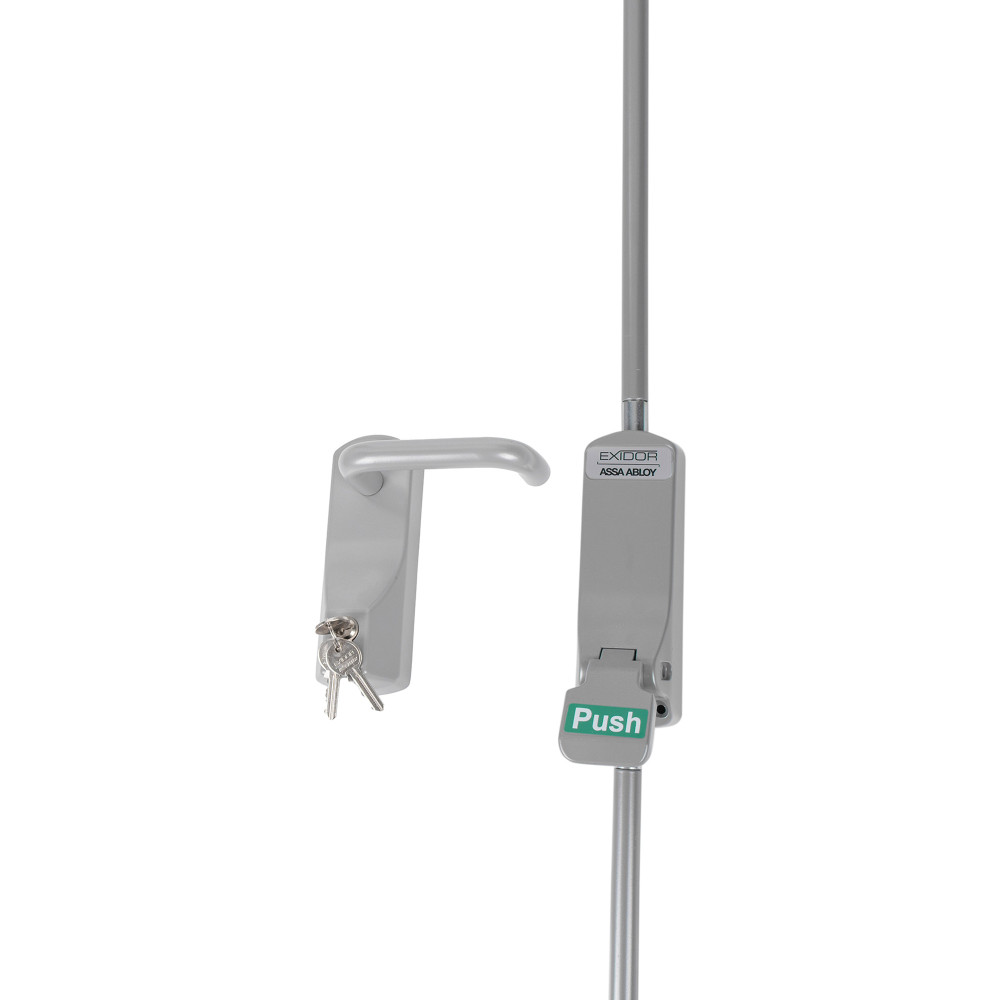

Exidor 322 Outside Access Device With Lever
This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 326 Slimline Outside Access Device With Knob
Similarly to the 302, this device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
Exidor 325 Slimline Outside Access Device With Lever
Similarly to the 322, this device features a lever style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
