Perko Powermatic Free-Swing Concealed Fire Door Closer

Discontinued Product

This product has been discontinued and is no longer available to buy.

View Alternative Products
Product Overview

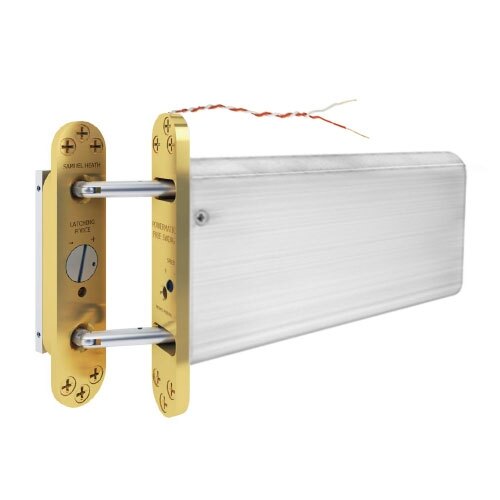

The Perko Powermatic Free Swing door closer has been designed for applications where permanently closed doors are not ideal. Wired in to the building's 24V DC fire alarm system, the free swing door closer enables a door to be left open at any desired angle, and then automatically closes in the event of a power cut or activation of the fire alarm system. Concealed within the door and the door frame, the Perko Powermatic Free Swing is completely unnoticeable when the door is closed, providing a clean and unobtrusive appearance to ensure the best aesthetics.

  • 10 year guarantee
  • CE marked
  • Tested to BS EN 1154: 1997 and BS EN 1155: 1997
  • EN Power Size 3 - suitable for doors up to 60kg in weight and 950mm wide
  • BS EN 1634-1 approved for use on one hour and half-hour fire doors
  • Suitable for latched and unlatched installations
  • Wires in to the building's 24V DC fire alarm system
  • Door holds open at any angle and releases upon power cut or fire alarm activation
  • Fitted within the door leaf and frame
  • Completely invisible when the door is closed
  • Suitable for use on single action doors
  • Available in a range of finishes
  • Adjustable closing speed
  • Adjustable latching action
  • Endurance tested to 500,000 cycles
Technical Data

Technical Data

This is the technical data for the Perko Powermatic Free-Swing Concealed Fire Door Closer.

Product Code
Satin Chrome SHR106FSC
Brass SHR106FBR
Weight 2.20kg
Dimensions (HxWxD) 148x28x226mm
EN Size 3
Adjustable Closing Speed Yes
Adjustable Latching Action Yes
