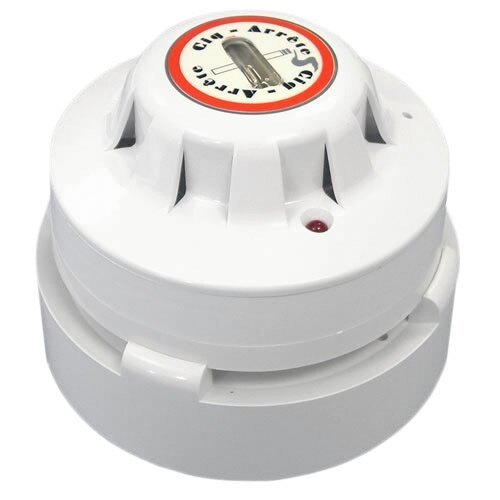

This unit is a self-contained, battery operated flame detector with voice sounder that can be used as a master unit to connect other Cig-Arr?te products when fitted with a daughter board module.
- Fully self-contained, battery operated detector with voice sounder
- 120 degree field of view
- Alerts offenders with ?This is a no-smoking area, please extinguish your cigarette, a member of staff has been contacted?
- Provides clear voice message with volume control
- Designed for the detection of unauthorised smoking in areas subject to high winds, rapid ventilation, smoke and gas
- Typical applications include open areas, building entry/exit points, rooms with high ceilings (>3m <6m), or locations subject to intermittent smoke or vapour
- The module will detect a 25mm cigarette lighter flame at 6 metres within 1 second
- Message can be repeated 1, 3, 5 or 7 times (user programmable)
- Variable sensitivity to suit different locations
- Operates from 1 x 9V standard alkaline PP3 battery
- Can be mains powered using an external 6 volt power supply (CSA - SMPSU)
- Tough, aesthetic, brilliant white GRP housing
- CE Marked
- Manufactured by Radal Technology, UK
The flame detector has a field of view of 120?. The table below provides a guide to the coverage area for a given installed height:
Height Metres (x) | Coverage Metres (y) | Height Feet (x) | Coverage Feet (y) | 1 | 3.5 | 7 | 10 | 2 | 7 | 8 | 20 | 3 | 10 | 9 | 31 | 4 | 14 | 10 | 42 | 5 | 17 | 11 | 52 | 6 | 21 | 12 | 62 | | ![Cig-Arrete Flame Detector and Sounder Module Cig-Arrete Flame Detector and Sounder Module](images/rdcsafdv-1.gif) |
