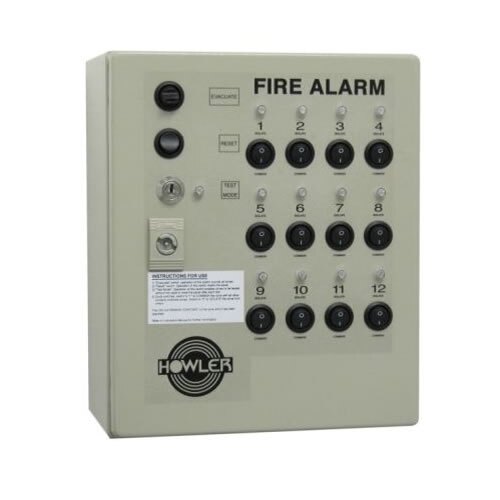

Howler Multilink Control Panel

Discontinued Product

This product has been discontinued and is no longer available to buy.

View Alternative Products
Product Overview

Howler site alarms with Multilink facility are ideal for applications where it is important for an emergency alarm to be heard over a large area. The Multilink Control Panel allows for the interlinked Howlers to be split up in to zones so that an activated alarm location can be easily identified, and therefore making the system more manageable. The Multilink Control Panels are powered by a single 9V battery and are available in a range of zone configurations.

  • 9V battery operated
  • Allows for a large site of Multilink Howlers to be split in to zones
  • Available in 4, 8, 12, 16 and 20 zone configurations
  • Up to 50 Howlers can be interlinked per zone (2 wire interconnection)
  • Complete alarm system can be activated from the panel
  • Red LED indicators help you to identify which zone has been activated
  • When in key operated test mode, the panel resets after each Howler is tested
  • Zone isolation feature
  • Ideal for large sites where a controlled alarm system would be beneficial
  • Suitable for use with the Standard and Heavy Duty Multilink site alarms
Technical Data

Technical Data

This is the technical data for the Howler Multilink Control Panel.

Product Code
4 Zone Panel HSMLC4
8 Zone Panel HSMLC8
12 Zone Panel HSMLC12
16 Zone Panel HSMLC16
20 Zone Panel HSMLC20
4 Zone Panel 5kg
8 Zone Panel 5kg
12 Zone Panel 5kg
16 Zone Panel 7kg
20 Zone Panel 7kg
Battery Type 9V battery
Available Zone Configurations 4, 8, 12, 16 and 20
Dimensions (HxWxD) 4 Zone: 200x300x150mm
8 Zone: 200x300x150mm
12 Zone: 200x300x150mm
16 Zone: 400x300x150mm
20 Zone: 400x300x150mm
