General Purpose Escape Route Sign (Fire Exit Box) - EXS

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

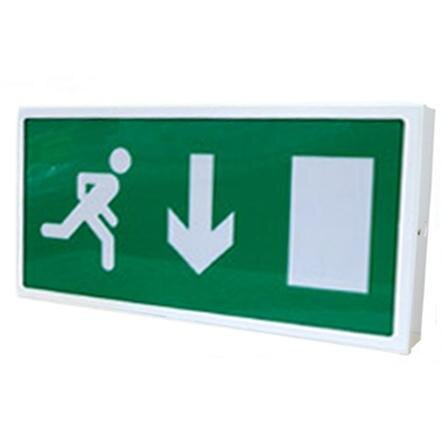

The EXS escape route sign is a large general purpose luminaire suitable for all indoor applications with a maximum viewing distance of 60m. The unit complies with the requirements of EN60598-2-22 and are suitable for incorporation into an emergency lighting system complying with BS 5266-1:2011.

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Applications

Typical applications for the EXS escape route sign include installations in sports stadiums, high bay warehouses, airports, large factories etc.

Technical Data

Technical Data

This is the technical data for the General Purpose Escape Route Sign (Fire Exit Box) - EXS.

Product Code
Arrow Down, Maintained RL-EXS18M
Arrow Down, Non-maintained RL-EXS18NM
Arrow Left, Maintained RL-EXS18M/L
Arrow Left, Non-maintained RL-EXS18NM/L
Arrow Right, Maintained RL-EXS18M/R
Arrow Right, Non-maintained RL-EXS18NM/R
Arrow Down, Maintained 4.75kg
Arrow Down, Non-maintained 4kg
Arrow Left, Maintained 4kg
Arrow Left, Non-maintained 4kg
Arrow Right, Maintained kg
Arrow Right, Non-maintained 4kg
Lamp Type 18W T8
Internal Dimensions (HxWxD) 310x620x100mm
Power Consumption Maintained: 38W
Non-maintained: 9W
Battery Type 3.6V 4Ah
Backup Duration 3 Hours
Light Output 200 Lumens

Product Datasheets

The following datasheets are available for this product.

FAQs (1)

Q. Can these units be fitted using surface mounted cabling / trunking?

A. Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.
