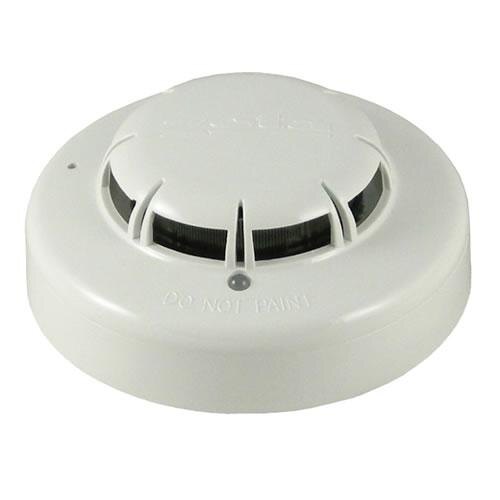

The Fyreye "extra" range of smoke and heat detectors are designed for use with the Simplicity Micro Addressable fire alarm panel and have an extra LED to improve detector identification in an alarm condition. The dual LEDs allow the alarm to be observed from 360°
- Detector uses a pulsing IR LED & Photodiode to detect IR scatter caused by smoke entering the chamber
- Supplied with locking grub screw to prevent unauthorized head removal
- Operating temperature -10°c to +50°c
- Operating Voltage:9 - 33V DC
- Detector coverage:100m2
- IP43 protection
- Designed to meet EN54 part 7
- Please note: The Fyreye conventional detectors require an addressable detector base to operate with the simplicity micro fire alarm panel
Technical Data
This is the technical data for the Fyreye "Extra" Optical Smoke Detectors.
Product Code |
GEFEOE2000 |
Weight |
0.10kg |
Dimensions (HxWxD) |
37x100mm |
Supply Voltage |
9 - 33 V DC |
Quiescent Current |
65 μA |
Alarm Current @ 24V DC |
53mA |
Operating Temperature |
-10°C to 50°C |
Minimum Contiuous Temperature |
0°C |
Maximum Humidity |
95% RH non condensing |
Alarm Condition |
2.4% obstruction per metre |
Coverage |
100m2 |
Start up time |
10 Seconds |
Product Datasheets
The following datasheets are available for this product.
Q. Is the Fyreye GEFEOE2000 compatible with ZetaFEO2000 detectors?
A. The Fyreye GEFEOE2000 is compatible. You would also need the diode base GEFE-DB. This is not a product we stock as standard but we can order it for you, please call our customer service team for more information.
