With a 10 year sealed longlife lithium battery, the FireAngel FA3322 carbon monoxide alarm is certified for use both in the home and when travelling (camping / caravans / boats). Sleep Easy™ silencing and automatic Night Time Sensing ensure you won’t be woken by low battery chirps while the alarm is still fully functional. ‘Pre alarm’ early warnings show on a digital LCD screen with reduced-volume chirps before full-alarm mode is reached, giving you more time to respond to rising CO levels. When not showing CO readings and warnings, temperature is displayed instead. The quiet test function also allows for low volume testing.
- Product Lifespan: 10 years
- Battery: 10 year sealed lithium battery
- Warranty: 5 year warranty
- Kitemarked to BS EN 50291-1:2018 (domestic use) & BS EN 50291-2:2019 (camping / caravans / boats)
- CE marked and UKCA marked
- Packed with features for maximum safety and minimum fuss, including:
- Sleep Easy™ and Night Time Sensing so low battery warnings don't keep you awake
- Alarm in Absence notifications and Early Warning for rising, but pre-alarm, CO levels
- Low volume alarm testing
- And many more - see Full Features for details of all

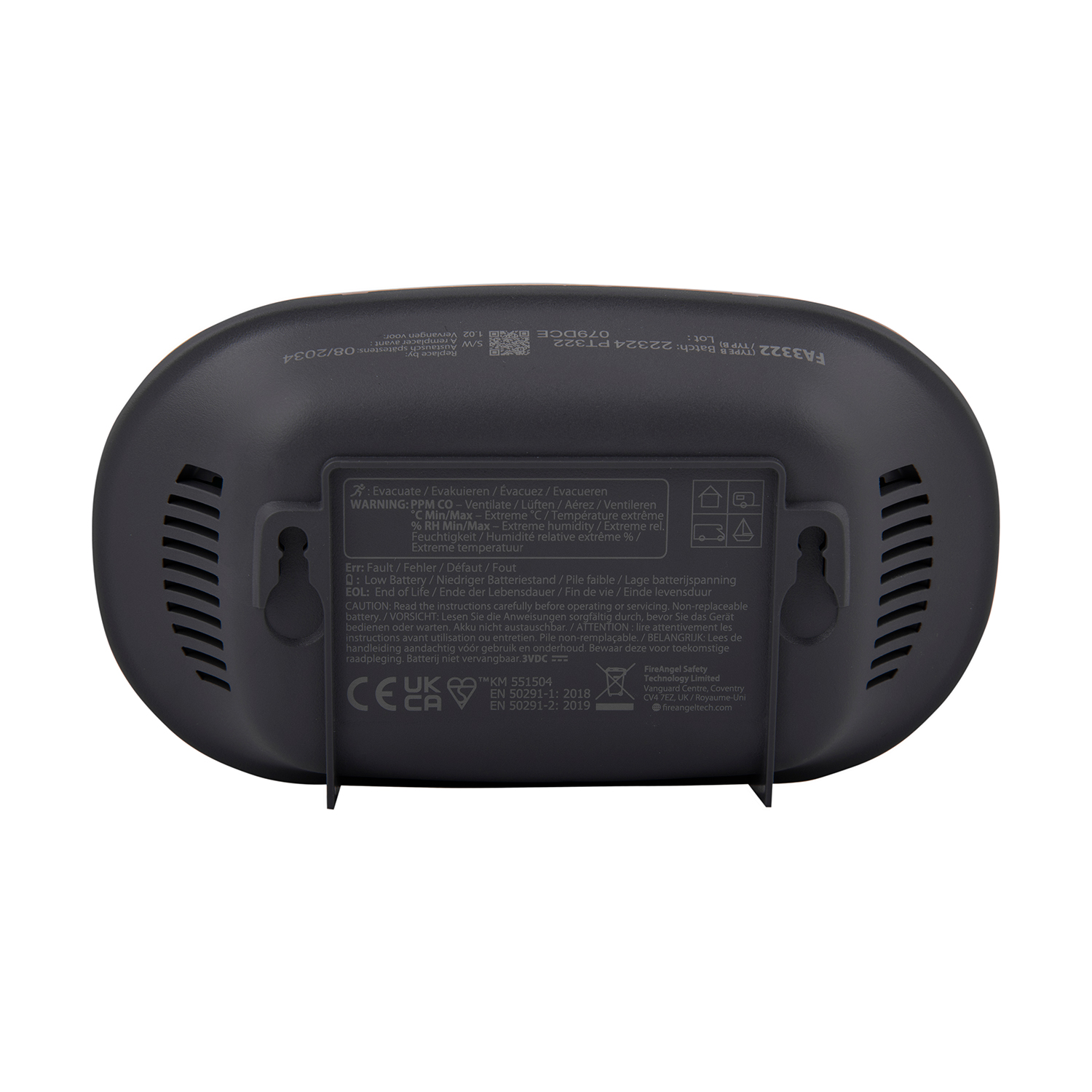

- Can be left free standing or wall mounted
- Ideal for kitchens, boiler rooms, and anywhere gas or solid fuel burning appliances are located
- Monitors carbon monoxide, temperature and humidity levels (displayed on the digital LCD screen)
- The brightness of the green LED flash (which indicates correct function) automatically reduces at night-time
- Dimensions (HxWxD): 76 x 129 x 31mm
- This alarm is suitable for the updated 2022 Welsh and Scottish legislation
- Also suitable for new fuel-burning appliances as per Building Regulations Document J
The FireAngel FA3322 has an incredible range of features. The majority are related to safety, and many are designed for your convenience and ease of use. Most importantly, they are all carefully designed so that a function designed for your convenience can never be used in a way that puts you in danger.
- Sleep Easy™ Silencing – Stop battery warnings in the middle of the night
- Silence ‘chirps’ for 8 hours for a good night’s rest
- Amber warning flash continues
- Can be used up to 10 times to ensure it cannot be forgotten
- Alarm continues to monitor CO levels and issues alerts unaffected
- Also silences temperature alerts
- Night Time Sensing – Detects night hours for a peaceful evening
- Automatically reduces the brightness of the power LED
- Reactivates the Sleep Easy™ mode for another 8 hours at night if a low battery warning has been silenced during the day
- Low Volume Testing – For more comfortable safety checks
- Single press of the Test button will emit a standard Full Alarm sound at a much reduced volume to indicate good working order
- Double press the Test button to test at normal alarm volume of 85dB
- Alarm in Absence – Be aware of CO emergencies while you were away
- Activates if an alarm has occurred and not been silenced
- Device will flash Red twice every 20 seconds
- Notifications continue for up to 7 days or until cleared using the Test/Silence button
- Intelligent CO Monitoring & Alarm – Reactive monitoring to CO levels
- As the concentration of carbon monoxide rises, the monitoring rate increases
- The higher the CO level, the quicker the alarm will respond
- Intelligent Silence Mode – Keeps you in control, keeps you safe
- Silence a full alarm for 5 minutes
- Can be activated only once when in Full Alarm
- Above 150ppm (parts per million) of CO, Alarm Silence is disabled
- Early Warning Indicator – Be warned before you are alarmed
- An early ‘pre alarm’ when low levels of CO have been detected over a sustained period
- Indicated by a gentle short-long chirp and amber flash every 25 seconds
- Can be silenced for up to 12 hours, amber flash will continue to show
- Early Warning Silence will be cancelled if a higher CO level is later detected
- Will be overridden by Full Alarm if emergency thresholds are reached
- System Status Indicators – Know if you need a new alarm soon, or right now
- Low battery – 1 x Beep plus Amber flash per minute – Replace within 30 days
- Fault – 2 x rapid Beep plus Amber flash per minute – Replace immediately
- End of life – 3 x rapid Beep plus Amber flash per minute – Replace immediately
- Temperature Display and Extreme Temp / Humidity Warning
- Current room temperature is shown if there is nothing to report
- CO level also shown as “ALL CLEAR” when below 10ppm
- At extreme high or low temperature and humidity levels, levels are displayed and an Amber flash will highlight “WARNING” on screen with a 6 chirp audio alert
- Auto-silences at night, and can be paused for one week by pressing the Test / Silence button
- Warnings auto-clear after 4 days
- Digital LCD Display – Information presented clearly
- Indicates current mode – “ALL CLEAR”, “EVACUATE”, “WARNING”, Sleep Easy, alarm silence, plus Green / Amber / Red hazard level indicators
- Peak Alarm in Absence CO level
- Monthly overview of readings are shown in the following order during testing:
- 1) Current temperature 2) Max temp 3) Max CO level 4) Max humidity RH% 5) Current CO level
- Fault (“ERR”), End of Life (“EOL”), and low battery conditions
Full details of modes, operation, trigger levels, the interoperation of these features and how to use them can be found in the User Manual.
Q. What are the symptoms of carbon monoxide poisoning?
The symptoms of CO poisoning can range from mild flu-like symptoms such as headache, drowsiness, confusion, nausea and dizziness to more severe symptoms like breathing difficulties and irregular heartbeat. CO poisoning can ultimately lead to coma and death.
View more symptoms on our carbon monoxide information page.
Q. Where should I install my carbon monoxide alarms?
CO detectors should be installed near potential sources of carbon monoxide, essentially any fuel-burning appliances such as boilers, cookers and ovens, fireplaces (both open and enclosed burners), and portable generators. As you are likely to be most affected by CO in areas of your home that you spend the most time in it is advisable to install alarms in those areas as well, such as the living room and bedrooms. It is also worth noting that while one detector is better than no detectors at all, larger homes may require several detectors to cover the property fully.
Also note that carbon monoxide has been proven to spread into neighbouring properties through open windows and, in semi-detached or terrace houses, through loft spaces. If your property has an attached garage with a connecting door through to the house, it is recommended to fit a CO alarm inside the house leading from that doorway.
Battery powered carbon monoxide alarms can typically be installed wall-mounted or left free-standing on flat, level surface.
- Near an appliance: they should be placed within 1 to 3 metres horizontally from the appliance and between the height of the appliance to 150mm below the ceiling – i.e., not above a stove where it would be in the path of steam or fumes.
- In living spaces: they should be positioned close to where the occupant's head is likely to be most of the time – e.g., on your bedside table.
Combined smoke & CO alarms or mains-powered CO alarms are typically installed on the ceiling and should be at least 30cm away from any wall, light fitting, or other obstruction.
Do not install CO alarms within 3 metres of doors or windows, above radiators, or immediately close to anything that gives off steam or fumes like a cooker or shower room. Similarly, it is not recommended to install detectors in dusty areas such as workshops or garages.
For more information, please check the manufacturer's instructions – you can download the PDF manual from the relevant product page on our site. You can also watch our video guide to positioning CO detectors.
Q. Where are carbon monoxide alarms required?
Most legislation advises at least one carbon monoxide alarm is fitted near new or replacement fuel-burning appliances that are fixed installations, though rented properties (both social and private sector) often require CO alarms be provided by landlords even if no appliances are being installed or replaced. Examples include boilers, coal fires, wood burners, and gas ovens and cookers, though an exception is often made in legislation for gas appliances solely used for cooking.
However, any and all materials can give off CO when burning, including gas cookers. Carbon monoxide can also spread from neighbouring properties or outside sources such as vehicle fumes. Because of this, Safelincs strongly recommends the installation of carbon monoxide detectors in every home, and also at head-height in bedrooms to protect occupants while sleeping.
Landlords, please see our pages for English, Welsh, and Scottish alarms or our landlord guidance page for more information.
Key Product Features
Monitors carbon monoxide, temperature and humidity levels
Single press for a low volume test, double-press for full volume
Certified for home, caravans, motor homes, and boat use
'Pre-alarm' warning encourages ventilation at low levels of CO
Every FireAngel FAFA3322 is supplied with the following components.
- 1 x FireAngel FA3322 digital CO alarm
- 1 x Sealed lithium battery
- 1 x Screw fixing set (screws & rawl plugs)
- 1 x Instruction manual
