Exidor 293 Single Door Push Pad With Bolt

From: £69.59 inc VAT
£57.99 ex VAT
Product Overview

The Exidor 293 single door push pad system is UK manufactured to the highest quality. This product is designed for use on final exit doors leading outwards from commercial premises where the building's layout is known to the occupants. This makes the Exidor 293 system particularly suitable for installation in places of work. The 293 push pad with bolt is fire rated for use on timber or steel doors, and is fitted with an anti-thrust mechanism to prevent leverage of the shoot bolts from their sockets - greatly increasing the security of the system. Exidor products undergo rigorous third party testing, and as such fully conform to BS EN 179 and are CE marked and Certifire accredited.

  • Push pad with vertical bolt
  • Manufactured in the UK
  • Available with the following optional outside access device options:
  • Also available with an optional hold-back device
  • Ideal for installation within the workplace
  • Non-handed - suitable for left & right-handed doors
  • 10 year manufacturer's warranty
  • Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
  • Built in anti-thrust mechanism enhances security
  • For use on outward opening final exit doors
  • Suitable for use on fire and smoke door assemblies as tested in accordance with EN 1634-1
  • Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
  • Designed for doors weighing no more than 200kg
  • Supplied with fixings for wooden doors as standard
  • CE marked and Certifire accredited
Outside Access Devices

Outside Access Devices

Where necessary, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the two devices linked to below. Both devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 293 push pad with bolt, and all other Exidor products within the 200 series.

Exidor 302 Outside Access Device With Knob

This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.

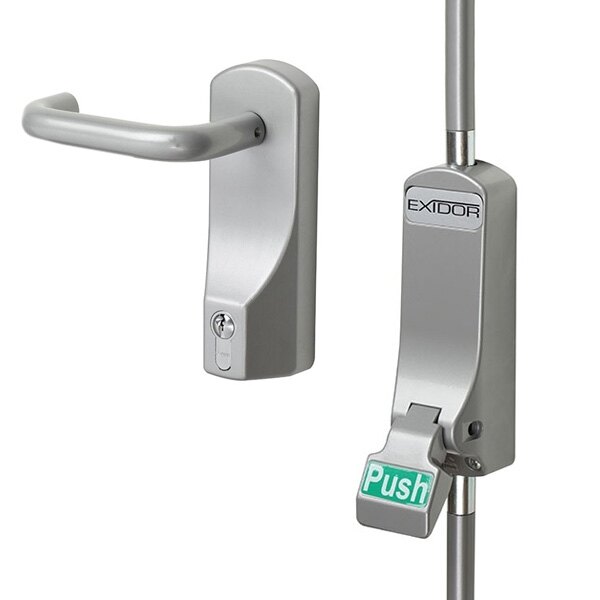

Exidor 322 Outside Access Device With Lever

This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.

Technical Data

Technical Data

This is the technical data for the Exidor 293 Single Door Push Pad With Bolt.

Product Code
Push Pad Only, No Hold-Back EXD293
Push Pad with Knob Operated Outside Access Device, No Hold-Back EXD293302EC
Push Pad with Lever Operated Outside Access Device, No Hold-Back EXD293322EC
Push Pad Only, With Hold-Back EXD293299
Push Pad with Knob Operated Outside Access Device, With Hold-Back EXD293302EC299
Push Pad with Lever Operated Outside Access Device, With Hold-Back EXD293322EC299
Weight 3.05kg
Dimensions (HxWxD) 174x55x80mm (push pad body)
Door Suitability Max. Door Dimensions: 2440mm (H) x 1220mm (W)
Warranty 10 years

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price
Push Pad Only
No Hold-Back
Product Code: EXD293
Stock Level:
12 in stock Expected dispatch: Tomorrow
Price:

£69.59 inc VAT

£57.99 ex VAT

Push Pad Only
With Hold-Back
Product Code: EXD293299
Stock Level:
5 in stock Expected dispatch: Tomorrow
Price:

£109.67 inc VAT

£91.39 ex VAT

Push Pad with Knob Operated Outside Access Device
No Hold-Back
Product Code: EXD293302EC
Stock Level:
10 in stock Expected dispatch: Tomorrow
Price:

£118.55 inc VAT

£98.79 ex VAT

Push Pad with Knob Operated Outside Access Device
With Hold-Back
Product Code: EXD293302EC299
Stock Level:
5 in stock Expected dispatch: Tomorrow
Price:

£158.63 inc VAT

£132.19 ex VAT

Push Pad with Lever Operated Outside Access Device
No Hold-Back
Product Code: EXD293322EC
Stock Level:
10 in stock Expected dispatch: Tomorrow
Price:

£118.55 inc VAT

£98.79 ex VAT

Push Pad with Lever Operated Outside Access Device
With Hold-Back
Product Code: EXD293322EC299
Stock Level:
5 in stock Expected dispatch: Tomorrow
Price:

£158.63 inc VAT

£132.19 ex VAT

Delivery Options

The following delivery options are available on this product.

Next Working Day Delivery

£7.80 inc VAT - Delivered the next working day by DHL

For dispatch today order within

Excellent Warranty

This product is supplied with a 10 year manufacturers warranty as standard
