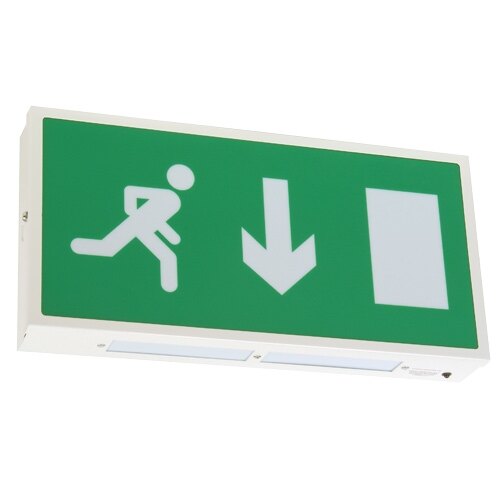

Emergency Escape Route Sign Slave Unit - ES/SL

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview
The ES/SL is a general purpose, cost effective emergency escape route sign slave unit suitable for all interior applications. Slave units are not fitted with their own backup battery, they are powered by a central battery store. The advantages of a central battery store are; maintenance and testing are performed in one location, superior battery life and larger batteries are more economical. The ES/SL unit is suitable for incorporation into an emergency lighting system complying with BS 5266-1:2011 and can be fitted with legends complying with the Health and Safety signs directive of 1996.
  • Slave unit
  • IP20 rating (Interior use)
  • Light output: 270 Lumens
  • Down-light facility
  • Choice of legend
  • Available in 3 versions:
    • 24V AC/DC
    • 50V AC/DC
    • 110V AC/DC
  • Hot-wire tested as defined by ICEL
  • Complete with lamp
  • Complies with the requirements of EN60598-2-22
  • Suitable for incorporation in an emergency lighting system complying with BS 5266: 2011
  • Safelincs Exclusive 5 Year Warranty
  • Manufactured in UK

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Applications

Typical applications for the ES/SL emergency exit sign slave unit include student accommodation, high bay warehouses, sports halls, offices/factories, shops/shopping complexes, hotels/public houses and for an inside final exit sign.

Technical Data

Technical Data

This is the technical data for the Emergency Escape Route Sign Slave Unit - ES/SL.

Product Code
Arrow Down, 24V AC/DC RL-ES8/SL/24
Arrow Left, 24V AC/DC RL-ES8/SL/24/L
Arrow Right, 24V AC/DC RL-ES8/SL/24/R
Arrow Down, 50V AC/DC RL-ES8/SL/50
Arrow Left, 50V AC/DC RL-ES8/SL/50/L
Arrow Right, 50V AC/DC RL-ES8/SL/50/R
Arrow Down, 110V AC/DC RL-ES8/SL/110
Arrow Left, 110V AC/DC RL-ES8/SL/110/L
Arrow Right, 110V AC/DC RL-ES8/SL/110/R
Arrow Down, 24V AC/DC 1.75kg
Arrow Left, 24V AC/DC 1.75kg
Arrow Right, 24V AC/DC 1.75kg
Arrow Down, 50V AC/DC 1.75kg
Arrow Left, 50V AC/DC 1.75kg
Arrow Right, 50V AC/DC kg
Arrow Down, 110V AC/DC 1.75kg
Arrow Left, 110V AC/DC 1.75kg
Arrow Right, 110V AC/DC 1.75kg
Lamp Type 8W T5
Power Consumption 7 - 20V
Light Output 270 Lumens
Internal Dimensions (HxWxD) 190x375x60mm

Product Datasheets

The following datasheets are available for this product.

Looking for more information?

If you have any questions or would like more information about this product you can ask one of our specialists.

Live Chat Available Now
Direct Telephone 01507 464187
Direct Email Email Now
