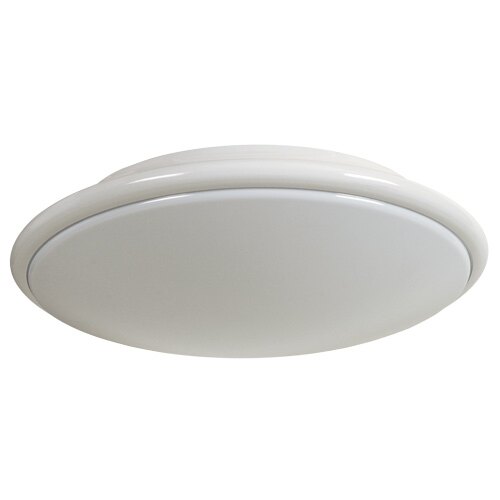

Decorative Slimline Circular Emergency Bulkhead Light With Self-Test - XL/ST

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

The XL/ST light with self-test is a low profile, circular, emergency light suitable for interior applications. This light is available in both maintained and non-maintained operation versions. The XL/ST maintained units with self-test are suitable for internal environments and incorporation into emergency lighting systems complying with BS 5266-1:2011.

  • Maintained version
  • Switchable emergency lighting function (included on maintained units only)
  • Backup duration: 3 hours
  • Light output: 185 Lumens
  • IP20 rating (Interior use)
  • Built-in self-test facility
  • 3 Year Warranty on Maintained units
  • Opal diffuser
  • White, brass and chrome finishes available
  • Hot-wire tested as defined by ICEL
  • Fully complies to BS EN 60598-2-22
  • Supplied complete with lamp and battery
  • Suitable for wall or ceiling mounting
  • Manufactured in UK

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Application

Typical applications for the XL/ST decorative slimline circular emergency bulkhead light with self-test include installations in shops, corridors, offices, stairwells, board rooms etc.

Technical Data

Technical Data

This is the technical data for the Decorative Slimline Circular Emergency Bulkhead Light With Self-Test - XL/ST.

Product Code
White RL-XL28M/ST
Brass RL-XL28M/BR/ST
Chrome RL-XL28M/CH/ST
Weight 2.70kg
Lamp Type 28W 2D
Power Consumption Maintained: 29W
Battery Type 3.6V 4Ah
Backup Duration 3 Hours
Light Output 185 Lumens
Dimensions (HxDia) 100x425mm

Product Datasheets

The following datasheets are available for this product.

FAQs (1)
Q. Can these units be fitted using surface mounted cabling / trunking?

Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.
