Curved Fire Exit Sign (Fire Exit Box) With Self-Test - ESS/ST

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

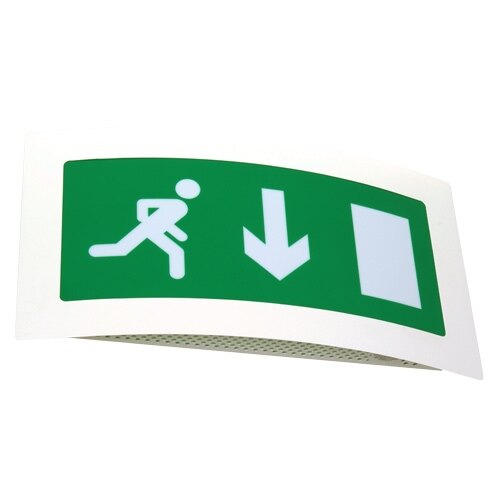

The ESS/ST emergency escape route sign with self-test is a decorative, curved, illuminated luminaire suitable for interior applications. It has down-light and side-light facilities and is an eye-catching alternative to conventional emergency exit signs. The ESS/ST units are suitable for internal or external environments and for  incorporation into emergency lighting systems complying with BS 5266-1:2011.

Please note: Lighting products available on a lead time are made to order and as such cannot be returned.

Typical Applications

Typical applications for the ESS/ST emergency escape route sign with self-test include offices, shops/shopping complexes, show rooms, inside final exits, hotels/public houses etc.

Technical Data

Technical Data

This is the technical data for the Curved Fire Exit Sign (Fire Exit Box) With Self-Test - ESS/ST.

Product Code
Arrow Down, Maintained RL-ESS8M/ST
Arrow Left, Maintained RL-ESS8M/ST/L
Arrow Right, Maintained RL-ESS8M/ST/R
Arrow Down, Non-maintained RL-ESS8NM/ST
Arrow Left, Non-maintained RL-ESS8NM/ST/L
Arrow Right, Non-maintained RL-ESS8NM/ST/R
Arrow Down, Maintained 2.0kg
Arrow Left, Maintained 2.0kg
Arrow Right, Maintained 2.0kg
Arrow Down, Non-maintained 2.0kg
Arrow Left, Non-maintained 2.0kg
Arrow Right, Non-maintained 2.0kg
Lamp Type 8W T5
Power Consumption Non-maintained: 8W
Maintained: 20W
Battery Type 2.4V 4Ah
Backup Duration 3 Hours
Light Output 100 Lumens
Dimensions (HxWxD) 232x374x70mm

Product Datasheets

The following datasheets are available for this product.

FAQs (1)
Q. Can these units be fitted using surface mounted cabling / trunking?

Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.

Looking for more information?

If you have any questions or would like more information about this product you can ask one of our specialists.

Direct Telephone 01507 464187
Direct Email Email Now
