CellAir Mains Powered CO2 Detector & Remote Display Unit

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

The CellAir mains powered carbon dioxide (CO2) detector is designed to detect high concentrations of CO2, providing audible and visual warning if dangerous levels are reached. Suitable for use in breweries, cellars and wineries, the CellAir consists of a main sensor unit for installation inside the area to be protected, and a remote display unit to be positioned outside of the room. The CellAir sensor unit features a relay output that can be used to control a fan to ventilate the affected space.

  • Mains powered carbon dioxide (CO2) detector

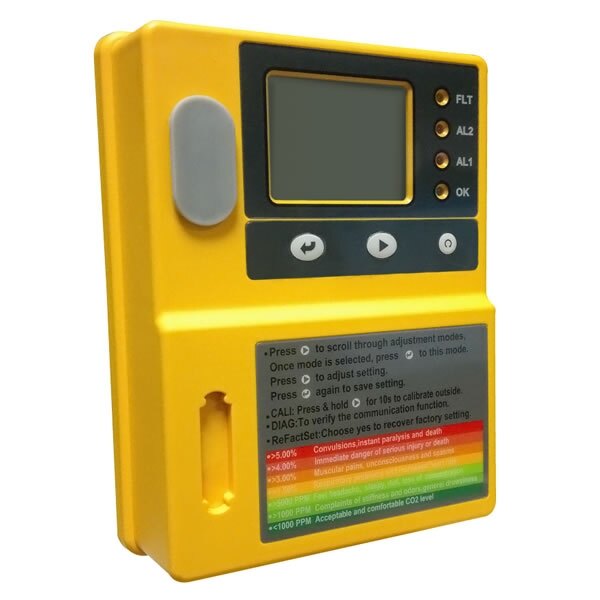

  • Main sensor unit (plug in with 1.5m cable) for the protected area
  • Remote display unit with 8m communication cable
  • Provides audible and visual warning if the CO2 concentration reaches a pre-set level
  • Alarm activation levels:
    • Alarm 1: 1.5%
    • Alarm 2: 3.0%
  • Measurement range: 0 to 50,000ppm
  • Large LCD display shows ambient CO2 concentration and temperature
  • Built-in relay output can be connected to a fan to ventilate the area
  • IP54 waterproof rated
  • Calibration recommended every 2 years
  • Ideal for use in breweries, cellars, wineries and CO2 storage areas

Please note: due to the nature of the sensor this unit is made to order and cannot be returned.

Technical Data

Technical Data

This is the technical data for the CellAir Mains Powered CO2 Detector & Remote Display Unit.

Product Code DUCELLAIR
Weight 1.00kg
Dimensions (HxWxD) 168x125x47mm
Measurement Range 0 to 50,000ppm
Operating Temperature 0 °C to +40 °C
Storage Temperature -20 °C to +60 °C
Humidity Range 0 to 95% RH
Power Supply AC Adapter: 110/220 VAC
AC Input: 100 - 240 VAC, 50/60Hz
AC Output: 6 VDC, 1.8W
Relay Output: 30 VDC or 250 VAC
Kit Contents 1 x Sensor Unit
1 x Remote Display Unit
1 x Network Cable Connector
1 x 8m Communication Cable
Panel holders, fixings
User Manual

Product Datasheets

The following datasheets are available for this product.

Looking for more information?

If you have any questions or would like more information about this product you can ask one of our specialists.

Direct Telephone 01507 464181
Direct Email Email Now
