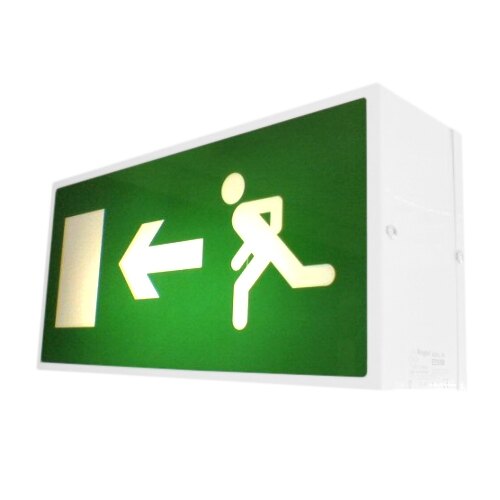

Double-Sided Emergency Fire Exit Sign (Fire Exit Box) Slave Unit - EDS/SL

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview
The EDS/SL emergency fire exit sign slave unit is a double-sided interior emergency escape route sign. Slave units are powered from a central battery store instead of having their own backup battery. The benefits of a system using slave units are; larger batteries are more cost effective, superior battery life and maintenance and testing are performed in a central location. The EDS/SL slave unit is fully tested and passed the 850°C hot-wire test, as defined by ICEL. This unit is suitable for incorporation into an emergency lighting system complying with BS5266-1:2005 and can be fitted with legends complying with the Health and Safety signs directive of 1996.
  • Slave unit
  • IP20 rating (Interior use)
  • Light output: 270 Lumens
  • Down-light facility
  • Available in three versions:
    • 24V AC/DC
    • 50V AC/DC
    • 110V AC/DC
  • Hot-wire tested as defined by ICEL
  • Ceiling mounted
  • Double sided
  • Complete with lamp
  • Complies with the requirements of EN60598-2-22
  • Suitable for incorporation in an emergency lighting system complying with BS5266: 2005
  • 3 Year Warranty
Please Note: Delivery on these units will be 1-5 working days from date of order

Typical Applications

Typical applications for the EDS/SL slave units include student accommodation, shops and shopping complexes, offices and factories, hotels, public houses etc.

Technical Data

Technical Data

This is the technical data for the Double-Sided Emergency Fire Exit Sign (Fire Exit Box) Slave Unit - EDS/SL.

Product Code
Arrow Down, 24V AC/DC RL-EDS8/SL/24
Arrow Left, 24V AC/DC RL-EDS8/SL/24/L
Arrow Right, 24V AC/DC RL-EDS8/SL/24/R
Arrow Down, 50V AC/DC RL-EDS8/SL/50
Arrow Left, 50V AC/DC RL-EDS8/SL/50/L
Arrow Right, 50V AC/DC RL-EDS8/SL/50/R
Arrow Down, 110V AC/DC RL-EDS8/SL/110
Arrow Left, 110V AC/DC RL-EDS8/SL/110/L
Arrow Right, 110V AC/DC RL-EDS8/SL/110/R
Arrow Down, 24V AC/DC 1.75kg
Arrow Left, 24V AC/DC 1.75kg
Arrow Right, 24V AC/DC kg
Arrow Down, 50V AC/DC kg
Arrow Left, 50V AC/DC kg
Arrow Right, 50V AC/DC 1.75kg
Arrow Down, 110V AC/DC 1.75kg
Arrow Left, 110V AC/DC 1.75kg
Arrow Right, 110V AC/DC 1.75kg
Lamp Type 8W T5
Power Consumption 7 - 20V
Light Output 270 Lumens
Dimensions (HxWxD) 380x190x115mm
