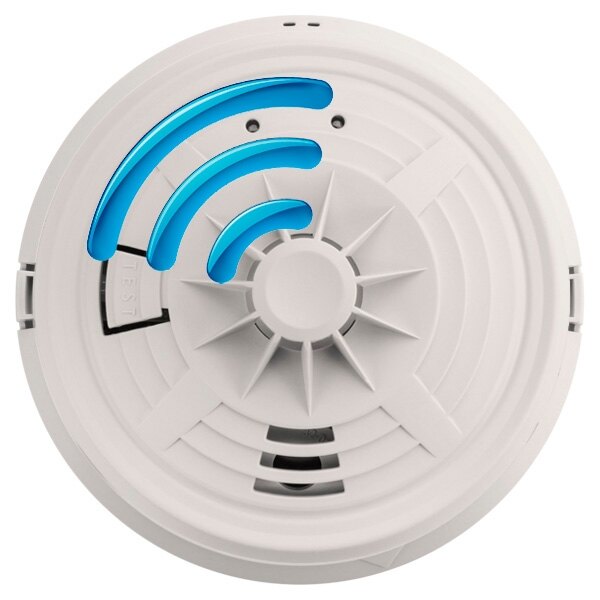

Fitted with a sealed lithium back-up battery, the BRK 790RF is a mains powered radio-interlinked heat alarm designed for kitchen areas and garages. The radio-frequency base plate supplied with the heat alarm enables the unit to wirelessly interlink with multiple smoke and heat alarms within the same system, providing the earliest possible warning of fire. If one alarm is activated it will send a wireless signal to all other interlinked alarms, causing them to also sound.
- 230V mains powered with sealed lithium back-up battery (included)
- Kitemarked to BS 5446-2
- Suitable for installations complying with BS 5839-6: 2013 Grade D, E and F
- Consists of a BRK 790MRL heat alarm and a radio-frequency base plate
- Wireless interlinking - requires no cables between units
- Up to 50 RF smoke and heat alarms can be interlinked within a single system
- Suitable for kitchens and garages
- Detects rapid increase in room temperature
- Test button facility
- Radio-frequency range: 150m in free space, 30m in buildings
- 5 year manufacturer's warranty
This is the technical data for the Mains Powered Radio-Interlinked Heat Alarm with Lithium Back-up - BRK 790RF.
|Alternative Product Codes
||BK790RF, 790RF, 790
||Heat Alarm: 68x140mm
RF Base: 30x140mm
||85dB at 3m
||Sealed long life lithium
||+5 °C to +38 °C
||10% to 85%
The following datasheets are available for this product.
Q. What smoke alarm should I use in a bedroom with an en suite bathroom?
A. It is usually recommended to install an optical smoke alarm in a bedroom. This is because optical smoke alarms are slightly quicker at detecting slow smouldering fires than can original from upholstery type materials and over-heated wiring. Also, an optical smoke alarm would be less likely to sound a false alarm than what an ionisation would do if steam/water droplets were present from the bathroom. Detectors should be installed as central to the room as possible; however for your application I would also consider the position of the en suite to make sure that the detector is not in the direct path of the joining door. This is just to try and avoid the chances of a false alarm. No detector is designed for use in bathroom areas.
Q. My ceiling light is on a dimmer switch. Can I still power my radio-interlinked mains smoke alarms from this lighting supply?
A. In modern housing the lighting circuit will travel around your house with the lights being fed from it. Between the circuit and the light will be a switch (or in this case a dimmer) which will control the light. Your mains powered alarms are connected directly to the circuit and have constant power, so are not affected by switches or dimmers.
In older homes that have not had the electrics updated this may not be the case so it is advisable to consult an electrician.
Q. How do I safely dispose of my old smoke alarms?
A. Safelincs is signed up to Valpak's WEEE (Waste Electrical and Electronic Equipment) Distributor Take-Back Scheme (Registration ID: 7370). Private households can therefore drop off their electronic and electrical fire safety waste at their municipal recycling centre when they are purchasing new products from us. To find your nearest recycling centre, please visit www.recycle-more.co.uk.
Q. Can the mains powered smoke alarm range be connected to mains power via the lighting circuit?
A. Yes, hard-wired mains powered alarms can be wired to the unswitched live feed of the nearest frequently used lighting circuit.
Q. If the radio interlinking signal on one unit fails will the units still work as stand alone units.
A. Yes, should the radio interlinking signal fail the units will continue to sound independently should they detect a fire.
Show all FAQs
