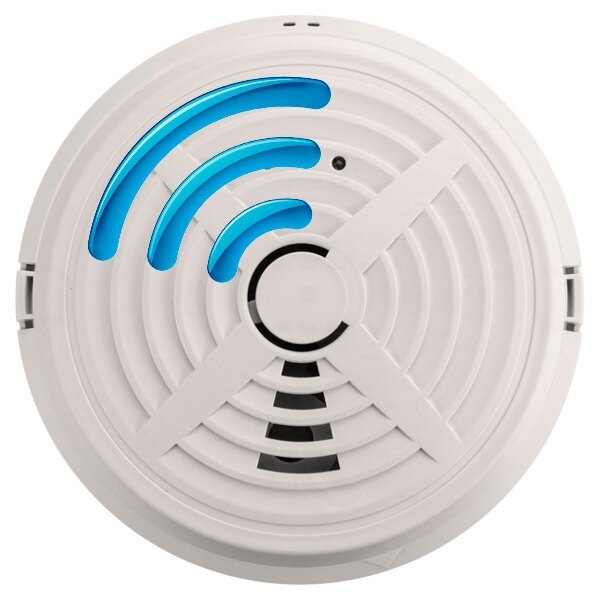

Mains Radio-Interlinked Optical Smoke Alarm with Lithium Back-up - BRK 760RF

Discontinued Product

This product has been discontinued.

Product Overview

Supplied with a radio-frequency base plate, the BRK 760RF mains powered optical smoke alarm can be wirelessly interlinked with up to 50 other RF smoke and heat alarms in a single system. The sealed lithium back-up battery continues to power the alarm during a mains failure and does not need to be replaced for the life of the alarm.

  • 230V mains powered with sealed lithium back-up battery (included)
  • Kitemarked to BS EN 14604
  • Suitable for installations complying with BS 5839-6: 2019 Grade D1
  • Consists of a BRK 760MRL optical smoke alarm and a radio-frequency base plate
  • Requires no cables between units - wireless interlinking
  • Maximum of 50 smoke and heat alarms can be interlinked in a single system
  • Suitable for hallways, bedrooms and living rooms
  • Quick to detect slow smouldering fires
  • Test and hush button facility
  • Radio-frequency range: 150m in free space, 30m in buildings
  • 5 year manufacturer's warranty
Technical Data
Product Code BK760RF
Alternative Product Codes BK760RF, 760RF, 760
Brand BRK
Back-Up Battery

Self-charging Lithium Battery

Dimensions (HxDia)

Optical Smoke Alarm: 53x140mm

RF Base: 30x140mm

Operating Temperature

+5°C to +38°C

Relative Humidity

10% to 85%

Sound Output

85dB

Warranty

5 Years

Weight 0.51kg
Product Datasheets
FAQs (5)
Q. Do you need an electrician to connect mains powered smoke alarms?
A.

It is necessary that an electrician installs mains powered smoke alarms.

Q. What sort of smoke alarm system would I need to install for a HMO?
A.

BS 5839-6 recommends that one or two storey HMOs with an individual floor area of no more than 200sqm (not the total of both floors) should have a Grade D smoke alarm system installed. Grade D refers to mains powered smoke alarms with a back up battery power supply. The alarms can be interlinked either by wire or by radio signal and the system does not require a separate fire alarm panel. For HMOs of 3 storey or higher, a Grade A panel system would need to be installed. This can cover the whole of the building, or can be used just for the communal areas with a separate Grade D system installed for the individual dwellings. For both applications, the level of cover should be a minimum of LD3 (in all escape routes) but this may change according to the fire risk assessment.

Q. If a false alarm goes off can pressing the hush button on any of the interlinking alarms stop all the units beeping?
A.

No, to stop the alarms from sounding the hush button on the unit that started the process needs to be pushed. Pressing any other unit will just silence that one unit. The unit can be identified by the rapidly flashing red LED.

Q. If the radio interlinking signal on one unit fails will the units still work as stand alone units.
A.

Yes, should the radio interlinking signal fail the units will continue to sound independently should they detect a fire.

Q. My ceiling light is on a dimmer switch. Can I still power my radio-interlinked mains smoke alarms from this lighting supply?
A.

In modern housing the lighting circuit will travel around your house with the lights being fed from it. Between the circuit and the light will be a switch (or in this case a dimmer) which will control the light. Your mains powered alarms are connected directly to the circuit and have constant power, so are not affected by switches or dimmers. In older homes that have not had the electrics updated this may not be the case so it is advisable to consult an electrician.
