BRK Mains Powered Smoke Alarms with Alkaline Back-up Battery 600 Series
Product Overview
Interlink
Technical Data
FAQs (1)
Show All
The BRK 600MBX series of mains powered alarms are available with ionisation, optical or heat sensor and feature a 9V alkaline back-up battery. Kitemarked to the latest British Standards, these BRK mains powered alarms are suitable for installations complying to BS 5839-6 Grade D and can be hard wire interlinked to form a smoke alarm system. Once interlinked, if one alarm detects a fire, it sounds and triggers all other interlinked alarms to also sound.
- 230V mains powered with 9V alkaline back-up battery (included)
- Kitemarked to BS EN 14604 (smoke alarms) and BS 5446-2 (heat alarm)
- Includes slimline twist-fit base suitable for flush mounting
- Suitable for installations complying to BS 5839-6: 2013 Grade D, E and F

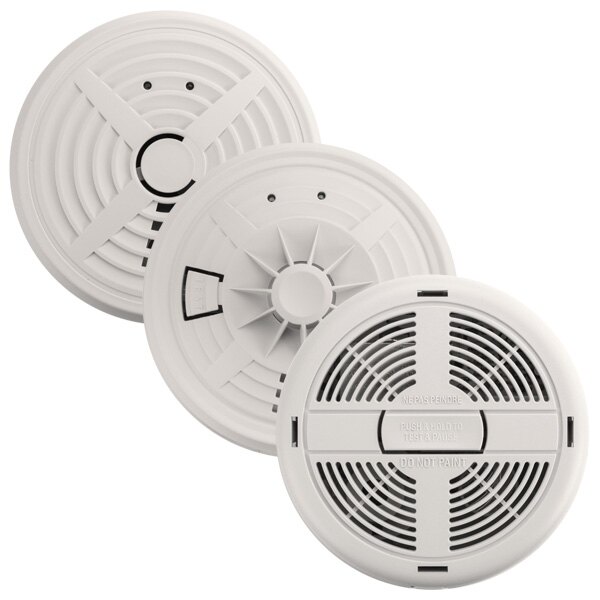

- Available in three versions:
- Ionisation smoke alarm (670MBX) responds quickly to fast flaming fires - used in landing areas
- Optical smoke alarm (660MBX) responds quickly to smouldering fires - used in bedrooms, living rooms and hallways
- Heat alarm (690MBX) responds to rate of increase in room temperature - used in kitchens and garages
- 5 year manufacturer's warranty
- Test and Hush Button Feature (Heat alarms only have Test functionality)
- Up to 12 alarms can be hard wire interlinked within a single system
- Suitable replacement for DETA alarms:
- DETA 1151 & 1111: BRK 670MBX Ionisation Alarm
- DETA 1153 & 1113: BRK 660MBX Thermally Enhanced Optical Alarm
- DETA 1155 & 1115: BRK 690MBX Heat Alarm
- Alarms sold separately
Please note: for surface-mounted wiring such as trunking the base plate included with these alarms is not suitable; please see the BRK 700 series with push-fit base instead.
The table below shows all the units that can interlink with the BRK mains powered smoke and heat alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| 670MBX | Ionisation Smoke Alarm | Hard wire interlink |
| 660MBX | Optical Smoke Alarm | Hard wire interlink |
| 690MBX | Heat Alarm | Hard wire interlink |
Technical Data
This is the technical data for the BRK Mains Powered Smoke Alarms with Alkaline Back-up Battery 600 Series.
| Product Code |
|
||||||
|---|---|---|---|---|---|---|---|
| Weight |
|
||||||
| Dimensions (HxDia) | 670MBX Ionisation Smoke Alarm: 38x133mm 660MBX Optical Smoke Alarm: 44x140mm 690MBX Heat Alarm: 58x140mm |
||||||
| Sound Output | 85dB at 3m | ||||||
| Back-Up Battery | 9V alkaline | ||||||
| Operating Temperature | +5 °C to +38 °C | ||||||
| Relative Humidity | 10% to 85% | ||||||
| Suitable to Replace | 670MBX: DETA 1151 660MBX: DETA 1153 690MBX: DETA 1155 |
Product Datasheets
The following datasheets are available for this product.
Q. Hi, will a BRK 660MBX work in a system with 650MBX?
A. Yes, the 650MBX is compatible with the rest of the 600 series including the 660MBX.
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
|
670MBX - Ionisation Smoke Alarm Product Code: BK670MBX |
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
|
Price:
£15.59 inc VAT £12.99 ex VAT |
|
660MBX - Optical Smoke Alarm Product Code: BK660MBX |
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
|
Price:
£22.79 inc VAT £18.99 ex VAT |
|
690MBX - Heat Alarm Product Code: BK690MBX |
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
|
Price:
£25.19 inc VAT £20.99 ex VAT |
