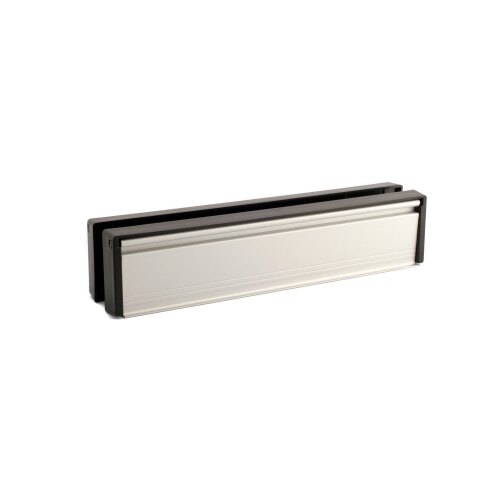

Astroflame Intumescent Letter Plates - 60 Minutes Fire Rated

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview
Intumescent letter plates are suitable for installation in fire rated doors. The FD60 rating means that a 60 minute fire door is not compromised when fitted with one of these letter plates. In the event of a fire, the intumescent lining of the letter plate swells to seal the letter opening and prevent fire from spreading.

  • Quick and easy installation, suitable for DIY
  • Adjustable telescopic sleeve set
  • Suitable for door thickness's of 40-80mm
  • 60 minute fire protection (FD60)
  • Available in 2 different finishes
  • Tested and conforming to BS EN 13724:2002
  • External dimensions (HxW): 66x305mm
  • Cut out dimensions (HxW): 42x248mm
Technical Data

Technical Data

This is the technical data for the Astroflame Intumescent Letter Plates - 60 Minutes Fire Rated.

Product Code
Satin Anodised Aluminium AFTLBFXC/60SAA
Mirror Polished Stainless Steel AFTLBFXC/60MPSS
Weight
Satin Anodised Aluminium 1.0kg
Mirror Polished Stainless Steel 1.0kg
Cut Out Dimensions (HxW) 42x248mm
Dimension (HxW) 66x305mm

Looking for more information?

If you have any questions or would like more information about this product you can ask one of our specialists.

Direct Telephone 01507 464185
