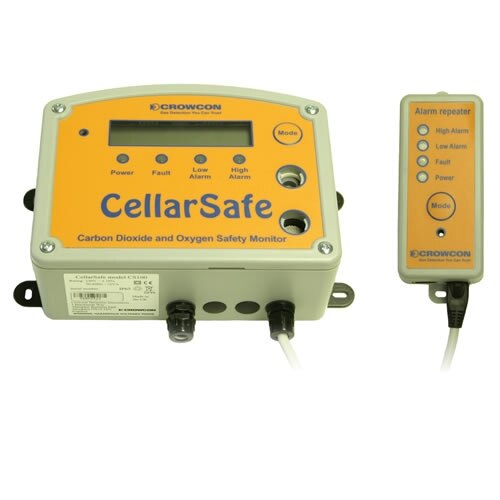

Cellarsafe Mains Powered CO2 and O2 Detector
The Crowcon Cellarsafe is designed for use in breweries, laboratories and cellars, with the ability to detect carbon dioxide and / or oxygen. Reacting to the manufacturers pre-set levels, the Cellarsafe unit will pre-alarm if the unit detects the lower threshold of either gas (1.5% for CO2 and 19.5% for O2) and will fully alarm should the gas level reach the higher threshold (3% for CO2 and 18% for O2).
When monitoring the amount of oxygen in the unit's environment, the Cellarsafe is designed to warn persons that levels of oxygen have fallen to dangerous levels in terms of breathing, and reacting similarly if CO2 rises to potentially dangerous high levels.
- Clear, backlit display
- 82dB audio alarm
- Mains powered (Plug in) unit supplied with 2m cable
- Additional remote repeater unit supplied with 9m cable
- Minimum 5 year sensor life
- Wide operational temperature range
- 1 year warranty
- Manufactured in the UK by Crowcon
- IP65 protected
- Complies to German TRSK-313, TRSK-400 and TRSK-403 standards
- Calibration recommended every 6 months
- Available with three sensor types
- CO2 only (carbon dioxide)
- O2 only (oxygen)
- CO2 and O2 sensor (carbon dioxide and oxygen)
- Units are always manufactured to order to prolong the units life: delivery 7 to 10 days
The Cellarsafe CO2 and O2 detectors are manufactured upon placement of an order and a lead time of 2-3 weeks may be applicable from the date of order. All units are manufactured to order, to give the maximum working life before calibration is required.
This is the technical data for the Cellarsafe Mains Powered CO2 and O2 Detector.
| Dimensions (HxWxD) | Remote Repeater Unit: 143x56x41mm Cellarsafe Unit: 210x150x75mm |
|---|---|
| Operating Voltage | Cellarsafe Unit: 230V |
| Operating Temperature | Remote Repeater Unit: 0°C to 50 °C Cellarsafe Unit: 0°C to 50°C |
| IP Rating | Cellarsafe Unit: IP 65 Remote Repeater Unit: IP54 |
| Humidity Range | Cellarsafe Unit: 0 to 99% Relative Humidity |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
CO2 sensor only Product Code: CCCELLARSAFE |
In Stock
|
£221.66 ex VAT (£265.99 inc VAT) |
1.3kg |
|
O2 sensor only Product Code: CC99F38018 |
In Stock
|
£365.83 ex VAT (£438.99 inc VAT) |
1.3kg |
|
CO2 and O2 sensor Product Code: CC99F38015 |
In Stock
|
£407.49 ex VAT (£488.99 inc VAT) |
1.3kg |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
