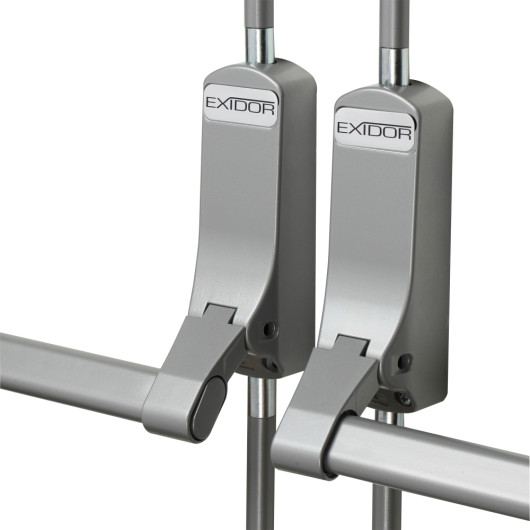

Exidor 284 Double Door Panic Bar Set with 2 Bolts
Panic bars allow fire exit doors to be opened rapidly in an emergency and are a requirement on public access fire exits. The Exidor 284 is designed for use on non-rebated door sets and is provided with two bolts - one for each leaf of the door. This set is fire rated for use on timber and steel doors, and is supplied non-handed. Exidor products undergo rigorous third party testing, fully conform to and are CE marked and Certifire accredited.
- Double door panic bar with two vertical bolts
- Non-handed – suitable for left & right-handed doors
- Supplied with fixings for wooden doors as standard – steel door fixings available separately
- Suitable for use in public or private buildings
- Manufactured in UK
- Available with the following optional outside access device options:
- Exidor 302 Outside Access Device With Knob
- Exidor 322 Outside Access Device With Lever
- Also available with an optional
- 10 year manufacturer's warranty
- Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
- Built in anti-thrust mechanism enhances security
- Suitable for double doors. Rebated option available here
- For use on outward opening final exit doors
- Suitable for use on fire and smoke door assemblies as tested in accordance with
- Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
- Designed for doors weighing no more than 200kg
- CE marked and Certifire accredited
Customer Reviews (6)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
L F
Published on
8th March 2024
Reviewed by
S A
Published on
23rd July 2023
Good products, great service.
Many thanks to all at Safelincs, highly recommended.
Reviewed by
J M
Published on
14th July 2023
Good value and excellent service
Reviewed by
C V
Published on
6th September 2021
Quality
Good quality, easy to fit and does what it says...plus safe clinics were great
Reviewed by
Anonymous
Published on
26th March 2018
Good product
Technical Data
| Product Code | EXD284 |
|---|---|
| Brand | Exidor |
| Category | Class 3 (High Frequency Of Use) |
| Colour | Silver |
| Compatible Products | Exidor 302 Outside Access Device With Knob |
| Exidor 322 Outside Access Device With Lever | |
| Approvals & Markings | CE Marked |
| Compliance | BS EN 1125: 2008 |
| BS EN 179 | |
| Certifire - CF389 | |
| Device Type | Push Bar |
| Door Type | Final Exit Doors |
| Double Door | |
| Non-Rebated Double Doors | |
| Environmental Suitability | Offices |
| Public Buildings | |
| Public Settings | |
| Finish | Silver |
| Fixing Options | Steel Door Fixings Available Separately |
| Wooden Door Fixings (Included) | |
| Handing | Non-Handed (Site Reversible) |
| Locking Points | 4 |
| Manufactured in the UK | Yes |
| Material | Metal |
| Maximum Door Height | 2440mm |
| Maximum Door Weight | 200kg |
| Maximum Door Width | 1220mm |
| Suitability | Steel Doors |
| Timber Doors | |
| Indoor | |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 8.70kg |
| Datasheets |
Outside Access Devices
Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the four devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 294 single door panic bar, as well as all other Exidor 200 series products.
Exidor 302 Outside Access Device With Knob
This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 322 Outside Access Device With Lever
This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.
Exidor 326 Slimline Outside Access Device With Knob
Similarly to the 302, this device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
Exidor 325 Slimline Outside Access Device With Lever
Similarly to the 322, this device features a lever style handle and is supplied with a euro profile cylinder and three keys as standard, but instead features a slimline design for an improved aesthetic appearance.
