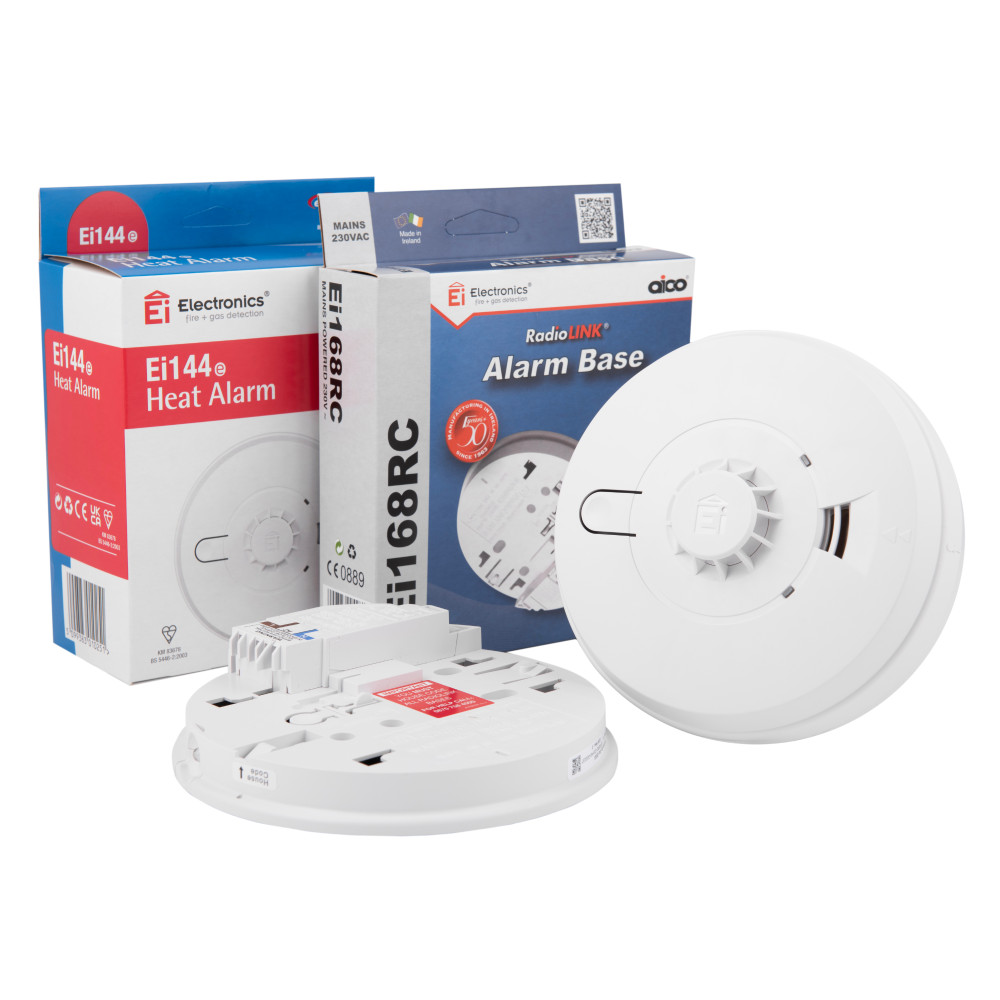

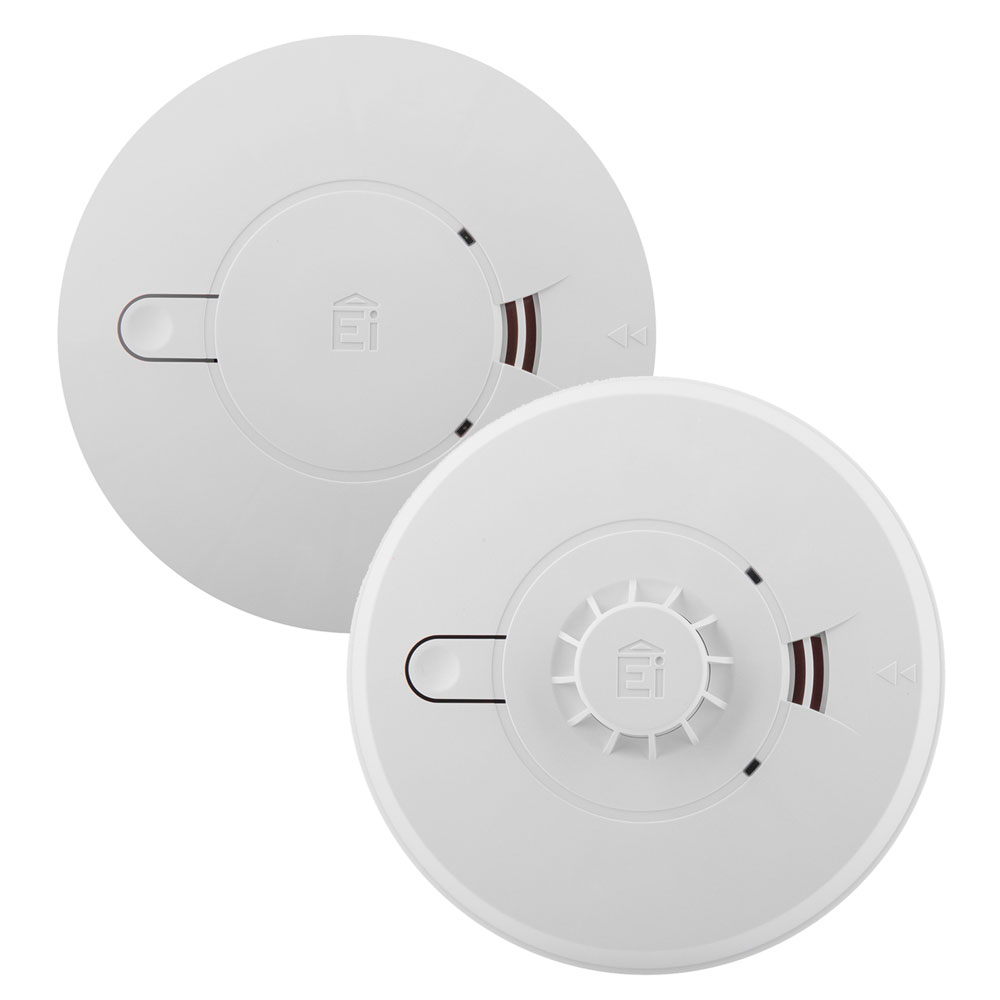

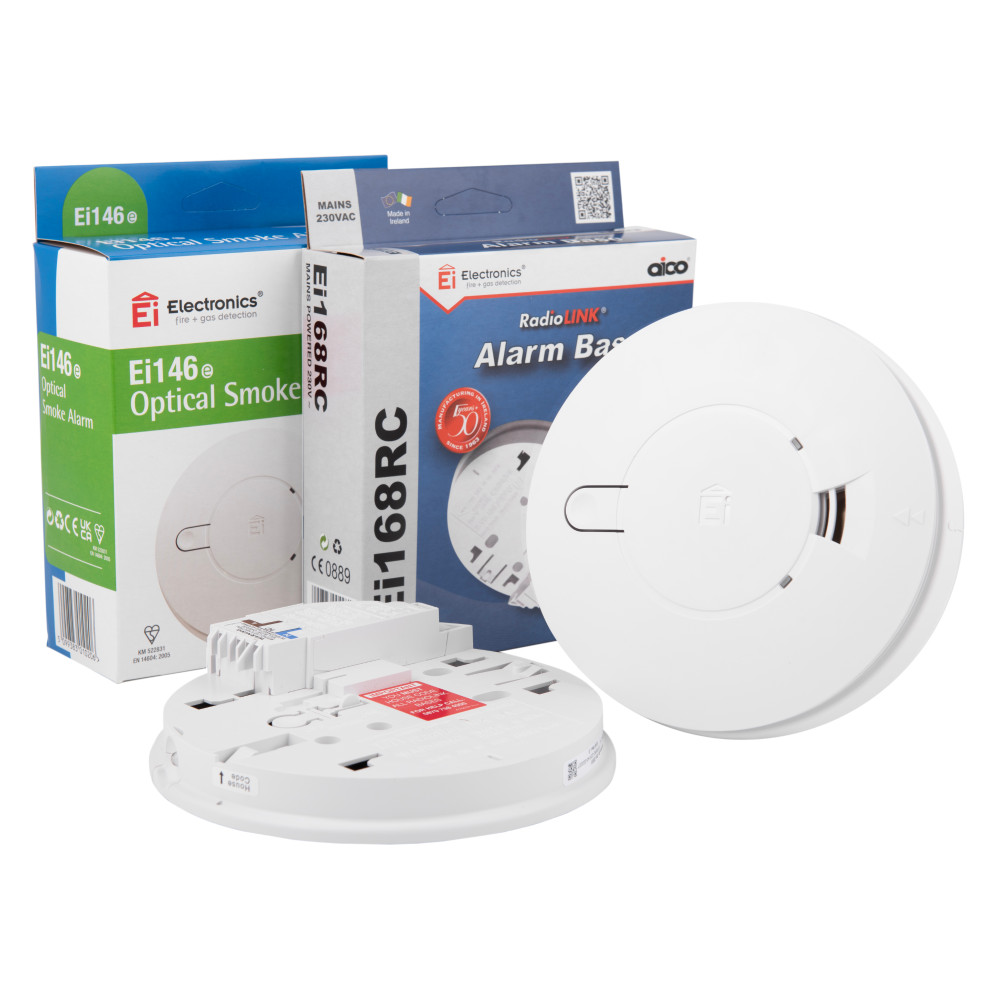

Requiring no cables between the units, the Ei140e series of smoke and heat alarms are supplied with an Ei168RC radio-interlink baseplate as standard. Each alarm requires a mains power feed that can be obtained from the nearest lighting circuit. Once installed and house coded, up to 12 RadioLINK and RadioLINK+ alarms can be interlinked wirelessly by radio signal. With a radio frequency range of up to 30m indoors, the Ei140e smoke and heat alarms are ideal for a range of properties where the mess and cost of interlinking cables would not be suitable.
Please Note: These units use the radio-interlink frequency 868.499MHz. This bandwidth is restricted for safety products, therefore the chances of interference should be limited.
M C
24th April 2024
D B
easy to install and works
too many lights for bedroom
9th September 2022
Anonymous
Great product
The radio linked units enabled me to extend my smoke alarm coverage vary easily .
21st October 2019
| Product Code | EI168RC |
|---|---|
| Brand | Ei Electronics |
| Manufacturer's Part Number | Ei168RC |
| Back-Up Battery Type | Rechargeable Lithium |
| Battery Life | 120 Months |
| Colour | White |
| Compatible Products | Ei140 Series |
| Ei160 Series | |
| Equipment Type | Base |
| Material | ABS Plastic |
| Maximum Number of Linked Devices | 12 Devices |
| Power Type | Mains Powered (230V) |
| Radio Frequency Range | 30 Metres |
| Recyclable | Not Recyclable |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 168g |
| Product Code | EI146E |
|---|---|
| Brand | Ei Electronics |
| Manufacturer's Part Number | EI146E |
| Approvals & Markings | CE Marked |
| Back-Up Battery Type | Alkaline |
| Battery Type | 9V Battery |
| British Standard Grade | Grade D2: Mains Powered (replaceable backup) |
| Colour | White |
| Compliance | BS 5839-6 |
| BS EN 14604:2005 | |
| Connection | Wired |
| Display | LED Indicators |
| Fixing Options | Screws (included) |
| Installation Position | Ceiling |
| Local Legislation | Scottish Legislation (2022) |
| Welsh Legislation (2022) | |
| Material | Plastic |
| Maximum Number of Linked Devices | 12 Devices |
| Operating Temperature | -10°C To +40°C |
| Positioning | Bedrooms |
| Hallways | |
| Living Rooms | |
| Power Type | Mains Powered (230V) |
| Product Range | Aico Ei140e Series |
| Recyclable | Yes - Valpak's WEEE Distributor Take-back Scheme |
| Relative Humidity | 15% To 95% |
| Sensor Type | Optical |
| Sound Level | 85dB |
| Suitability | Home |
| Warning Type | Audible - Alarm Sounder |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 350g |
| Product Code | Description | Interlink Type |
| Ei140 Series | Mains Powered with Alkaline Back Up Battery | |
| Ei144e | Heat Alarm | Hardwire Interlink |
| Ei146e | Smoke Alarm | Hardwire Interlink |
| Ei144eRF | Heat Alarm | Hardwire / Radio Interlink |
| Ei146eRF | Smoke Alarm | Hardwire / Radio Interlink |
| Ei160 Series | Mains Powered with Lithium Back Up Battery | |
| Ei164 | Heat Alarm | Hardwire Interlink |
| Ei166 | Smoke Alarm | Hardwire Interlink |
| Ei164RF | Heat Alarm | Hardwire / Radio Interlink |
| Ei166RF | Smoke Alarm | Hardwire / Radio Interlink |
| Ei3000 Series | Mains Powered with Sealed Lithium Back Up Battery | |
| Ei3014 | Heat Alarm | Hardwire Interlink |
| Ei3016 | Smoke Alarm | Hardwire Interlink |
| Ei3018 | Carbon Monoxide Alarm | Hardwire Interlink |
| Ei3024 | Smoke & Heat Alarm | Hardwire Interlink |
| Ei3028 | Heat & Carbon Monoxide Alarm | Hardwire Interlink |
| Ei3014RF | Heat Alarm | Hardwire / Radio Interlink |
| Ei3016RF | Smoke Alarm | Hardwire / Radio Interlink |
| Ei3018RF | Carbon Monoxide Alarm | Hardwire / Radio Interlink |
| Ei3024RF | Smoke & Heat Alarm | Hardwire / Radio Interlink |
| Ei3028RF | Heat & Carbon Monoxide Alarm | Hardwire / Radio Interlink |
| Ei600 Series | 10 Year Sealed Lithium Battery | |
| Ei650RF | Smoke Alarm | Radio Interlink |
| Ei630iRF | Heat Alarm | Radio Interlink |
Easy to install and set up
Replacement for much inferior Fireangel product
