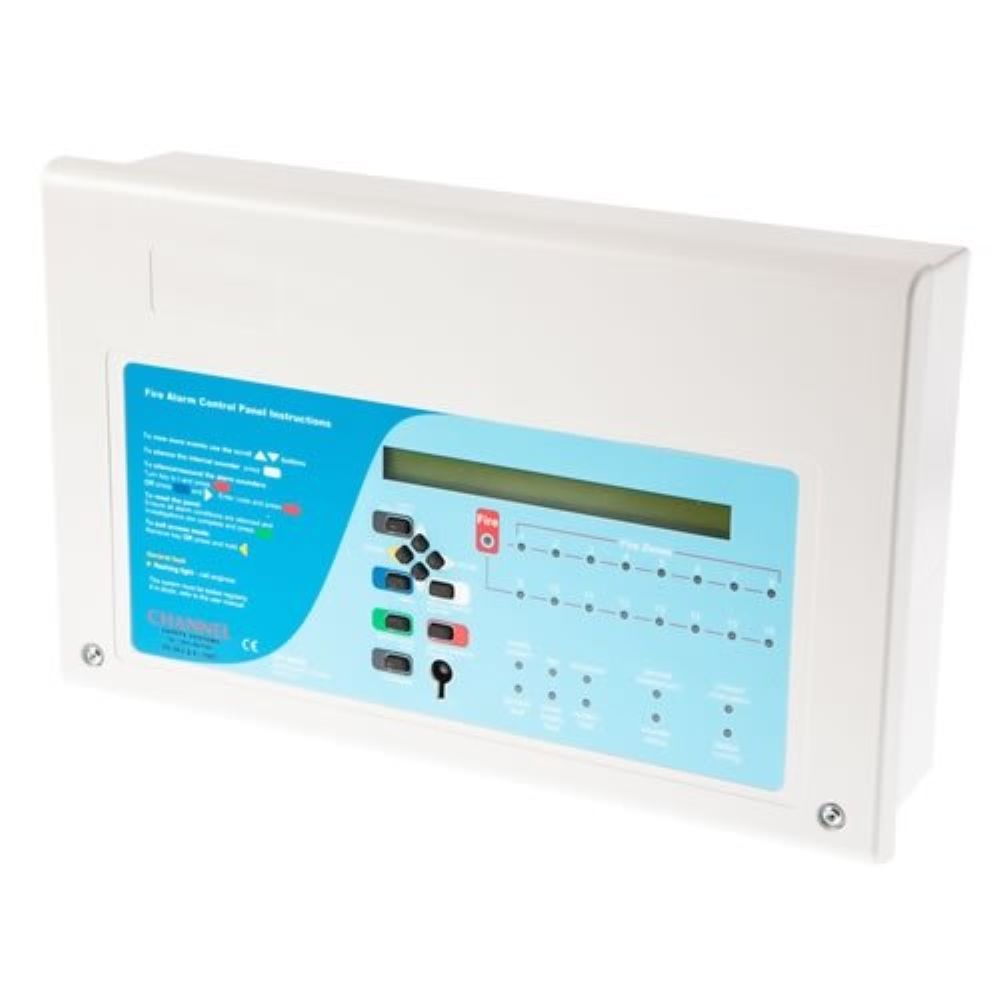

C-Tec XFP Networkable Fire Alarm Repeater Panel - 32 Zones
Up to 8 XFP networkable 32 zone repeaters can be connected to a single main addressable fire alarm panel. The connection is achieved using network communication cards. The XFP networkable 32 zone repeater panel is supplied with a communication card as standard, and a separate 32 zone card is needed for the main addressable fire alarm panel.
- Acts as an additional central control unit for an addressable system
- Up to 8 repeaters can be connected to one XFP main 32 zone panel
- Supplied with a network communication card as standard
- Offers all the functions and controls of a main XFP panel
- CE marked
- Includes a fault relay
- Suitable for surface or semi-flush mounting
- Requires its own dedicated mains power and battery back-up supply
- Maximum cable length per repeater network: 500m
- Please note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.
Book Your Fire Alarm Testing & Servicing
Our comprehensive fire alarm maintenance package includes bi-annual testing and servicing for your fire alarm system in accordance with BS 5839-1.
Customer Reviews (0)
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review form. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | FLXFPR32 |
|---|---|
| Brand | C-Tec |
| Manufacturer's Part Number | XFP510-32 |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Colour | Blue |
| Grey | |
| Compatible Products | C-Tec XFP Addressable Fire Alarm Panels |
| Display | LCD Display |
| LED Indicators | |
| Environmental Suitability | Indoors |
| Equipment Type | Repeater Panel |
| Fixing Options | Wall Mounted |
| Installation Position | Wall |
| Manufactured in the UK | Yes |
| Material | Metal |
| Number of Repeater Panels | 8 |
| Number of Zones | 32 Zones |
| Operating Temperature | -5°C To +40°C |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Relative Humidity | 0% To 95% |
| Dimensions (Unit) |
|
| Weight | 4.50kg |
