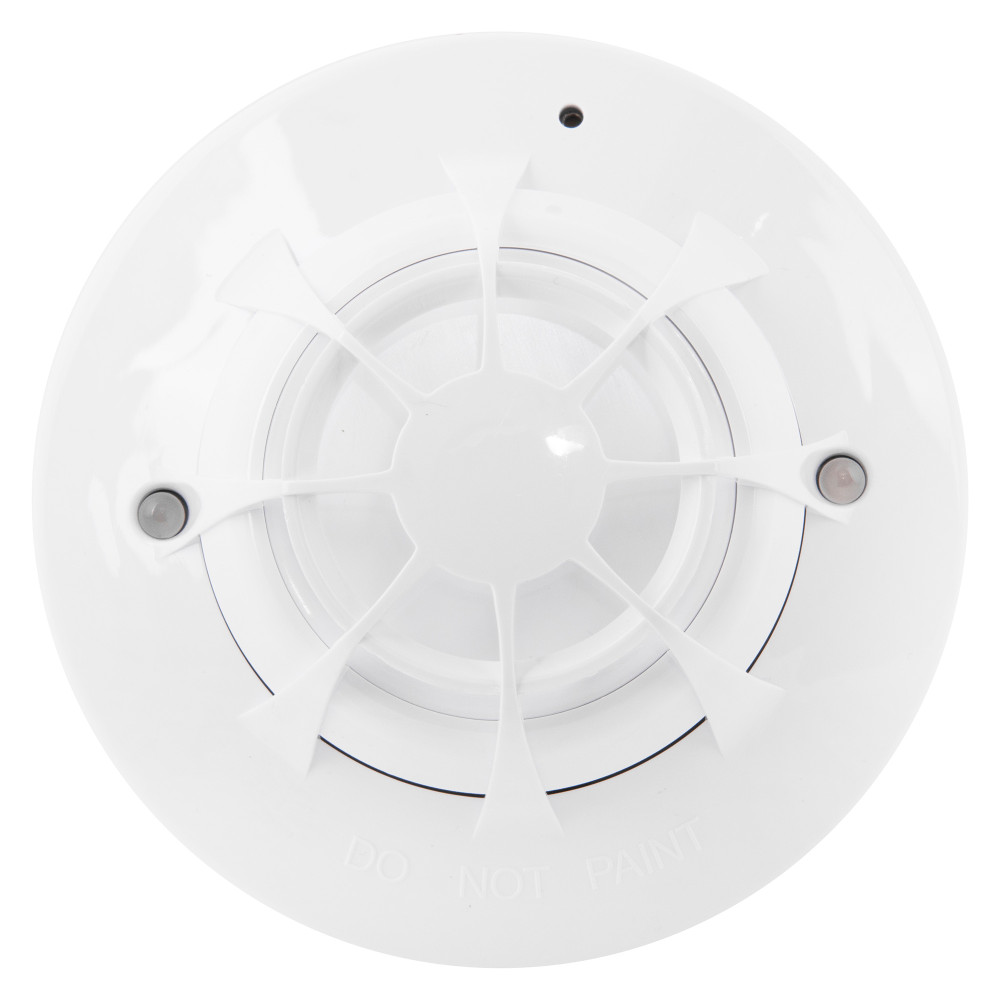

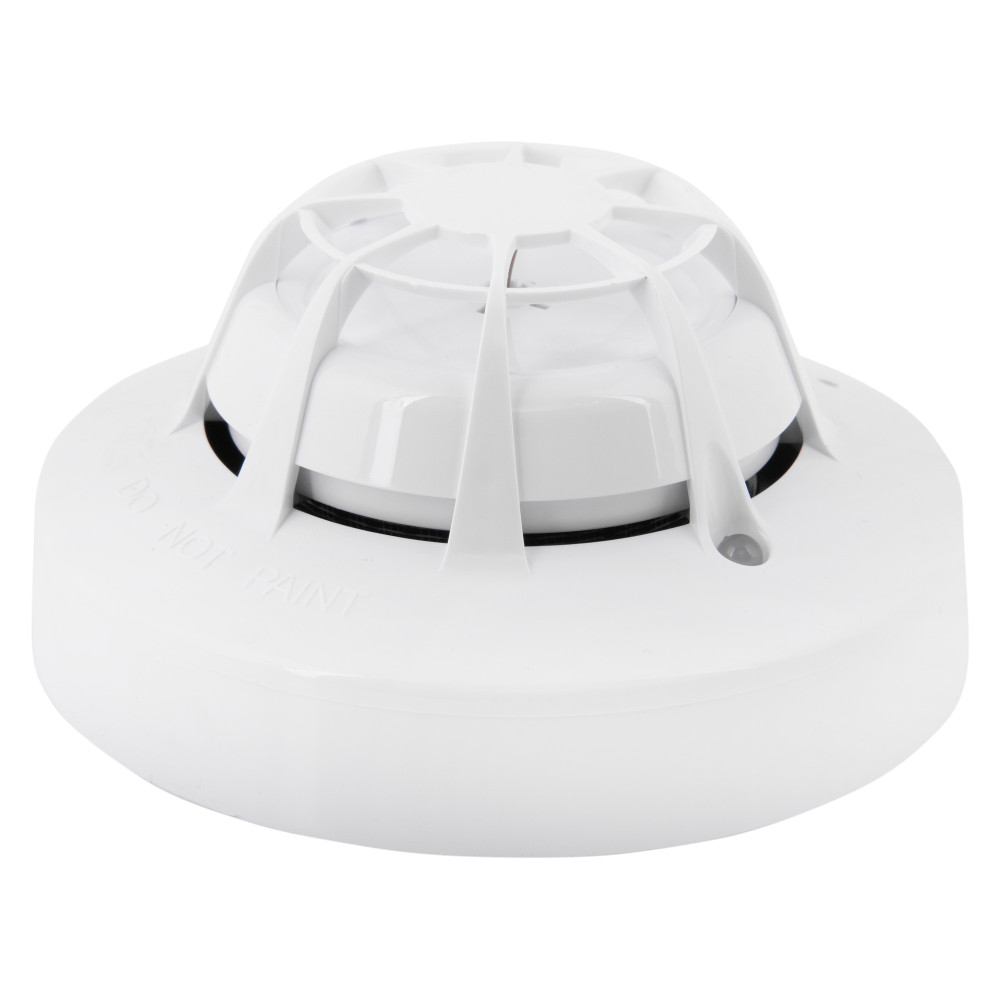

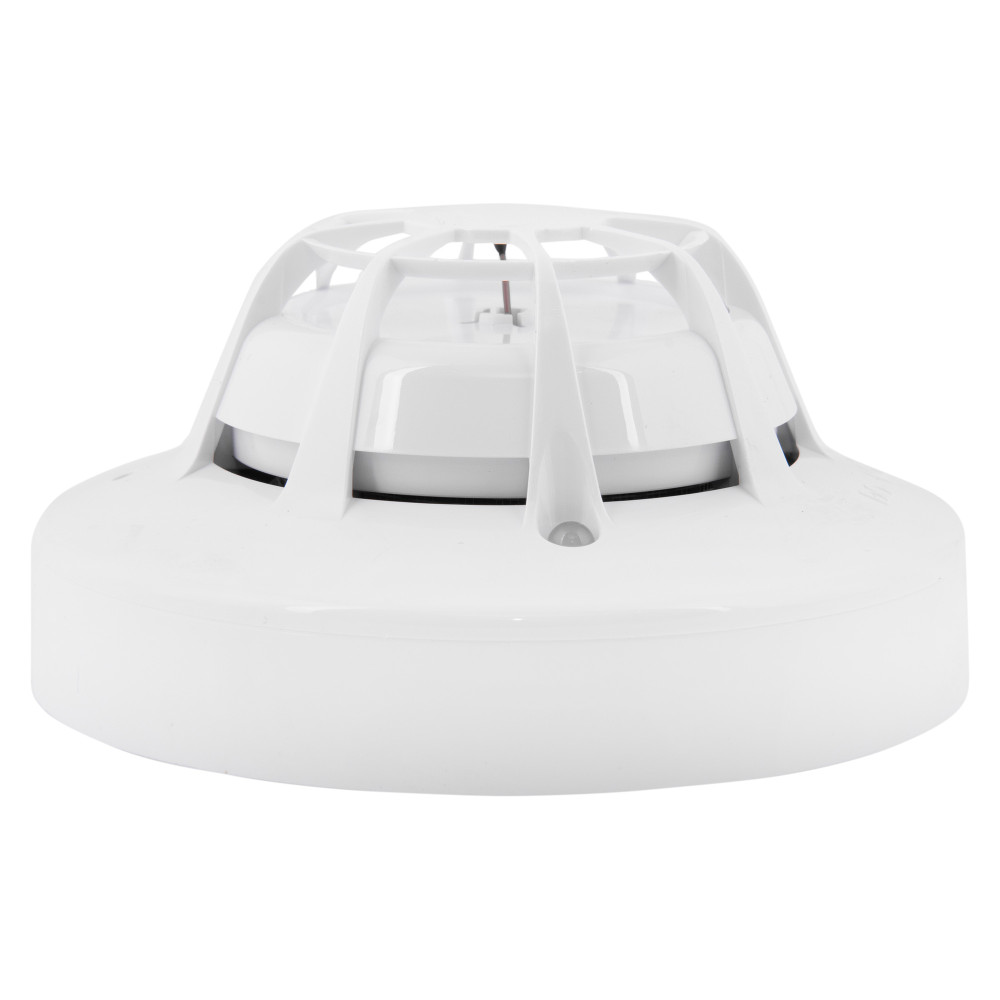

Apollo Discovery Multi-Sensor Detector

Featuring 5 response modes optimised for different environments, the Apollo Discovery multi-sensor detector contains an optical smoke and a thermistor temperature sensor. The response modes relate to the levels of smoke and heat sensitivity and the way in which the responses are combined. The Apollo Discovery multi-sensor detector is suitable for use with Morley DXc, Kentec Syncro AS and XFP fire alarm panels when used in conjunction with a standard, isolating or sounder beacon base.

• Contains an optical smoke sensor and a thermistor temperature sensor
• Uses 5 response modes optimised for different environments
  • Modes 1, 3, & 4 combine smoke detection with rate of rise heat detection
  • Mode 2 uses only smoke detection
  • Mode 5 uses class A1R heat detection but no smoke detection
• Suitable for a wide range of applications
• Also activates during a large sudden change in temperature if sustained for 20 seconds
• White polycarbonate housing
• Features two LED indicators for 360° visibility for alarm condition
• IP44 rated
• LPCB and VdS approved
• CE marked
• Designed for use with Morley DXc, Kentec Syncro AS and XFP alarm panels
• Forms part of an addressable fire alarm system

Please note: The Apollo Discovery detectors require a standard, isolated or sounder beacon base to operate with addressable fire alarm panels
