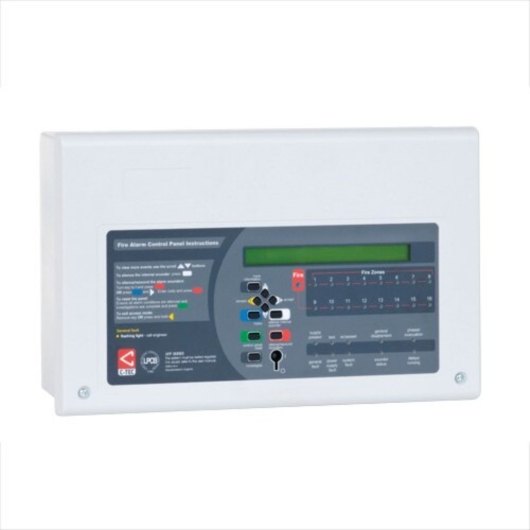

C-Tec XFP Addressable Single Loop Fire Alarm Panel - 16 Zone

Addressable fire alarm panels are able to identify the exact detector or device which has activated the system or if a fault has been found. The XFP addressable single loop fire alarm panel features an LCD display which will indicate the name and location of the detectors in alarm condition. The single loop panel has 16 zones and a maximum number of 126 devices can be installed on the loop. Some large applications may require the facility to have more loops in the system. To achieve this, a maximum of 8 main XFP panels can be linked using communication cards to form a fire alarm network.

• Designed to comply with EN 54 parts 2 & 4
• Single loop addressable fire alarm panel with 16 zones
• The panel can be surface or semi-flush mounted
• Day/night function - engineer can change detector sensitivity
• Records the number of times the panel has been in alarm
• The single loop can hold a maximum of 126 devices
• LCD display - provides detailed information of the system status
• 40 characters available per device to customise to your requirements
• Two programmable conventional sounder circuits
• Three zone dependency functions
• Key switch and key pad access
• Investigation search times can be set before the panel reaches full alarm mode
• 500 event monitoring
• Fault output relay and three programmable relay outputs
• Phased evacuation facility
• Test, maintenance and commissioning functions
• Compatible with Apollo XP95 and Discovery protocol
• Can be connected with up to 8 XFP 16 zone repeaters
• 16 zone panels can be networked using communication cards - a total of 8 main panels per network

Please Note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.
