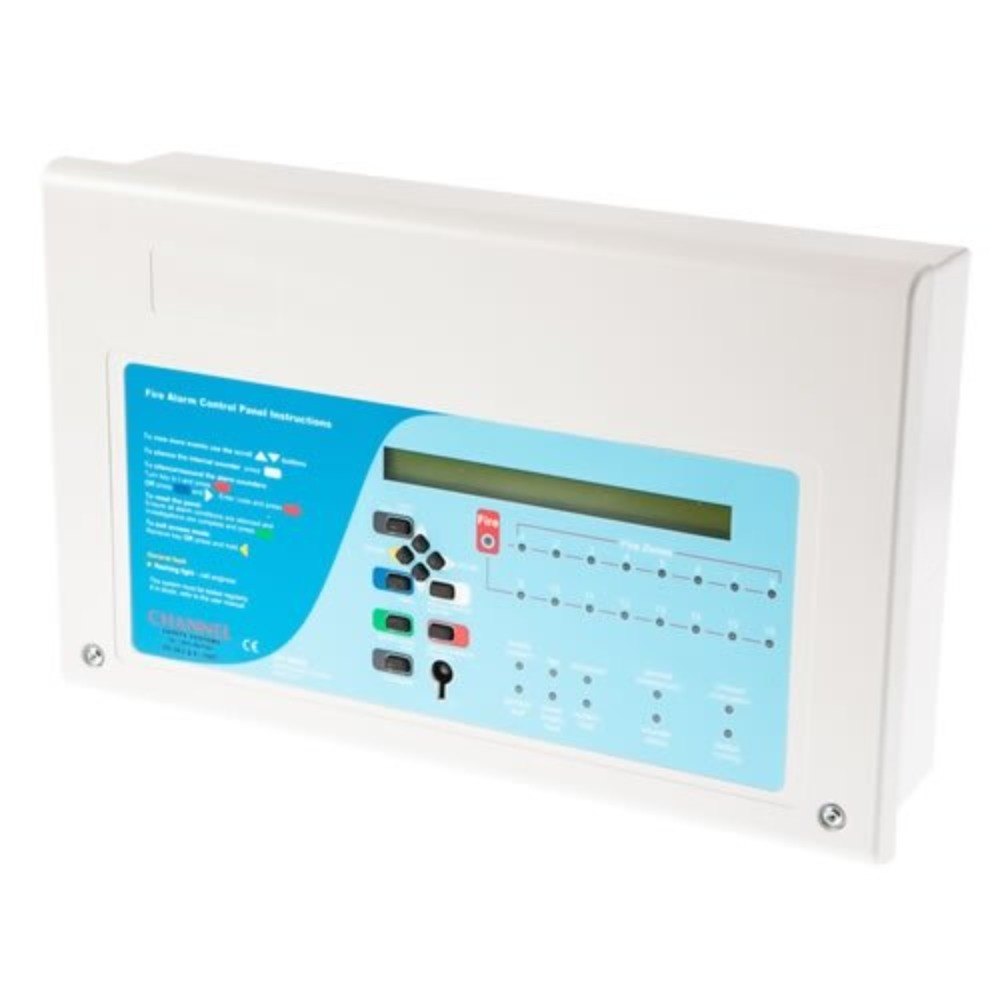

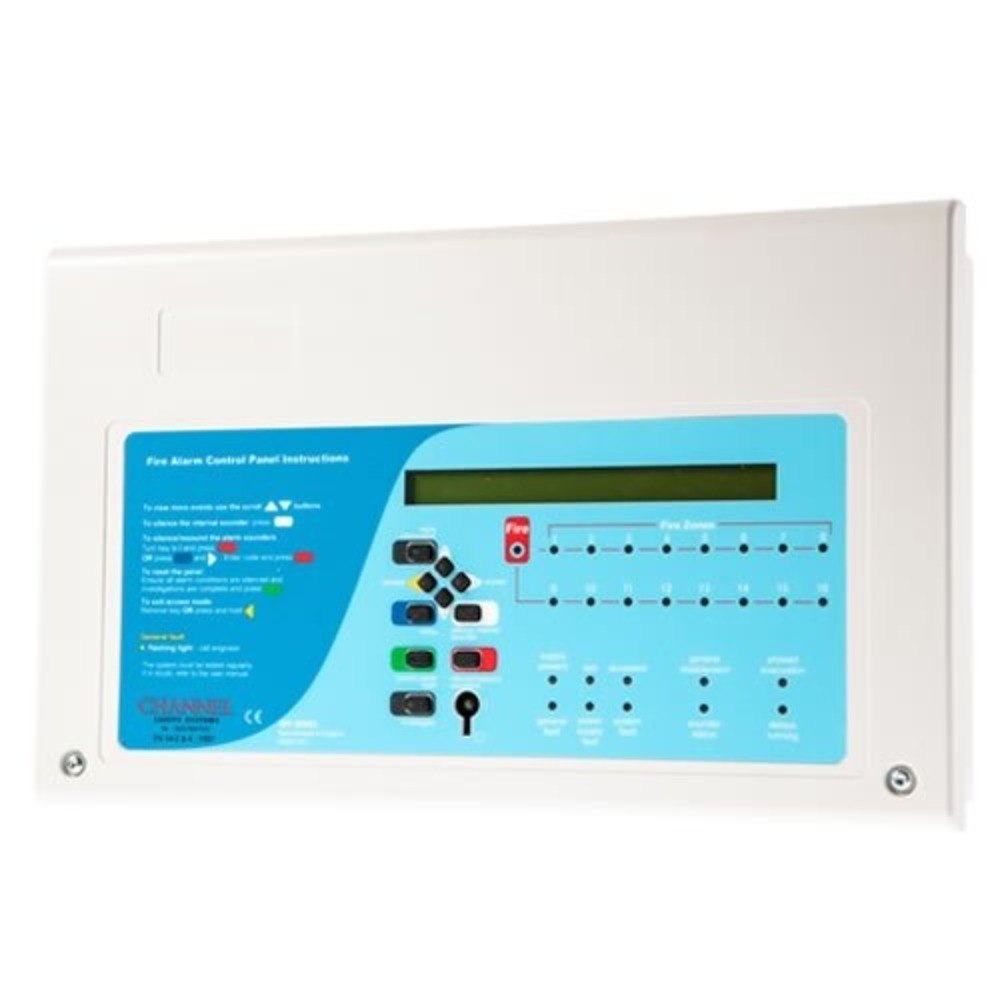

C-Tec XFP Networkable Fire Alarm Repeater Panel - 16 Zones
The XFP 16 zone networkable repeater panel acts as an additional central control unit for an addressable fire alarm system. The repeater panel is fitted with a network communication card as standard and up to 8 repeaters can connect to each main addressable panel.
- Up to 8 repeaters can be connected to one XFP main panel
- Fitted with a network communication card as standard
- Suitable for surface or semi-flush mounting
- CE marked
- Includes a fault relay
- Acts as an additional central control unit for an addressable system
- Provides all the functions and controls of a main XFP panel
- Requires its own dedicated mains power and battery back-up supply
- Maximum cable length per repeater network: 500m
- Please note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.
Book Your Fire Alarm Testing & Servicing
Our comprehensive fire alarm maintenance package includes bi-annual testing and servicing for your fire alarm system in accordance with BS 5839-1.
Customer Reviews (0)
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review form. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | FLXFPR16 |
|---|---|
| Brand | C-Tec |
| Manufacturer's Part Number | XFP510-16 |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Colour | Blue |
| Grey | |
| Compatible Products | C-Tec XFP Addressable Fire Alarm Panels |
| Display | LCD Display |
| LED Indicators | |
| Environmental Suitability | Indoors |
| Equipment Type | Repeater Panel |
| Fixing Options | Surface Mounted / Semi-Flush |
| Installation Position | Wall |
| IP Rating | IP30 |
| Manufactured in the UK | Yes |
| Material | Metal |
| Number of Repeater Panels | 8 |
| Number of Zones | 16 Zones |
| Operating Temperature | -5°C To +40°C |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Relative Humidity | 0% To 95% |
| Dimensions (Unit) |
|
| Weight | 1.80kg |
