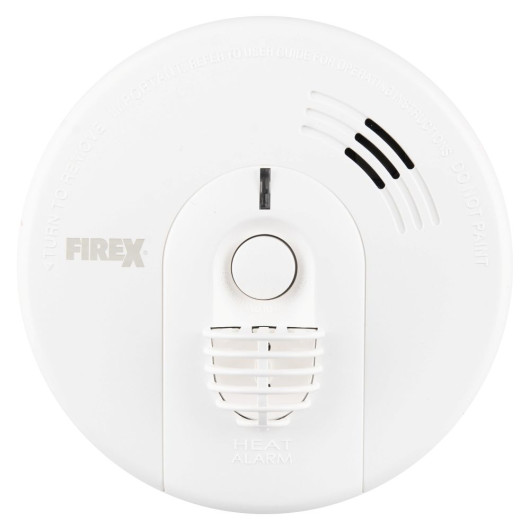

The updated Kidde Firex KF30 and KF30R alarms are mains powered interlinking heat alarms that are up to 70% more energy efficient than previous Firex models. These hard wired units have battery back-up cells and can be interlinked with other units from the series to create all round fire protection within the home. Heat alarms are the ideal detectors for kitchens and garages and are perfect for reducing nuisance alarms caused by cooking fumes and dust.
Please note: The Kidde Firex KF30 (previously KF3 / 4899 / H230CT) and KF30R (previously KF3R / 4892 / HR230CT) are replacements for the Kidde 323/9HI and 323/9HILL series and can be electrically interlinked. However, the new models cannot be used on the old base plates for the 323/9HI and 323/9HILL series as they use different style connector blocks. This means that base plates must be swapped over on those stated models and connectors need to be replaced.
C T
9th November 2026
E C
This was a like for like replacement for an out of date alarm. Easy to fit into existing frame
2nd November 2026
G C
Easy to fit as a replacement for kf30
21st October 2026
| Product Code | KEKF30 |
|---|---|
| Brand | Kidde |
| Manufacturer's Part Number | KF30 |
| Approvals & Markings | CE Marked |
| Back-Up Battery Type | Alkaline |
| British Standard Grade | Grade D2: Mains Powered (replaceable backup) |
| Colour | White |
| Compliance | BS 5446-2: 2003 |
| BS 5839-6 | |
| Connection | Wired |
| Display | LED Indicators |
| Fixing Options | Screws (included) |
| Installation Position | Ceiling |
| Local Legislation | Northern Ireland Legislation (2024) |
| Scottish Legislation (2022) | |
| Welsh Legislation (2022) | |
| Material | Plastic |
| Maximum Number of Linked Devices | 24 Devices |
| Operating Temperature | 0°C To +40°C |
| Positioning | Garages |
| Kitchens | |
| Unconverted Loft Spaces | |
| Power Type | Mains Powered (230V) |
| Product Range | Kidde Firex |
| Recyclable | Yes - Valpak's WEEE Distributor Take-back Scheme |
| Relative Humidity | Up To 93% |
| Sensor Type | Heat |
| Sound Level | 85dB |
| Suitability | Home |
| Warning Type | Audible - Alarm Sounder |
| Warranty | 6 Years |
| Dimensions (Unit) |
|
| Weight | 400g |
Alarms from the Same Series
The table below shows all the units that can interlink with the Firex KF Series.
| Model Number | Type of Unit | Type of Interlink |
| KF10 | Ionisation Smoke Alarm | Hardwire interlink |
| KF10R | Ionisation Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF20 | Optical Smoke Alarm | Hardwire interlink |
| KF20R | Optical Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF30 | Heat Alarm | Hardwire interlink |
| KF30R | Heat Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF21 | Optical Smoke Alarm | Hardwire interlink |
| KF21R | Optical Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF31 | Heat Alarm | Hardwire interlink |
| KF31R | Heat Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF1 | Ionisation Smoke Alarm | Hardwire interlink |
| KF1R | Ionisation Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF2 | Optical Smoke Alarm | Hardwire interlink |
| KF2R | Optical Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF3 | Heat Alarm | Hardwire interlink |
| KF3R | Heat Alarm with Rechargeable Lithium Cell | Hardwire interlink |
Carbon Monoxide Alarms
| Model Number | Type of Unit | Type of Interlink |
| 4MCO | CO Detector with Rechargeable Lithium Cell | Hardwire interlink |
| K4MCO | CO Detector with Rechargeable Lithium Cell | Hardwire interlink |
Compatible Alarms
| Model Number | Type of Unit | Type of Interlink |
| 1239HI | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 1239HILL | Ionisation Smoke Alarm with Lithium Battery | Hardwire interlink |
| 2239HI | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 2239HILL | Optical Smoke Alarm with Lithium Battery | Hardwire interlink |
| 3239HI | Heat Alarm with Alkaline Battery | Hardwire interlink |
| 3239HILL | Heat Alarm with Lithium Battery | Hardwire interlink |
| 4870 | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 4881 | Ionisation Smoke Alarm with Lithium Battery | Hardwire interlink |
| 4973 | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 4985 | Optical Smoke Alarm with Lithium Battery | Hardwire interlink |
| 4899 | Heat Alarm with Alkaline Battery | Hardwire interlink |
| 4892 | Heat Alarm with Lithium Battery | Hardwire interlink |
| I240C | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| PADC240 | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
I purchased this item to replace the same item. Replacing the item is straightforward as the base plate is the same so it is simply a matter of sliding the old one off and sliding the new one on. Safelincs deliver the items promptly and I am happy to recommend them.
