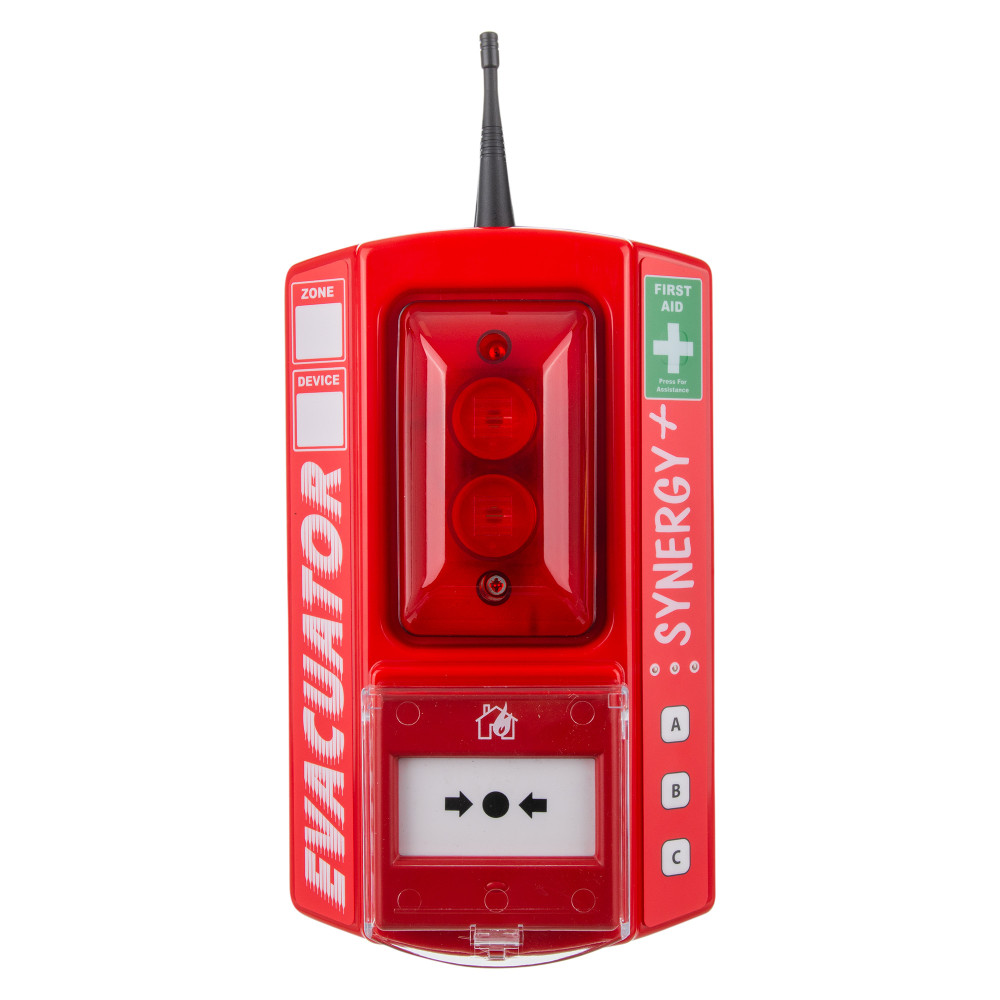

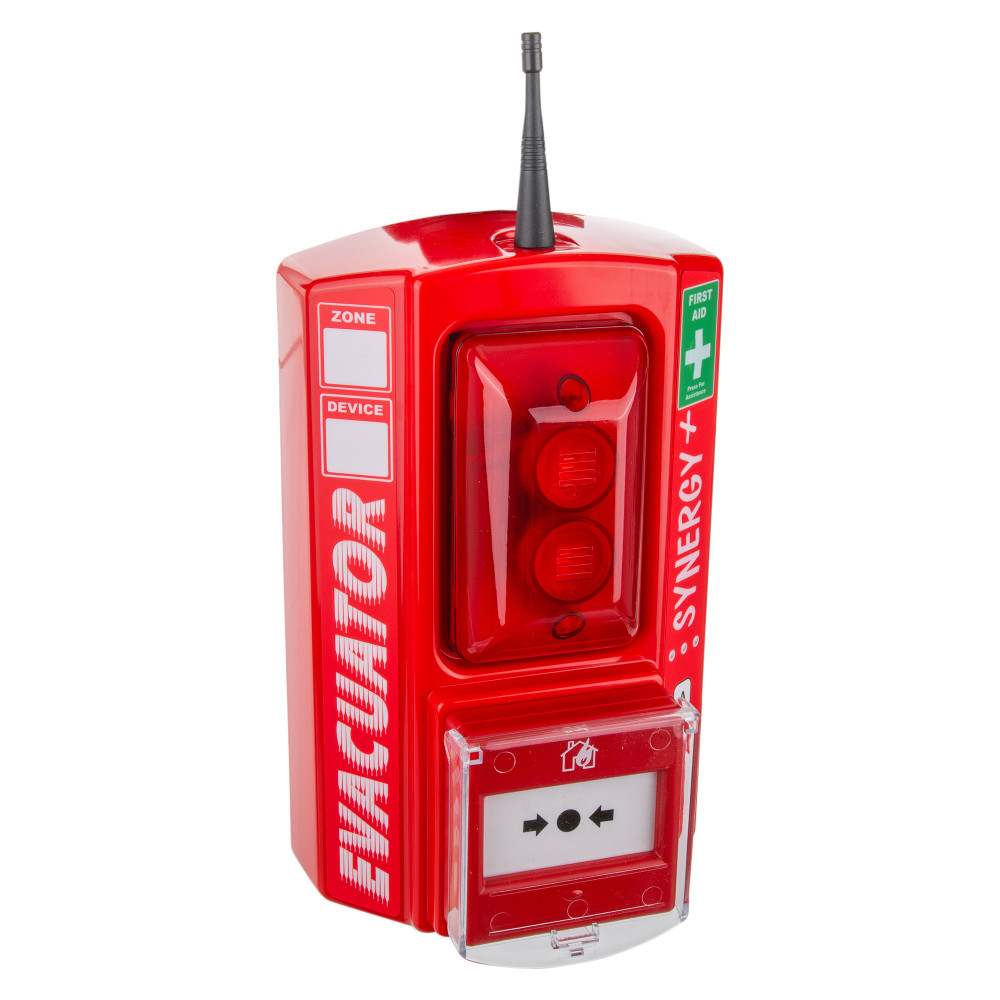

Evacuator Synergy+ Wireless Call Point Site Alarm with First Aid

Featuring a dedicated first aid call button, this Synergy+ site alarm can notify the touchscreen Base Station to a first aid emergency. It can also sound a general alarm via the integrated manual call point or wireless signal from the rest of the system, providing all functionality of the standard call point model. Replacing the previous Synergy RF range, Synergy Plus allows for up to 250 units to be interlinked wirelessly with around double the line-of-sight range, to provide alarm coverage across larger sites. Featuring an integrated hinge cover, a loud 110dB sounder with a powerful LED strobe light, and up to 3 years battery life.

Please Note: The Synergy+ range (red) is not compatible with the previous Synergy RF range (white).

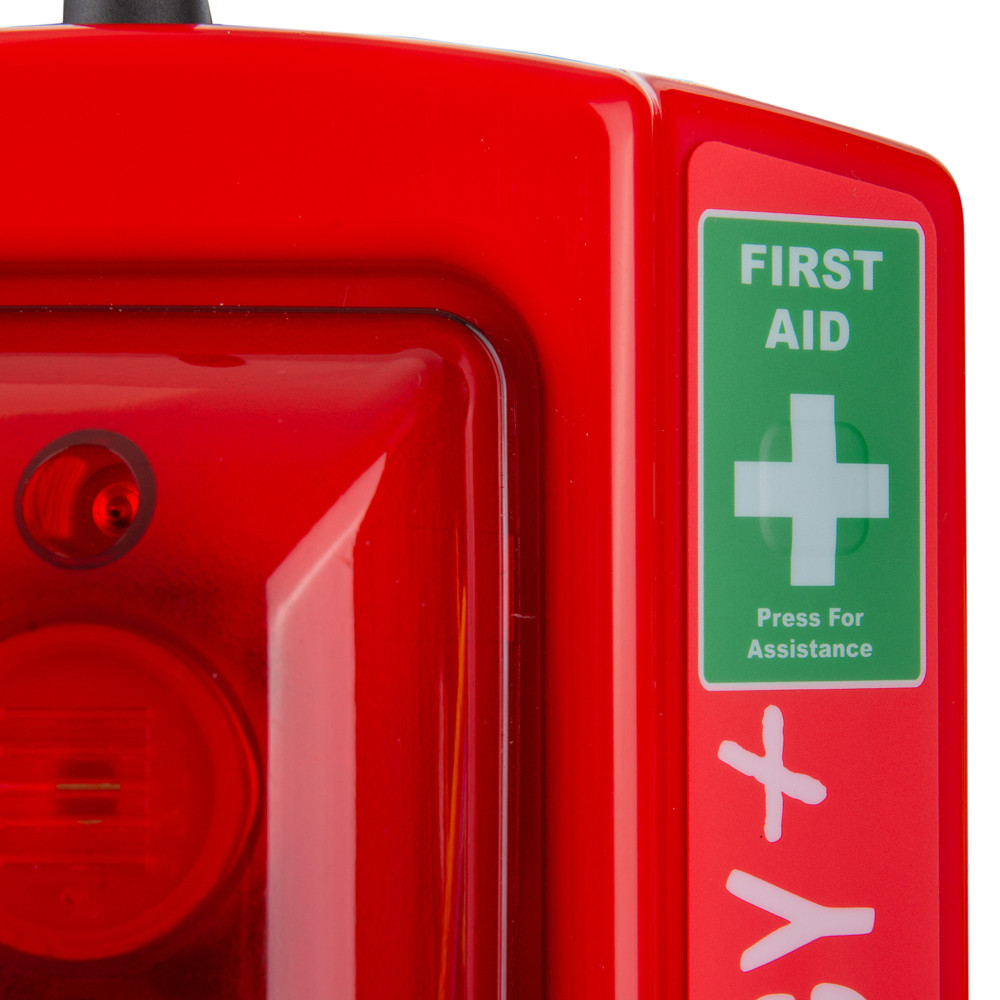

• Dedicated first aid button notifies the touchscreen Base Station to non-evacuation emergencies
• Synergy+ Base Station unit required for First Aid functionality

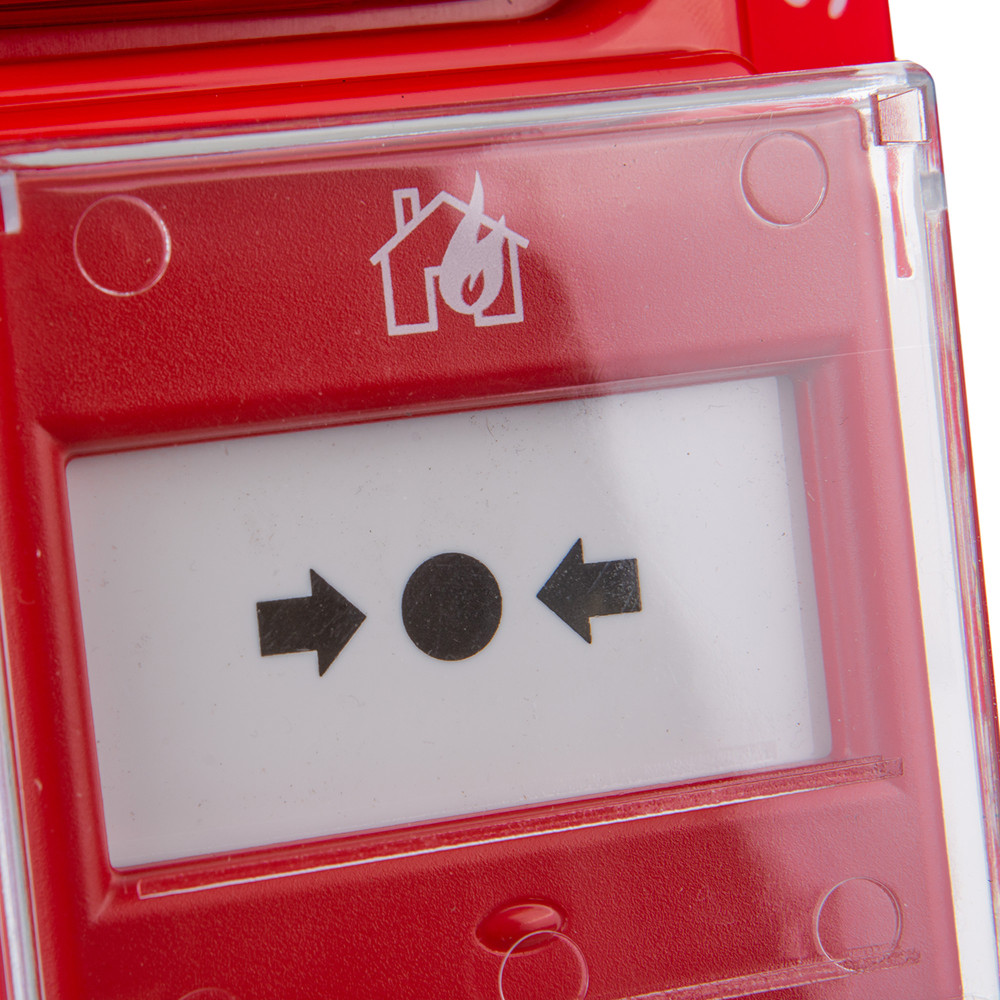

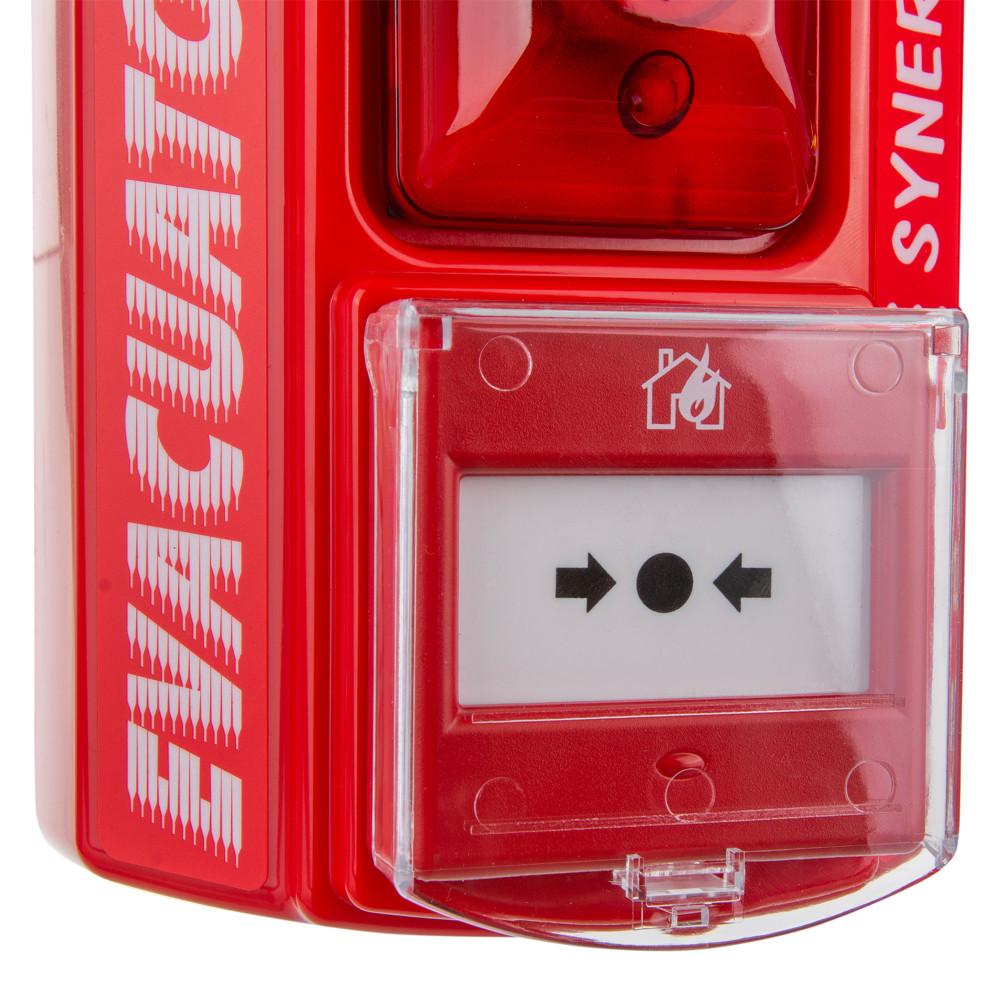

• Front facing call point for manual activation, supplied with hinged cover
• 4.5V battery powered site alarm – up to 3 years battery life
• Provides low battery and out of RF range warning
• Wirelessly interlink up to 250 other Synergy+ devices
• Mesh network connectivity – all in-range units communicate with each other, no single point of failure
• Monitor, test, and reset all units in a system from a single location (some features require a Base Station)
• Category One radio module using 869MHz
• Radio frequency range: 2000m line-of-sight

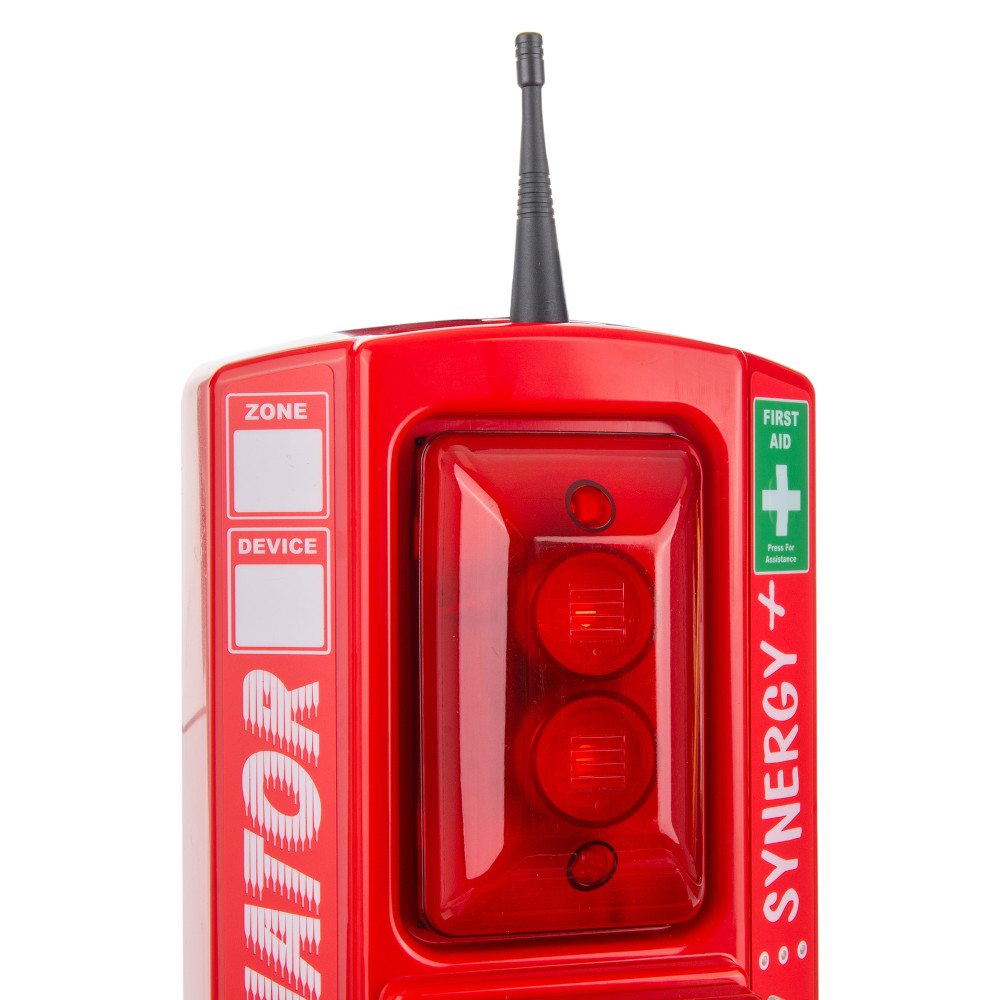

• Sounds a loud audible 110dB warning siren and powerful LED strobe light
• Notify up to 5 phone numbers for each fire and first aid alerts, requires connection to the GSM Gateway as part of the system
• IP55 rated for outdoor use
• Suitable for wall or post mounting

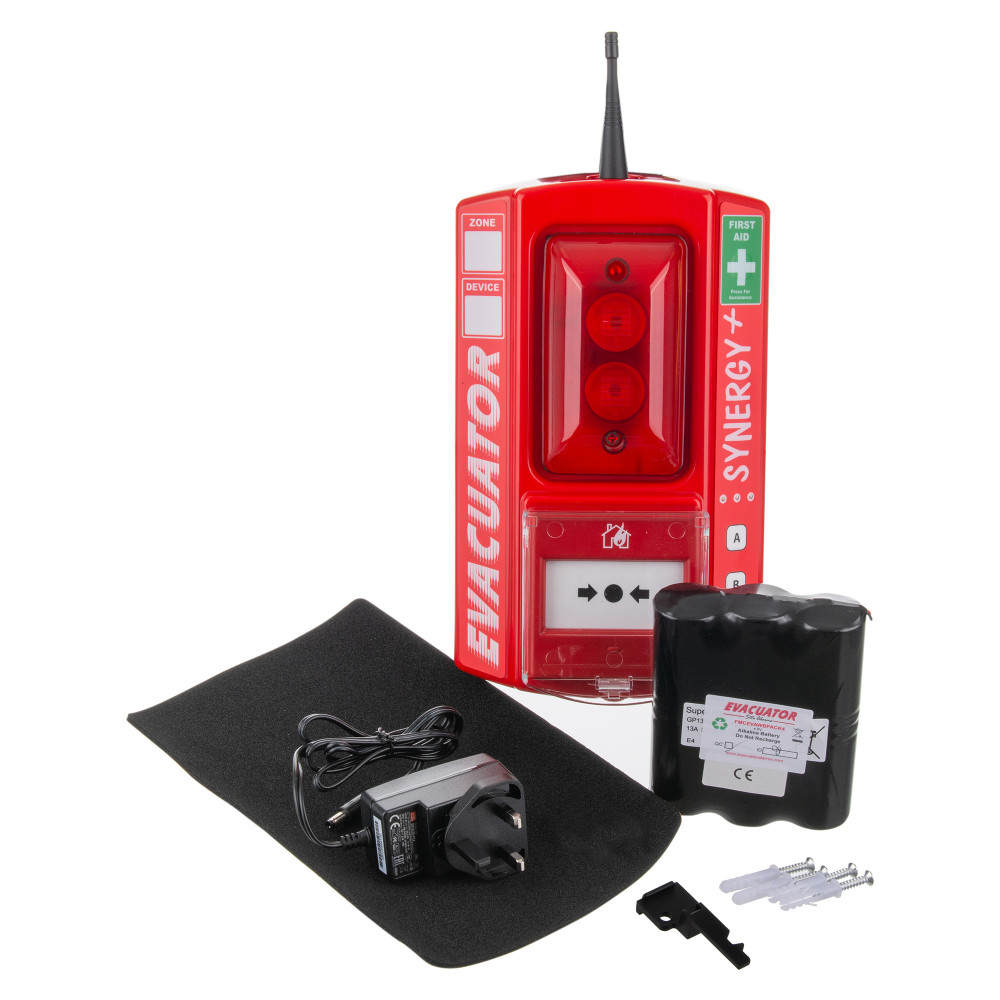

• Replacement battery packs (black) available separately
• CE, UKCA, RoHS, and EMC compliant

Please Note: Base Station units are required for First Aid or GSM Gateway functionality and also provide additional benefits for maintenance and testing, however they are not required for systems only utilising Call Points, Smoke & Heat Detectors, and Sounder / Strobe units.
