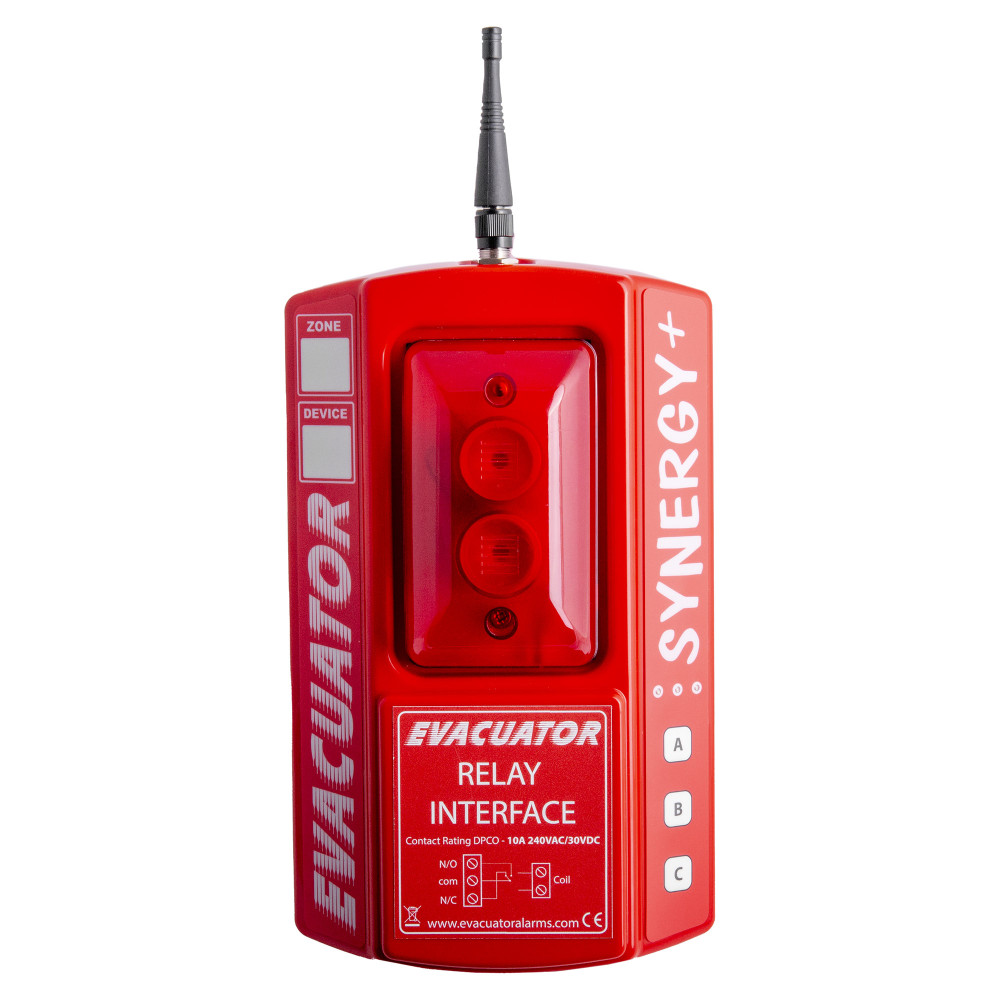

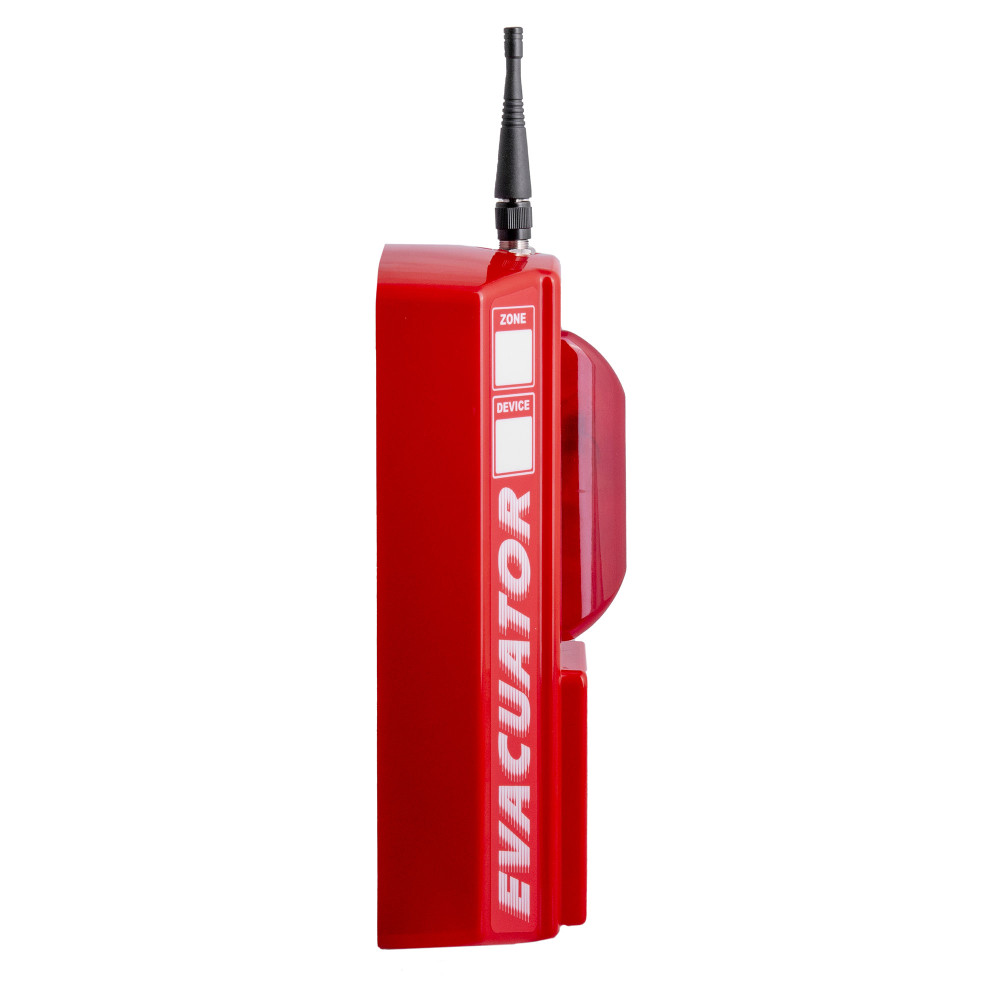

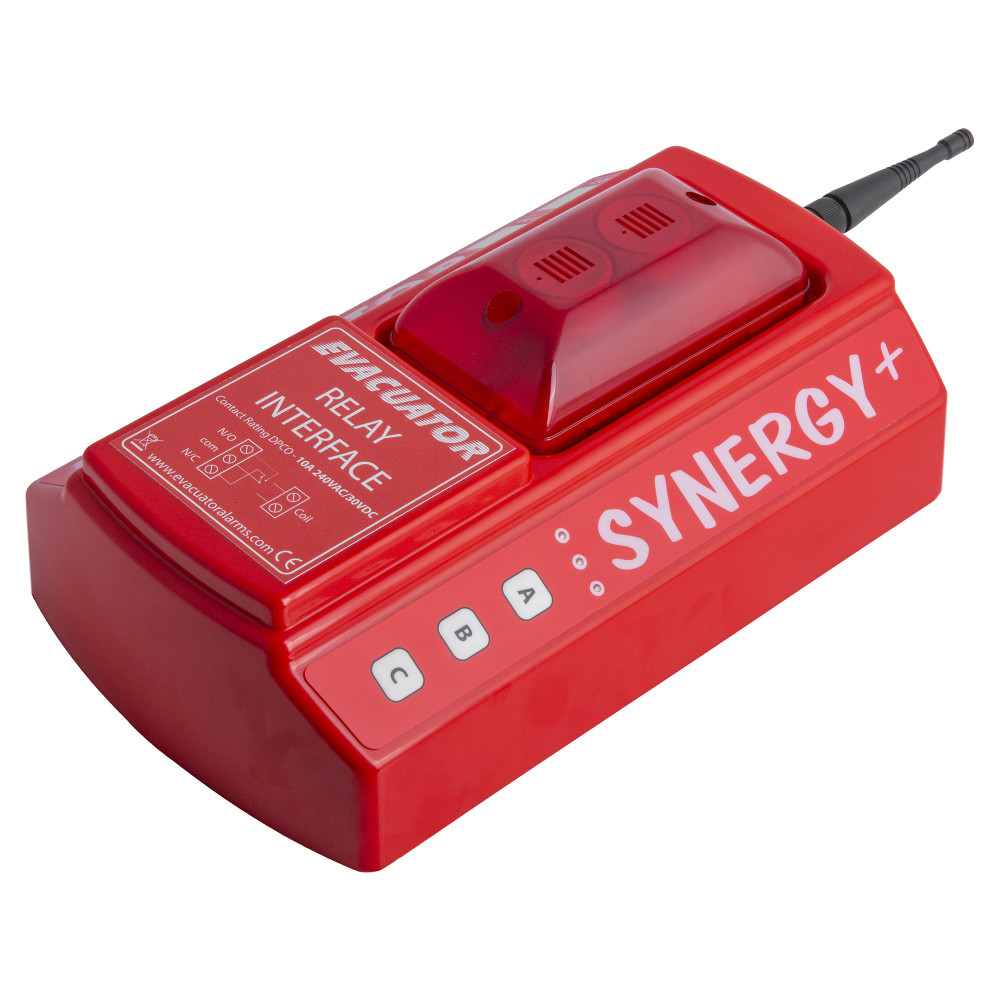

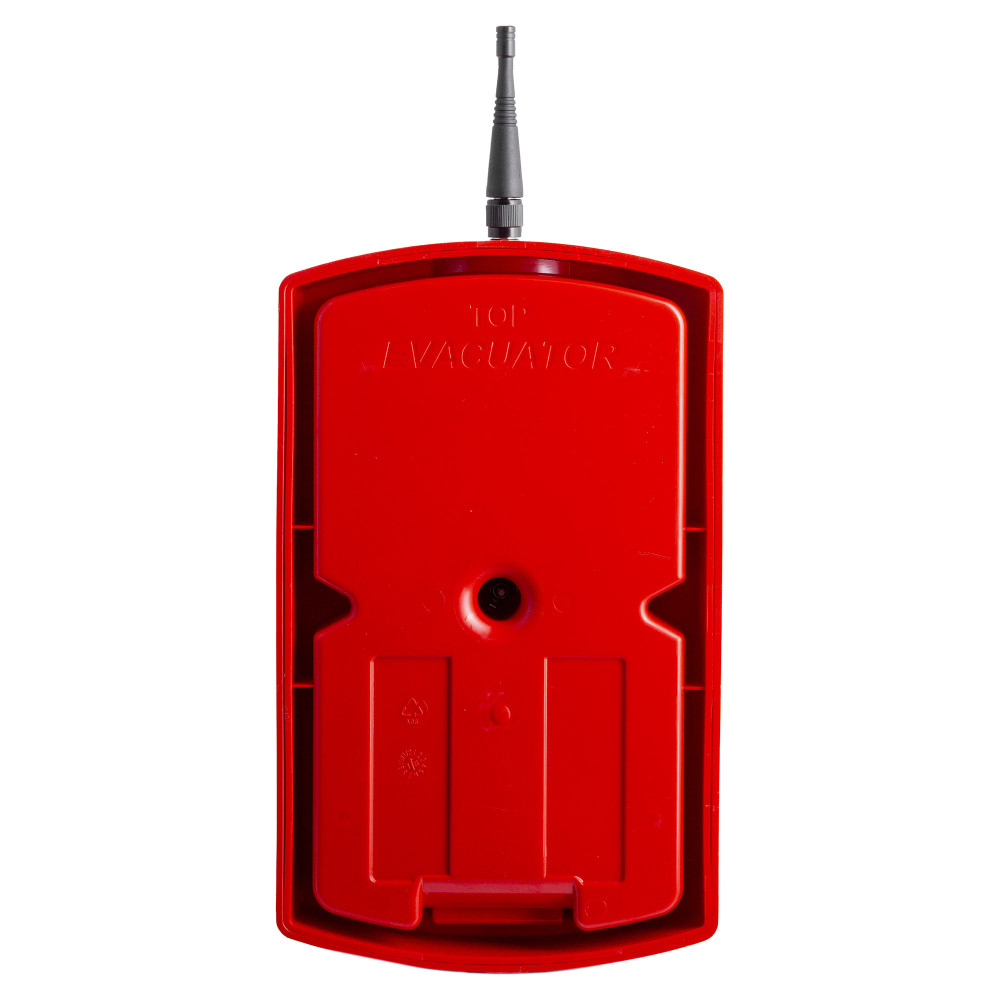

Evacuator Synergy+ Wireless Relay Interface

Allowing up to 250 units to be interlinked wirelessly, the Evacuator Synergy+ Relay Interface enables the management of automatically controlled devices in the event of a fire. Combined with an internal 110dB sounder and bright strobe, the relay also allows for emergency alerts to be heard and seen from a distance. The mesh network connectivity protects against a single faulty or low-battery unit compromising the entire system with overlapping RF coverage allowing all in-range units to communicate to each other.

Please Note: The Synergy+ range (red) is not compatible with the previous Synergy RF range (white).

• Wireless multifunctional relay interface
• 9V battery powered site alarm – up to 3 years battery life
• Integrated 110dB sounder and bright strobe light
• Low battery and out of radio frequency range warning
• Part of the Synergy+ wireless site alarm range
  • Wirelessly interlink up to 250 other devices
  • Mesh network connectivity – no single point of failure as communicates with all in-range units
  • Monitor, test, and reset all units in a system from a single location (some features require a Base Station)
  • Category One radio module
  • Radio frequency and range: 869MHz for 2000m line-of-sight
• IP55 rated – suitable for outdoor use
• Suitable for wall or post mounting on temporary sites
• Replacement battery packs (black) available separately
• CE, UKCA, RoHS, and EMC compliant

Please Note: Base Station units are not required for interlinking a Synergy+ system of Call Points, Smoke & Heat Detectors, and Sounder / Strobe units, but they do provide additional benefits for maintenance and testing, and are required for First Aid or GSM Gateway functionality.
